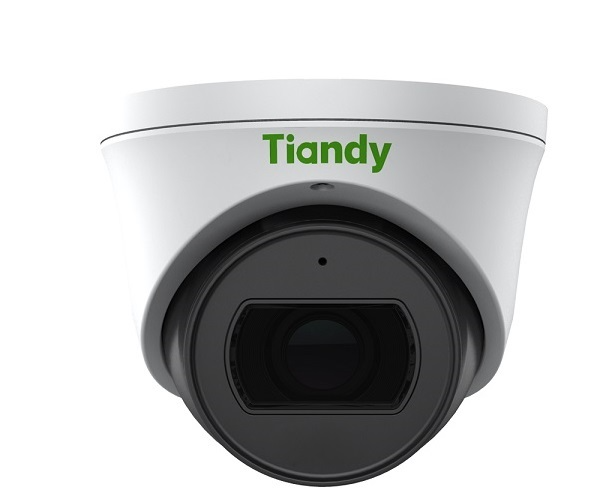

Camera IP Dome hồng ngoại 2.0 Megapixel TIANDY TC-C32MS(I5/A/E/Y/M/H/2.7-13.5mm/V4.0)
- Cảm biến hình ảnh: 1/2.8 inch CMOS.
- Độ phân giải: 2.0 Megapixel.
- Chuẩn nén hình ảnh: S+265/H.265/H.264/M-JPEG.
- Ống kính: 2.7-13.5mm/F1.6~F3.3, motozied lens.
- Độ nhạy sáng: Color: 0.001Lux@ (F1.6, AGC ON), B/W: 0Lux with IR.
- Tầm quan sát hồng ngoại: 50m.
- Tích hợp micro trên camera.
- Hỗ trợ thẻ nhớ tối đa 512GB.
- Hỗ trợ 1 cổng vào và 1 cổng ra audio.
- Hỗ trợ 2 cổng vào và 1 cổng ra alarm.
- Chức năng giảm nhiễu số 3D-DNR.
- Chức năng bù ngược sáng BLC, HLC.
- Chức năng chống ngược sáng thực WDR 120dB.
- Chuẩn ONVIF quốc tế, hỗ trợ tên miền miễn phí.
- Tiêu chuẩn chống thấm nước và bụi: IP67 (thích hợp sử dụng trong nhà và ngoài trời).
- Tiêu chuẩn chống va đập: IK10.
- Nguồn điện: DC 12V, PoE.
- Vỏ kim loại.
Đặc tính kỹ thuật
Camera | |
Image Sensor | 1/2.8 inch CMOS |
Signal System | PAL/NTSC |
Min. Illumination | Color: 0.001Lux@ (F1.6, AGC ON), B/W: 0Lux with IR |
Shutter Time | 1s to 1/100,000s |
Day & Night | Dual IR Cut Filter with Auto Switch |
Wide Dynamic Range | 140dB |
Angle Adjustment | pan 0~330°, tilt 0~75°, roate 0~350° |
Lens | |
Lens Type | Motorized |
Focus | 2.7-13.5mm |
Lens Mount | 14 |
Aperture | F1.6~F3.3, Fixed |
FOV | Horizontal field of view: 102.8° ~ 31.3° |
Illuminator | |
IR LEDs | 18 |
IR Range | Up to 50m |
Wavelength | 850nm |
Compression Standard | |
Video Compression | S+265/H.265/H.264/M-JPEG |
Video Bit Rate | 32Kbps~8Mbps |
Audio Compression | G.711A/G.711U/ADPCM_D/AAC_LC |
Audio Bit Rate | 8K~48Kbps |
Image | |
Max. Resolution | 1920x1080 |
Main Stream | PAL: 25fps (1920×1080, 1280×720, 704×576, 640×480) |
NTSC: 30fps (1920×1080,1280×720, 704×480, 640×480) | |
Sub Stream | PAL: 25fps (704×576, 704×288, 640×360, 352×288) |
NTSC: 30fps (704×480, 704×240, 640×360, 352×240) | |
Third Stream | PAL: 25fps(704×576, 704×288, 352×288) NTSC: 30fps(704×480, 704×240, 352×240) |
Image Setting | Saturation, brightness, contrast, sharpness, adjustable by client software or web browser |
Image Enhancement | BLC/3D DNR/HLC/Corridor Format |
ROI | Support 8 fixed regions of coding |
OSD | 16×16, 32×32, 48×48, 64×64, adaptable size, Letters Such as Week, Date, Time, Total 8 Regions |
Picture Overlay | Yes |
Privacy Mask | Yes, 4 regions |
Smart Defog | Yes |
Feature | |
Event Input, Event Output, Motion Detection, Mask Alarm, Disk Full, Disk R/W Error, IP Address Conflict, MAC Address Conflict, FTP Server Exception, Voltage Abnormal | |
Alarm Trigger | |
Tripwire, Double Tripwire, Perimeter, Object Abandon, Object Lost, Loitering, Running, Parking, Crowed, People Counting, On Duty Detection, Video Abnormal, Audio Abnormal, Heatmap, Face Capture(Face Detection), Human/Vehicle Classification | |
Video Analytics | |
Network | |
Yes, auto store video in SD card when NVR disconnected, and upload video to NVR when resumed connection (Only Support Tiandy ANR NVR) | |
ANR | |
TCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, MULTICAST, UPnP, FTP, IPV4, NTP, SMTP, IGMP, 802.1x, QoS, IPV6, ARP, UDP, SNMP, SSL, Telnet, SNTP, RTMP, SFTP, NFS | |
Protocols | |
System Compatibility | ONVIF (PROFILE S/T/G), SDK, Milestone, CGI, P2P |
Remote Connection | 7 |
Client | Easy7, EasyLive |
Web Version | Web6 |
Interface | |
Communication Interface | 1 RJ45 10M/ 100M self adaptive Ethernet port, RS 485 |
Audio | 1/1, Mic in |
Alarm | 2/1 |
Reset Button | Yes |
On-board storage | Built-in Micro SD card slot, up to 512 GB |
General | |
Web Client Language | 15 languages English, Russian, Spanish, Korean, Italian, Turkish, Simple Chinese, Traditional Chinese, Thai, French, Polish, Dutch, Hebraism, Arabic, Vietnamese |
Operating Conditions | -35 ~65 , 0~95% RH |
Power Supply | DC12V±25%/PoE |
Power Consumption | MAX: 7.5W (12V) MAX: 9W (PoE) |
Protection | IP67, IK10, Lightning protection, surge protection and voltage transient protection meets EN 55035:2017 |
Dimensions | Φ120 × 90 mm |
Weight | 0.95kg |
