THÔNG SỐ KỸ THUẬT:

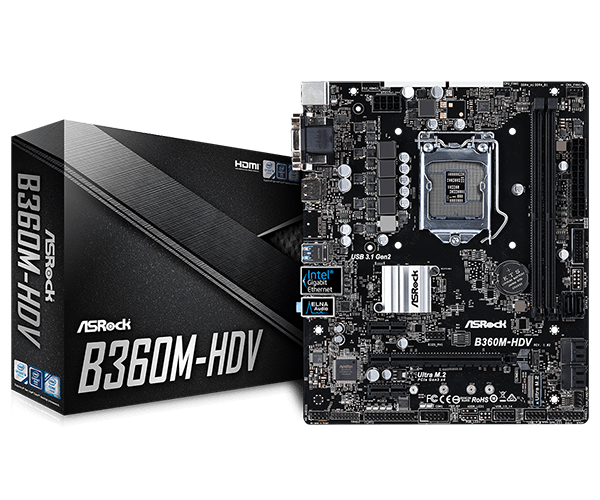

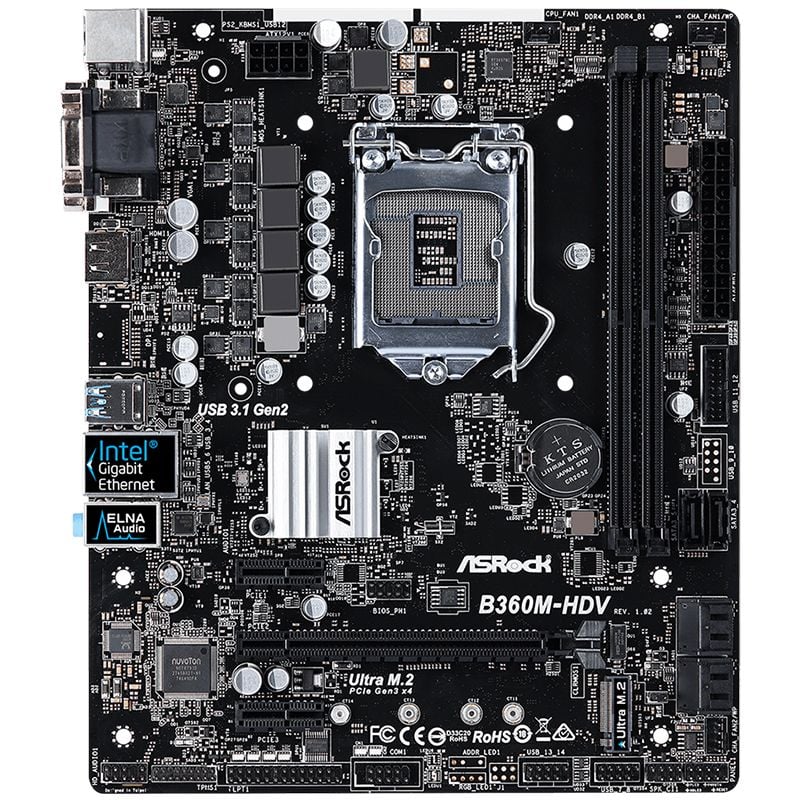

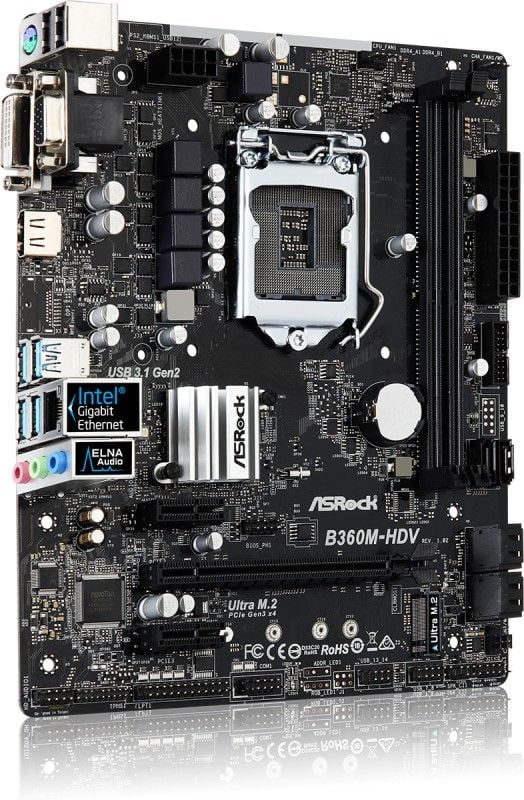

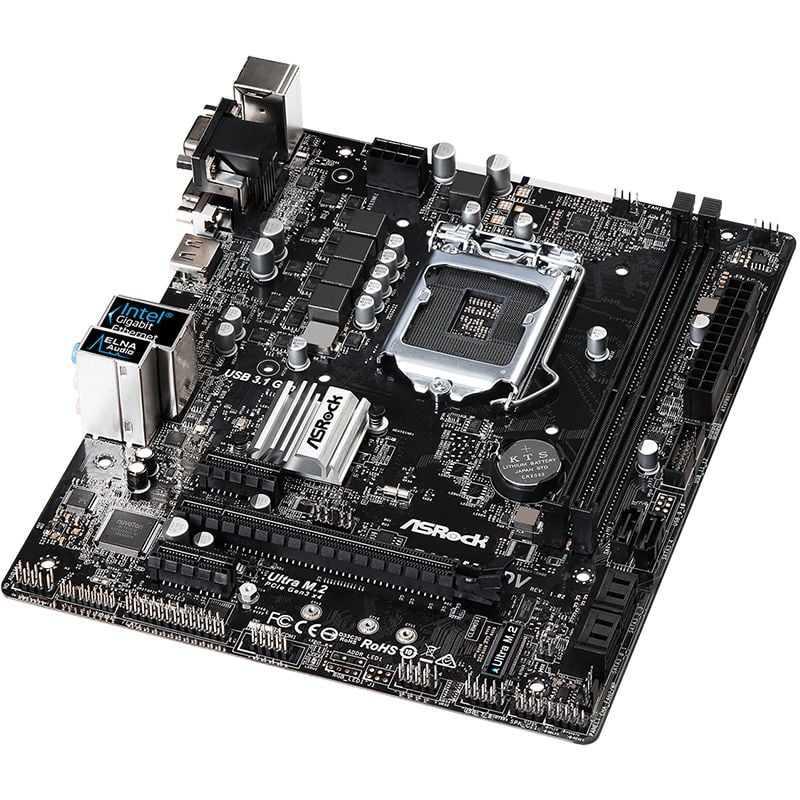

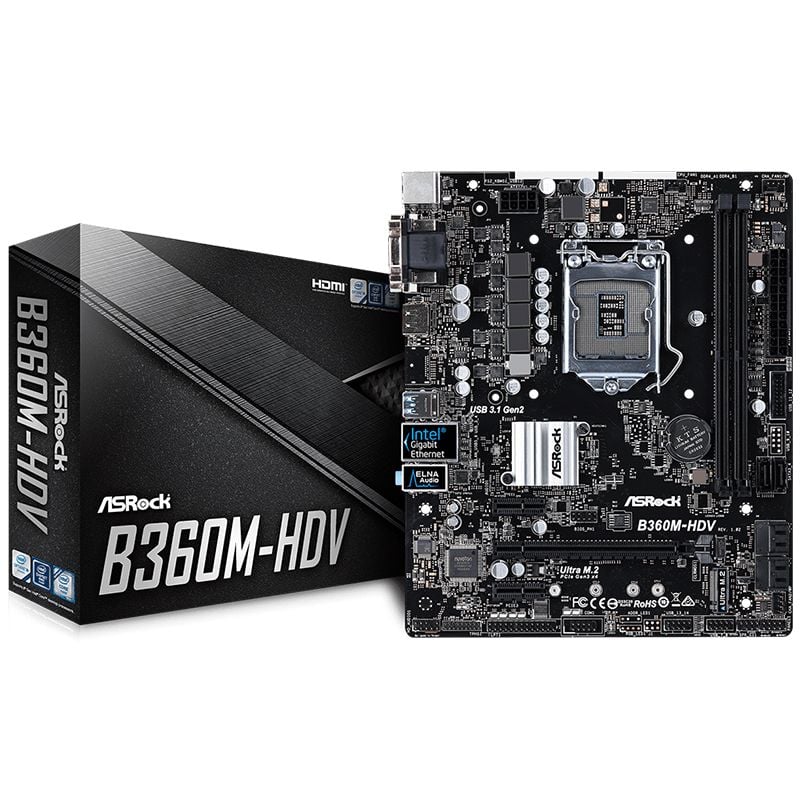

Bo mạch chủ - MAIN ASROCK B360M-HDV đến từ thương hiệu MAIN ASROCK
| Model | B360M-HDV |
| CPU | - Supports 8th Generation Intel® Core™ Processors (Socket 1151) - Supports CPU up to 95W - 5 Power Phase design - Supports Intel® Turbo Boost 2.0 Technology |
| Chipset | - Intel® B360 |
| Memory | - Dual Channel DDR4 Memory Technology - 2 x DDR4 DIMM Slots - Supports DDR4 2666 / 2400 / 2133 non-ECC, un-buffered memory - Max. capacity of system memory: 32GB* - Supports Intel® Extreme Memory Profile (XMP) 2.0 - 15μ Gold Contact in DIMM Slots |
| BIOS | - 128Mb AMI UEFI Legal BIOS with multilingual GUI support - ACPI 6.0 Compliant wake up events - SMBIOS 2.7 Support - CPU, GT_CPU, DRAM, PCH 1.05V Voltage Multi-adjustment |
| LAN | - Gigabit LAN 10/100/1000 Mb/s - Giga PHY Intel® I219V - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports Energy Efficient Ethernet 802.3az - Supports PXE |
| Slots | - 1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode)* - 2 x PCI Express 3.0 x1 Slots (Flexible PCIe) |
| Storage | - 6 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug - 1 x Ultra M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) |
| Form Factor | - Micro ATX Form Factor: 8.9-in x 7.4-in, 22.6 cm x 18.8 cm - Solid Capacitor design |
| OS | - Microsoft® Windows® 10 64-bit |
| Bảo hành | 36 Tháng |
