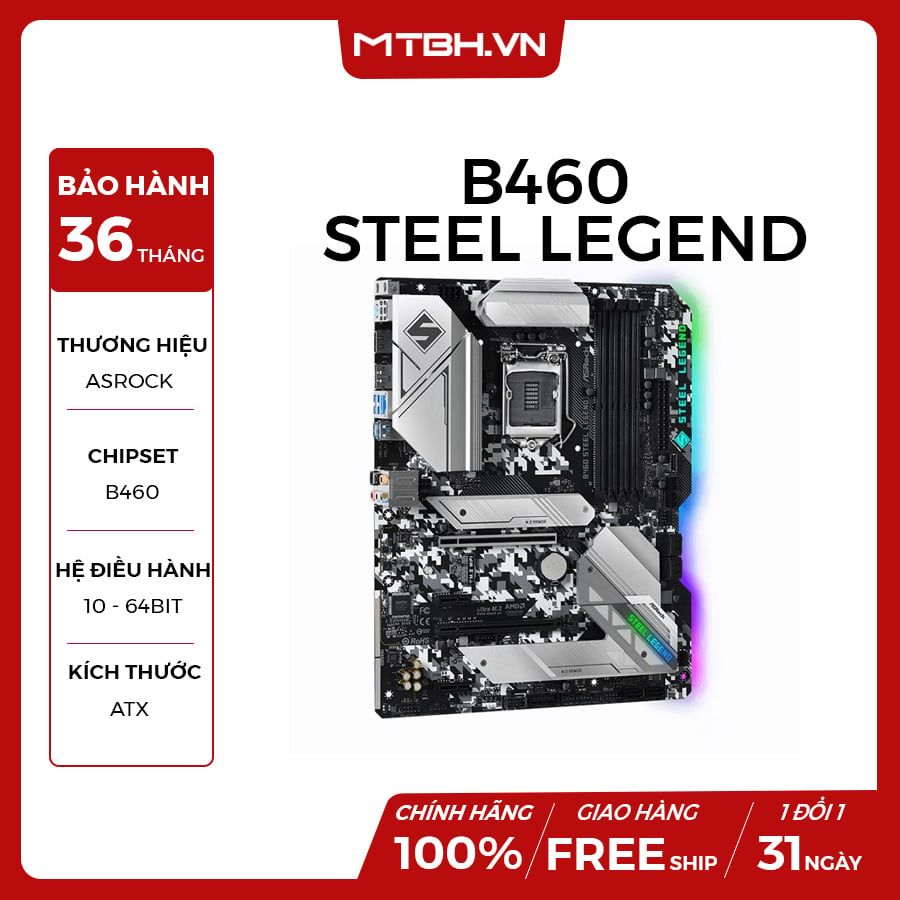

MAIN ASROCK B460 Steel Legend

Mua Card INTEL WIFI 6 Chỉ với 890K Khi mua kèm Main

  • Thương hiệu: ASROCK
  • Loại: MAINBOARD
  • SKU: SP008147

Tại Máy Tính Biên Hòa: 3,299,000₫

  • GIAO HÀNG
    GIAO HÀNG
    Miễn phí giao hàng toàn quốc
    ( Hóa đơn trên 500,000đ )
  • SẢN PHẨM
    SẢN PHẨM
    Cam kết hàng mới 100%
    Bảo hành chính hãng
  • ĐỔI TRẢ
    ĐỔI TRẢ
    Lỗi nhà sản xuất 1 đổi 1
    Trong vòng 31 ngày đầu tiên
  • Hỗ trợ
    Hỗ trợ
    Thứ 2 - CN: 09:00 - 19:00
    Hotline: 1800.799.999

Chia sẻ ngay

* THÔNG SỐ KỸ THUẬT


Sản phẩmMainboard - Bo mạch chủ
Tên HãngAsrock
ModelB460 Steel Legend
Tính năng độc đáo
ASRock Super Alloy
- XXL Aluminum Alloy Heatsink
- Premium 60A Power Choke
- 50A Dr.MOS
- Combo Caps (Nichicon 12K Black Caps)
- Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
- Shaped PCB Design
- Matte Black PCB
- High Density Glass Fabric PCB 2.5G LAN
ASRock Steel Slots ASRock Full Coverage M.2 Heatsink
ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3) ASRock POST Status Checker (PSC)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop
Hỗ trợ CPU (Bộ vi xử lý)- Supports 10th Gen Intel® Core Processors (Socket 1200)
- Digi Power design
- 9 Power Phase design
- Supports Intel® Turbo Boost Max 3.0 Technology
Chipset
- Intel® B460
RAM hỗ trợ
- Dual Channel DDR4 Memory Technology
- 4 x DDR4 DIMM Slots
- Supports DDR4 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory*
- Supports ECC UDIMM memory modules (operate in non-ECC mode)
- Max. capacity of system memory: 128GB**
- Supports Intel® Extreme Memory Profile (XMP) 2.0
- 15μ Gold Contact in DIMM Slots

*Please refer to Memory Support List on ASRock's website for more information.
Core™ (i9/i7) support DDR4 up to 2933; Core™ (i5/i3), Pentium® and Celeron® support DDR4 up to 2666.

**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
BIOS- 128Mb AMI UEFI Legal BIOS with multilingual GUI support
- ACPI 6.0 Compliant wake up events
- SMBIOS 2.7 Support
- CPU Core/Cache, GT, DRAM, PCH, VCCST, VCCSA Voltage Multi-adjustment
Hình Ảnh
- Hardware Accelerated Codecs: AVC/H.264, HEVC/H.265 8bit, HEVC/H.265 10bit, VP8, VP9 8bit, VP9 10bit, MPEG 2, MJPEG, VC-1**
- Graphics, Media & Compute: Microsoft® DirectX 12, OpenGL 4.5, Intel® Built In Visuals, Intel® Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1
- Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft® PlayReady 3.0, Intel® SGX Content Protection, UHD/HDR Blu-ray Disc
- Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers
- Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz
- Supports DisplayPort 1.4 with max. resolution up to 4K x 2K (4096x2304) @ 60Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required)
- Supports HDCP 2.3 with HDMI 1.4 and DisplayPort 1.4 Ports
- Supports 4K Ultra HD (UHD) playback with HDMI 1.4 and DisplayPort 1.4 Ports

*Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

**VP9 10bit and VC-1 are for decode only.
VP8 and VP9 encode are not supported by Windows® OS.
Âm Thanh- 7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec)
- Premium Blu-ray Audio support
- Supports Surge Protection
- 110dB SNR DAC with Differential Amplifier
- PCB Isolate Shielding
- Individual PCB Layers for R/L Audio Channel
- Gold Audio Jacks
- 15μ Gold Audio Connector
- Nahimic Audio
LAN
- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
- Dragon RTL8125BG
- Supports Dragon 2.5G LAN Software
- Smart Auto Adjust Bandwidth Control
- Visual User Friendly UI
- Visual Network Usage Statistics
- Optimized Default Setting for Game, Browser, and Streaming Modes
- User Customized Priority Control
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE
Khe cắm mở rộng
- 2 x PCI Express 3.0 x16 Slots (PCIE1/PCIE3: single at x16 (PCIE1); dual at x16 (PCIE1) / x4 (PCIE3)*
- 2 x PCI Express 3.0 x1 Slots
- Supports AMD Quad CrossFireX™ and CrossFireX™
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module
- 15μ Gold Contact in VGA PCIe Slot (PCIE1)

*Supports NVMe SSD as boot disks
Ổ cứng hỗ trợ
- 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 17), NCQ, AHCI and Hot Plug*
- 1 x Ultra M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**
- 1 x Ultra M.2 Socket (M2_2), supports M Key type 2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**

*If M2_2 is occupied by a SATA-type M.2 device, SATA3_0 will be disabled.

**Supports Intel® Optane™ Technology (M2_1)
Supports NVMe SSD as boot disks** Supports ASRock U.2 Kit
Cổng kết nối (Bên trong)
- 1 x SPI TPM Header
- 1 x Chassis Intrusion and Speaker Header
- 2 x RGB LED Headers*
- 2 x Addressable LED Headers**
- 1 x CPU Fan Connector (4-pin)***
- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
- 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
- 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
- 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
- 1 x Front Panel Audio Connector (15μ Gold Audio Connector)
- 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 3 AIC R2.0 Card only)
- 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) (Intel® B460) (Supports ESD Protection)
- 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Intel® B460+ASMedia ASM1074 hub) (Supports ESD Protection)
- 1 x Front Panel Type C USB 3.2 Gen1 Header (ASMedia ASM1074 hub) (Supports ESD Protection)

*Support in total up to 12V/3A, 36W LED Strip

**Support in total up to 5V/3A, 15W LED Strip

***The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

****The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.

*****The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP, CHA_FAN3/WP, CHA_FAN4/WP and CHA_FAN5/WP can auto detect if 3-pin or 4-pin fan is in use.

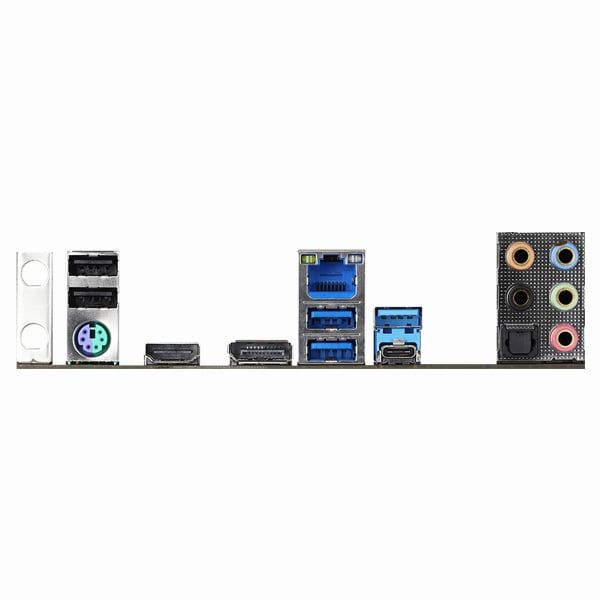

Cổng kết nối (Phía Sau)- 1 x Antenna Bracket
- 1 x PS/2 Mouse/Keyboard Port
- 1 x HDMI Port
- 1 x DisplayPort 1.4
- 1 x Optical SPDIF Out Port
- 2 x USB 2.0 Ports (Supports ESD Protection)
- 3 x USB 3.2 Gen1 Type-A Ports (Supports ESD Protection)
- 1 x USB 3.2 Gen1 Type-C Port (Supports ESD Protection)
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)
Phần mềm và UEFI
Software
- ASRock Motherboard Utility (A-Tuning)
- ASRock Dragon 2.5G LAN Software
- ASRock Polychrome SYNC*
UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock Instant Flash
- ASRock Internet Flash
- ASRock Easy RAID Installer

*These utilities can be downloaded from ASRock Live Update & APP Shop.
Kích cỡ
- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
Chứng nhận- FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)

GIỚI THIỆU SẢN PHẨM

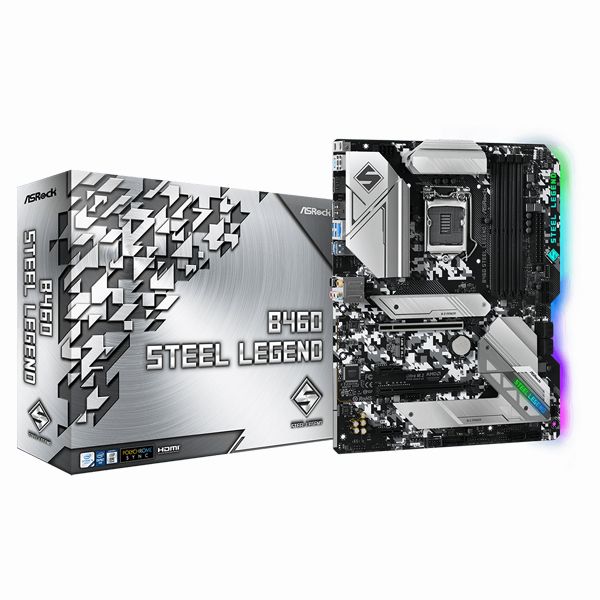

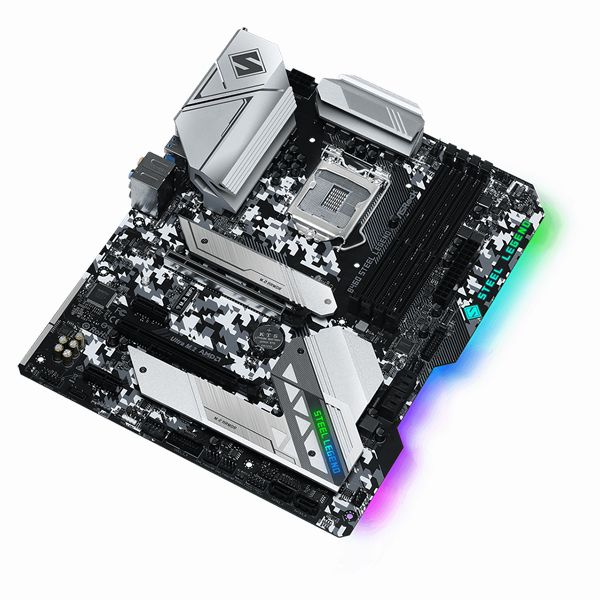

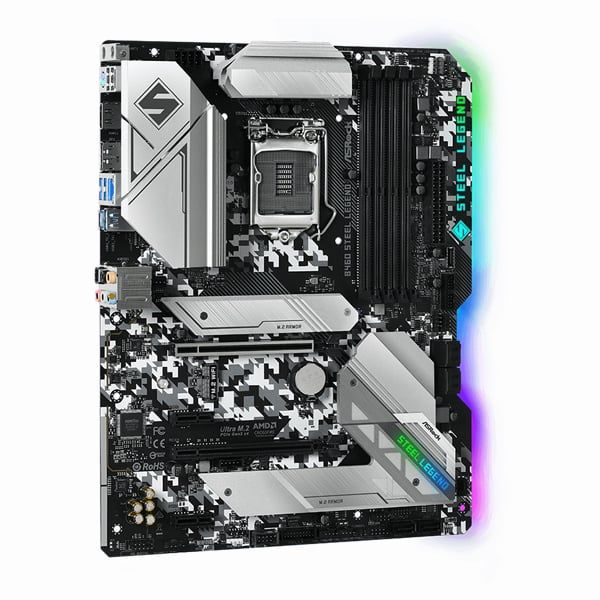

Mainboard Asrock B460 Steel Legend

Mainboard Asrock B460 Steel Legend

Hỗ trợ Bộ xử lý Intel® Core™ thế hệ thứ 10 (LGA1200)
Thiết kế điện 9 pha Dr.MOS
Hỗ trợ 128GB DDR4 2933 MHz

B460 Steel Legend

AMD CrossFireX™
Tùy chọn đầu ra đồ họa: HDMI, DisplayPort

LAN 2.5 Gigabit

2 PCIe 3.0 x16, 2 PCIe 3.0 x1, 1 M.2 (Khóa E) cho WiFi
Âm thanh 7.1 CH HD (Bộ giải mã âm thanh Realtek ALC1200), Âm thanh Nahimic


Asrock B460 Steel Legend

6 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3), 1 Ultra M.2 (PCIe Gen3 x4)
7 x USB 3.2 Gen1 (1 x Loại C, 3 x Loại A, 2 x Mặt trước, 1 x Loại C)
ASRock Polychrome SYNC
