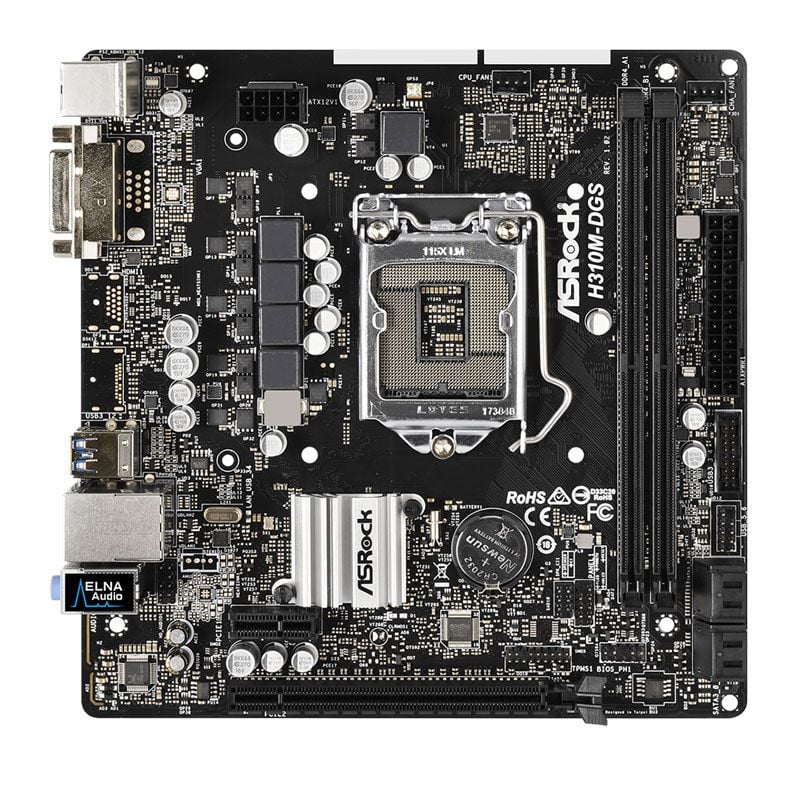

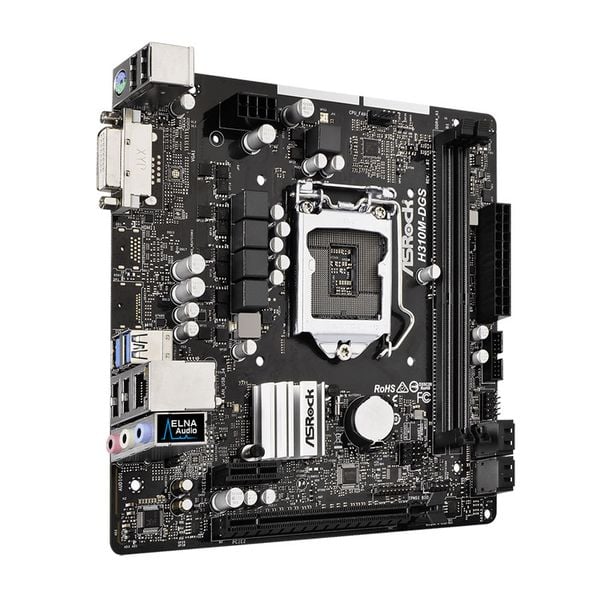

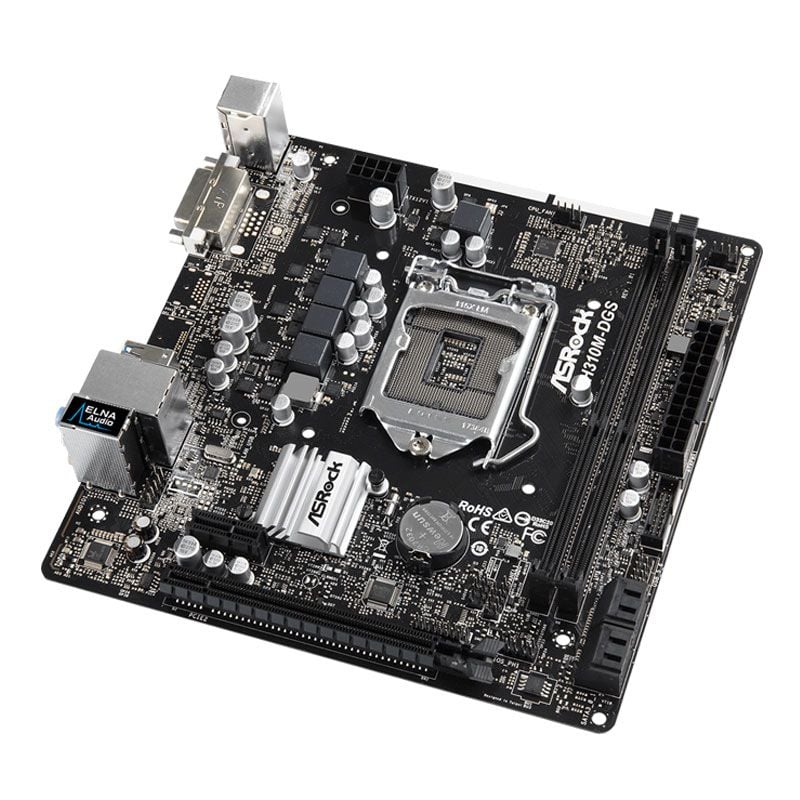

MAIN ASROCK H310M-DGS

  • Thương hiệu: ASROCK
  • Loại: MAINBOARD
  • SKU: SP004359

Tại Máy Tính Biên Hòa: 1,450,000₫

  • GIAO HÀNG
    GIAO HÀNG
    Miễn phí giao hàng toàn quốc
    ( Hóa đơn trên 500,000đ )
  • SẢN PHẨM
    SẢN PHẨM
    Cam kết hàng mới 100%
    Bảo hành chính hãng
  • ĐỔI TRẢ
    ĐỔI TRẢ
    Lỗi nhà sản xuất 1 đổi 1
    Trong vòng 31 ngày đầu tiên
  • Hỗ trợ
    Hỗ trợ
    Thứ 2 - CN: 09:00 - 19:00
    Hotline: 1800.799.999

Chia sẻ ngay

THÔNG SỐ KỸ THUẬT

Bo mạch chủ - MAIN ASROCK H310M-DGS đến từ thương hiệu MAIN ASROCK

Unique FeatureASRock Super Alloy
- Sapphire Black PCB
- High Density Glass Fabric PCB
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop
CPU- Supports 8th Generation Intel® Core™ Processors (Socket 1151)
- Supports CPU up to 95W
- 5 Power Phase design
- Supports Intel® Turbo Boost 2.0 Technology
Chipset- Intel® H310
Memory- Dual Channel DDR4 Memory Technology
- 2 x DDR4 DIMM Slots
- Supports DDR4 2666 / 2400 / 2133 non-ECC, un-buffered memory
- Max. capacity of system memory: 32GB*
- Supports Intel® Extreme Memory Profile (XMP) 2.0

*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
BIOS- 128Mb AMI UEFI Legal BIOS with multilingual GUI support
- ACPI 6.0 Compliant wake up events
- SMBIOS 2.7 Support
- DRAM, PCH 1.05V Voltage Multi-adjustment
Graphics- Supports Intel® UHD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® UHD Graphics
- DirectX 12
- HWA Encode/Decode: AVC/H.264, HEVC/H.265 8-bit, HEVC/H.265 10-bit, VP8, VP9 8-bit, VP9 10-bit (Decode only), MPEG2, MJPEG, VC-1 (Decode only)
- Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz
- Supports HDCP with DVI-D Port

*Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
Audio- 7.1 CH HD Audio (Realtek ALC887 Audio Codec)*
- Supports Surge Protection
- ELNA Audio Caps

*To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
LAN- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- 1 x Realtek RTL8111H
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE
Slots- 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)
- 1 x PCI Express 2.0 x1 Slot

*Supports NVMe SSD as boot disks
Storage- 4 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug
Connector- 1 x TPM Header
- 1 x Chassis Intrusion and Speaker Header
- 1 x CPU Fan Connector (4-pin)*
- 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector
- 1 x Front Panel Audio Connector
- 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
- 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)

*The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

**The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use.

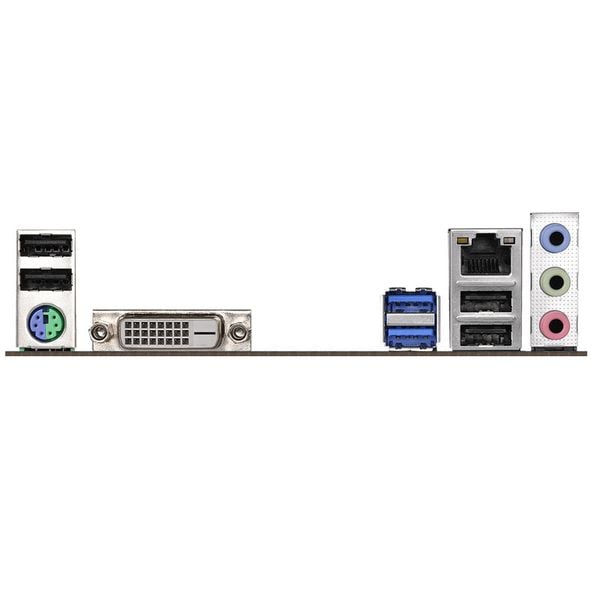

Rear Panel I/O- 1 x PS/2 Mouse/Keyboard Port
- 1 x DVI-D Port
- 4 x USB 2.0 Ports (Supports ESD Protection)
- 2 x USB 3.1 Gen1 Ports (Supports ESD Protection)
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jacks: Line in / Front Speaker / Microphone
Software and UEFISoftware
- ASRock A-Tuning
- ASRock XFast LAN
UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock Instant Flash
- ASRock Internet Flash

*These utilities can be downloaded from ASRock Live Update & APP Shop.
Support CD- Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
Accessories- Quick Installation Guide, Support CD, I/O Shield
- 2 x SATA Data Cables
Hardware Monitor- Temperature Sensing: CPU, Chassis/Water Pump Fans
- Fan Tachometer: CPU, Chassis/Water Pump Fans
- Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis/Water Pump Fans
- Fan Multi-Speed Control: CPU, Chassis/Water Pump Fans
- CASE OPEN detection
- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore
Form Factor- Micro ATX Form Factor: 7.5-in x 7.4-in, 19.1 cm x 18.8 cm
- Solid Capacitor design
OS- Microsoft® Windows® 10 64-bit
Certifications- FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)
