THÔNG SỐ KỸ THUẬT

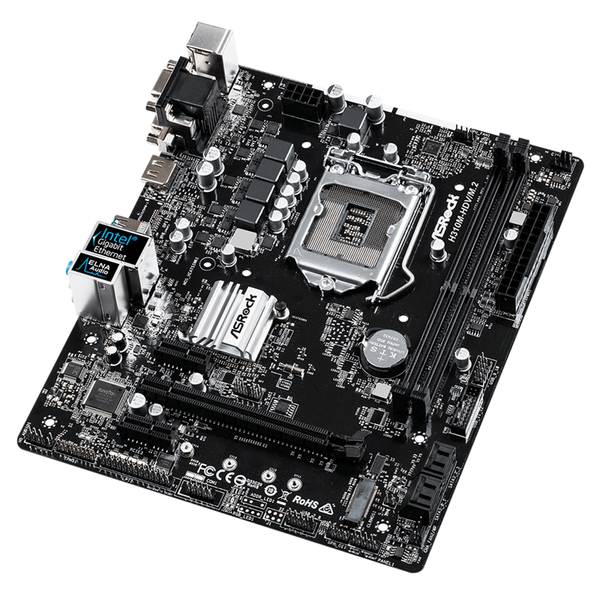

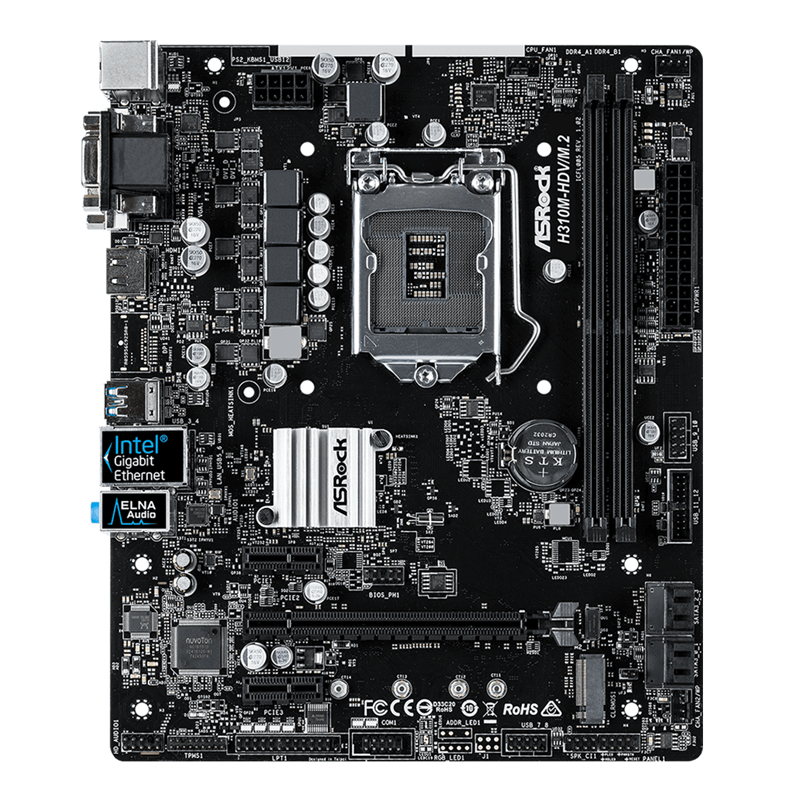

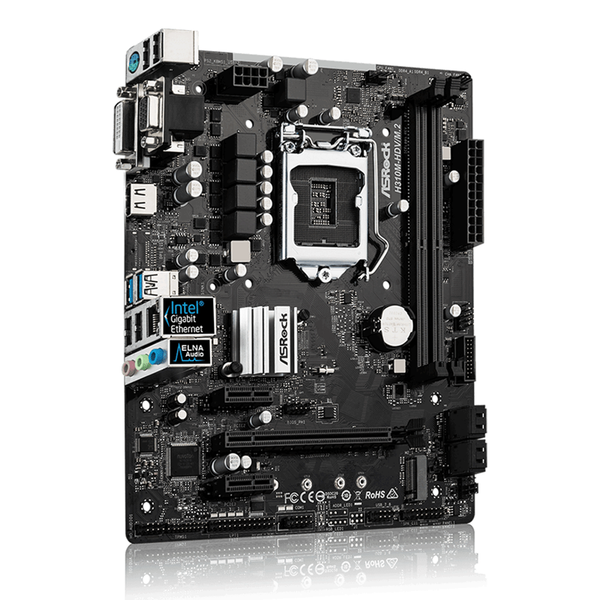

MAIN ASROCK H310M-HDV đến từ thương hiệu MAIN ASROCK
Tên gọi | Asrock H310M-HDV |
CPU hỗ trợ |
Intel® Socket 1151 for 8th Generation Core™ Processors
|
Chipset / Socket | Intel® B310 |
Bộ nhớ (RAM) | • 2 x DDR4 memory slots, support up to 32GB • Supports DDR4 2400/ 2133 MHz (by JEDEC)1 • Supports DDR4 2400/ 2133 (by XMP OC)1 • Supports Dual-Channel mode • Supports non-ECC, un-buffered memory • Supports Intel® Extreme Memory Profile (XMP) |
Công nghệ đa GPU | • Không hỗ trợ |
Khe cắm mở rộng | • 1 x PCI Express 3.0 x16 Slots
• 1 x PCI Express 3.0 x1 Slots |
LAN / Wireless | • RTL8111H Gigabit LAN controller |
Âm thanh | • Realtek® ALC887 Codec |
Cổng kết nối (Internal) | - 1 x TPM Header
- 1 x Chassis Intrusion and Speaker Header
- 1 x CPU Fan Connector (4-pin)
- 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector
- 1 x Front Panel Audio Connector
- 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
- 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection) |

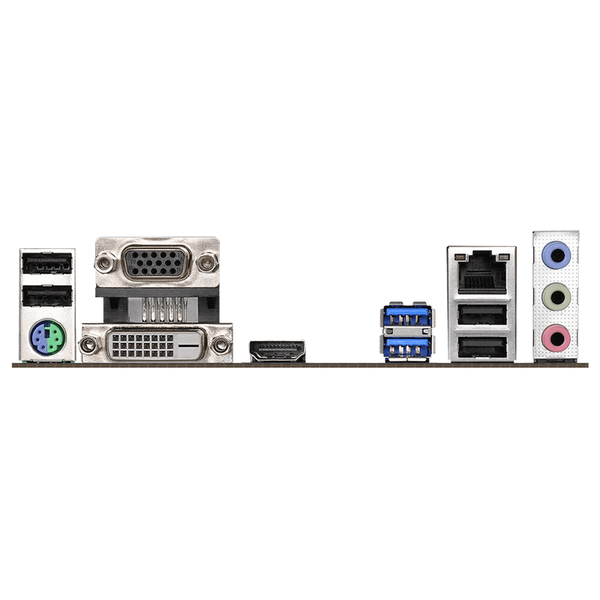

Cổng kết nối (Back Panel) | - 1 x PS/2 Mouse/Keyboard Port
- 1 x D-Sub Port
- 1 x DVI-D Port
- 1 x HDMI Port
- 4 x USB 2.0 Ports (Supports ESD Protection)
- 2 x USB 3.1 Gen1 Ports (Supports ESD Protection)
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jacks: Line in / Front Speaker / Microphone |
Công nghệ độc quyền | • ASRock Super Alloy
- Sapphire Black PCB
- High Density Glass Fabric PCB
• ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
• ASRock Live Update & APP Shop |
Phụ kiện đi kèm | • User's manual
• I/O Shield
• 2 x SATA 6Gb/s cable(s)
• 1 x M.2 Anchor
• 1 x SCD |
Hệ điều hành khuyến nghị | • Windows® 10 64-bit |
Chuẩn kích cỡ | • mATX Form Factor |
