THÔNG SỐ KỸ THUẬT

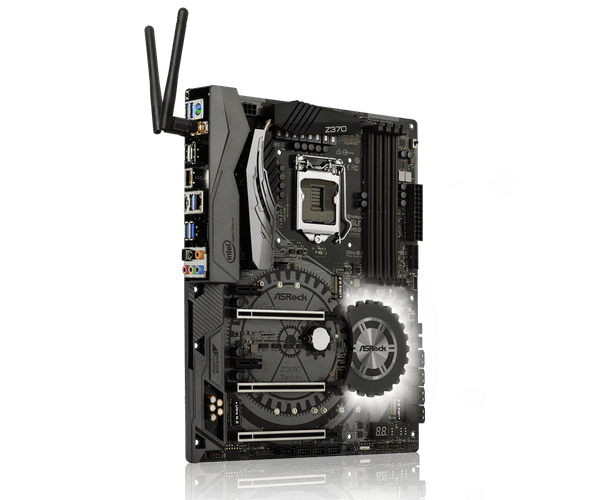

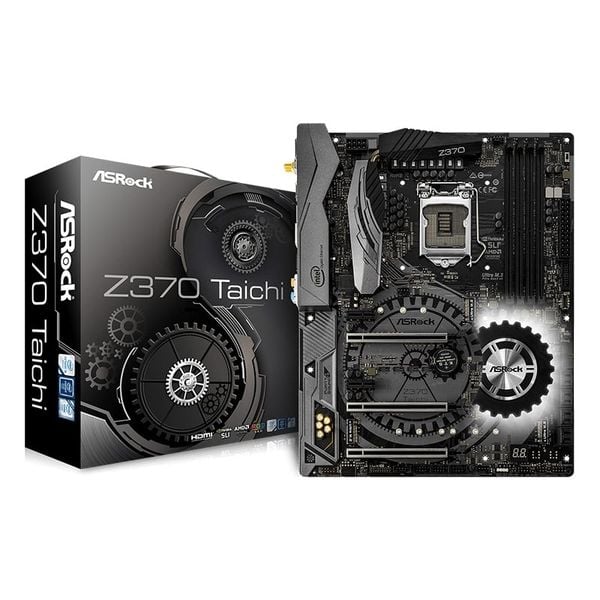

| Tên gọi | Asrock Z370 Taichi |
| Chipset / Socket | Intel® Z370 Express Chipset / Intel Socket 1151 (Version 2) |
| CPU hỗ trợ | 8th Generation Intel® Core™ Processors, and Intel® Pentium® and Celeron® Processors |
| Bộ nhớ (RAM) | • 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory • Support for DDR4 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz memory modules • Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) • Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) • Support for Extreme Memory Profile (XMP) memory modules |
| Khe cắm mở rộng | • 3 x PCI Express x16 slot • 2 x PCI Express x1 slots • 2 x M.2 connector • 8 x SATA 6Gb/s connectors • Support for RAID 0, RAID 1, RAID 5, and RAID 10 • Intel® Optane™ Memory Ready |
| Âm thanh | • Realtek® ALC1220 codec |
| LAN / Wireless | • 1 x Giga PHY Intel® I219V • 1 x GigaLAN Intel® I211AT • Intel® 802.11ac WiFi Module • Supports IEEE 802.11a/b/g/n/ac • Supports Dual-Band (2.4/5 GHz) • Supports high speed wireless connections up to 433Mbps • Supports Bluetooth 4.2 / 3.0 + High speed class II |

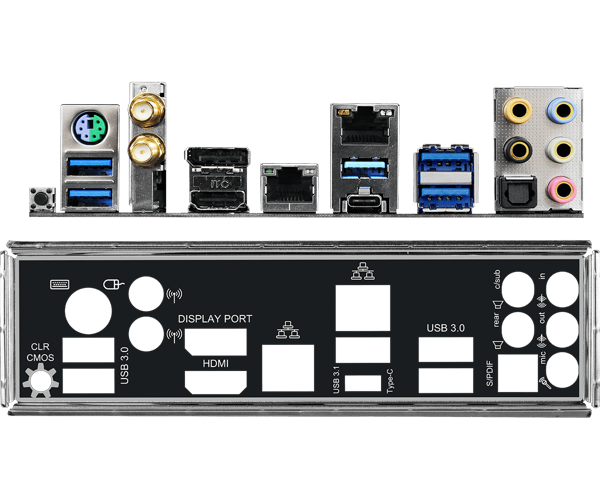

| Cổng kết nối | • 2 x Antenna Ports • 1 x PS/2 Mouse/Keyboard Port • 1 x HDMI Port • 1 x DisplayPort 1.2 • 1 x Optical SPDIF Out Port • 1 x USB 3.1 Gen2 Type-A Port (10 Gb/s) • 1 x USB 3.1 Gen2 Type-C Port (10 Gb/s) • 4 x USB 3.1 Gen1 Ports (Intel® Z370) • 2 x RJ-45 LAN Ports with LED • 1 x Clear CMOS Button • HD Audio Jacks |
| Chuẩn kích cỡ | • 30.5cm x 24.4cm • ATX Form Factor |
| Đa GPU | • Supports 2-Way AMD® CrossFire™ Technology* • Support for NVIDIA® Quad-GPU SLI™ and 2-Way NVIDIA® SLI™ |
| Bảo hành | 36 tháng |
