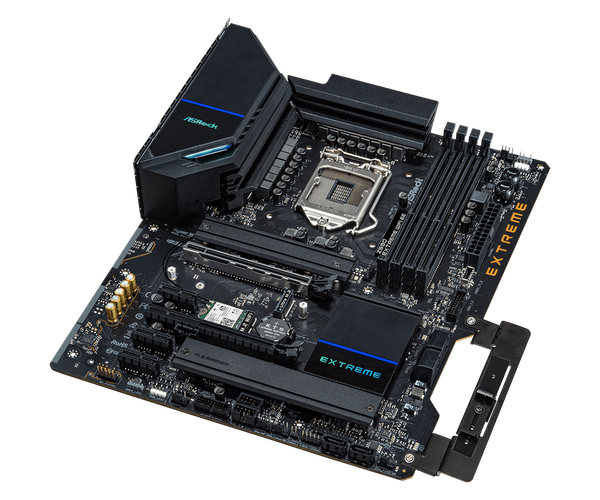

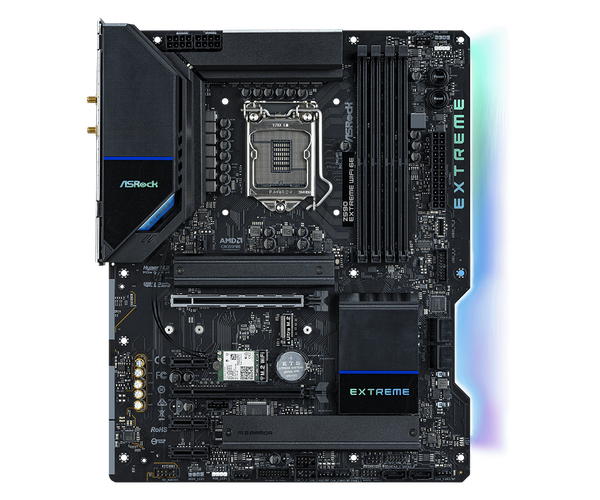

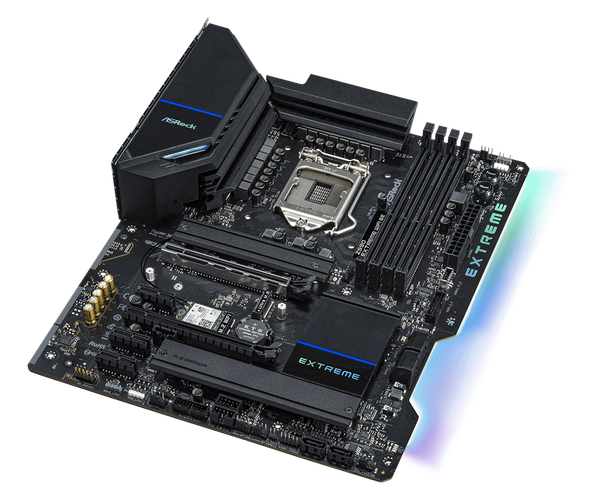

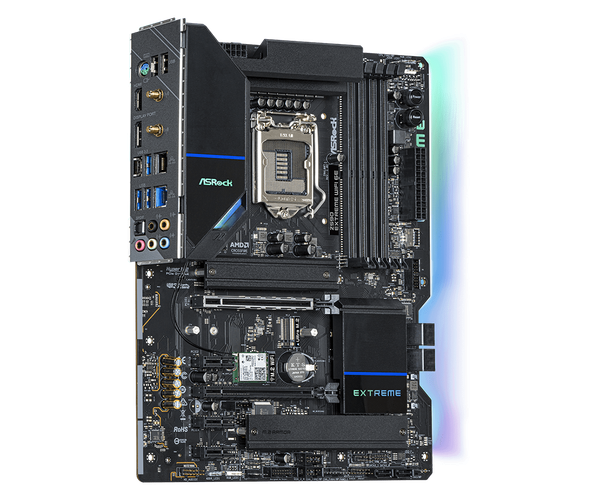

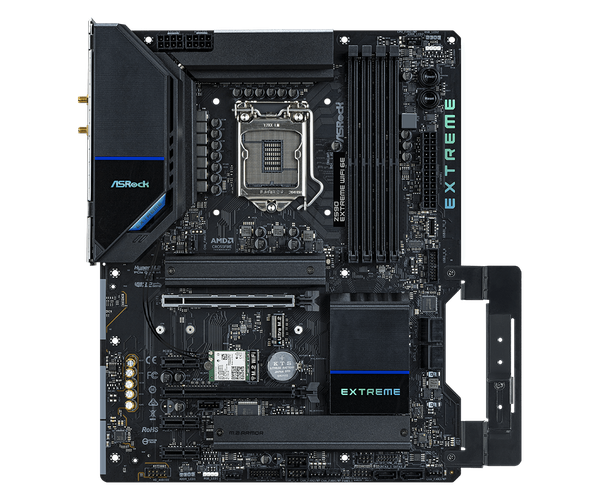

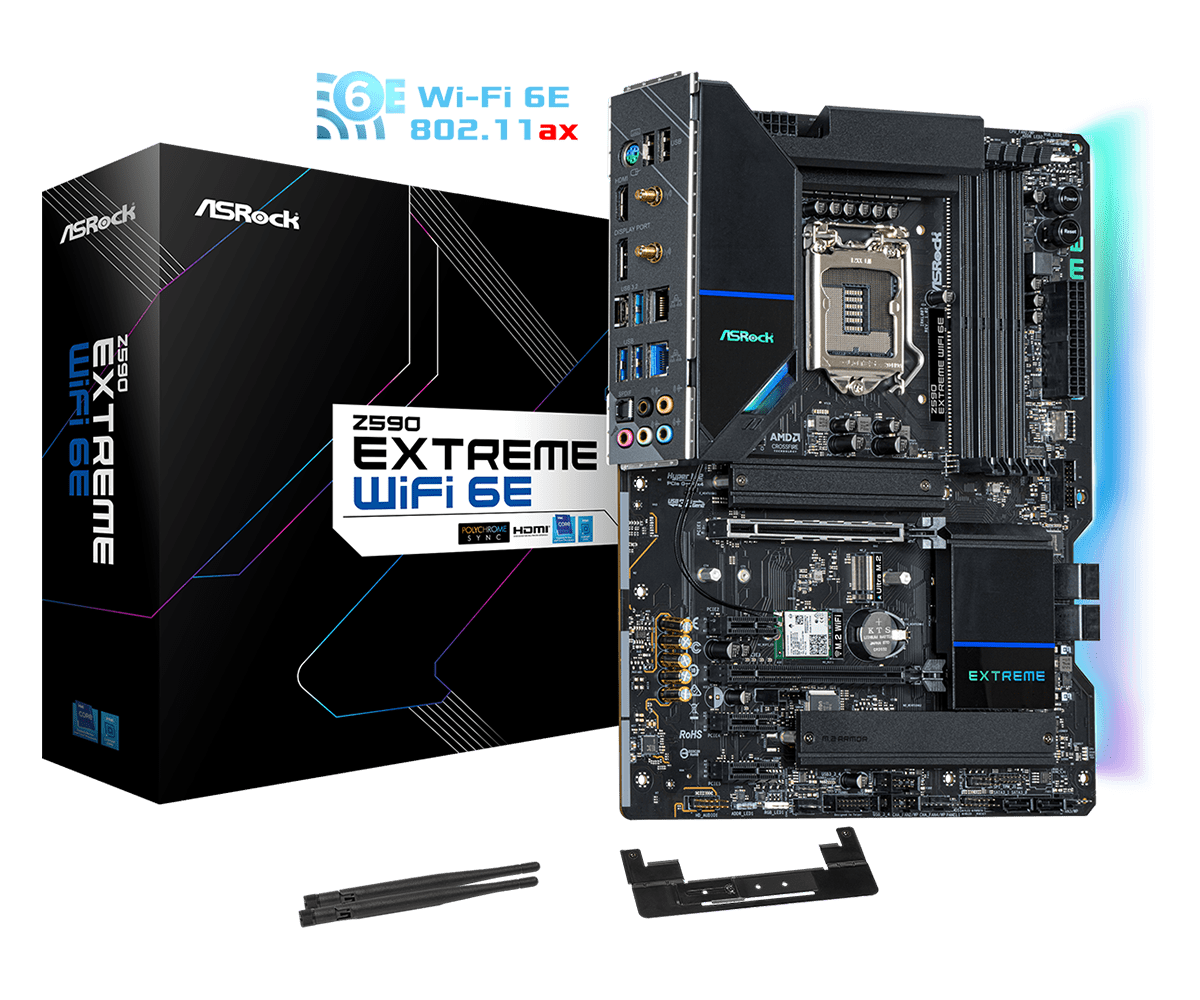

Main ASROCK Z590 EXTREME WiFi 6E (Intel Z590, Socket 1200, ATX, 4 khe

Main ASROCK Z590 EXTREME WiFi 6E (Intel Z590, Socket 1200, ATX, 4 khe Ram DDR4)

Thương hiệu: ASROCK
Loại: MAINBOARD
SKU: SP104974

Tại Máy Tính Biên Hòa: 0₫

Liên hệ đặt hàng

GIAO HÀNG
Miễn phí giao hàng toàn quốc thông qua các đơn vị vận chuyển cho Hóa đơn trên 500,000đ
SẢN PHẨM
Cam kết hàng mới 100% - Bảo hành chính hãng
ĐỔI TRẢ
1 đổi 1 lên đến 31 ngày nếu phát sinh lỗi do nhà sản xuất
Hỗ trợ
Thứ 2 - CN: 08:00 - 21:00 Hotline: 1900.5360

Chia sẻ ngay

CPU
- Supports 10th Gen Intel^® Core™ Processors and 11th Gen Intel^® Core™ Processors (LGA1200)
- Digi Power design
- 14 Power Phase design
- Supports Intel^® Turbo Boost Max 3.0 Technology
- Supports Intel^® K-Series unlocked CPUs
Chipset
- Intel^® Z590
Memory
- Dual Channel DDR4 Memory Technology
- 4 x DDR4 DIMM Slots
- 11th Gen Intel^® Core™ Processors support DDR4 non-ECC, un-buffered memory up to 4800+(OC)*
- 10th Gen Intel^® Core™ Processors support DDR4 non-ECC, un-buffered memory up to 4666+(OC)*
- Supports ECC UDIMM memory modules (operate in non-ECC mode)
- Max. capacity of system memory: 128GB**
- Supports Intel^® Extreme Memory Profile (XMP) 2.0
- 15μ Gold Contact in DIMM Slots

*11th Gen Intel^® Core™ (i9/i7/i5) support DDR4 3200 natively; Core™ (i3), Pentium^® and Celeron^® support DDR4 2666 natively.
10th Gen Intel^® Core™ (i9/i7) support DDR4 2933 natively; Core™ (i5/i3), Pentium^® and Celeron^® support DDR4 2666 natively.

**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows^® 32-bit OS. For Windows^® 64-bit OS with 64-bit CPU, there is no such limitation.
BIOS
- 128Mb AMI UEFI Legal BIOS with multilingual GUI support
- ACPI 6.0 Compliant wake up events
- SMBIOS 2.7 Support
- CPU Core/Cache, CPU GT, VCCSA, DRAM, VCCIO, VCCIO 1 2, VPPM, VCCIN AUX, VCCST Voltage Multi-adjustment
Graphics
- 11th Gen Intel^® Core™ Processors support Intel^® Xe Graphics Architecture (Gen 12). 10th Gen Intel^® Core™ Processors support Gen 9 Graphics
- Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers
- Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
- Supports DisplayPort 1.4 with max. resolution up to 4K x 2K (4096x2304) @ 60Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Port (Compliant HDMI monitor is required)
- Supports HDCP 2.3 with HDMI 2.0 and DisplayPort 1.4 Ports

*Intel^® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
11th Gen Intel^® Core™ Processors support HDMI 2.0. 10th Gen Intel^® Core™ Processors support HDMI 1.4.
Audio
- 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
- Premium Blu-ray Audio support
- Supports Surge Protection
- Pure Power-In
- Direct Drive Technology
- PCB Isolate Shielding
- Impedance Sensing on Rear Out port
- Individual PCB Layers for R/L Audio Channel
- Gold Audio Jacks
- 15μ Gold Audio Connector
- Nahimic Audio
LAN
1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Dragon RTL8125BG)
- Supports Dragon 2.5G LAN Software
- Smart Auto Adjust Bandwidth Control
- Visual User Friendly UI
- Visual Network Usage Statistics
- Optimized Default Setting for Game, Browser, and Streaming Modes
- User Customized Priority Control
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE
1 x Gigabit LAN 10/100/1000 Mb/s (Intel^® I219V)
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE
Wireless LAN
- Intel^® 802.11ax Wi-Fi 6E Module
- Supports IEEE 802.11a/b/g/n/ax
- Supports Dual-Band 2x2 160MHz with extended 6GHz band support*
- 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
- Supports Bluetooth 5.2 + High speed class II
- Supports MU-MIMO

*Wi-Fi 6E (6GHz band) is not currently enabled by default due to the different regulation status of each country. It will be activated (for supported countries) through Windows^® Update and software update once available. The update is expected to be in the middle of 2021.
Slots
11th Gen Intel^® Core™ Processors
- 2 x PCI Express x16 Slots (PCIE1/PCIE3: single at Gen4x16 (PCIE1); dual at Gen4x16 (PCIE1) / Gen3x4 (PCIE3))*
10th Gen Intel^® Core™ Processors
- 2 x PCI Express x16 Slots (PCIE1/PCIE3: single at Gen3x16 (PCIE1); dual at Gen3x16 (PCIE1) / Gen3x4 (PCIE3))*

- 3 x PCI Express 3.0 x1 Slots
- Supports AMD Quad CrossFireX™ and CrossFireX™
- 1 x M.2 Socket (Key E) with the bundled WiFi-802.11ax PCIe WiFi module
- 15μ Gold Contact in VGA PCIe Slot (PCIE1)

*Supports NVMe SSD as boot disks
Storage
- 6 x SATA3 6.0 Gb/s Connectors*
- 1 x Hyper M.2 Socket (M2_1), supports M Key type 2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (Socket M2_1 works with 11th Gen Intel^® Core™ processors only)**
- 1 x Ultra M.2 Socket (M2_2), supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**
- 1 x Ultra M.2 Socket (M2_3), supports M Key type 2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**

*If M2_2 is occupied by a SATA-type M.2 device, SATA3_1 will be disabled.
If M2_3 is occupied, SATA3_4 and SATA3_5 will be disabled.

**Supports Intel^® Optane™ Technology (M2_2 and M2_3 only)
Supports NVMe SSD as boot disks
Supports ASRock U.2 Kit
RAID
- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
- Supports RAID 0 and RAID 1 for M.2 NVMe storage devices*

*RAID function for PCIe mode SSD in M2_1 is only available with Intel^® SSD installed.
Connector
- 1 x SPI TPM Header
- 1 x Power LED and Speaker Header
- 2 x RGB LED Headers*
- 2 x Addressable LED Headers**
- 1 x CPU Fan Connector (4-pin)***
- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
- 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
- 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
- 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
- 1 x Front Panel Audio Connector (15μ Gold Audio Connector)
- 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
- 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection)
- 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (Supports ESD Protection)
- 1 x Power Button with LED
- 1 x Reset Button with LED

*Support in total up to 12V/3A, 36W LED Strip

**Support in total up to 5V/3A, 15W LED Strip

***The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

****The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.

*****The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP, CHA_FAN3/WP, CHA_FAN4/WP and CHA_FAN5/WP can auto detect if 3-pin or 4-pin fan is in use.

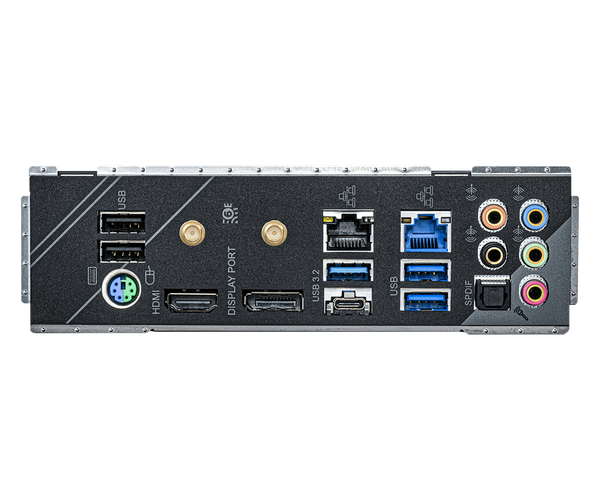

Rear Panel I/O
- 2 x Antenna Ports
- 1 x PS/2 Mouse/Keyboard Port
- 1 x HDMI Port
- 1 x DisplayPort 1.4
- 1 x Optical SPDIF Out Port
- 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver) (Supports ESD Protection)*
- 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver) (Supports ESD Protection)*
- 2 x USB 3.2 Gen1 Ports (Supports ESD Protection)*
- 2 x USB 2.0 Ports (Supports ESD Protection)
- 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)

*Ultra USB Power is supported on USB3_12 ports.
ACPI wake-up function is not supported on USB3_12 ports.
Software and UEFI
Software
- ASRock Motherboard Utility (A-Tuning)
- ASRock Dragon 2.5G LAN Software
- ASRock Polychrome SYNC*
UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock Instant Flash
- ASRock Internet Flash
- ASRock Easy RAID Installer

*These utilities can be downloaded from ASRock Live Update & APP Shop.
Support CD
- Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar

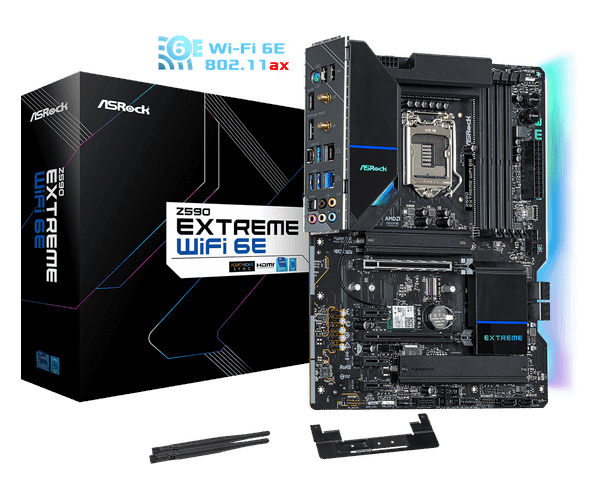

Accessories
- Quick Installation Guide, Support CD
- 4 x SATA Data Cables
- 2 x ASRock WiFi 2.4/5/6 GHz Antennas
- 3 x Screws for M.2 Sockets
- 2 x Standoffs for M.2 Sockets
- 1 x Graphics Card Holder
Hardware Monitor
- Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans
- Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans
- Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans
- Voltage monitoring: CPU Vcore, VCCIN AUX, DRAM, VCCIO, VPPM, VCCSA, CPU PLL, +12V, +5V, +3.3V
Form Factor
- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
- 2oz Copper PCB
OS
- Microsoft^® Windows^® 10 64-bit
Certifications
- FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)
