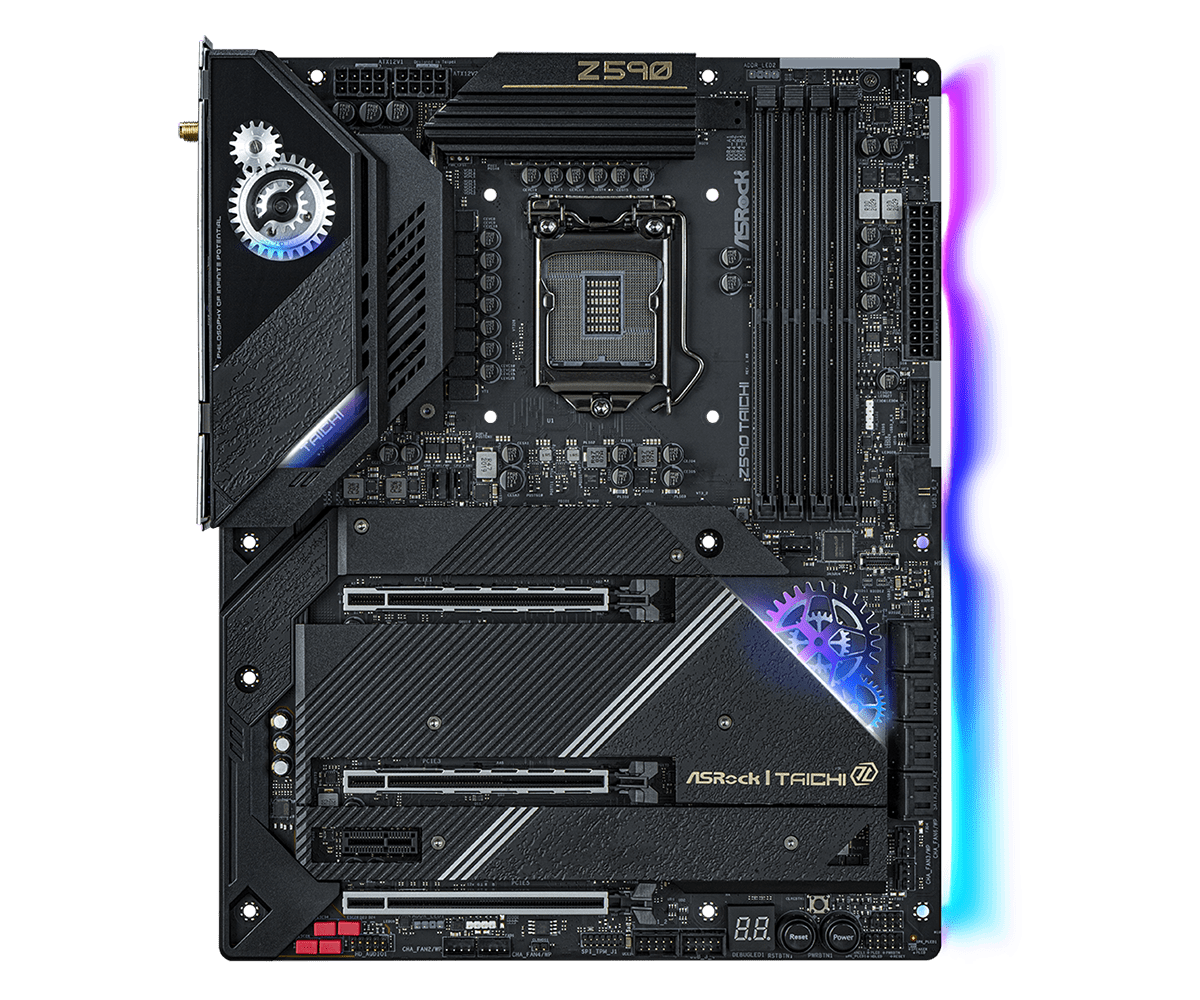

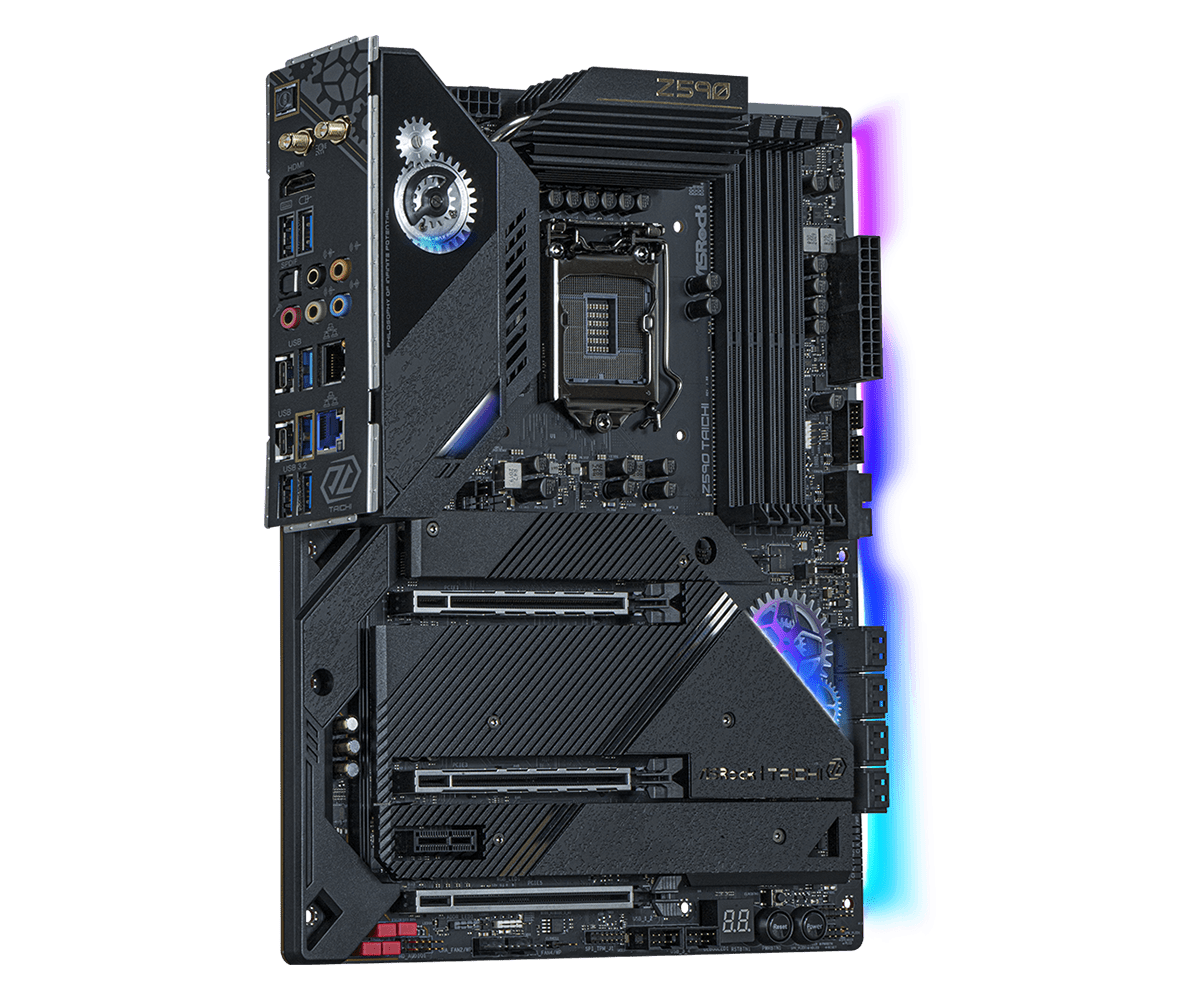

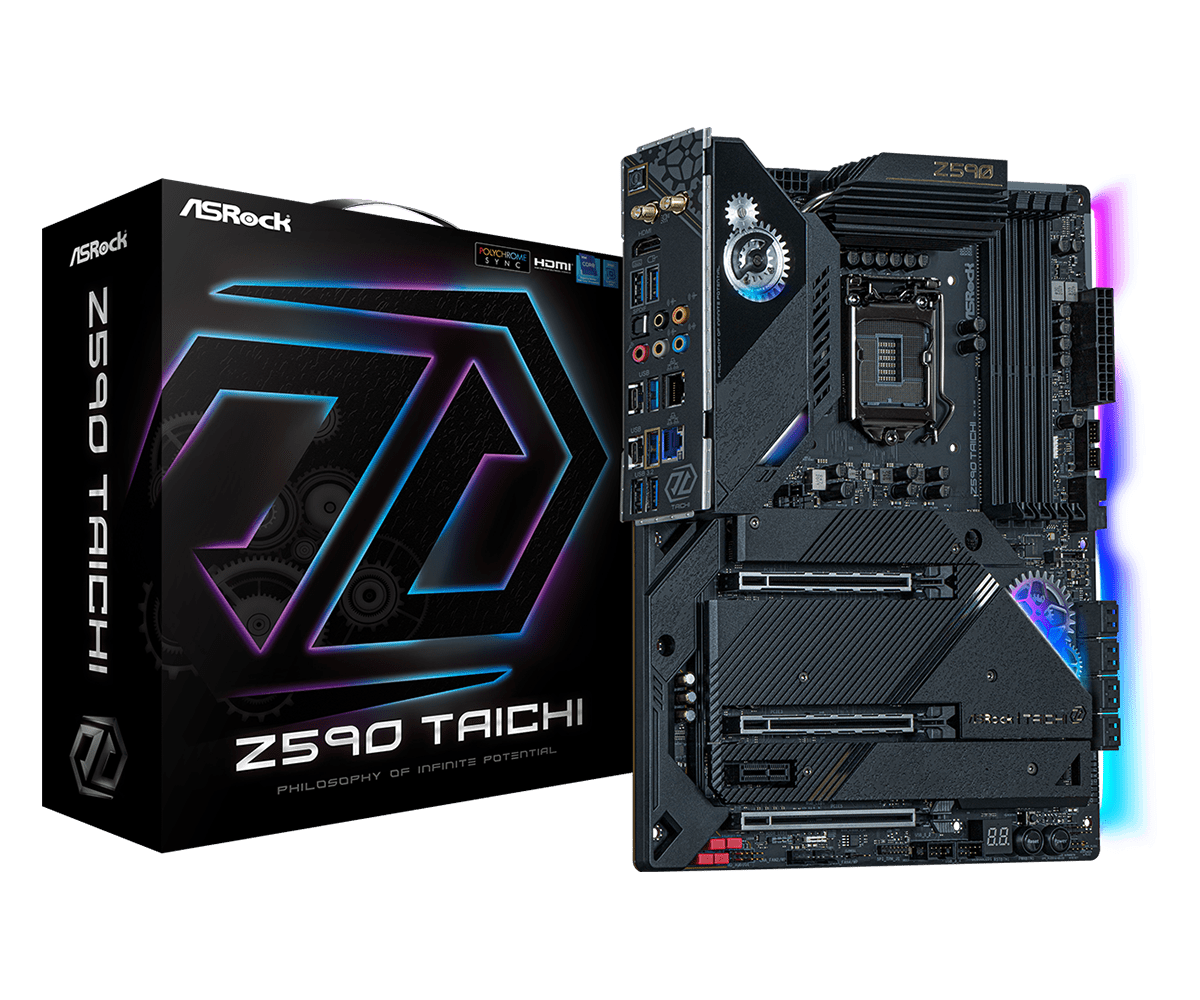

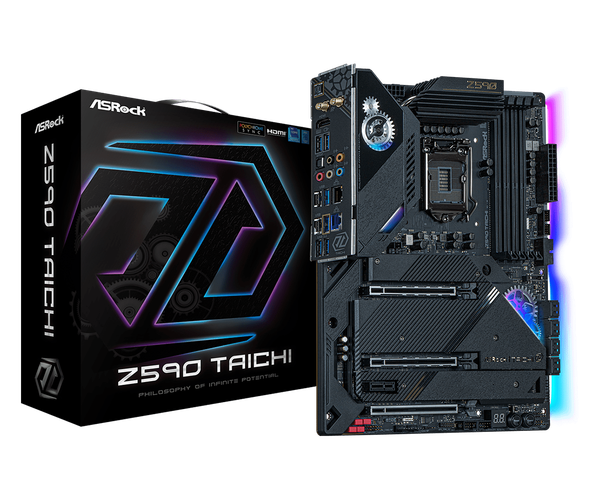

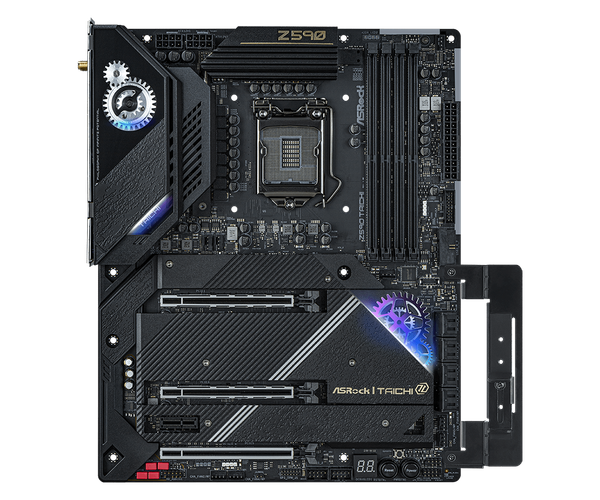

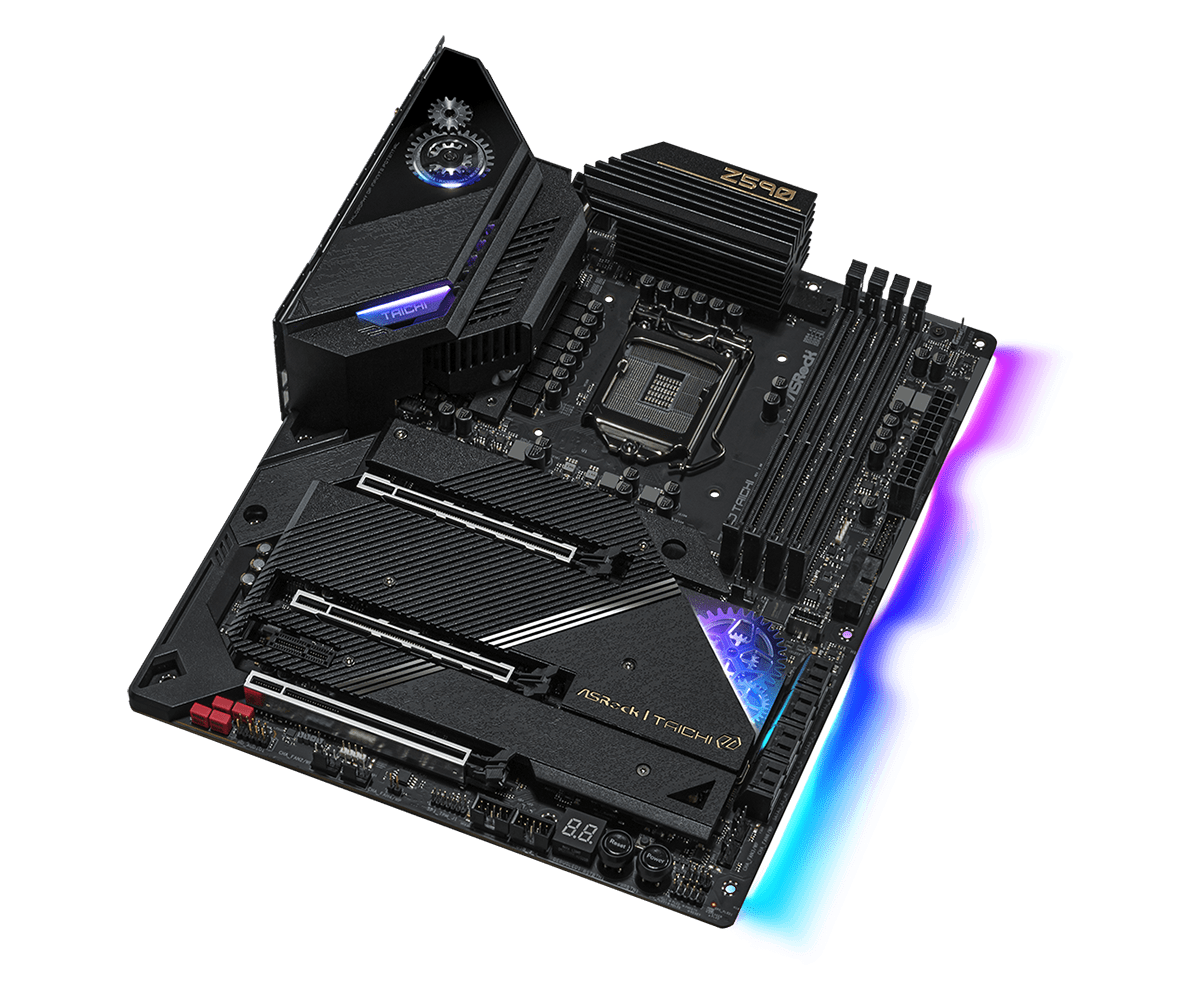

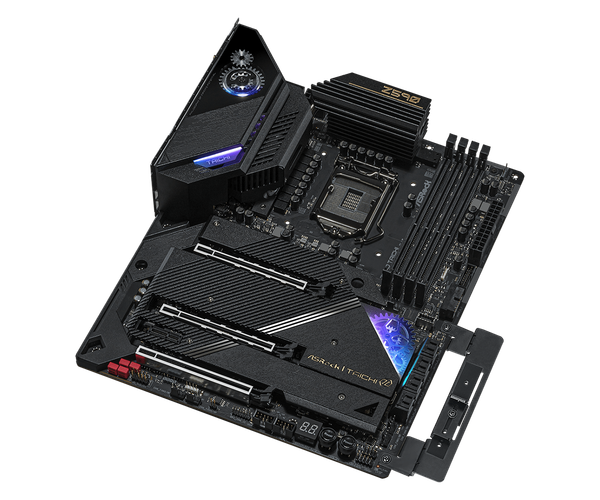

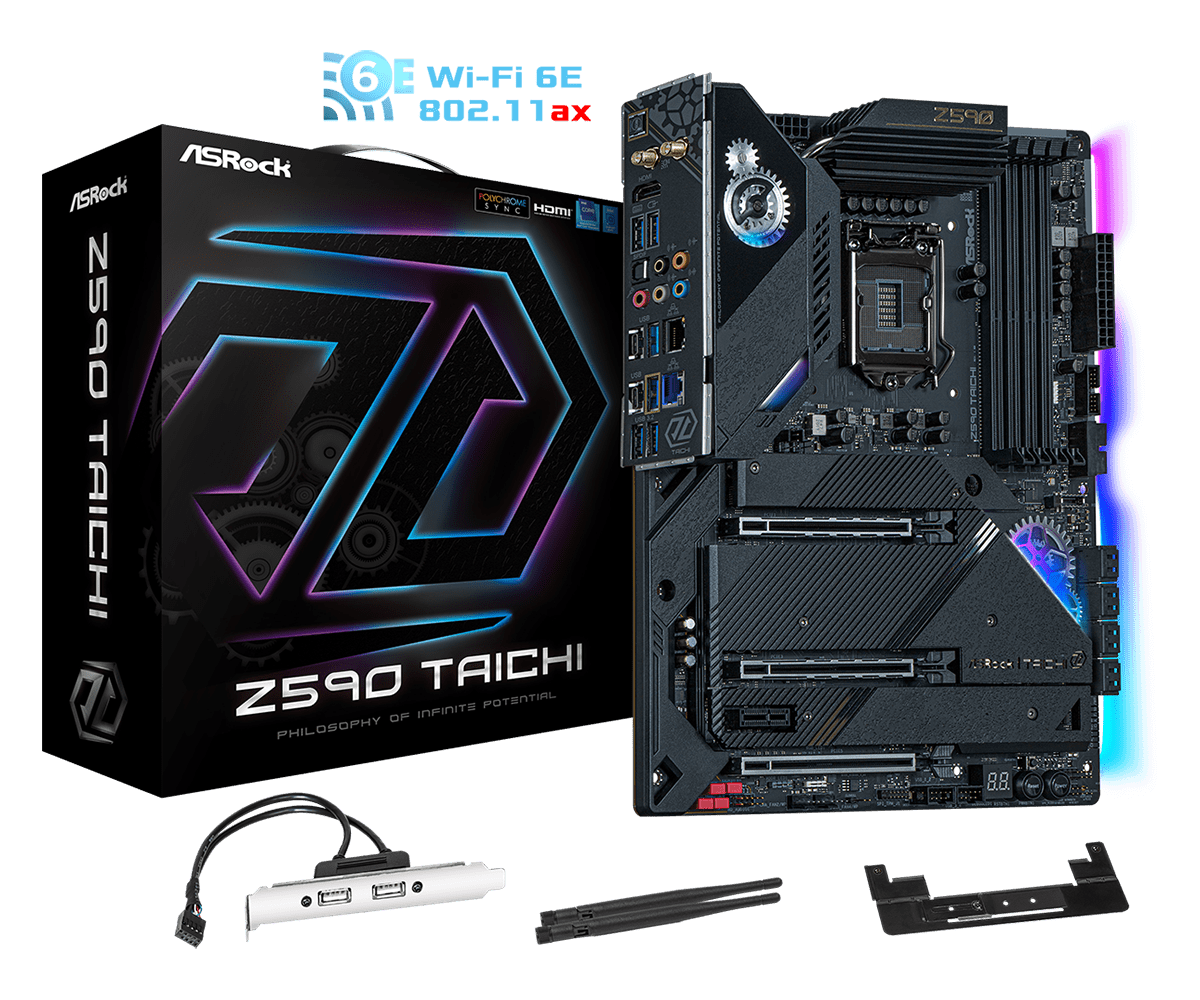

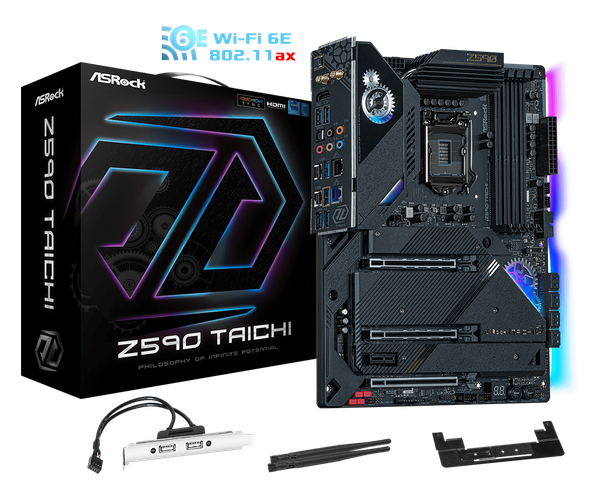

Main ASROCK Z590 TAICHI (Intel Z590, Socket 1200, ATX, 4 khe Ram DDR4)

  • Thương hiệu: ASROCK
  • Loại: MAINBOARD
  • SKU: SP104972

Tại Máy Tính Biên Hòa: 10,990,000₫

  • GIAO HÀNG
    GIAO HÀNG
    Miễn phí giao hàng toàn quốc thông qua các đơn vị vận chuyển cho Hóa đơn trên 500,000đ
  • SẢN PHẨM
    SẢN PHẨM
    Cam kết hàng mới 100% - Bảo hành chính hãng
  • ĐỔI TRẢ
    ĐỔI TRẢ
    1 đổi 1 lên đến 31 ngày nếu phát sinh lỗi do nhà sản xuất
  • Hỗ trợ
    Hỗ trợ
    Thứ 2 - CN: 09:00 - 19:00 Hotline: 1800.799.999

Chia sẻ ngay

  • Unique Feature

    ASRock USB 4.0
    - ASRock USB 4.0 Thunderbolt™ 4 Type-C Port (40 Gb/s for USB 4.0 protocol; 40Gb/s for Thunderbolt™ protocol)
    ASRock USB 3.2 Gen2
    - ASRock Front Panel Type-C USB 3.2 Gen2x2 Header (20 Gb/s)
    - ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s)
    ASRock Super Alloy
    - XXL Aluminum Alloy Heatsink
    - Premium 90A Power Choke
    - 90A SPS (Smart Power Stage)
    - Premium Memory Alloy Choke (Reduces 70% core loss compared to iron power choke)
    - Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
    - I/O Armor
    - Matte Black PCB
    - High Density Glass Fabric PCB
    - 8 Layer PCB
    - 2oz Copper PCB
    Killer 2.5G LAN
    Killer 802.11ax Wi-Fi 6E
    Killer DoubleShot Pro
    ASRock Steel Slots
    ASRock Full Coverage M.2 Heatsink
    ASRock Hyper M.2 (PCIe Gen4x4)
    ASRock Ultra USB Power
    ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
    ASRock Live Update & APP Shop

  • CPU

    - Supports 10th Gen Intel® Core™ Processors and 11th Gen Intel® Core™ Processors (LGA1200)
    - Digi Power design
    - 14 Power Phase design
    - Supports Intel® Turbo Boost Max 3.0 Technology
    - Supports Intel® K-Series unlocked CPUs
    - Supports ASRock Hyper BCLK Engine III

  • Chipset

    - Intel® Z590

  • Memory

    - Dual Channel DDR4 Memory Technology
    - 4 x DDR4 DIMM Slots
    - 11th Gen Intel® Core™ Processors support DDR4 non-ECC, un-buffered memory up to 5000+(OC)*
    - 10th Gen Intel® Core™ Processors support DDR4 non-ECC, un-buffered memory up to 4800+(OC)*
    - Supports ECC UDIMM memory modules (operate in non-ECC mode)
    - Max. capacity of system memory: 128GB**
    - Supports Intel® Extreme Memory Profile (XMP) 2.0
    - 15μ Gold Contact in DIMM Slots


    *11th Gen Intel® Core™ (i9/i7/i5) support DDR4 3200 natively; Core™ (i3), Pentium® and Celeron® support DDR4 2666 natively.
    10th Gen Intel® Core™ (i9/i7) support DDR4 2933 natively; Core™ (i5/i3), Pentium® and Celeron® support DDR4 2666 natively.

    **Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.

  • BIOS

    - 128Mb AMI UEFI Legal BIOS with multilingual GUI support
    - ACPI 6.0 Compliant wake up events
    - SMBIOS 2.7 Support
    - CPU Core/Cache, CPU GT, DRAM(VCCM, VPPM, VTT), VCCSFR, VCCPLL, VCCSTG, VCCSTG_OUT, PCH Voltage, VCCIO_0, VCCIO_1_2, VCCST, VCCSA, CPU Internal PLL, GT PLL, Ring PLL, System Agent PLL, Memory Controller PLL Voltage Multi-adjustment

  • Graphics

    - 11th Gen Intel® Core™ Processors support Intel® Xe Graphics Architecture (Gen 12). 10th Gen Intel® Core™ Processors support Gen 9 Graphics
    - Three graphics output options: 1 x HDMI and 2 x Intel® Thunderbolt™ 4
    - Supports Triple Monitor
    - Supports Intel® Thunderbolt™ 4 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
    - Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz**
    - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Port (Compliant HDMI monitor is required)
    - Supports HDCP 2.3 with HDMI 2.0 and Intel® Thunderbolt™ 4 Ports


    *Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

    **11th Gen Intel® Core™ Processors support HDMI 2.0. 10th Gen Intel® Core™ Processors support HDMI 1.4.

  • Audio

    - 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
    - Premium Blu-ray Audio support
    - Supports Surge Protection
    - WIMA Audio Capacitors (For Front Outputs)
    - ESS SABRE9218 DAC for Front Panel Audio (130dB SNR)
    - Pure Power-In
    - Direct Drive Technology
    - PCB Isolate Shielding
    - Impedance Sensing on Rear Out port
    - Individual PCB Layers for R/L Audio Channel
    - Gold Audio Jacks
    - 15μ Gold Audio Connector
    - Nahimic Audio

  • LAN

    1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Killer E3100G)
    - Supports Killer LAN Software
    - Supports Killer DoubleShotTM Pro
    - Supports Wake-On-LAN
    - Supports Lightning/ESD Protection
    - Supports Energy Efficient Ethernet 802.3az
    - Supports PXE
    1 x Gigabit LAN 10/100/1000 Mb/s (Intel® I219V)
    - Supports Wake-On-LAN
    - Supports Lightning/ESD Protection
    - Supports Energy Efficient Ethernet 802.3az
    - Supports PXE

  • Wireless LAN

    - Killer AX1675x 802.11ax Wi-Fi 6E Module
    - Supports IEEE 802.11a/b/g/n/ax
    - Supports Dual-Band 2x2 160MHz with extended 6GHz band support*
    - 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
    - Supports Bluetooth 5.2 + High speed class II
    - Supports MU-MIMO
    - Supports Killer LAN Software
    - Supports Killer DoubleShot™ Pro


    *Wi-Fi 6E (6GHz band) is not currently enabled by default due to the different regulation status of each country. It will be activated (for supported countries) through Windows® Update and software update once available. The update is expected to be in the middle of 2021.

  • Slots

    11th Gen Intel® Core™ Processors
    - 3 x PCI Express x16 Slots (PCIE1/PCIE2/PCIE4: single at Gen4x16 (PCIE1); dual at Gen4x8 (PCIE1) / Gen4x8 (PCIE2); triple at Gen4x8 (PCIE1) / Gen4x8 (PCIE2) / Gen3x4 (PCIE4))*
    10th Gen Intel® Core™ Processors
    - 3 x PCI Express x16 Slots (PCIE1/PCIE2/PCIE4: single at Gen3x16 (PCIE1); dual at Gen3x8 (PCIE1) / Gen3x8 (PCIE2); triple at Gen3x8 (PCIE1) / Gen3x8 (PCIE2) / Gen3x4 (PCIE4))*

    - 1 x PCI Express 3.0 x1 Slot
    - Supports AMD Quad CrossFireX™, 3-Way CrossFireX™ and CrossFireX™
    - 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ax module (on the rear I/O)
    - 15μ Gold Contact in VGA PCIe Slot (PCIE1)


    *Supports NVMe SSD as boot disks

  • Storage

    - 6 x SATA3 6.0 Gb/s Connectors*
    - 2 x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061*
    - 1 x Hyper M.2 Socket (M2_1), supports M Key type 2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with 11th Gen Intel® Core™ Processors) or Gen3x4 (32 Gb/s) (with 10th Gen Intel® Core™ Processors)**
    - 1 x Ultra M.2 Socket (M2_2), supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**
    - 1 x Ultra M.2 Socket (M2_3), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**


    *M2_2, SATA3_0 and SATA3_1 share lanes. If either one of them is in use, the others will be disabled.
    M2_3, SATA3_4, SATA3_5 and PCIE4 share lanes. If either one of them is in use, the others will be disabled.

    **Supports Intel® Optane™ Technology (M2_2 and M2_3 only)
    Supports NVMe SSD as boot disks
    Supports ASRock U.2 Kit

  • RAID

    - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
    - Supports RAID 0 and RAID 1 for M.2 NVMe storage devices*


    *RAID function for PCIe mode SSD in M2_1 is only available with Intel® SSD installed.

  • Connector

    - 1 x SPI TPM Header
    - 1 x Power LED and Speaker Header
    - 2 x RGB LED Headers*
    - 2 x Addressable LED Headers**
    - 1 x CPU Fan Connector (4-pin)***
    - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
    - 6 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
    - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
    - 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
    - 1 x Front Panel Audio Connector (15μ Gold Audio Connector)
    - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
    - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection)
    - 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (Supports ESD Protection)
    - 1 x Clear CMOS Button
    - 1 x Dr. Debug with LED
    - 1 x Power Button with LED
    - 1 x Reset Button with LED


    *Support in total up to 12V/3A, 36W LED Strip

    **Support in total up to 5V/3A, 15W LED Strip

    ***The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

    ****CPU_FAN2/WP_3A supports the water cooler fan of maximum 3A (36W) fan power.

    *****The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
    CPU_FAN2/WP_3A, CHA_FAN1/WP, CHA_FAN2/WP, CHA_FAN3/WP, CHA_FAN4/WP, CHA_FAN5/WP and CHA_FAN6/WP can auto detect if 3-pin or 4-pin fan is in use.

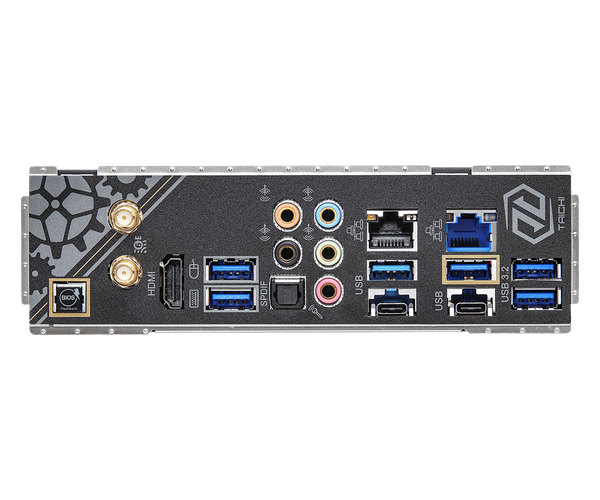

  • Rear Panel I/O

    - 2 x Antenna Ports
    - 1 x HDMI Port
    - 1 x Optical SPDIF Out Port
    - 2 x USB 4.0 Thunderbolt™ 4 Type-C Port (40 Gb/s for USB 4.0 protocol; 40Gb/s for Thunderbolt™ protocol) (Supports ESD Protection)*
    - 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (ReDriver) (Supports ESD Protection)**
    - 4 x USB 3.2 Gen1 Type-A Ports (Supports ESD Protection)**
    - 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)
    - 1 x BIOS Flashback Button
    - HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)


    *Supports USB PD 2.0 up to 9V@3A (27W) / 5V@3A (15W) charging

    **USB3_5_6 is from Intel® Z590; USB3_1 is from ASMedia ASM1042A; USB3_2, USB3_3 and USB3_4 are from ASMedia ASM1074 hub.
    Ultra USB Power is supported on USB3_3 port.
    ACPI wake-up function is not supported on USB3_3 port.

  • Software and UEFI

    Software
    - ASRock Motherboard Utility (A-Tuning)
    - Killer Control Center
    - ASRock Polychrome SYNC*
    UEFI
    - ASRock EZ Mode
    - ASRock Full HD UEFI
    - ASRock My Favorites in UEFI
    - ASRock Instant Flash
    - ASRock Internet Flash
    - ASRock Easy RAID Installer


    *These utilities can be downloaded from ASRock Live Update & APP Shop.

  • Support CD

    - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar

  • Accessories

    - Quick Installation Guide, Support CD
    - 4 x SATA Data Cables
    - 1 x Graphics Card Holder
    - 1 x Wireless Dongle USB Bracket
    - 1 x 3010 Cooling Fan with Bracket and Screw Package
    - 1 x 4010 Cooling Fan Bracket and Screw Package
    - 2 x ASRock WiFi 2.4/5/6 GHz Antennas
    - 1 x ASRock Screwdriver
    - 3 x Screws for M.2 Sockets
    - 2 x Standoffs for M.2 Sockets

  • Hardware Monitor

    - Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans
    - Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans
    - Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans
    - Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, PCH, VCCSA, VCCIO_0, VCCIO_1_2, VCCFSR_OC

  • Form Factor

    - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
    - 8 Layer PCB
    - 2oz Copper PCB

  • OS

    - Microsoft® Windows® 10 64-bit

  • Certifications

    - FCC, CE
    - ErP/EuP ready (ErP/EuP ready power supply is required)
    - CEC Tier II ready
