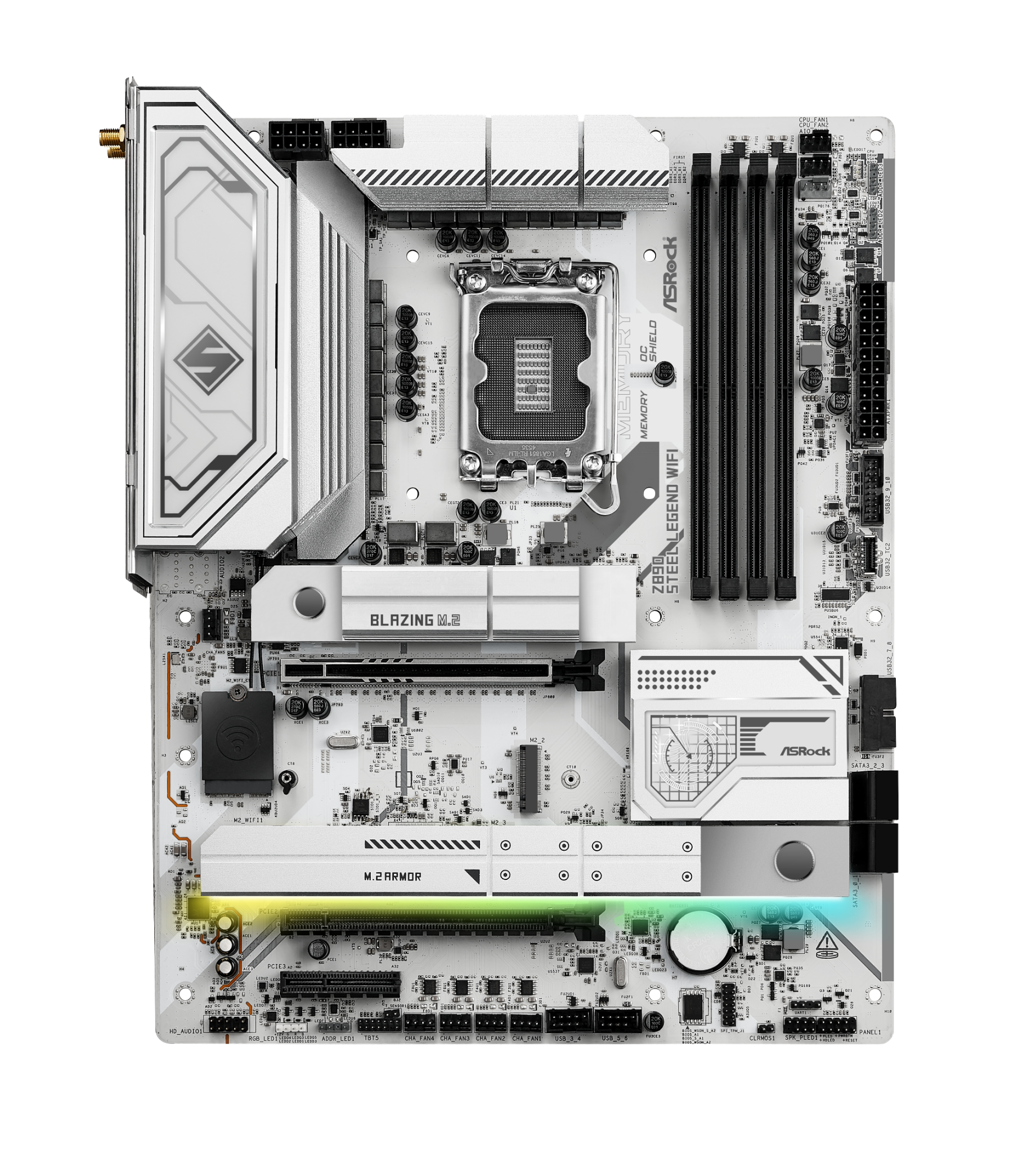

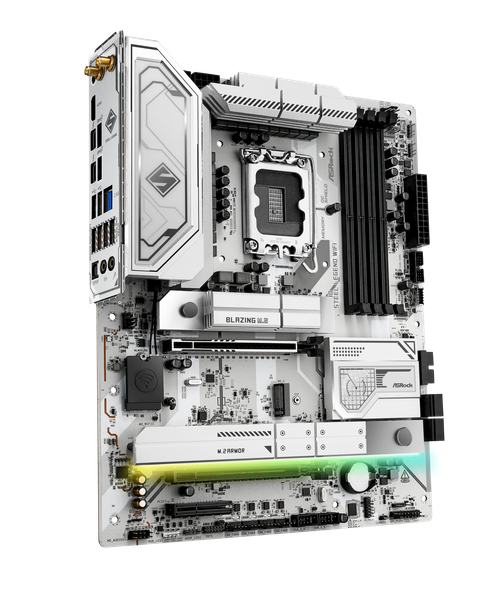

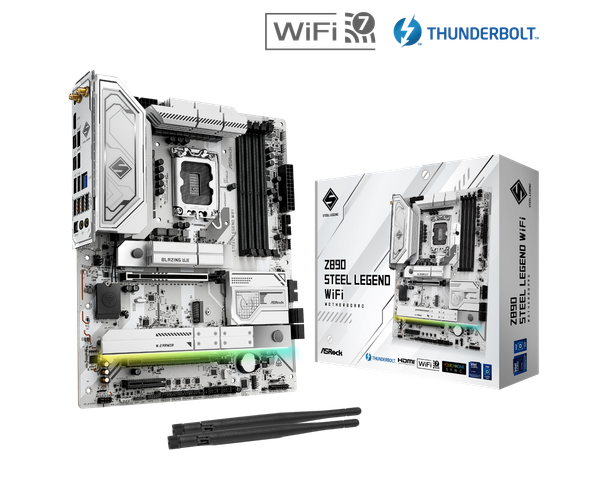

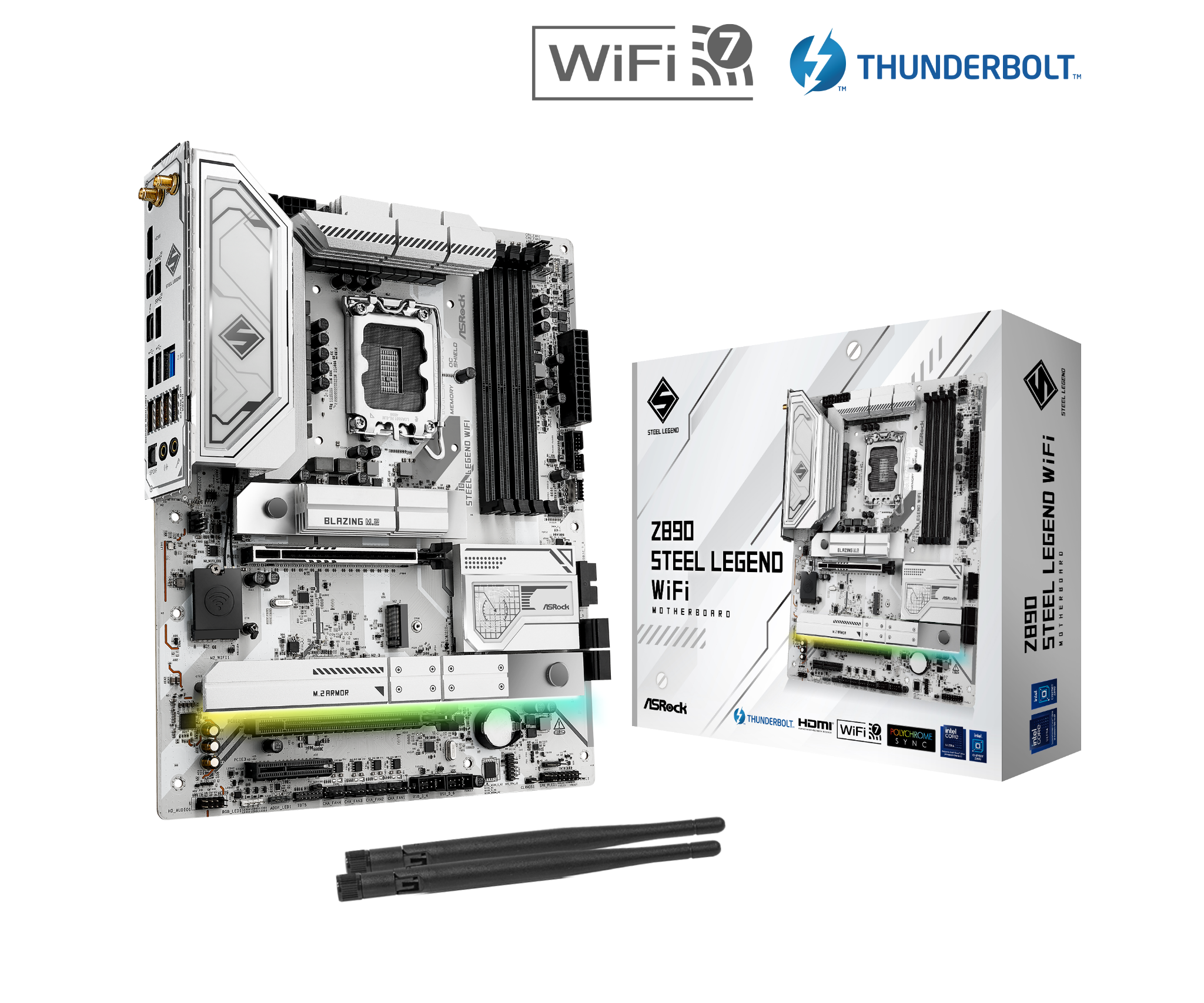

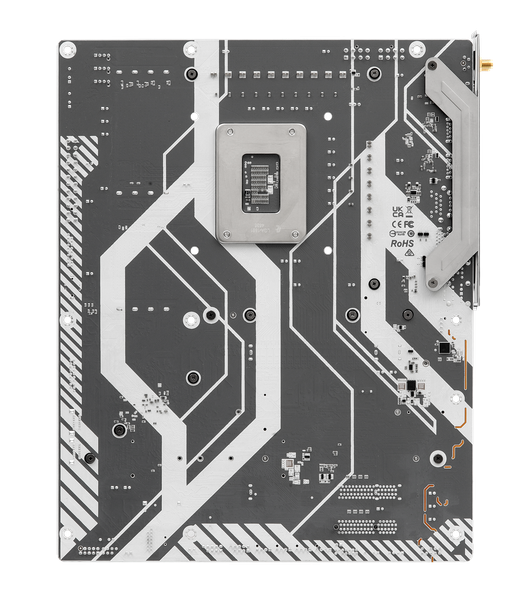

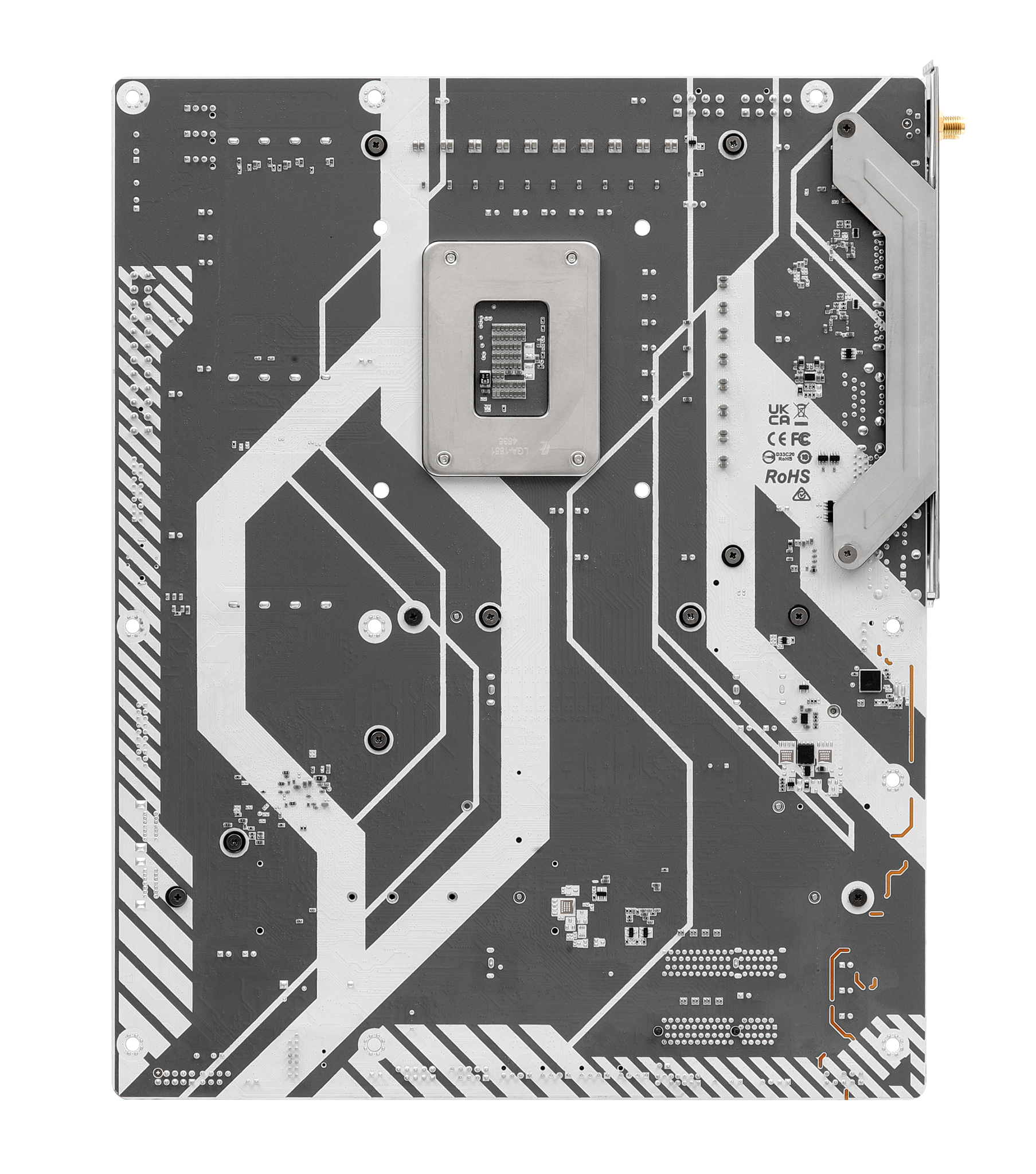

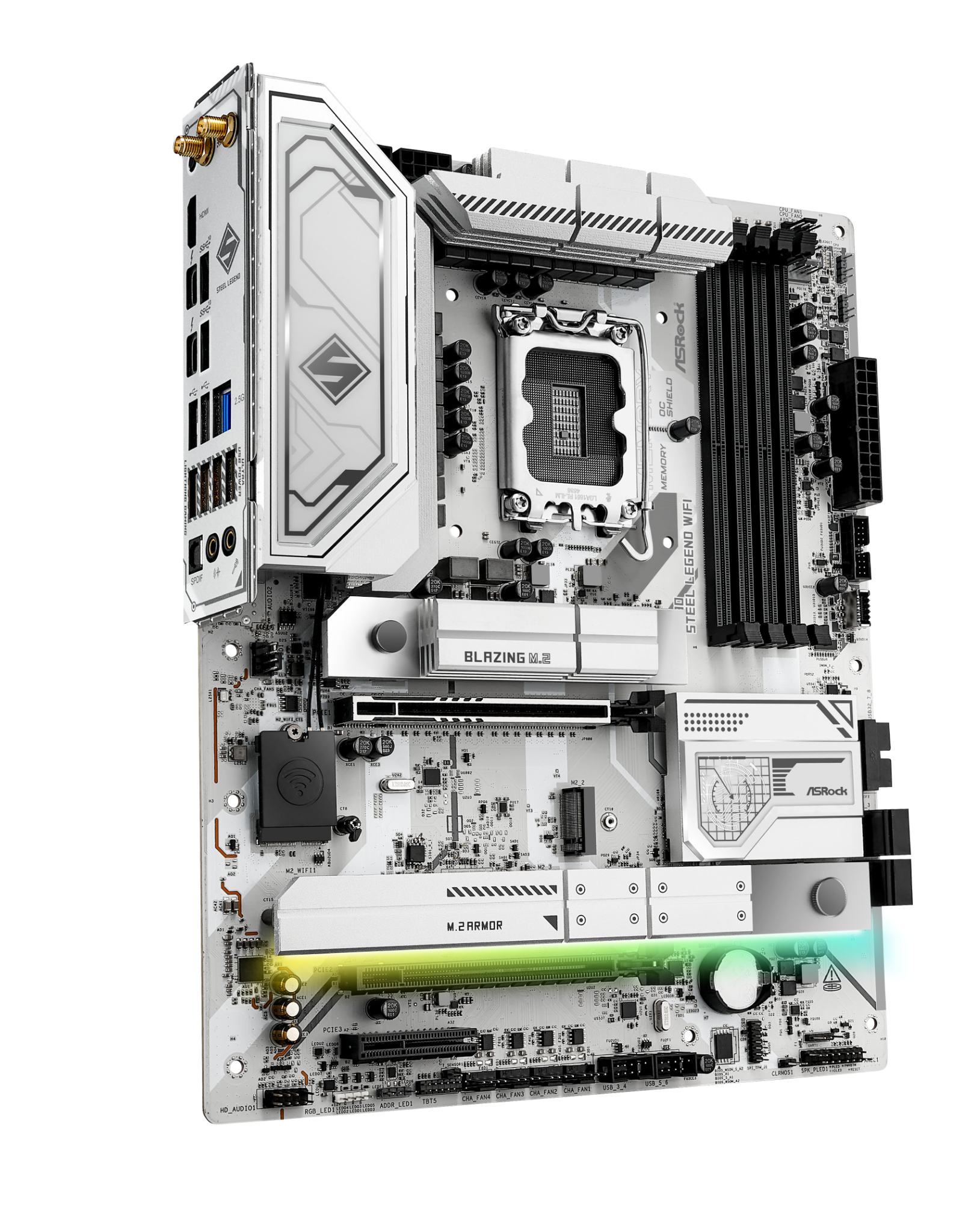

Main ASROCK Z890 STEEL LEGEND WIFI DDR5

  • Thương hiệu: ASROCK
  • Loại: MAINBOARD
  • SKU: SP1080946

Tại Máy Tính Biên Hòa: 9,290,000₫

  • GIAO HÀNG
    GIAO HÀNG
    Miễn phí giao hàng toàn quốc thông qua các đơn vị vận chuyển cho Hóa đơn trên 500,000đ
  • SẢN PHẨM
    SẢN PHẨM
    Cam kết hàng mới 100% - Bảo hành chính hãng
  • ĐỔI TRẢ
    ĐỔI TRẢ
    1 đổi 1 lên đến 31 ngày nếu phát sinh lỗi do nhà sản xuất
  • Hỗ trợ
    Hỗ trợ
    Thứ 2 - CN: 08:00 - 21:00 Hotline: 1800.799.999

Chia sẻ ngay



  • Unique Feature

    Superb Productivity
    - PCIe Gen5 (Graphics, M.2)
    - Dual Channel DDR5
    - Thunderbolt™ 4 Type-C Ports (40 Gb/s)
    Rock-Solid Durability
    - Server-Grade Low-Loss PCB
    - 18+1+1+1+1 Power Phase, 80A SPS for VCore+GT+SA with Enlarged Heatsink Armor
    - Memory OC Shield
    - Flexible Integrated I/O Shield
    - 20K Long-lasting Black Caps (high quality and conductive polymer capacitors)
    Ultrafast Connectivity
    - 2.5G LAN, 802.11be Wi-Fi 7 Module
    - ASRock Lightning Gaming Ports
    EZ Update
    - BIOS Flashback Button
    - ASRock Auto Driver Installer
    EZ Troubleshooter
    ASRock Post Status Checker

  • CPU

    - Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851RL-ILM)
    - Supports Intel® Hybrid Technology
    - Supports Intel® Turbo Boost Max 3.0 Technology
    - Supports Intel® Thermal Velocity Boost (TVB)
    - Supports Intel® Adaptive Boost Technology (ABT)
    - Integrated NPU for dedicated AI acceleration

  • Chipset

    - Intel® Z890

  • Bộ nhớ RAM

    - Dual Channel DDR5 Memory Technology
    - 4 x DDR5 DIMM Slots
    - Supports DDR5 non-ECC, un-buffered memory up to 9066MHz+(OC)*
    - Supports Clocked Unbuffered DIMM (CUDIMM)
    - Max. capacity of system memory: 256GB
    - Supports Intel® Extreme Memory Profile (XMP) 3.0x


    *1DPC 1R Up to 9066+ MHz (OC), 5600 MHz Natively.
    1DPC 2R Up to 6800+ MHz (OC), 5600 MHz Natively.
    2DPC 1R Up to 6800+ MHz (OC), 4800 MHz Natively.
    2DPC 2R Up to 5800+ MHz (OC), 4400 MHz Natively.

  • BIOS

    - 256Mb AMI UEFI Legal BIOS with GUI support

  • Card đồ họa

    - Intel® Xe LPG Graphics Architecture
    - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
    - 2 x Intel® Thunderbolt™ 4, support HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz*


    * Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
    Supports two 4K displays or one 8K display
    Only the CPU's embedded graphics can be displayed through Thunderbolt™ ports.
    If you want to display to a Thunderbolt™ monitor, please use CPU models with embedded graphics.

  • Card âm thanh

    - 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
    - Impedance Sensing on Rear Out port
    - Individual PCB Layers for R/L Audio Channel
    - Nahimic Audio

  • LAN

    - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
    - Dragon RTL8125BG
    - Supports Dragon 2.5G LAN Software
    - Smart Auto Adjust Bandwidth Control
    - Visual User Friendly UI
    - Visual Network Usage Statistics
    - Optimized Default Setting for Game, Browser, and Streaming Modes
    - User Customized Priority Control

  • LAN không dây

    - 802.11be 2x2 Wi-Fi 7 Module
    - Supports IEEE 802.11a/b/g/n/ac/ax/axe/be
    - Supports 2.4GHz/5GHz/6GHz* frequency band
    - Supports 320MHz channel bandwidth with 6GHz* frequency band
    - 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology
    - Supports Bluetooth 5.4
    - Supports MU-MIMO


    * Wi-Fi 7 (6GHz band) will be supported by Microsoft® Windows® 11.
    The availability will depend on the different regulation status of each country and region.
    It will be activated (for supported countries) through Windows® Update and software updates once available.

  • Khe cắm

    CPU:
    - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
    Chipset:
    - 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode*
    - 1 x PCIe 4.0 x4 Slot (PCIE3), supports x4 mode*
    - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)


    * PCIE1 supports PCIe riser cards to extend one x16 slot to x8/x8 or x8/x4/x4 slots.
    Supports NVMe SSD as boot disks

  • Kho tiền

    CPU:
    - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
    - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
    Chipset:
    - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes*
    - 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
    - 4 x SATA3 6.0 Gb/s Connectors


    * Supports Intel® Volume Management Device (VMD)
    Supports NVMe SSD as boot disks

  • RAID

    - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
    - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices

  • USB

    CPU:
    - 2 x Thunderbolt™ 4 Type-C (Rear)
    Chipset:
    - 1 x USB 3.2 Gen2x2 Type-C (Front)
    - 2 x USB 3.2 Gen2 Type-A (Rear)
    - 8 x USB 3.2 Gen1 (4 Rear, 4 Front)
    - 6 x USB 2.0 (2 Rear, 4 Front)


    * All USB ports support ESD Protection

  • Cổng kết nối

    - 1 x Thermistor Cable Header
    - 1 x SPI TPM Header
    - 1 x Power LED and Speaker Header
    - 1 x RGB LED Header*
    - 3 x Addressable LED Headers**
    - 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)***
    - 5 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)***
    - 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
    - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
    - 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
    - 1 x Front Panel Audio Connector (15μ Gold Audio Connector)
    - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
    - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
    - 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)


    * Supports in total up to 12V/3A, 36W LED Strip
    ** Support in total up to 5V/3A, 15W LED Strip
    *** CPU_FAN1 supports the fan power up to 1A (12W).
    CPU_FAN2, CHA_FAN1~5 and AIO_PUMP support the fan power up to 3A (36W).
    CPU_FAN2, CHA_FAN1~5 and AIO_PUMP can auto detect if 3-pin or 4-pin fan is in use.

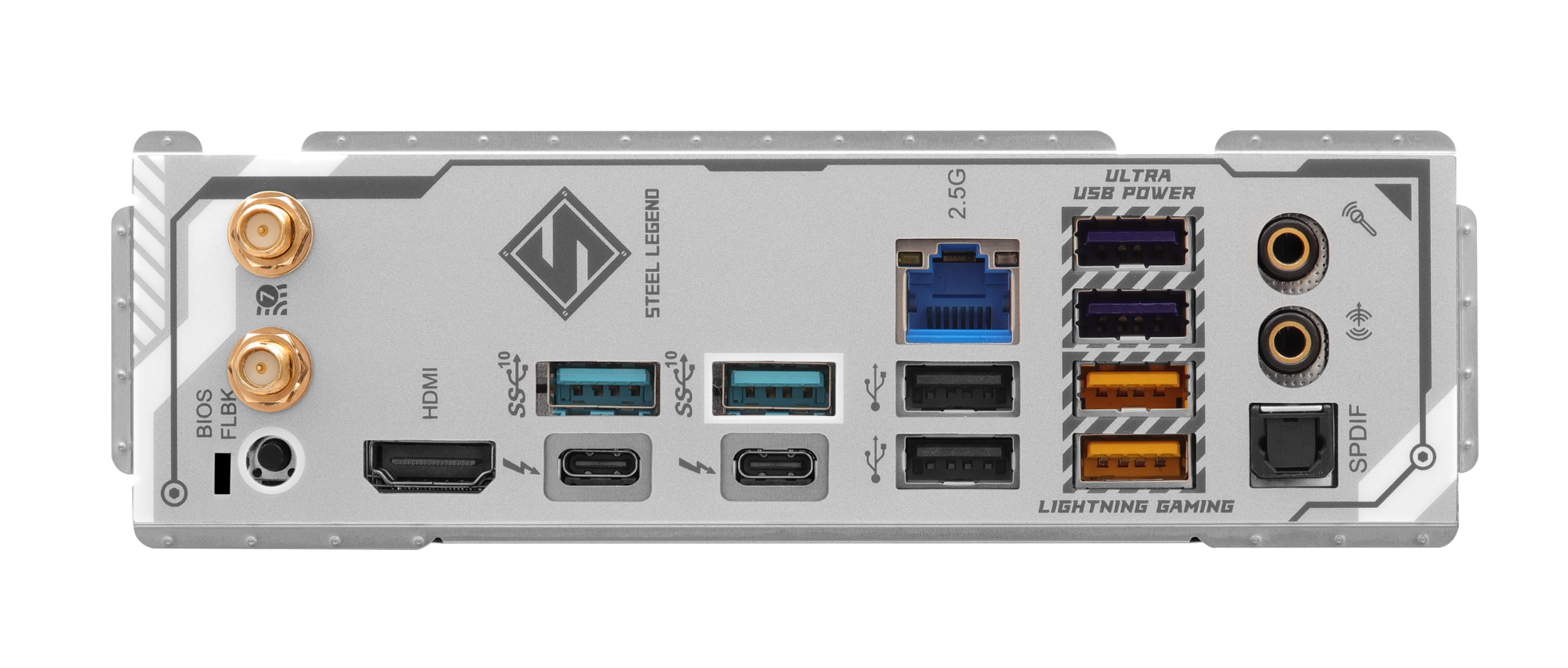

  • Bảng điều khiển Input/Output phía sau

    - 2 x Antenna Ports
    - 1 x HDMI Port
    - 1 x Optical SPDIF Out Port
    - 2 x Thunderbolt™ 4 Type-C Ports (40 Gb/s for USB4 protocol; 40Gb/s for Thunderbolt™ protocol)*
    - 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s)
    - 4 x USB 3.2 Gen1 Ports**
    - 2 x USB 2.0 Ports
    - 1 x RJ-45 LAN Port
    - 1 x BIOS Flashback Button
    - 1 x Line Out Jack (Gold Audio Jack)
    - 1 x Microphone Input Jack (Gold Audio Jack)


    * Supports USB PD 3.0 up to 5V@3A (15W) charging
    ** USB32_34 are Lightning Gaming Ports. USB32_56 support Ultra USB Power.

  • Phần mềm và UEFI

    Software
    - ASRock Motherboard Utility (A-Tuning)
    - ASRock Dragon 2.5G LAN Software
    - ASRock Polychrome SYNC*
    UEFI
    - ASRock EZ Mode
    - ASRock Full HD UEFI
    - ASRock My Favorites in UEFI
    - ASRock Auto Driver Installer
    - ASRock Instant Flash


    *These utilities can be downloaded from ASRock Live Update & APP Shop.

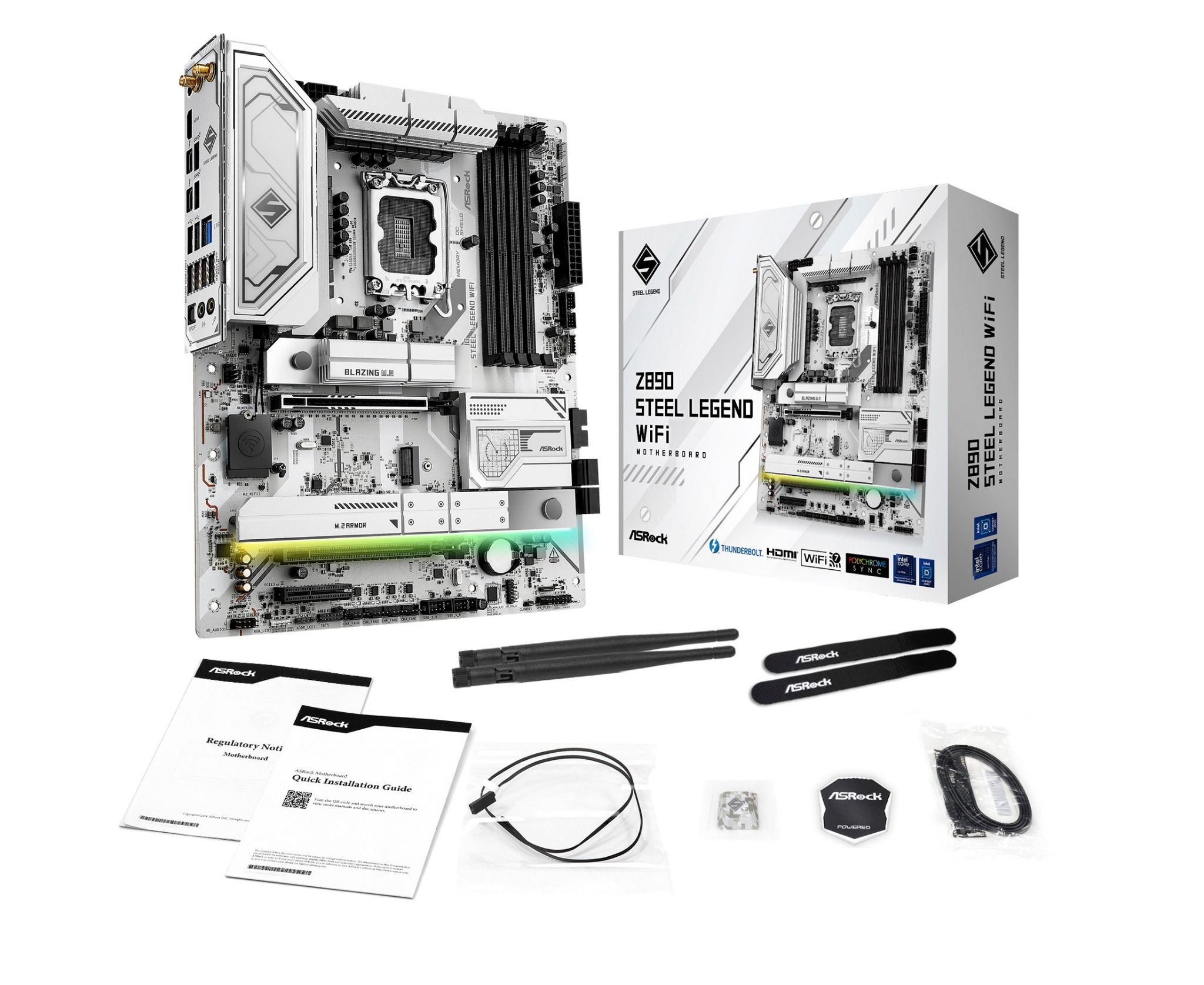

  • Phụ kiện

    - 2 x SATA Data Cables
    - 2 x ASRock WiFi 2.4/5/6 GHz Antennas
    - 1 x Thermistor Cable

  • Chuẩn vỏ máy

    - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
    - 2oz Copper PCB

  • Hệ điều hành

    - Microsoft® Windows® 11 64-bit

  • Chứng nhận

    - FCC, CE
    - ErP/EuP ready (ErP/EuP ready power supply is required)
