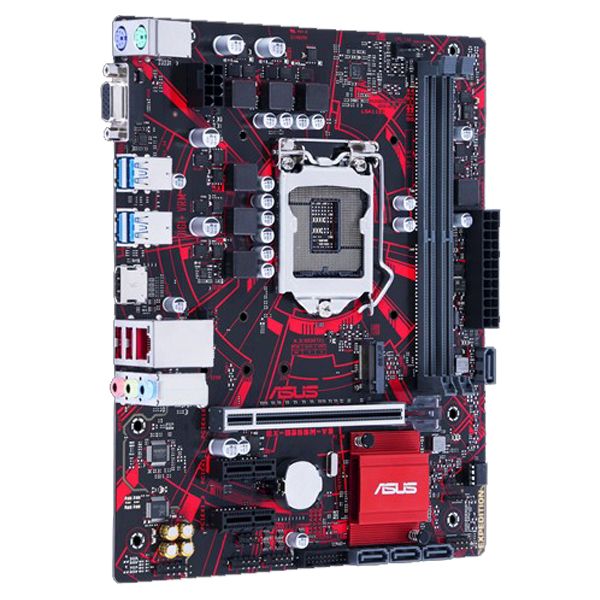

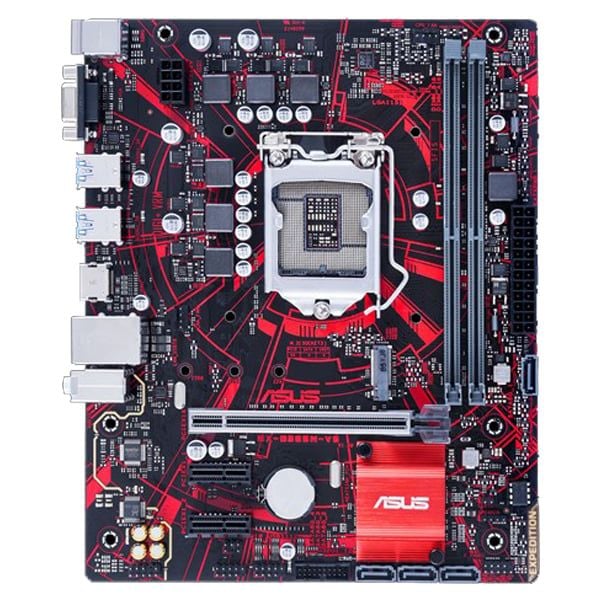

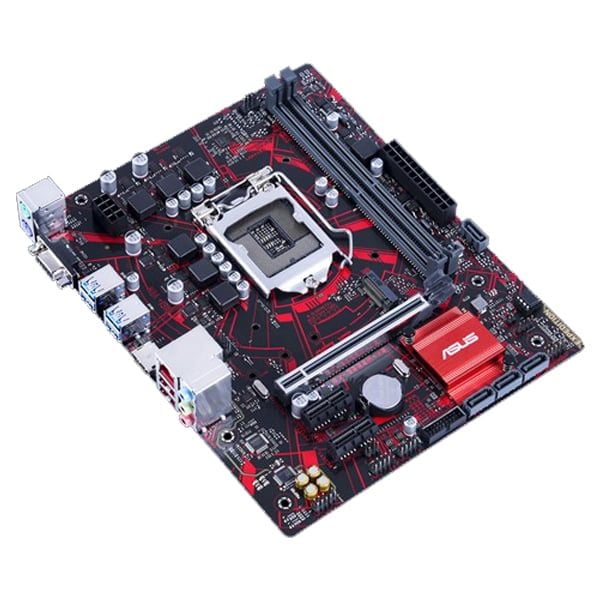

MAIN ASUS EX-B365M-V NEW

Sản phẩm

Bo mạch chủ

Tên Hãng

Asus

Model

EX-B365M-V5

CPU hỗ trợ

Intel

Chipset

B365

RAM hỗ trợ

2 x DDR4 memory slots, support up to 32GB DDR4

Khe cắm mở rộng

1 x PCIe 3.0/2.0 x16 (x16 mode)
2 x PCIe 3.0/2.0 x1

Ổ cứng hỗ trợ

4 x SATA 6Gb/s port(s),
1 x M.2

Cổng kết nối (Internal)

1 x AAFP connector
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 for M Key, type 2242/2260/2280 devices
4 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s)
1 x Chassis Fan connector(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin EATX 12V Power connectors
1 x Internal speaker connector(s)
1 x System panel(s)
1 x Clear CMOS jumper(s)
1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports

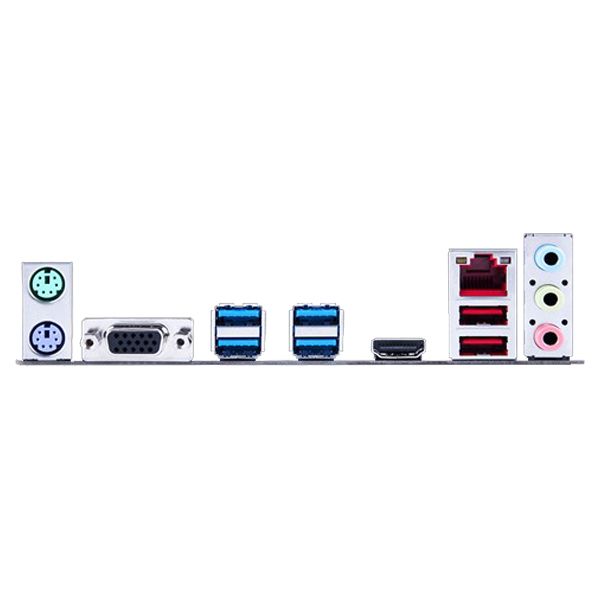

Cổng kết nối (Back Panel)

1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 2.0
3 x Audio jack(s)
4 x USB 3.2 Gen 1 (up to 5Gbps) ports

LAN / Wireless

Realtek® RTL8111H, 1 x Gigabit LAN Controller(s)

Kích cỡ

uATX Form Factor
8.9 inch x 7.2 inch ( 22.6 cm x 18.28 cm )
