THÔNG SỐ KỸ THUẬT

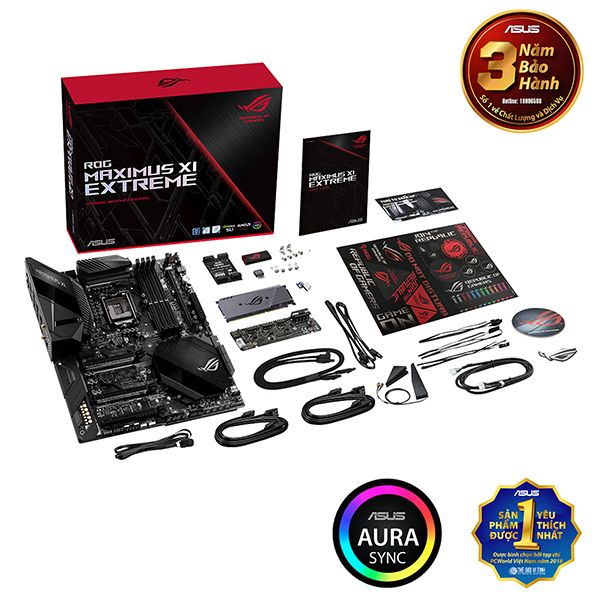

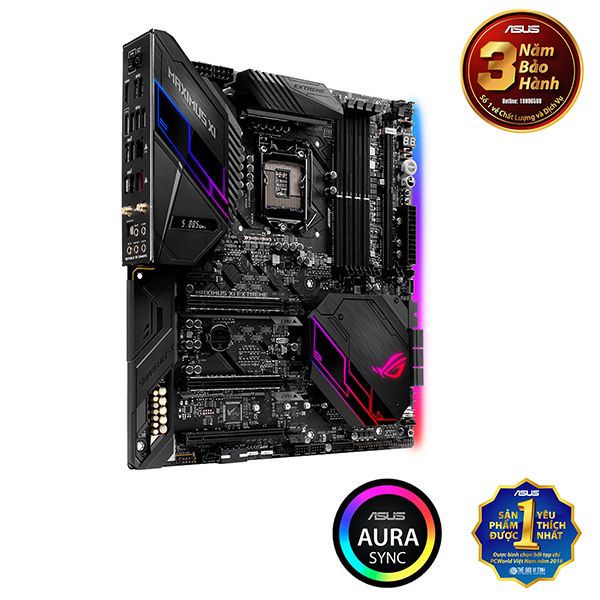

Bo mạch chủ - MAIN ASUS Z390 MAXIMUS XI ROG EXTREME đến từ thương hiệu MAIN ASUS
| CPU | Intel® Socket 1151 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 |
| Chipset | Intel® Z390 |
| Memory | 4 x DIMM, Max. 64GB, DDR4 4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.) /3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory |
| Graphic | Integrated Graphics Processor- Intel® UHD Graphics support VGA output support : HDMI port - Supports HDMI with max. resolution 4096 x 2160 @ 30 Hz |
| Multi-GPU Support | Supports NVIDIA® 2-Way SLI™ Technology Supports AMD 3-Way CrossFireX™ Technology |
| Expansion Slots | Socket 1151 for 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® processors 2 x PCIe 3.0/2.0 x16 (x16 or dual x8) Intel® Z390 Chipset 1 x PCIe 3.0/2.0 x16 (max at x4 mode) *1 1 x PCIe 3.0/2.0 x1 |

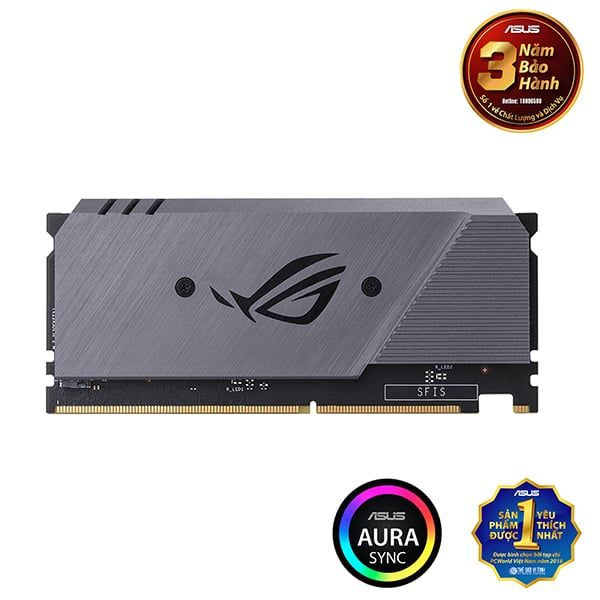

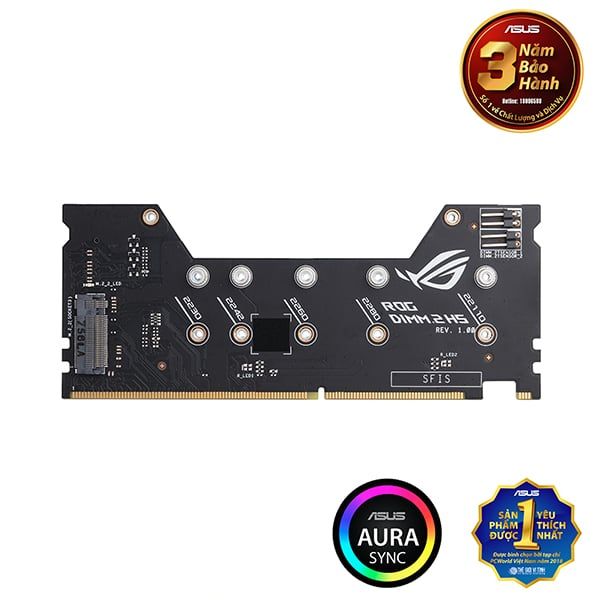

| Storage | Socket 1151 for 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® processors : 1 x ROG DIMM.2 Module support(CPU_DIMM.2), with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)*2 Intel® Z390 Chipset : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*3 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 6 x SATA 3Gb/s port(s) Support Raid 0, 1, 5, 10 Intel® Optane™ Memory Ready |
| LAN | Aquantia AQC111C 5G LAN Intel® I219V, Dual interconnect between the Integrated Media Access Controller (MAC) and Physical Layer (PHY) Anti-surge LANGuard ROG GameFirst Technology |
| Bluetooth | Bluetooth® 5.0 |
| Audio | ROG SupremeFX 8-Channel High Definition Audio CODEC S1220 |

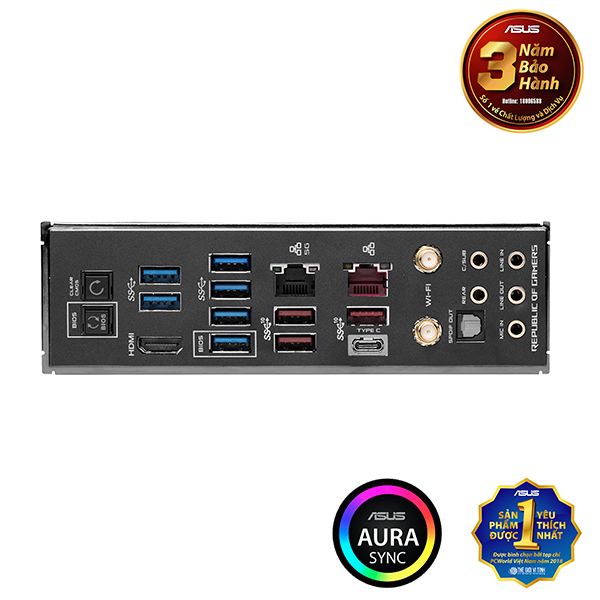

| USB Ports | Intel® Z390 Chipset : 1 x USB 3.1 Gen 2 front panel connector port(s) Intel® Z390 Chipset : 4 x USB 3.1 Gen 2 port(s) (4 at back panel, ) Intel® Z390 Chipset : 8 x USB 3.1 Gen 1 port(s) (4 at back panel, , 4 at mid-board) Intel® Z390 Chipset : 4 x USB 2.0 port(s) (4 at mid-board) ASMedia® USB 3.1 Gen 1 controller : 2 x USB 3.1 Gen 1 port(s) (2 at back panel, ) |
| BIOS | 2 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, SM BIOS 3.1, ACPI 6.1 |
| Operating System | Windows® 10 64-bit |
| Warranty | 36 month |
