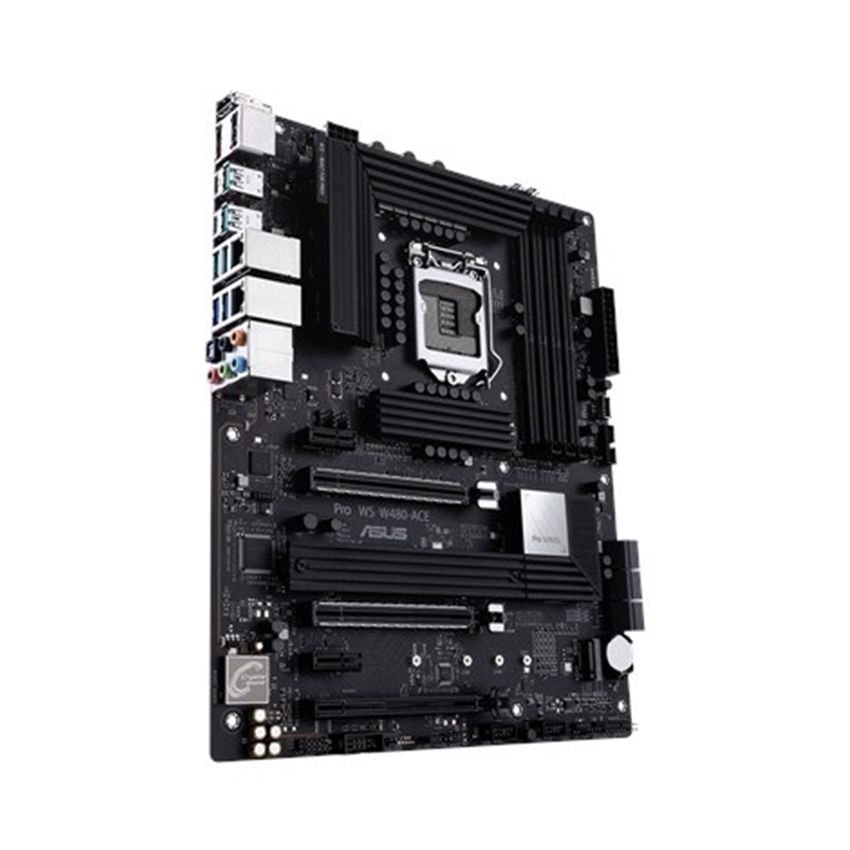

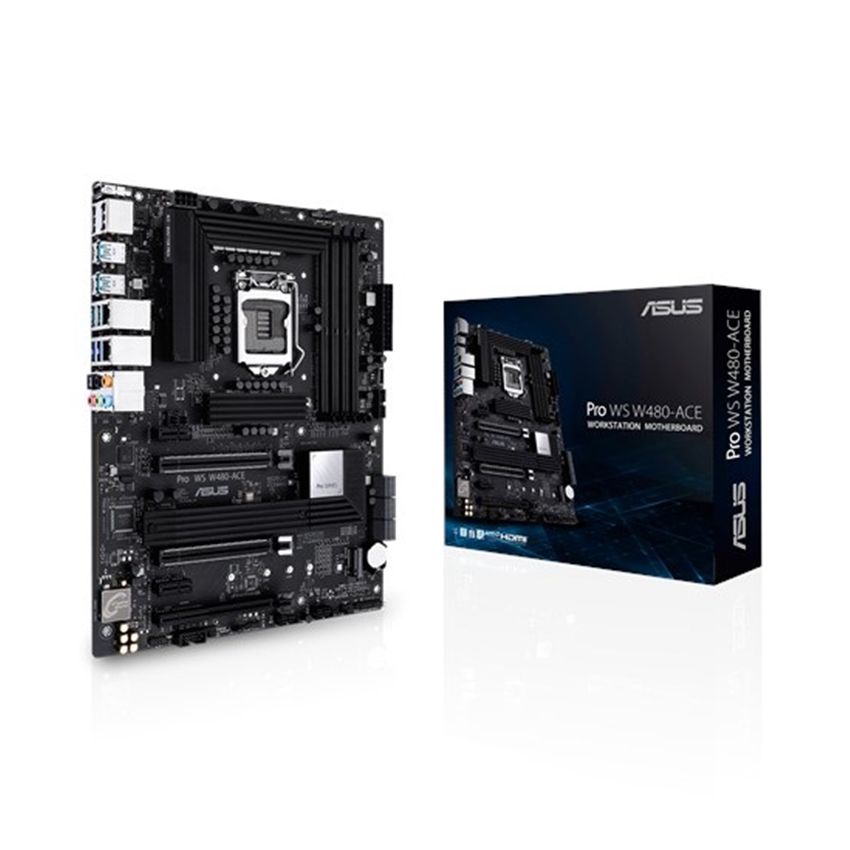

Main ASUS PRO WS W480 ACE (Intel W480, Socket 1200, ATX, 4 khe RAM DDR4)

Mô tả chi tiết

Hãng sản xuất

Asus

Chủng loại

ASUS PRO WS W480 ACE

CPU hỗ trợ

Intel® Socket 1200 for 10th Gen Intel® Xeon® Core™ , Pentium® Gold and Celeron® Processors

Supports Intel® 14 nm CPU

Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0

Chipset

Intel® W480

Bộ nhớ trong

4 x DIMM, Max. 128GB

4800(O.C.) / 4600(O.C) / 4500(O.C) / 4400(O.C) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz Non-ECC, Un-buffered Memory

Dual Channel Memory Architecture

Supports Intel® Extreme Memory Profile (XMP)

OptiMem II

VGA onboard

Âm thanh

Realtek® ALC S1220A 8-Channel High Definition Audio CODEC

Khe mở rộng

Intel® 10th Gen Processors

2 x PCIe 3.0 x16 (x16 or dual x8)

Intel® W480 Chipset

1 x PCIe 3.0 x16 (x4 mode)

2 x PCIe 3.0 x1

Chuẩn lưu trữ

Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports

Intel® W480 Chipset :

1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)

1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)

6 x SATA 6Gb/s port(s)

Support Raid 0, 1, 5, 10

Intel® Rapid Storage Technology supports

Intel® Optane™ Memory Ready

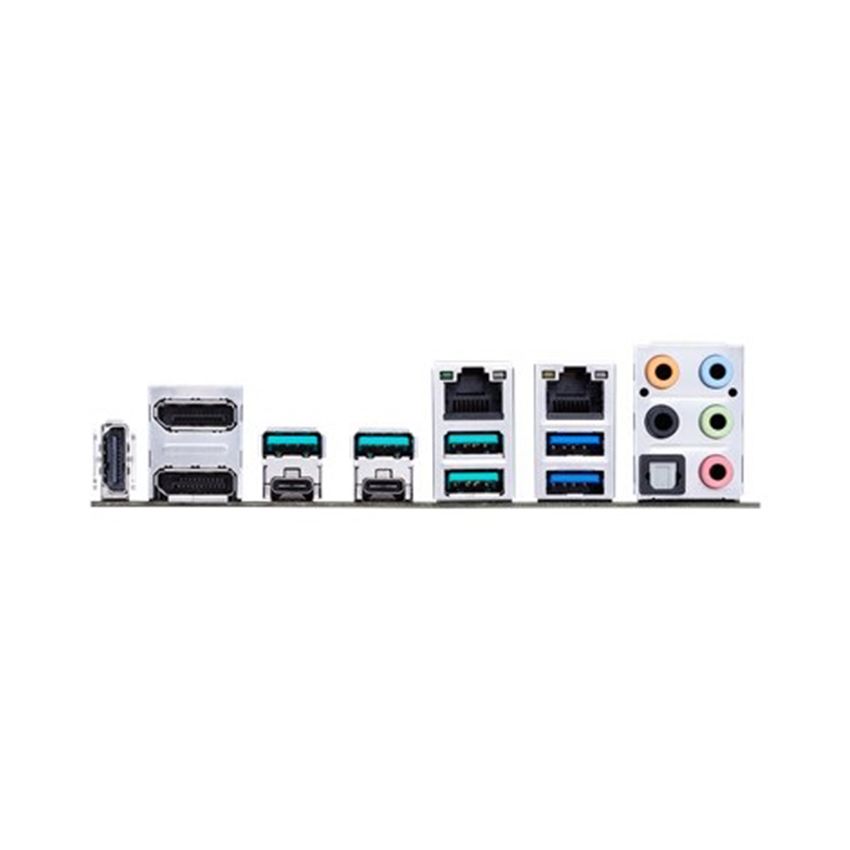

Cổng giao tiếp

2 x Thunderbolt 3 ports TypeC™

2 x DisplayPort IN ports for Thunderbolt™ 3

1 x HDMI

1 x LAN (RJ45) port(s)

1 x LAN (2.5G) port(s)

4 x USB 3.2 Gen 2 Type-A

2 x USB 3.2 Gen 1 Type-A

1 x Optical S/PDIF out

5 x Audio jack(s)

LAN

Intel® I225-LM 2.5Gb Ethernet

Realtek® RTL8117

Kích thước

ATX Form Factor 12 inch x 9.2 inch ( 30.5 cm x 23.4 cm )
