* THÔNG SỐ KỸ THUẬT

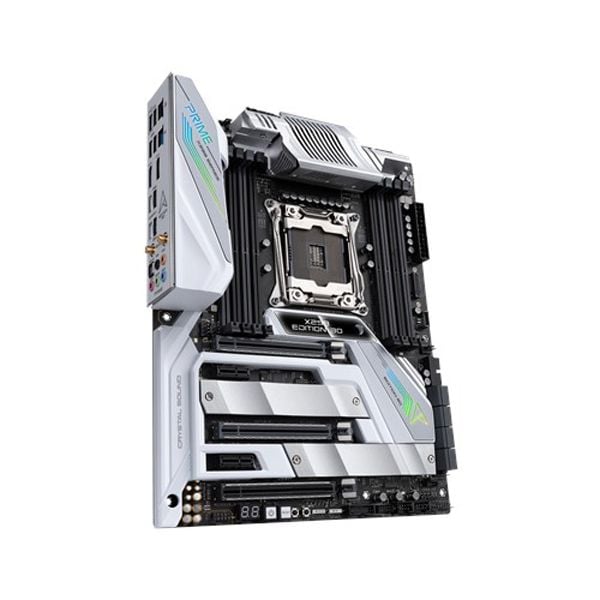

Bo mạch chủ - MAIN ASUS X299 PRIME EDITION 30 YEAR đến từ thương hiệu main Asus
| CPU | Intel® Socket 2066 Core™ X-Series Processors Optimized for Intel® Core™ X-Series 10000 Processor Family * The Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types |
| Chipset | Intel® X299 |
| Memory | (Intel® Core™ i9 10000 X-Series CPU) 8 x DIMM, Max. 256GB, DDR4 4266(O.C.)/4200(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3800(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2933/2666/2400/2133 MHz Non-ECC, Un-buffered Memory (Intel® Core™ i9 9000/7000 and i7 9000 X-Series CPU) 8 x DIMM, Max. 256GB, DDR4 4266(O.C.)/4200(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3800(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400 MHz Non-ECC, Un-buffered Memory Supports Intel® Extreme Memory Profile (XMP) * Hyper DIMM support is subject to the physical characteristics of individual CPUs. |
| Thunderbolt | 2 x Intel® Thunderbolt™ 3 ports(TypeC™) support DisplayPort and Thunderbolt™ video outputs Supports DisplayPort 1.4/ with max. resolution 7680/ x 3840/@ 60 Hz* * VGA resolution support depends on VGA cards' resolution. Data transfer rate up to 40 Gbps Daisy-chain up to 12 Thunderbolt devices Up to 5V/3A, 15W charging support |
| Multi-GPU Support | Supports NVIDIA® Quad-GPU SLI® Technology Supports NVIDIA® 3-Way SLI® Technology Supports NVIDIA® 2-Way SLI® Technology Supports AMD Quad-GPU CrossFireX™ Technology Supports AMD 3-Way CrossFireX™ Technology |
| Expansion Slots | 48-Lane CPU- 3 x PCIe 3.0/2.0 x16 (x16, x16/x16, x16/x16/x8) 2 x PCIe 3.0/2.0 x1 *1 44-Lane CPU- 3 x PCIe 3.0/2.0 x16 (x16, x16/x16, x16/x16/x8) 2 x PCIe 3.0/2.0 x1 *1 28-Lane CPU- 2 x PCIe 3.0/2.0 x16 (x16, x16/x8) *2 2 x PCIe 3.0/2.0 x1 *1 |
| Storage | Intel® X299 Chipset : 1 x M.2 x4 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*3 1 x M.2 x4 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)*4 8 x SATA 6Gb/s port(s)*5 Support Raid 0, 1, 5, 10 Intel® Rapid Storage Technology supports (Intel® Core™ i9 10000 X-Series CPU) : 2 x M.2 x4 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)*4 Support Raid 0, 1, 5, 10 Intel® Virtual RAID on CPU(VROC) (Intel® Core™ i9 9000/7000 and i7 9000 X-Series CPU) : 1 x M.2 x4 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)*4 Support Raid 0, 1, 5, 10 Intel® Virtual RAID on CPU(VROC) Intel® Optane™ Memory Ready *6 |
| LAN | Aquantia AQC111C 5G LAN Intel® I219V, 1 x Gigabit LAN ASUS Turbo LAN Utility ASUS LAN Guard |

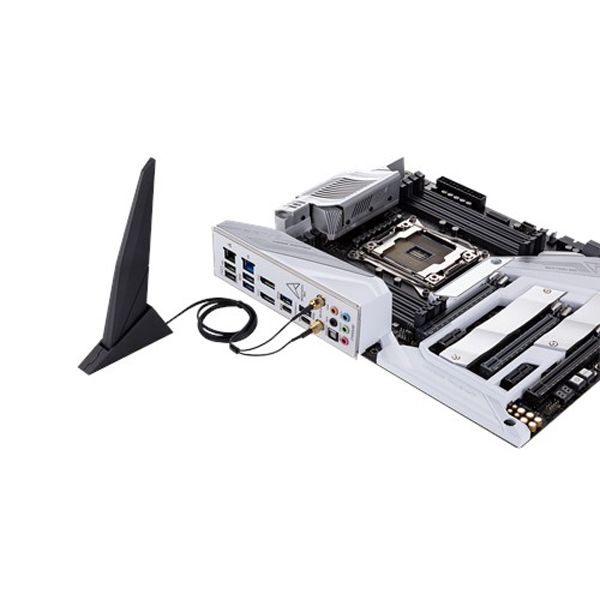

| Wireless Data Network | Intel® Wi-Fi 6 AX200 Wi-Fi 802.11 ax, Bluetooth® 5.0 Supports channel bandwidth: HT20/HT40/HT80/HT160 2 x 2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) with MU-MIMO supports dual frequency band 2.4/5GHz Up to 2.4Gbps transfer speed |
| Bluetooth | Bluetooth® 5.0 |
| Audio | Realtek® S1220A 8-Channel High Definition Audio CODEC - Power pre-regulator reduces power input noise to ensure consistent performance - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking Audio Feature : - DTS X®:Ultra - Optical S/PDIF out port(s) at back panel - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity - Unique de-pop circuit: Reduces start-up popping noise to audio outputs |
| USB Ports | Intel® Thunderbolt™ 3 Controller : 2 x USB 3.2 Gen 2 port(s) (USB Type-CTM) ASMedia® USB 3.2 Gen 2 controller : *1 1 x USB 3.2 Gen 2 front panel connector port(s) GL852G USB Hub : 4 x USB 2.0 port(s) Intel® X299 Chipset : 5 x USB 3.2 Gen 1 port(s) (1 at back panel, , 4 at mid-board) Intel® X299 Chipset : 2 x USB 2.0 port(s) (2 at back panel, ) ASMedia® USB 3.2 Gen 1 Hub : 3 x USB 3.2 Gen 1 port(s) (3 at back panel, ) |
| Special Features | OC Design - ASUS PRO Clock II Technology 5-Way Optimization by Dual Intelligent Processors 5 - 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo Core App AI Overclocking ASUS 5X Protection III : - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges! - ASUS Overvoltage Protection: World-class circuit-protecting power design - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! - ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention - ASUS ESD Guards - Enhanced ESD protection 2 ” LiveDash AURA : - Aura RGB Strip Headers - Aura Lighting Effects Synchronization with compatible ASUS ROG devices - Aura Addressable Strip Header(s) ASUS Exclusive Features : - USB BIOS Flashback® - AI Suite 3 - Ai Charger - Onboard Button : Power - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface - Turbo LAN - Armoury Crate - Pre-mounted I/O Shield - ASUS NODE: hardware control interface - BIOS Flashback® Button - Clear CMOS Button ASUS Quiet Thermal Solution : - Stylish Design Heat-pipe solution - ASUS Fan Xpert 4 ASUS Q-Design : - ASUS Q-Code - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED, HDD LED) - ASUS Q-Slot - ASUS Q-DIMM - ASUS Q-Connector Intel® Virtual RAID on CPU (VROC) ready DIY Friendly Design - ProCool II - SafeSlot |

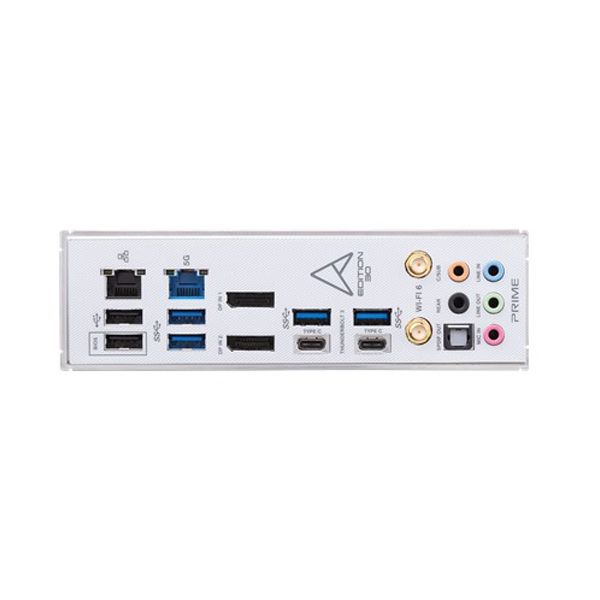

| Back I/O Ports | 2 x Thunderbolt 3 ports TypeC™ 2 x DisplayPort IN ports for Thunderbolt™ 3 1 x LAN (RJ45) port(s) 4 x USB 3.2 Gen 1 2 x USB 2.0 (one port can be switched to USB BIOS Flashback®) 1 x Optical S/PDIF out 5 x Audio jack(s) 1 x ASUS Wi-Fi Module 1 x AQC-111C 5G LAN port |
| Internal I/O Ports | 2 x Aura Addressable Strip Header(s) 1 x AAFP connector 2 x Aura RGB Strip Header 2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 2 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 8 x SATA 6Gb/s connector(s) 1 x M.2_FAN connector 1 x VROC_HW_Key 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 1 x W_PUMP+ connector 1 x AIO_PUMP connector 1 x 24-pin EATX Power connector(s) 2 x 8-pin EATX 12V Power connectors 1 x System panel(s) (Q-Connector) 1 x Thermal sensor connector(s) 1 x CPU OV 1 x Power-on button(s) 1 x Clear CMOS button(s) 1 x Node Connector(s) 1 x USB BIOS Flashback® button(s) 1 x USB 3.2 Gen 2 front panel connector 1 x Q-Code 1 x FlexKey button |

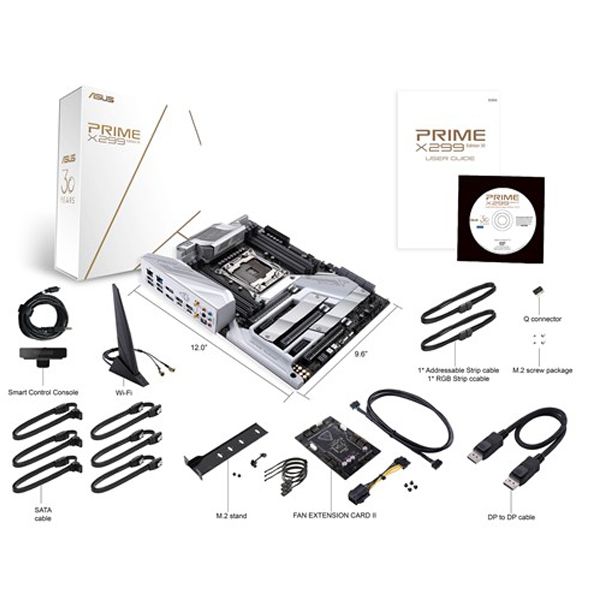

| Accessories | User's manual 1 x Vertical M.2 bracket set 6 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x Supporting DVD 1 x Fan Extension Card II (6 x 4-pin Chassis Fan connectors, 3 x RGB headers, 3 x 2-pin Thermal sensor header) 1 x Fan Extension Card II power cable 1 x Fan Extension Card II NODE connector cable 1 x Fan Extension Card II screw package 1 x DisplayPort cable 1 x Q-Connector 1 x Wi-Fi Antenna(s) 1 x Extension Cable for RGB strips (80 cm) 1 x Extension cable for Addressable LED 3 x Thermistor cable(s) Smart Control Console 1 x Smart Control Console 2 x micro USB 2.0 cables for Smart Console Console |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 AI OC Guide, F6 Qfan Control, F3 My Favorites, Last Modified log, F9 Search, F12 PrintScreen, F4 AURA ON/OFF and ASUS DRAM SPD (Serial Presence Detect) memory information |
| Manageability | WfM 2.0, DMI 3.0, WOL by PME, PXE |
| Support Disc | Drivers ASUS Utilities EZ Update Anti-virus software (OEM version) |
| Operating System | Windows® 10 64-bit |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| Note | * 1. PCIEX1_1 shares bandwidth with USB 3.2 Gen 2 front panel connector(U31G2_E1). It is disabled by default. PCIEX1_2 shares bandwidth with SATA6G_7. * 2. PCIeX16_3 will be disabled when using 28-lane CPU. * 3. The M.2_2 socket shares bandwidth with SATA6G_1 port when using M.2 SATA devices. * 4. The M.2_1 PCIe mode source is from X299 Chipset when using 44 and 28-lane CPU. * 5. The SATA6G_7 shares bandwidth with PCIeX1_2. * 6. The M.2 PCIE mode source from X299 Chipset supports Intel® Optane Memory |
