MAIN ASUS X570 ROG Crosshair VIII Hero

Bảo hành

36 tháng

Sản phẩm

Bo mạch chủ

Tên Hãng

ASUS

Model

X570 CROSSHAIR VIII

CPU hỗ trợ

AMD

Chipset

X570

RAM hỗ trợ

4 x DDR4 memory slots, support up to 128GB

Khe cắm mở rộng

3rd Gen AMD Ryzen™ Processors 2 x PCIe 4.0 x16 (x16 or dual x8)

2nd Gen AMD Ryzen™ Processors 2 x PCIe 3.0 x16 (x16 or dual x8)

Ổ cứng hỗ trợ

8 x SATA 6Gb/s ports, 1 x M.2 slot

Cổng kết nối (Internal)

2 x Aura RGB Strip Headers
2 x Addressable Gen 2 header(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support
1 x TPM connector(s)
8 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
3 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x H_AMP fan connector
1 x W_PUMP+ connector
1 x 4-pin EATX 12 V Power connector
1 x 24-pin EATX Power connector(s)
1 x 8-pin EATX 12V Power connectors
1 x Front panel audio connector(s) (AAFP)
1 x Slow Mode switch(es)
1 x Reset button(s)
1 x Node Connector(s)
1 x LN2 Mode jumper(s)
1 x Safe Boot button
1 x ReTry button
1 x System panel connector
1 x T_Sensor Connector
1 x W_IN header
1 x W_OUT header
1 x W_FLOW header
1 x Start button
1 x Speaker connector
1 x USB 3.2 Gen 2 (up to 10Gbps) connector
1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports

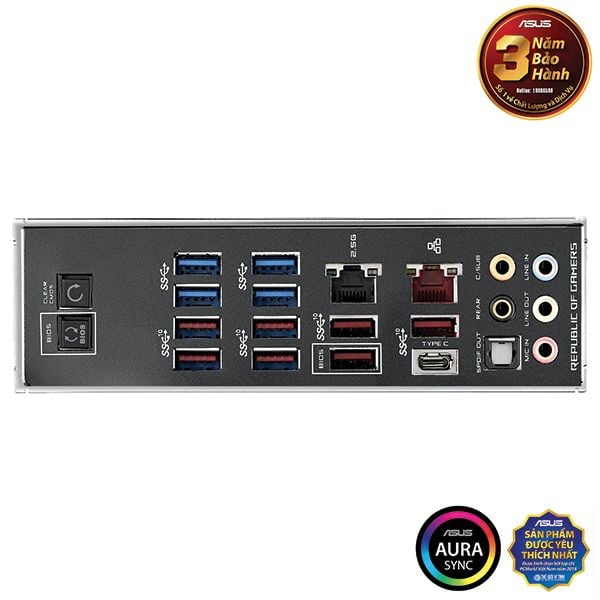

Cổng kết nối (Back Panel)

1 x Optical S/PDIF out
1 x Clear CMOS button(s)
1 x Anti-surge 2.5G LAN (RJ45) port
1 x USB BIOS Flashback Button(s)
5 x Gold-plated audio jacks
4 x USB 3.2 Gen 1 (up to 5Gbps) ports
8 x USB 3.2 Gen 2 (up to 10Gbps) ports ()
Anti-surge LAN (RJ45) port

LAN / Wireless

Intel®​ I211-AT Gb LAN

Kích cỡ

ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
