THÔNG SỐ KỸ THUẬT

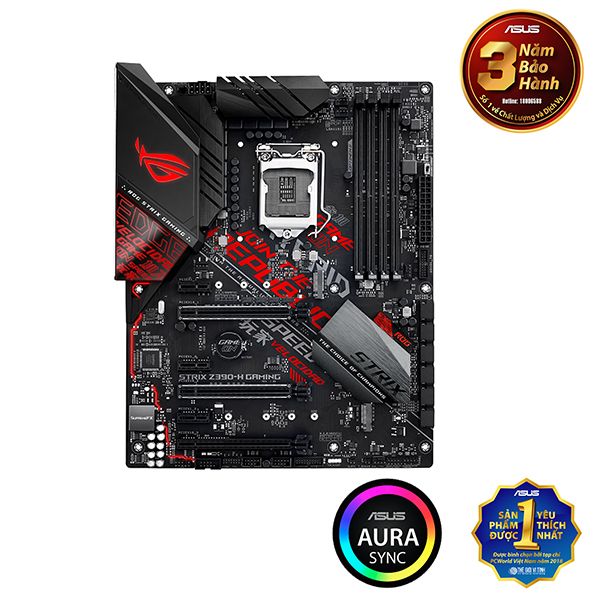

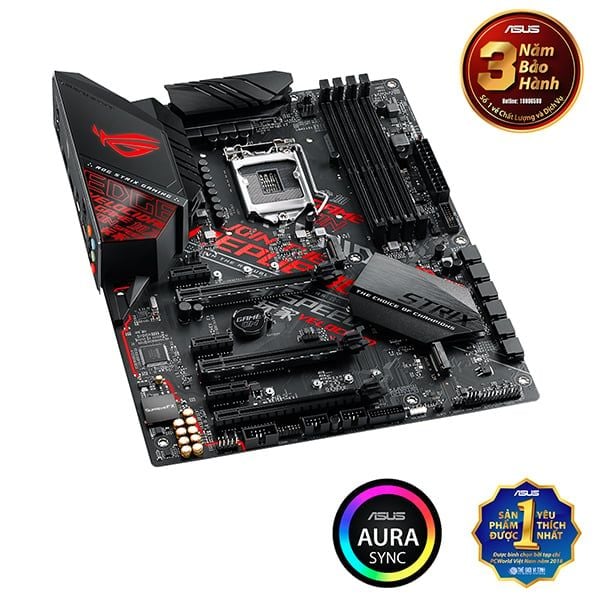

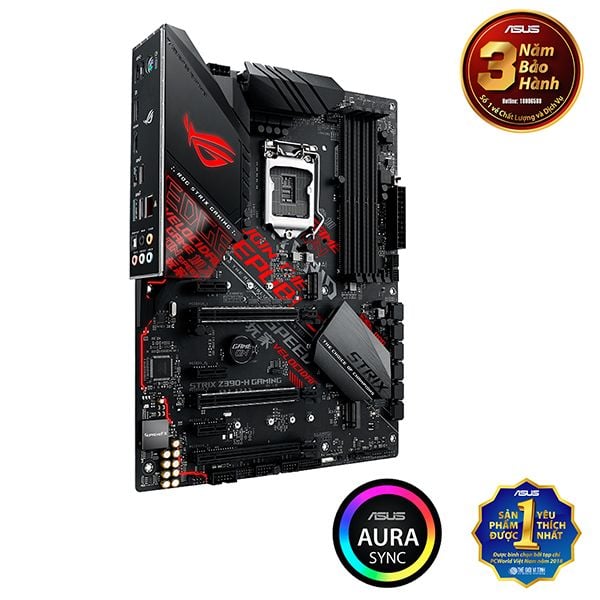

Bo mạch chủ - MAIN ASUS Z390-H ROG STRIX GAMING đến từ thương hiệu MAIN ASUS
| CPU | Intel® Socket 1151 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 |
| Chipset | Intel® Z390 |
| Memory | Socket 1151 for 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® processors 3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory * |
| Graphic | Integrated Graphics Processor- Intel® HD Graphics support - Supports HDMI 2.0 with max. resolution 4096 x 2160 @ / 60 Hz - Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz *1 Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™ Supports up to 3 displays simultaneously |
| Expansion Slots | 1 x PCIe 3.0 x16 (x16 mode) |
| Storage | Intel® Z390 Chipset : 2 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)*2 4 x SATA 6Gb/s port(s) Support Raid 0, 1, 5, 10 Intel® Optane™ Memory Ready *3 |
| LAN | Intel® I219V Anti-surge LANGuard ROG GameFirst Technology |
| Wireless Data Network | Intel® Wireless-AC 9560 Wi-Fi 802.11 a/b/g/n/ac Supports dual band frequency 2.4/5 GHz Supports MU-MIMO |
| Bluetooth | Bluetooth® 5.0 |
| USB Ports | Intel® Z390 Chipset : 1 x USB 3.1 Gen 2 front panel connector port(s) Intel® Z390 Chipset : 2 x USB 3.1 Gen 2 port(s) (2 at back panel, red, Type-A) Intel® Z390 Chipset : 5 x USB 3.1 Gen 1 port(s) (3 at back panel, blue, Type-A + USB Type-CTM, 2 at mid-board) Intel® Z390 Chipset : 4 x USB 2.0 port(s) (2 at back panel, black, 2 at mid-board) |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information. |
| Manageability | WOL, PXE |
| Form Factor | Mini ITX Form Factor 6.7 inch x 6.7 inch ( 17 cm x 17 cm ) |
| Warranty | 36 month |
