Sản phẩm | Bo mạch chủ |
Tên Hãng | ASUS |
Model | PRIME PRIME Z590-P |
CPU hỗ trợ | Hỗ trợ cho thế hệ thứ 11&10 Intel® Core Socket LGA1200 |
Chipset | Z590 |
RAM hỗ trợ | 4 x DDR4 DIMM Slots ( tối đa 128GB )
Supports DDR4 5133(OC)/5000(OC)4800(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC) 3200(OC)/2933/2800/2666 / 2400 / 2133 non-ECC, un-buffered memory |
Khe cắm mở rộng | 1 x PCI Express 4.0/3.0 x16 Slots
2 x PCI Express 3.0 x 16 Slots |
Ổ cứng hỗ trợ | 4 x SATA3 6.0 Gb/s Connectors |
Cổng kết nối (Internal) | 1 x 4-pin CPU Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
2 x AURA Addressable Gen 2 headers
2 x AURA RGB headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x SPI TPM header (14-1pin)
1 x 20-5pin System Panel header
1 x Thunderbolt™ header |

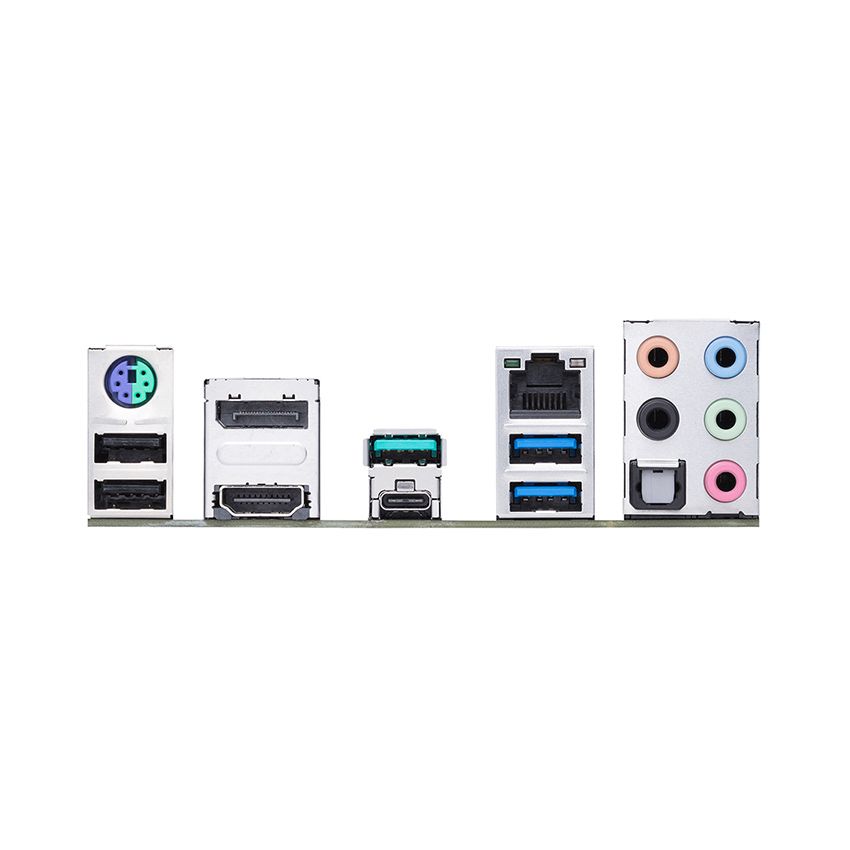

Cổng kết nối (Back Panel) | 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
1 x USB 3.2 Gen 2 port (1 x Type-A)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI™ port
1 x V-M.2 slot (Key E)
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
1 x PS/2 Keyboard/Mouse combo port |
Lan/Wireless | 1 x Realtek 2.5Gb Ethernet |
Kích cỡ | Micro ATX Form Factor: 12 inch x 9.2 inch (30.5cm x 23.4cm) |
