THÔNG SỐ KỸ THUẬT
| Chipset | Intel H310 |
| CPU SUPPORT | 8th Gen Intel® Core™ i7 LGA 1151 Processor 8th Gen Intel® Core™ i5 LGA 1151 Processor 8th Gen Intel® Core™ i3 LGA 1151 Processor 8th Gen Intel® Pentium® LGA 1151 Processor 8th Gen Intel® Celeron® LGA 1151 Processor Maximum CPU TDP (Thermal Design Power) : 95Watt |
| MEMORY | 2 x DDR4 DIMM Memory Slot Max. Supports up to 32GB Memory |
| INTEGRATED VIDEO | By CPU model Supports DX12 Supports HDCP |
| STORAGE | 4 x SATA3 Connector |
| LAN | Realtek RTL8111H - 10/100/1000Mb/s Controller |
| CODEC | Realtek ALC887 8-Channel HD Audio Support HD Audio |
| USB | 4 x USB 3.1 Gen1 Port (2 on rear I/Os and 2 via internal header) 6 x USB 2.0 Port (4 on rear I/Os and 2 via internal header) |
| EXPANSION SLOT | 1 x PCI-E 3.0 x16 Slot 2 x PCI-E 2.0 x1 Slot |

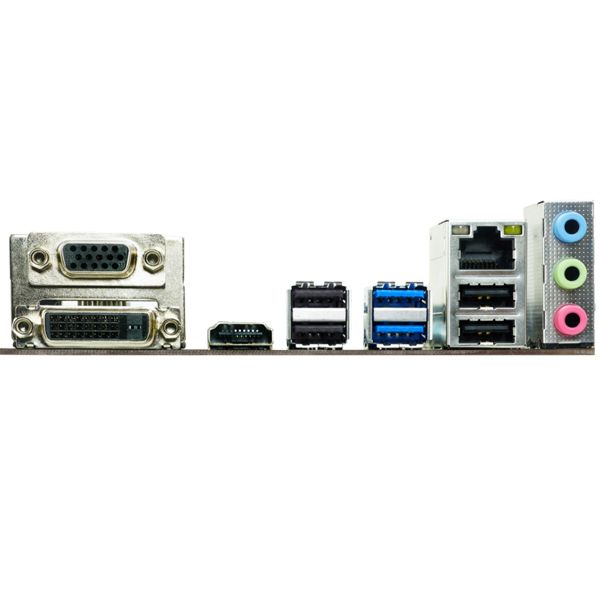

| REAR I/O | 1 x PS/2 Mouse 1 x PS/2 Keyboard 2 x USB 3.1 Gen1 Port 4 x USB 2.0 Port 1 x HDMI Connector, resoltuion up to 4096*2160@24Hz 1 x DVI-D Connector, resolution up to 1920*1200@60Hz 1 x VGA Port, resolution up to 1920*1600@60Hz 1 x LAN port 3 x Audio Jacks |
| INTERNAL I/O | 1 x USB 3.1 Gen1 Header (each header support 2 USB 3.1(Gen1) ports) 1 x USB 2.0 Header (each header support 2 USB 2.0 ports) 4 x SATA3 6Gb/s Connector 1 x Front Audio Header 1 x Front Panel Header 1 x CPU Fan Connector 1 x System Fan Connector 1 x 4-Pin Power Connector 1 x 24-Pin Power Connector 1 x Clear CMOS Header 1 x COM Port Header |
| H/W MONITORING | CPU / System Temperature Monitoring CPU / System Fan Monitoring Smart / Manual CPU Fan Control System Voltage Monitoring |
| DIMENSION | Micro ATX Form Factor Dimension: 22.8 cm x 17.7 cm ( W x L ) |
| OS SUPPORT | Support Windows 10(64bit) |
| ACCESSORIES | 1 x SATA Cable 1 x I/O Shield 1 x DVD Driver 1 x User Manual |
| WARRANTY | 36 MONTH |
