* Bảo hành: 36 tháng

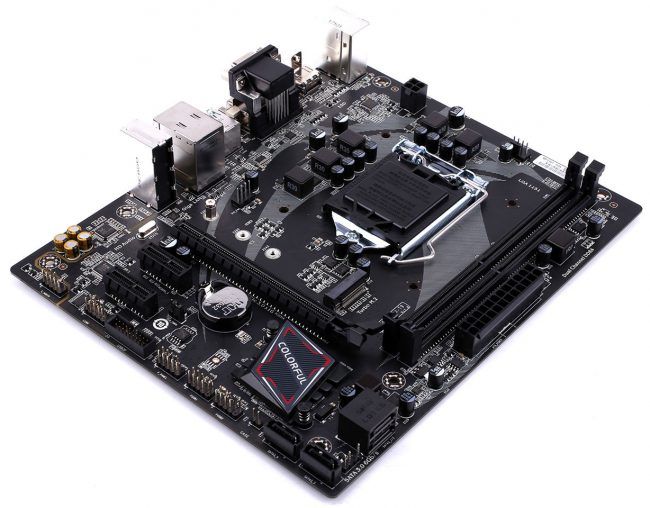

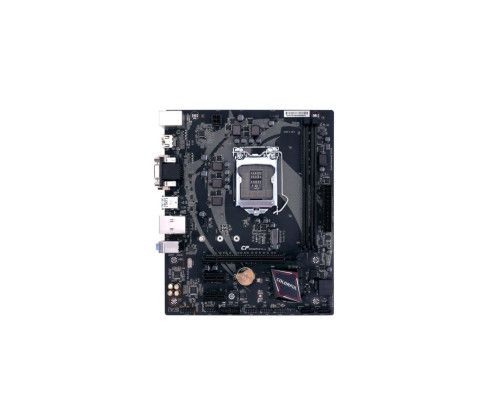

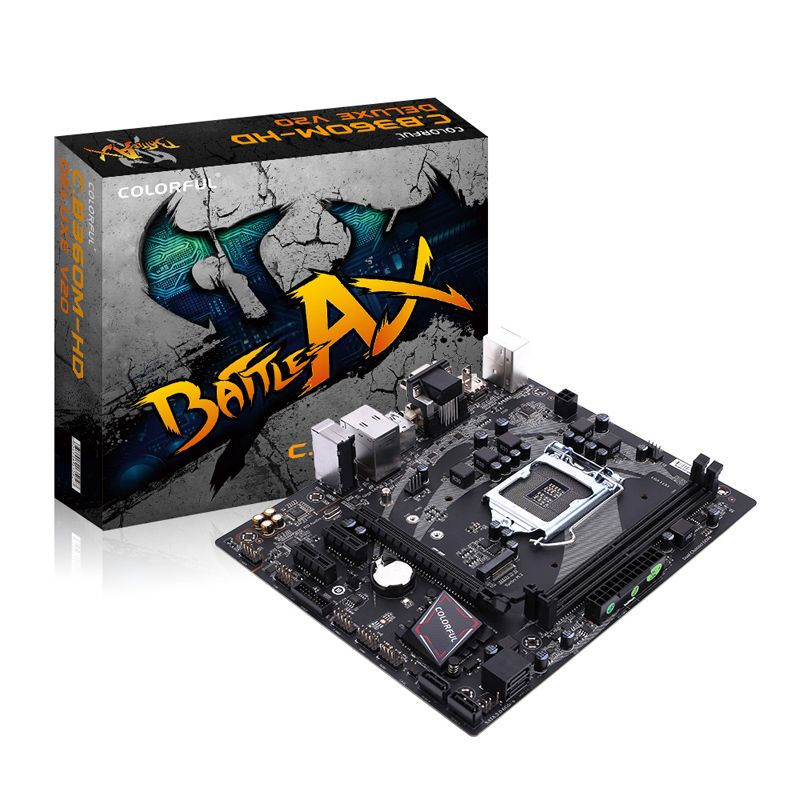

| Motherboard_Model | Battle Axe C.B360M-HD DELUXE V20 |
| Chipset | Intel B360 |
| Processor | support Intel LGA1151 Coffee Lake processors |
| Memory | 2 DIMM slots，support DDR4 dual channel 2133/2400MHZ memory |
| Graphics | 1*PCI Express 3.0x16 slot |
| Board_IO | 1*PS2 port，2*USB2.0、2*USB3.0、2*USB3.1 ports,1*RJ45 lan，3*audio ports，1*VGA、1*DVI 、1*HDMI ports; onboard： 2*USB2.0、1*USB3.0 headers |
| Expansion_Slots | 2*PCI Express x1 slots,1*M.2 slot |
| SATA_Ports | 4*SATA3.0 6Gb/s ports |
| BIOS | 128M UEFI |
| Power_Management | support 95W processors |
| Hardware_Monitor | CPU Fan speed Controlled，SYSTEM Fan speed Monitoring,CPU Temperature Monitoring，System Temperature Monitoring，and Voltage monitoring |
| LAN | Realtek RTL8111H 1000M LAN |
| Audio | ALC662 6-CH audio |
| Configuration | 225*185mm mATX |
| Warranty | 3 years |
| Other_Features | Support S3, S4, S5 wake-up;Support phone call startup, timing boot, network S5 wake-up |
