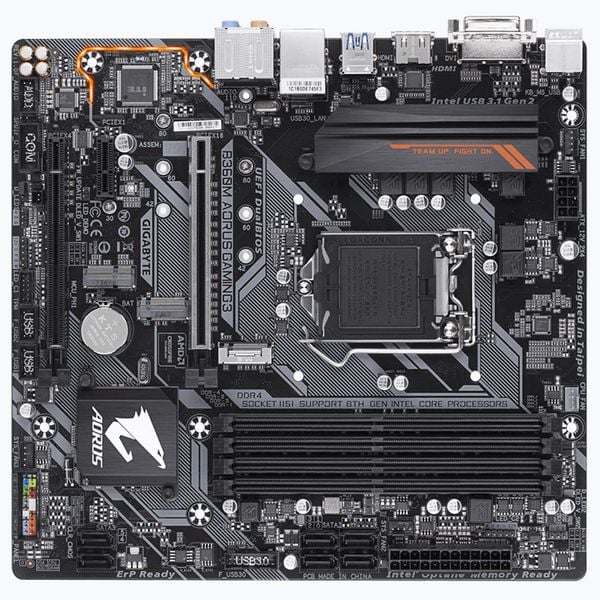

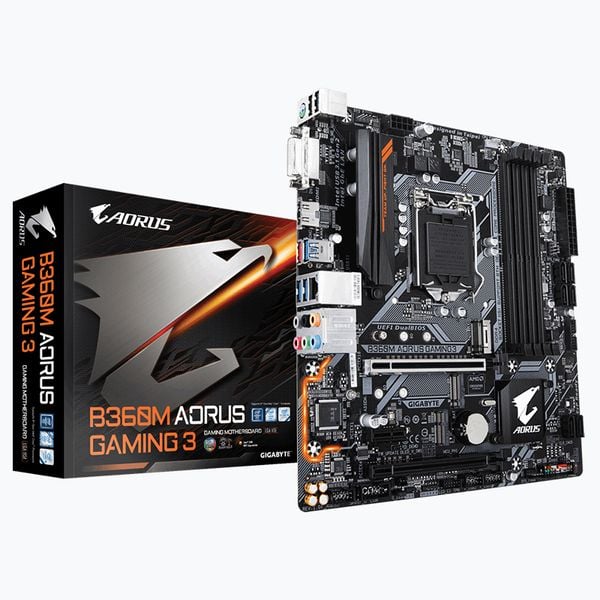

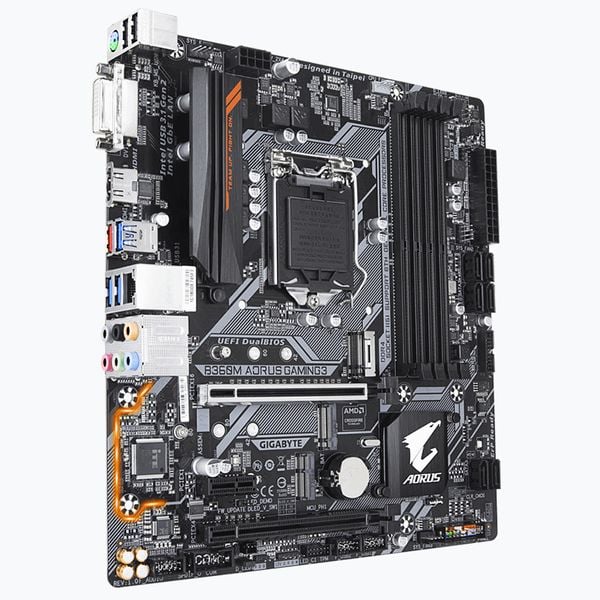

MAIN GIGA B360M AORUS GAMING 3 NEW

Tên gọi

B360M AORUS GAMING 3

CPU hỗ trợ

Intel® Socket 1151 for 8th Generation Core™ Processors

Chipset / Socket

Intel® B360

Bộ nhớ (RAM)

• 4 x DIMM, Max. 64GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered, Register Memory
• Dual Channel Memory Architecture
• Supports Intel® Extreme Memory Profile (XMP)

Công nghệ đa GPU

• AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies

Khe cắm mở rộng

• 1 x PCI Express x16 slot, running at x16 (PCIEX16)
• 1 x PCI Express x16 slot, running at x4 (PCIEX4)

• 1 x PCI Express x1 slot

• 1 x M.2 Socket 1 connector for an Intel^® CNVi wireless module only

LAN / Wireless

• Intel^® GbE LAN chip (10/100/1000 Mbit)

Âm thanh

• Realtek^® ALC892 codec

Cổng kết nối (Internal)

• 1 x 24-pin ATX main power connector

• 1 x 8-pin ATX 12V power connector

• 1 x CPU fan header

• 3 x system fan headers

• 2 x digital LED strip headers

• 2 x digital LED strip power select jumpers

• 2 x RGB (RGBW) LED strip headers

• 6 x SATA 6Gb/s connectors

• 2 x M.2 Socket 3 connectors

• 1 x front panel header

• 1 x front panel audio header

• 1 x S/PDIF Out header

• 1 x USB 3.1 Gen 1 header

• 2 x USB 2.0/1.1 headers

• 1 x Trusted Platform Module (TPM) header

• 1 x serial port header

• 1 x Clear CMOS jumper

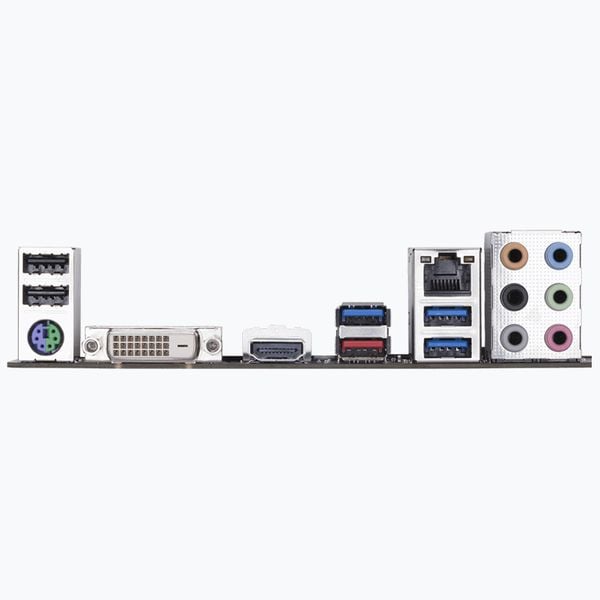

Cổng kết nối (Back Panel)

• 1 x PS/2 keyboard/mouse port

• 1 x DVI-D port

• 1 x HDMI port

• 1 x USB 3.1 Gen 2 Type-A port (red)

• 3 x USB 3.1 Gen 1 ports

• 2 x USB 2.0/1.1 ports

• 1 x RJ-45 port

• 6 x audio jacks

Công nghệ độc quyền

Support for APP Center
• 3D OSD
• @BIOS
• AutoGreen
• Cloud Station
• EasyTune
• Fast Boot
• Game Boost
• ON/OFF Charge
• Platform Power Management
• RGB Fusion
• Smart Backup
• Smart Keyboard
• Smart TimeLock
• Smart HUD
• System Information Viewer
• USB Blocker
• V-Tuner

• Support for Q-Flash

• Support for Xpress Install

Phụ kiện đi kèm

• Norton^® Internet Security (OEM version)

• cFosSpeed

Hệ điều hành khuyến nghị

• Windows® 10 64-bit

Chuẩn kích cỡ

• mATX Form Factor
