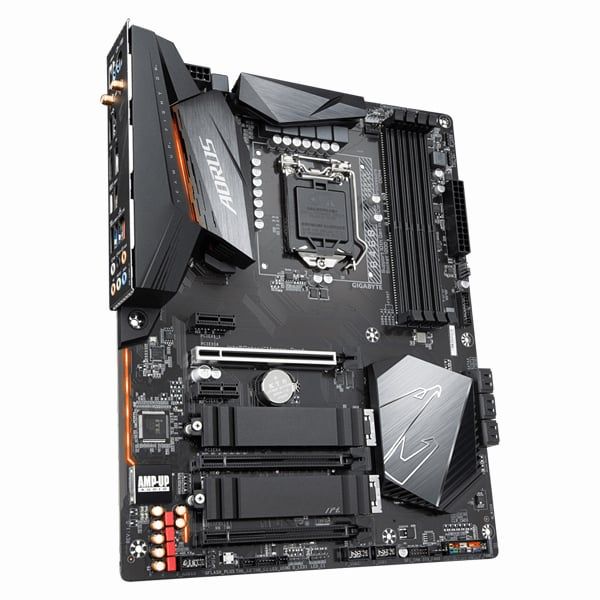

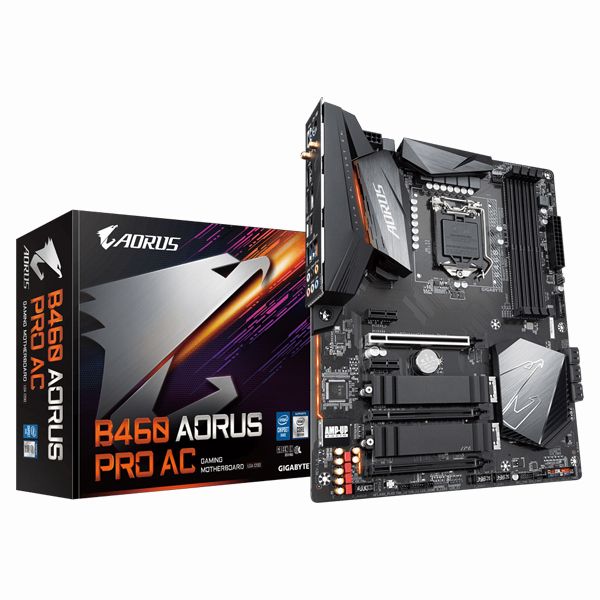

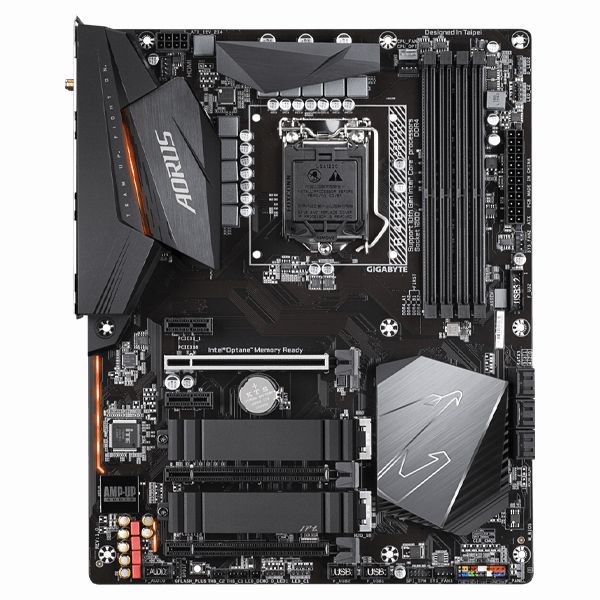

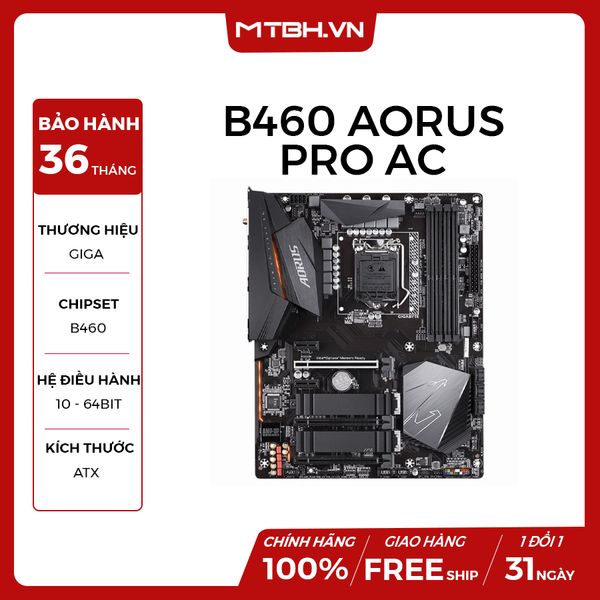

MAIN GIGA B460 AORUS PRO AC

  • Thương hiệu: GIGABYTE
  • Loại: MAINBOARD
  • SKU: SP008309

Tại Máy Tính Biên Hòa: 3,990,000₫

  • GIAO HÀNG
    GIAO HÀNG
    Miễn phí giao hàng toàn quốc thông qua các đơn vị vận chuyển cho Hóa đơn trên 500,000đ
  • SẢN PHẨM
    SẢN PHẨM
    Cam kết hàng mới 100% - Bảo hành chính hãng
  • ĐỔI TRẢ
    ĐỔI TRẢ
    1 đổi 1 lên đến 31 ngày nếu phát sinh lỗi do nhà sản xuất
  • Hỗ trợ
    Hỗ trợ
    Thứ 2 - CN: 09:00 - 19:00 Hotline: 1800.799.999

Chia sẻ ngay

* THÔNG SỐ KỸ THUẬT


CPU
  1. Support for 10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1200 package
  2. L3 cache varies with CPU
(Please refer to "CPU Support List" for more information.)
ChipsetIntel® B460 Express Chipset
Memory
  1. Intel® Core™ i9/i7 processors:
    Support for DDR4 2933/2666/2400/2133 MHz
  2. Intel® Core™ i5/i3/Pentium®/Celeron® processors:
    Support for DDR4 2666/2400/2133 MHz
  3. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  4. Dual channel memory architecture
  5. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  6. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  7. Support for Extreme Memory Profile (XMP) memory modules
(Please refer to "Memory Support List" for more information.)
Onboard GraphicsIntegrated Graphics Processor-Intel® HD Graphics support:
  1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
    * Support for HDMI 1.4 version and HDCP 2.3.
  2. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
    * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
Maximum shared memory of 512 MB
Audio
  1. Realtek® ALC1220-VB codec
    * The back panel line out jack supports DSD audio.
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
  4. Support for S/PDIF Out
LANIntel® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)
Wireless Communication moduleIntel® Wi-Fi 9260
  1. Wi-Fi 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
  2. BLUETOOTH 5.0
  3. Support for 11ac 160MHz wireless standard and up to 1.73 Gbps data rate
    * Actual data rate may vary depending on environment and equipment.
Expansion Slots
  1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
  2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
    * The PCIEX4 slot shares bandwidth with the M2P_SB connector. The PCIEX4 slot operates at up to x2 mode when a PCIe SSD is installed in the M2P_SB connector.
  3. 3 x PCI Express x1 slots
    (All of the PCI Express slots conform to PCI Express 3.0 standard.)
Multi-Graphics Technology

Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies

Storage Interface
  • 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2P_SB)
  • 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2Q_SB)
  • 6 x SATA 6Gb/s connectors
  • Support for RAID 0, RAID 1, RAID 5, and RAID 10
    * Refer to "1-7 Internal Connectors," for the installation notices for the PCIEX4, M.2, SATA connectors.
  • Intel® Optane™ Memory Ready
    * System Acceleration with Intel® Optane™ Memory enabled on the M2Q_SB connector only.
USB

Chipset+ASMedia® USB 3.2 Gen 2 Controller:

  1. 1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support
  2. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel

Chipset:

  1. 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
  2. 4 x USB 2.0/1.1 ports available through the internal USB headers

Chipset+USB 2.0 Hub:

  1. 2 x USB 2.0/1.1 ports on the back panel
Internal I/O ConnectorsChipset:
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x CPU fan header
  4. 1 x water cooling CPU fan header
  5. 3 x system fan headers
  6. 2 x addressable LED strip headers
  7. 2 x RGB LED strip headers
  8. 6 x SATA 6Gb/s connectors
  9. 2 x M.2 Socket 3 connectors
  10. 1 x front panel header
  11. 1 x front panel audio header
  12. 1 x S/PDIF Out header
  13. 1 x USB 3.2 Gen 1 header
  14. 2 x USB 2.0/1.1 headers
  15. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
  16. 2 x Thunderbolt™ add-in card connectors
  17. 1 x Clear CMOS jumper
  18. 1 x Q-Flash Plus button
Back Panel ConnectorsChipset:
  1. 1 x PS/2 keyboard/mouse port
  2. 2 x SMA antenna connectors (2T2R)
  3. 1 x DisplayPort
  4. 1 x HDMI port
  5. 1 x USB Type-C™ port, with USB 3.2 Gen 2 support
  6. 1 x USB 3.2 Gen 2 Type-A port (red)
  7. 4 x USB 3.2 Gen 1 ports
  8. 2 x USB 2.0/1.1 ports
  9. 1 x RJ-45 port
  10. 6 x audio jacks
I/O ControlleriTE® I/O Controller Chip
H/W Monitoring
  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Water cooling flow rate detection
  5. Overheating warning
  6. Fan fail warning
  7. Fan speed control
    * Whether the fan speed control function is supported will depend on the fan you install.
BIOS
  1. 1 x 128 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
  1. Support for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    @BIOS
    EasyTune
    Fast Boot
    Game Boost
    ON/OFF Charge
    RGB Fusion
    Smart Backup
    System Information Viewer
  2. Support for Q-Flash Plus
  3. Support for Q-Flash
  4. Support for Xpress Install
Bundled Software
  1. Norton® Internet Security (OEM version)
  2. cFosSpeed
Operating SystemSupport for Windows 10 64-bit
Form FactorATX Form Factor; 30.5cm x 24.4cm
Remark
  1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
  2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
