SẢN PHẨM NGỪNG KINH DOANH
THÔNG SỐ KỸ THUẬT

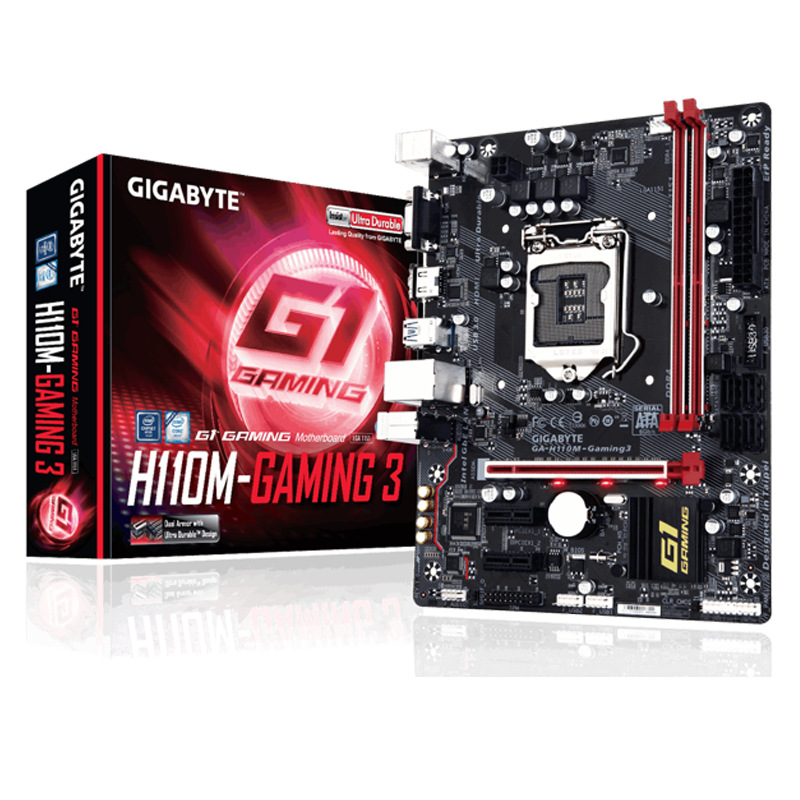

Tên sản phẩm | GIGABYTE H110M - Gaming 3 |
Hãng sản xuất | GIGABYTE |
Chủng loại | H110M - Gaming 3 |
CPU hỗ trợ | Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium®processors/ Intel® Celeron® processors in the LGA1151 package |
Chipset | Intel® H110 Express Chipset |
Bộ nhớ trong | - 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory
Dual channel memory architecture - Support for DDR4 2133 MHz memory modules
Dual channel memory architecture
Support for DDR4 2400/2133 MHz memory modules
Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules
|
VGA onboard | Integrated Graphics Processor-Intel® HD Graphics support - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz
Support for up to 2 displays at the same time
Maximum shared memory of 512 MB
|
Âm thanh | - Realtek® ALC892 codec
- High Definition Audio
- 2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. - Support for S/PDIF Out
|
Khe mở rộng | - 1 x PCI Express x16 slot, running at x16
(The PCI Express x16 slot conforms to PCI Express 3.0 standard.) - 2 x PCI Express x1 slots
|
Chuẩn lưu trữ | Chipset:
4 x SATA 6Gb/s connectors |

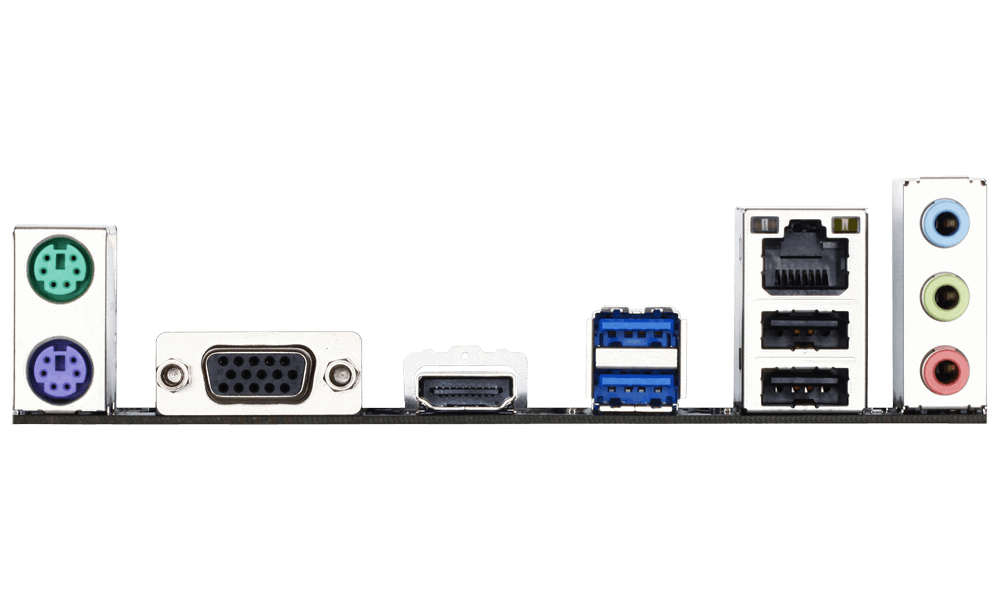

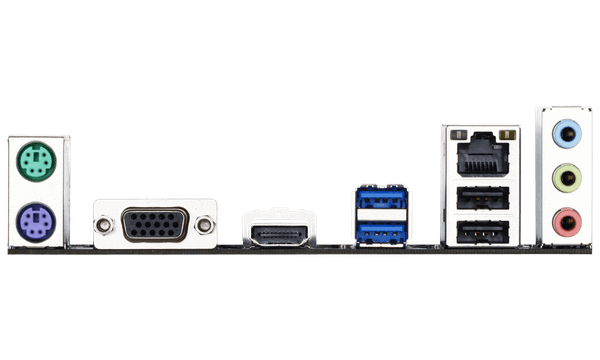

Cổng giao tiếp trước sau | - 1 x PS/2 keyboard port
- 1 x PS/2 mouse port
- 1 x D-Sub port
- 1 x HDMI port
- 2 x USB 3.0/2.0 ports
- 2 x USB 2.0/1.1 ports
- 1 x RJ-45 port
- 3 x audio jacks (Line In, Line Out, Mic In)
|
Kích thước | Micro ATX Form Factor; 22.6cm x 17.4cm |
Bảo hành | 36 tháng |
