| Socket | LGA1200 |
| Chipset | Intel® H470 Express Chipset |
| CPU (hỗ trợ tối đa) | Support for 10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors |
| BIOS | - 1 x 256 Mbit flash
- Use of licensed AMI UEFI BIOS
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
|
| OS hỗ trợ | Support for Windows 10 64-bit |
| Bộ Nhớ |
| Bộ nhớ RAM tối đa | 128 GB |
| Số khe cắm | 4 |
| Kênh bộ nhớ | Dual |
| RAM | Support for DDR4 2933/2666/2400/2133 MHz memory modules |
| Nguồn |
| Kích thước nguồn hỗ trợ | - ATX Form Factor
- 30.5cm x 22.5cm
|
| Đồ Họa và Âm Thanh |
| Audio | - Realtek® ALC887 codec
- High Definition Audio
- 2/4/5.1/7.1-channel
- * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.
- Support for S/PDIF Out
|
| Công nghệ đa card đồ họa | Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies |
| Card đồ họa tích hợp | - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
- 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
- * The DVI-D port does not support D-Sub connection by adapter.
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
- * Support for HDMI 1.4 version and HDCP 2.3.
- Support for up to 3 displays at the same time
|
| Kết Nối Mạng |
| LAN | Intel® GbE LAN chip (1000 Mbit/100 Mbit) |

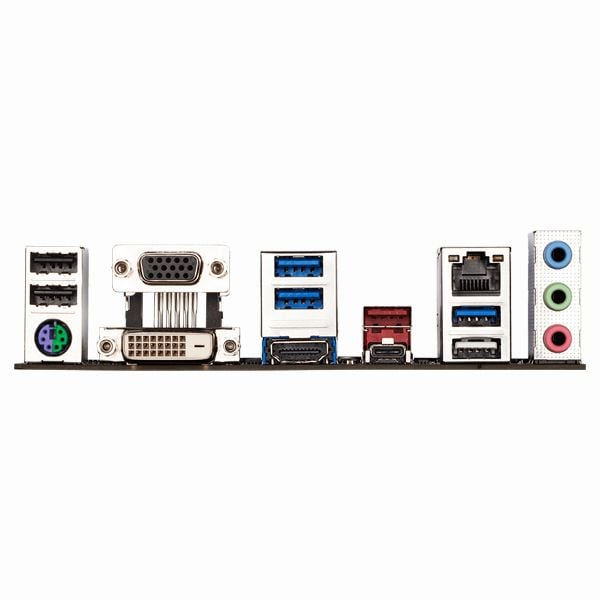

| Cổng Kết Nối |
| PS/2 keyboard/ mouse combo port | |
| RJ45 | |
| USB 2.0 | 2 |
| USB 3.2 | - 1 x USB 3.2 Gen 2 Type-A port (red)
- 4 x USB 3.2 Gen 1 ports
|
| USB-C | 1 x USB Type-C™ port, with USB 3.2 Gen 2 support |
| Cổng Audio | 3 x audio jacks |
| VGA | 1 x D-Sub |
| DVI-D | |
| HDMI | 1 x HDMI 1.4 |
| Kết Nối I/O Bên Trong |
| SATA III 6Gb/s | 6 |
| M.2 SLOT | - 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2M_SB)
- 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2P_SB)
|
| PCI-E GEN | 3.0 |
| PCI | 1 x PCI slot |
| PCI-EX1 | 3 x PCI Express x1 slots |
| PCI-EX4 | 1 x PCI Express x16 slot, running at x4 (PCIEX4) |
| PCI-EX16 | 1 x PCI Express x16 slot, running at x16 (PCIEX16) |
| Tính Năng Khác |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring (Bộ theo dõi phần cứng) | - Voltage detection
- Temperature detection
- Fan speed detection
- Overheating warning
- Fan fail warning
- Fan speed control
- * Whether the fan speed control function is supported will depend on the cooler you install.
|
| Tính năng đặc biệt khác | - Support for APP Center
- * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
- @BIOS
- EasyTune
- Fast Boot
- Game Boost
- ON/OFF Charge
- RGB Fusion
- Smart Backup
- System Information Viewer
- Support for Q-Flash Plus
- Support for Q-Flash
- Support for Xpress Install
|
| RAID | - Support for RAID 0, RAID 1, RAID 5, and RAID 10
- * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
- Intel® Optane™ Memory Ready
- * System Acceleration with Intel® Optane™ Memory enabled on the M2M_SB connector only.
|
