| Socket | LGA1200 |
| Chipset | Intel® H470 Express Chipset |
| CPU (hỗ trợ tối đa) | Support for 10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors |
| BIOS | - 1 x 256 Mbit flash
- Use of licensed AMI UEFI BIOS
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
|
| OS hỗ trợ | Support for Windows 10 64-bit |
| Bộ Nhớ |
| Bộ nhớ RAM tối đa | 64 GB |
| Số khe cắm | 2 |
| Kênh bộ nhớ | Dual |
| RAM | Support for DDR4 2933/2666/2400/2133 MHz memory modules |
| Nguồn |
| Kích thước nguồn hỗ trợ | - Mini-ITX Form Factor
- 17.0cm x 17.0cm
|
| Đồ Họa và Âm Thanh |
| Audio | - Realtek® ALC1220-VB codec
- * The back panel line out jack supports DSD audio.
- High Definition Audio
- 2/4/5.1/7.1-channel
- * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
|
| Kết Nối Mạng |
| LAN | - 1 x Intel® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit) (LAN2)
- 1 x Intel® GbE LAN chip (1 Gbit/100 Mbit) (LAN1)
|
| Bluetooth | BLUETOOTH 5.1 |
| Kết nối Wireless | - Intel® Wi-Fi 6 AX201
- WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-Band
- Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
- * Actual data rate may vary depending on environment and equipment.
|

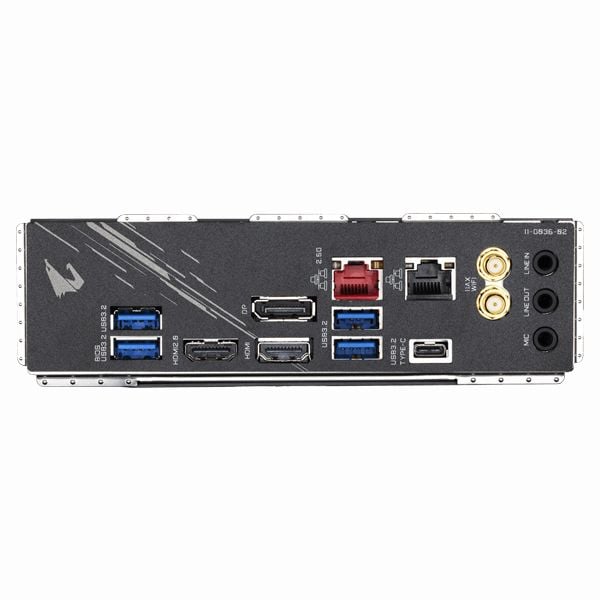

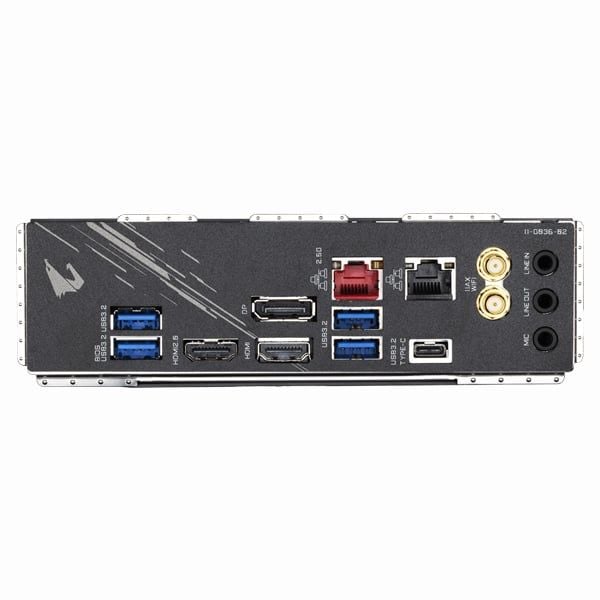

| Cổng Kết Nối |
| Các cổng khác | 2 x SMA antenna connectors (2T2R) |
| RJ45 | 2 |
| USB 3.2 | 4 x USB 3.2 Gen 1 ports |
| USB-C | 1 x USB Type-C™ port, with USB 3.2 Gen 1 support |
| Cổng Audio | 3 x audio jacks |
| HDMI | 1 cổng |
| Display Port | 1 x DisplayPort 1.4 |
| Kết Nối I/O Bên Trong |
| SATA III 6Gb/s | 4 |
| M.2 SLOT | - 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe x4/x2 SSD support) (M2P_SB)
- 1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2260/2280 PCIe x4/x2 SSD support) (M2Q_SB)
|
| PCI-E GEN | 3.0 |
| PCI-EX16 | 1 x PCI Express x16 slot, running at x16 |
| Tính Năng Khác |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring (Bộ theo dõi phần cứng) | - Voltage detection
- Temperature detection
- Fan speed detection
- Overheating warning
- Fan fail warning
- Fan speed control
- * Whether the fan speed control function is supported will depend on the cooler you install.
|
| Tính năng đặc biệt khác | - Support for APP Center
- * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
- @BIOS
- EasyTune
- Fast Boot
- Game Boost
- ON/OFF Charge
- RGB Fusion
- Smart Backup
- System Information Viewer
- Support for Q-Flash Plus
- Support for Q-Flash
- Support for Xpress Install
|
| RAID | - Support for RAID 0, RAID 1, RAID 5, and RAID 10
- * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
- Intel® Optane™ Memory Ready
|
