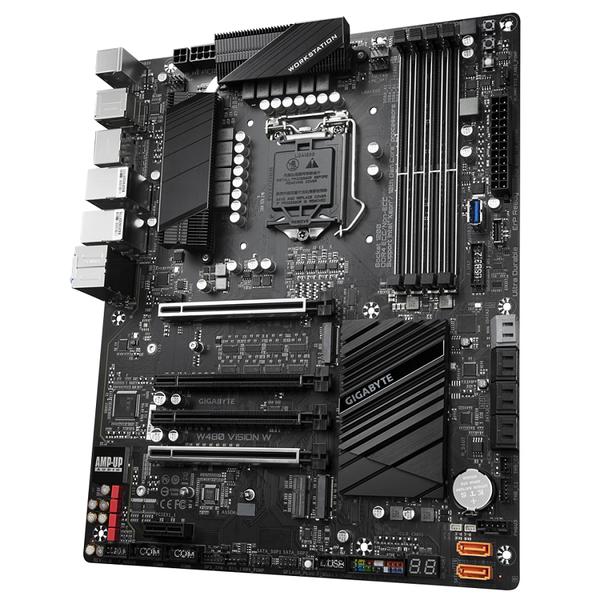

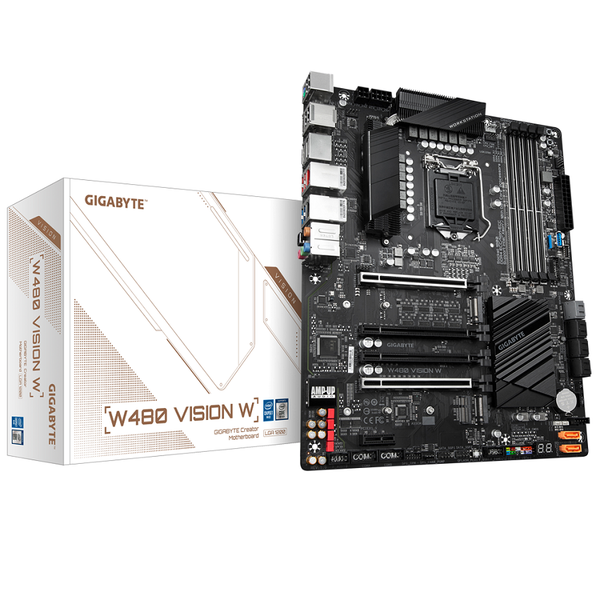

Main Giga WS W480 VISION W (W480, socket 1200, ATX, 4 khe RAM DDR4)

Mô tả chi tiết

Hãng sản xuất

Gigabyte

Chủng loại

W480 VISION W

CPU hỗ trợ

LGA1200 package: Intel® Xeon® W series processors 10th Generation Intel® Core™ processors/Intel® Pentium® processors/ Intel® Celeron® processors

Chipset

Intel® W480 Express Chipset

Bộ nhớ trong

Intel® Xeon® W-1290/W-1270 series processors/Intel® Core™ i9/i7 processors:

Support for DDR4 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules

Intel® Xeon® W-1250 series processors/Intel® Core™ i5/i3/Pentium®/Celeron® processors:

Support for DDR4 2666/2400/2133 MHz

4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory

Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules

* To support ECC, you must install an Intel® Xeon® processor.

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

VGA onboard

Âm thanh

Realtek® ALC1220-VB codec

High Definition Audio

2/4/5.1/7.1-channel

Support for S/PDIF Out

Khe mở rộng

1 x PCI Express x16 slot, running at x16 (PCIEX16)

1 x PCI Express x16 slot, running at x8 (PCIEX8)

2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2)

1 x PCI Express x1 slot

1 x M.2 Socket 1 connector for an Intel® CNVi wireless module only (CNVI)

Chuẩn lưu trữ

1 x M.2 connector (Socket 3, M key, type 2280/22110 PCIe x4/x2 SSD support) (M2A_CPU)

1 x M.2 connector (Socket 3, M key, type 2280/22110 SATA and PCIe x4/x2 SSD support) (M2M_SB)

8 x SATA 6Gb/s connectors (SATA3 0~7)

Support for RAID 0, RAID 1, RAID 5, and RAID 10

Intel® Optane™ Memory Ready

ASMedia® ASM1061 chip:

2 x SATA 6Gb/s connectors (GSATA3 0~1), supporting AHCI mode only

Cổng giao tiếp (Kết nối bảng phía sau)

1 x PS/2 keyboard/mouse port

1 x HDMI port

2 x DisplayPorts

1 x USB 3.2 Gen 2 Type-A port (red)

3 x USB 3.2 Gen 1 ports

4 x USB 2.0/1.1 ports

2 x RJ-45 ports

1 x optical S/PDIF Out connector

5 x audio jacks

LAN

Intel® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)(LAN2)

Intel® GbE LAN chip (1 Gbit/100 Mbit)(LAN1)

Kích thước

ATX Form Factor; 30.5cm x 24.4cm
