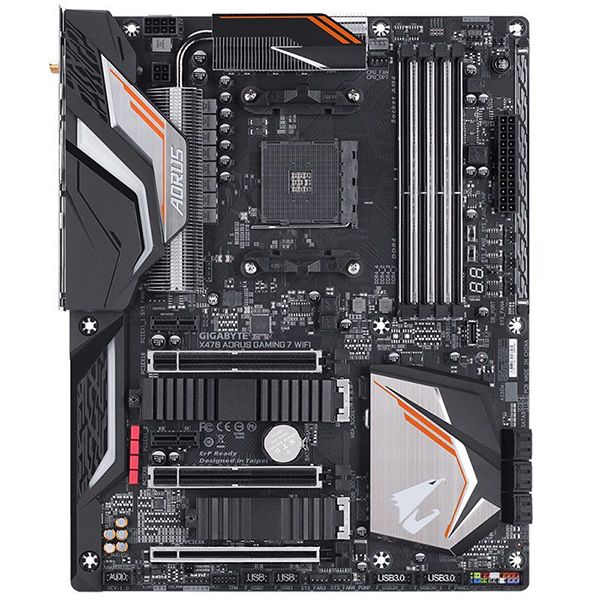

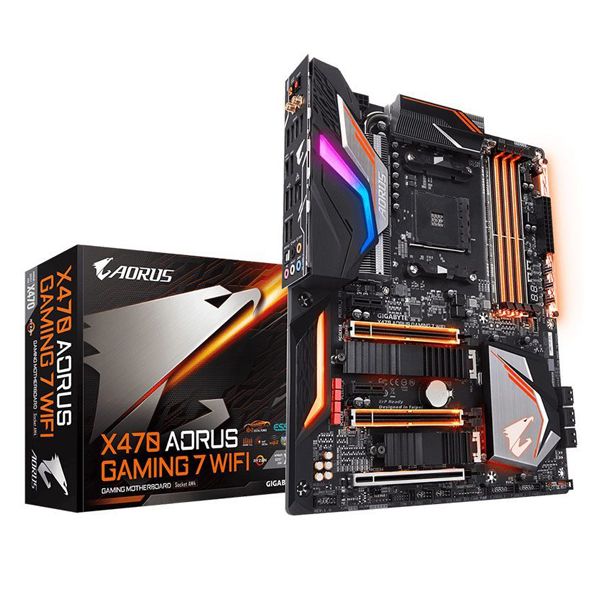

MAIN GIGA X470 AORUS GAMING 7 WIFI

Hãng sản xuất

Gigabyte

Chủng loại

X470 AORUS GAMING 7 WIFI

CPU hỗ trợ

AM4 Socket:

AMD Ryzen™ processor

Chipset

X470

Bộ nhớ trong

4 x DDR4 DIMM sockets supporting up to 64 GB of system memory

Dual channel memory architecture

Support for DDR4 3600+(O.C.) / 3400(O.C.) / 3333(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

VGA onboard

Âm thanh

Realtek® ALC1220 codec

ES9018Q2C chip

High Definition Audio

2/4/5.1/7.1-channel

Support for S/PDIF Out

Khe mở rộng

1 x PCI Express x16 slot, running at x16 (PCIEX16)

For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

1 x PCI Express x16 slot, running at x8 (PCIEX8)

The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.

(The PCIEX16 and PCIEX8 slots conform to PCI Express 3.0 standard.)

1 x PCI Express x16 slot, running at x4 (PCIEX4)

The PCIEX4 slot becomes unavailable when a device is installed in the M2B_SOCKET connector.

2 x PCI Express x1 slots

(The PCIEX4 and PCI Express x1 slots conform to PCI Express 2.0 standard.)

Chuẩn lưu trữ

1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A_SOCKET)

1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe x4/x2 SSD support) (M2B_SOCKET)

6 x SATA 6Gb/s connectors

Support for RAID 0, RAID 1, and RAID 10

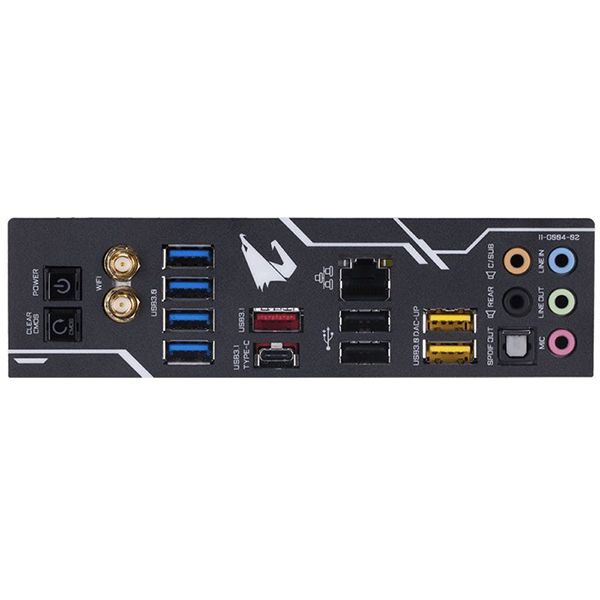

Cổng giao tiếp I/O sau

1 x power/reset button

1 x Clear CMOS button

2 x MMCX antenna connectors (2T2R)

6 x USB 3.1 Gen 1 ports

1 x USB Type-C™ port, with USB 3.1 Gen 2 support

1 x USB 3.1 Gen 2 Type-A port (red)

2 x USB 2.0/1.1 ports

1 x RJ-45 port

1 x optical S/PDIF Out connector

5 x audio jacks

Công nghệ tích hợp

Kích thước

ATX Form Factor; 30.5cm x 24.4cm
