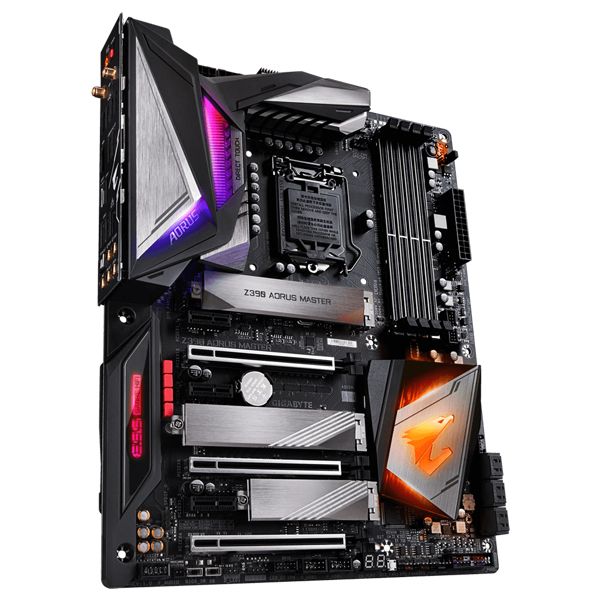

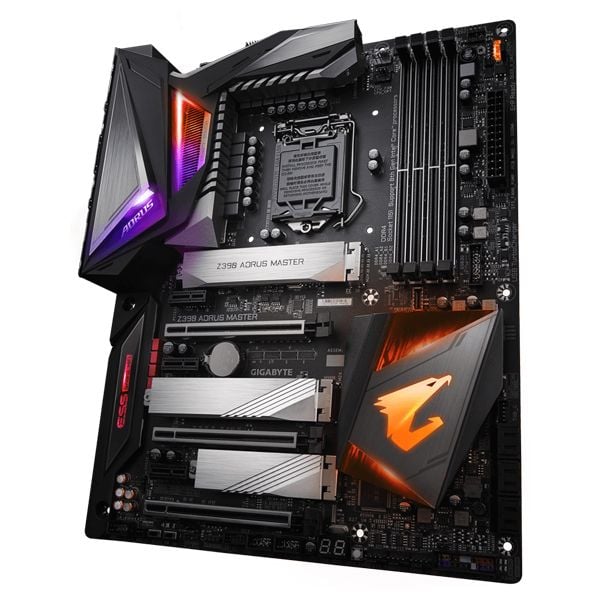

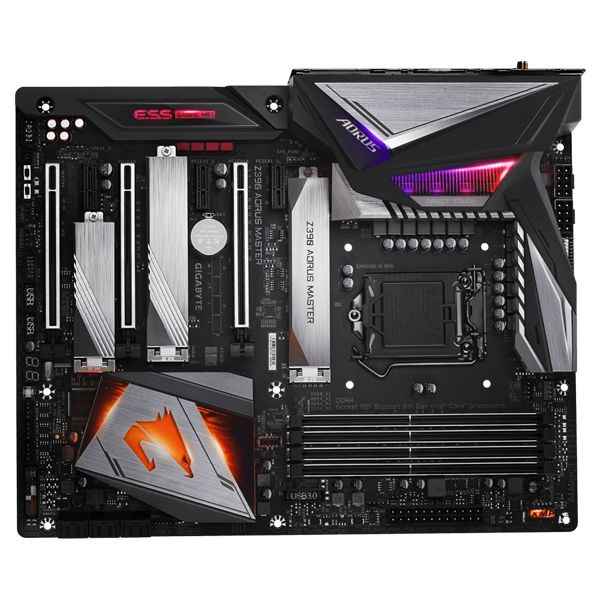

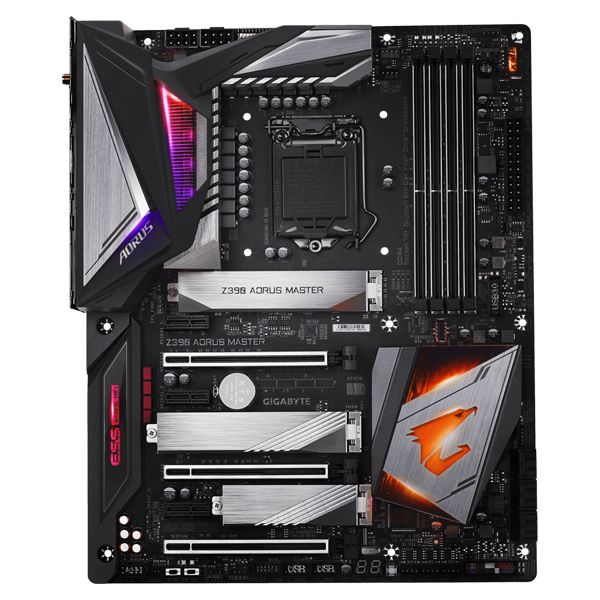

MAIN GIGA Z390 AORUS MASTER

  • Thương hiệu: GIGABYTE
  • Loại: MAINBOARD
  • SKU: SP006446

Tại Máy Tính Biên Hòa: 7,580,000₫

  • GIAO HÀNG
    GIAO HÀNG
    Miễn phí giao hàng toàn quốc thông qua các đơn vị vận chuyển cho Hóa đơn trên 500,000đ
  • SẢN PHẨM
    SẢN PHẨM
    Cam kết hàng mới 100% - Bảo hành chính hãng
  • ĐỔI TRẢ
    ĐỔI TRẢ
    1 đổi 1 lên đến 31 ngày nếu phát sinh lỗi do nhà sản xuất
  • Hỗ trợ
    Hỗ trợ
    Thứ 2 - CN: 09:00 - 19:00 Hotline: 1800.799.999

Chia sẻ ngay

* THÔNG SỐ KỸ THUẬT

Bo mạch chủ - MAIN GIGA Z390 AORUS MASTER đến từ thương hiệu main GIGABYTE

CPU

Support for 9th and 8th Generation Intel® Core™ i9 processors/ Intel® Core™ i7 processors/ Intel® Core™ i5 processors/ Intel® Core™ i3 processors/ Intel® Pentium® processors/ Intel® Celeron® processors in the LGA1151 package

L3 cache varies with CPU

Chipset

Intel® Z390 Express Chipset

4 x DDR4 DIMM sockets supporting up to 128GB (32GB single DIMM capacity) of system memory**
** Please note that the support for system total memory size depends on the CPU installed.

Dual channel memory architecture

Support for DDR4 4400(O.C.) / 4333(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz memory modules

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

Card đồ họa tích hợp
  • Integrated Graphics Processor-Intel® HD Graphics support:Maximum shared memory of 1 GB
    Actual support may vary by CPU
    1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
    * Support for HDMI 1.4 version and HDCP 2.2.
Âm thanh

Realtek® ALC1220-VB codec
* The front panel line out jack supports DSD audio.

ESS SABRE 9118 DAC

High Definition Audio

2/4/5.1/7.1-channel

Support for S/PDIF Out

LAN

Intel® GbE LAN chip (10/100/1000 Mbit)

Wireless Communication module

Intel® CNVi interface 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band

BLUETOOTH 5

Support for 11ac 160 MHz wireless standard and up to 1.73 Gbps data rate
* Actual data rate may vary depending on environment and equipment.

Khe cắm mở rộng

1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

1 x PCI Express x16 slot, running at x8 (PCIEX8)
* The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.

1 x PCI Express x16 slot, running at x4 (PCIEX4)
* The PCIEX4 slot shares bandwidth with the M2P connector. The PCIEX4 slot operates at up to x2 mode when a PCIe SSD is installed in the M2P connector.

3 x PCI Express x1 slots
(All of the PCI Express slots conform to PCI Express 3.0 standard.)

1 x M.2 Socket 1 connector for an Intel® CNVi wireless module (CNVI)

Công nghệ đa card đồ họa

Support for NVIDIA® Quad-GPU SLI™ and 2-Way NVIDIA® SLI™ technologies

Support for AMD Quad-GPU CrossFire™ and 3-Way/2-Way AMD CrossFire™ technologies

Giao diện lưu trữ
  1. Chipset:

1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2M)

1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A)

1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe x4/x2 SSD support) (M2P)

6 x SATA 6Gb/s connectors

Support for RAID 0, RAID 1, RAID 5, and RAID 10
* Refer to "1-9 Internal Connectors," for the installation notices for the PCIEX4, M.2 and SATA connectors.

    1. Intel® Optane™ Memory Ready
    USB
    • Chipset:

    1 x USB Type-C™ port with USB 3.1 Gen 2 support, available through the internal USB header

    1 x USB Type-C™ port on the back panel, with USB 3.1 Gen 2 support

    3 x USB 3.1 Gen 2 Type-A ports (red) on the back panel

    4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

      1. Chipset+USB 2.0 Hub:

      8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

      Kết nối I/O bên trong

      1 x 24-pin ATX main power connector

      2 x 8-pin ATX 12V power connectors

      1 x CPU fan header

      1 x water cooling CPU fan header

      4 x system fan headers

      2 x system fan/water cooling pump headers

      2 x Addressable LED strip headers

      2 x Addressable LED strip power select jumpers

      2 x RGB LED strip headers

      3 x M.2 Socket 3 connectors

      6 x SATA 6Gb/s connectors

      1 x front panel header

      1 x front panel audio header

      1 x S/PDIF Out header

      1 x USB Type-C™ port, with USB 3.1 Gen 2 support

      1 x USB 3.1 Gen 1 header

      2 x USB 2.0/1.1 headers

      1 x Thunderbolt™ add-in card connector

      1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)

      1 x OC button

      1 x reset button

      2 x temperature sensor headers

      2 x BIOS switches

      1 x Clear CMOS jumper

      Voltage Measurement Points

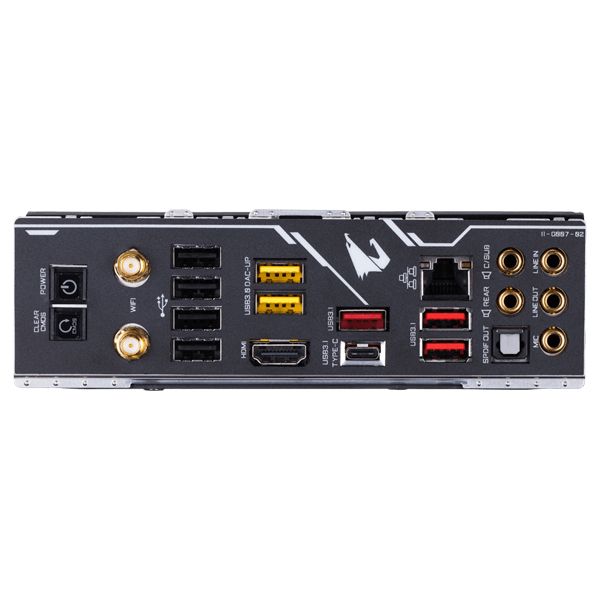

      Kết nối bảng phía sau

      1 x Power/Reset button

      1 x Clear CMOS button

      2 x SMA antenna connectors (2T2R)

      1 x HDMI port

      1 x USB Type-C™ port, with USB 3.1 Gen 2 support

      3 x USB 3.1 Gen 2 Type-A ports (red)

      2 x USB 3.1 Gen 1 ports

      4 x USB 2.0/1.1 ports

      1 x RJ-45 port

      1 x optical S/PDIF Out connector

      5 x audio jacks

      Điều khiển I/O

      iTE® I/O Controller Chip

      Theo dõi phần cứng

      Voltage detection

      Temperature detection

      Fan speed detection

      Water cooling flow rate detection

      Overheating warning

      Fan fail warning

      Fan speed control
      * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

      BIOS

      2 x 128 Mbit flash

      Use of licensed AMI UEFI BIOS

      Support for DualBIOS™

      PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

      Tính năng duy nhất

      Support for APP Center
      * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
      3D OSD
      @BIOS
      AutoGreen
      Cloud Station
      EasyTune
      Easy RAID
      Fast Boot
      Game Boost
      Platform Power Management
      RGB Fusion
      Smart Backup
      Smart Keyboard
      Smart TimeLock
      Smart HUD
      System Information Viewer
      Smart Survey
      USB Blocker
      USB DAC-UP 2
      USB TurboCharger

      Support for Q-Flash

      Support for Xpress Install

      Gói phần mềm

      Norton® Internet Security (OEM version)

      cFosSpeed

      XSplit Gamecaster + Broadcaster (12 months license)

      Hệ điều hành

      Support for Windows 10 64-bit

      Hệ số khuôn

      ATX Form Factor; 30.5cm x 24.4cm

      Ghi chú

      Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.

      Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
