THÔNG SỐ KỸ THUẬT

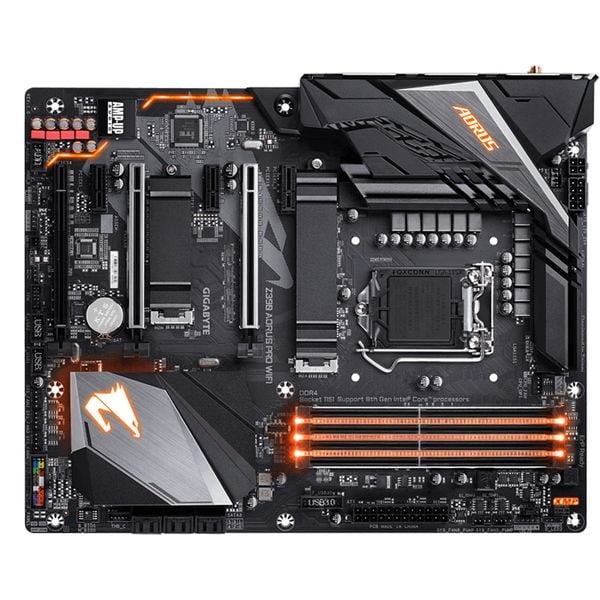

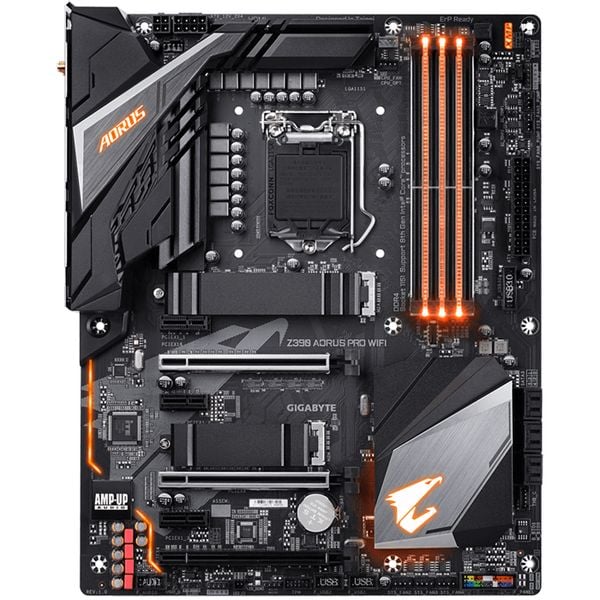

Bo mạch chủ - MAIN GIGA Z390 AORUS PRO WIFI đến từ thương hiệu MAIN GIGABYTE
| CPU | Support for 9th and 8th Generation Intel® Core™ i9 processors/ Intel® Core™ i7 processors/ Intel® Core™ i5 processors/ Intel® Core™ i3 processors/ Intel®Pentium® processors/ Intel® Celeron® processors in the LGA1151 package |
| Chipset | Intel® Z390 Express Chipset |
| Memory | - 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
- Dual channel memory architecture
- Support for DDR4 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz memory modules
- Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
- Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
- Support for Extreme Memory Profile (XMP) memory modules
|
| Onboard Graphics | 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz |
| Audio | - Realtek® ALC1220-VB codec
* The back panel line out jack supports DSD audio. - High Definition Audio
- 2/4/5.1/7.1-channel
- Support for S/PDIF Out
|
| LAN | - Intel® GbE LAN chip (10/100/1000 Mbit)
|
| Wireless Communication module | - Intel® CNVi interface 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
- BLUETOOTH 5
- Support for 11ac 160 MHz wireless standard and up to 1.73 Gbps data rate
|
| Storage Interface | Chipset:- 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A)
- 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2M)
- 6 x SATA 6Gb/s connectors
- Support for RAID 0, RAID 1, RAID 5, and RAID 10
* Refer to "1-8 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
Intel® Optane™ Memory Ready |
| I/O Controller | iTE® I/O Controller Chip |
| Operating System | Support for Windows 10 64-bit |
| Warranty | 36 month |
