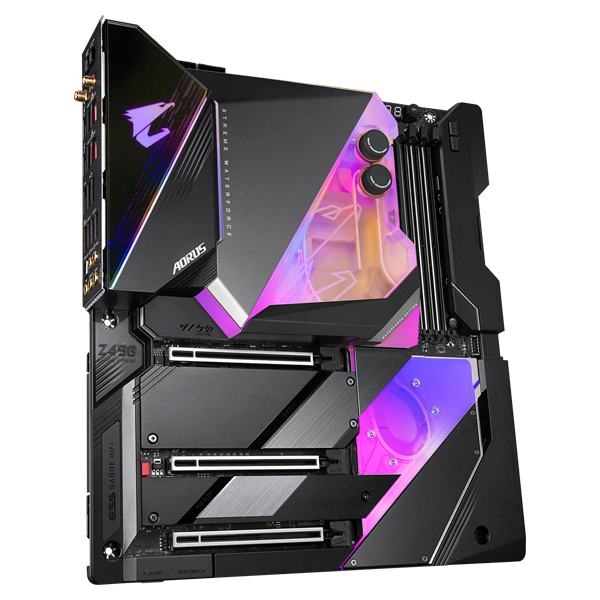

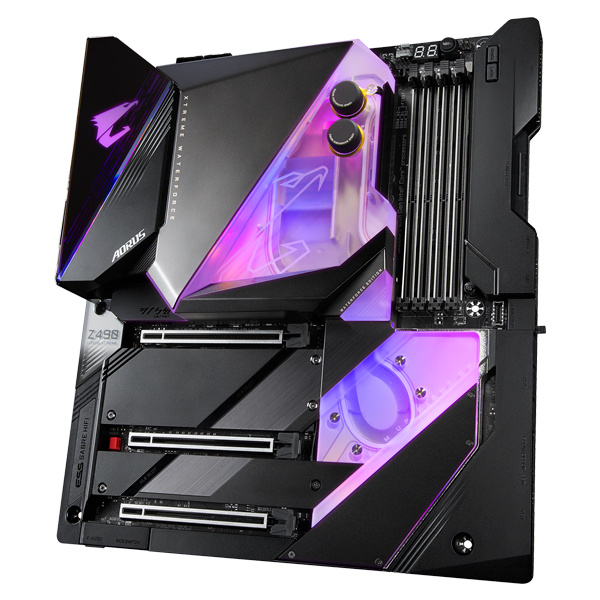

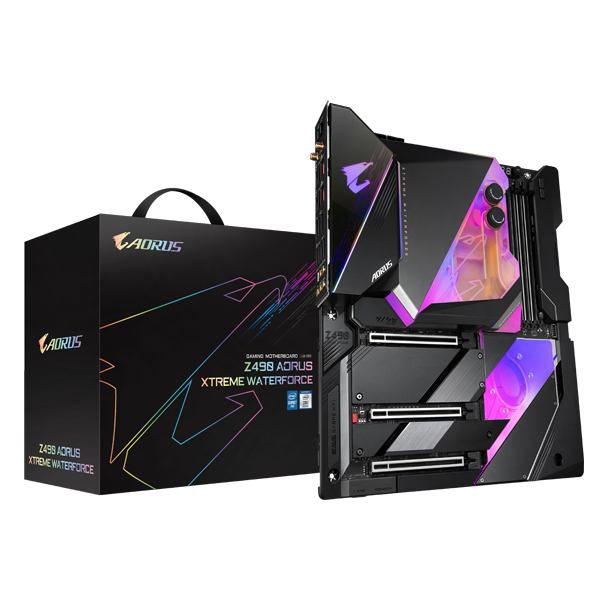

MAIN GIGA Z490 AORUS XTREME WATERFORCE

  • Thương hiệu: GIGABYTE
  • Loại: MAINBOARD
  • SKU: SP008088

Tại Máy Tính Biên Hòa: 29,880,000₫

  • GIAO HÀNG
    GIAO HÀNG
    Miễn phí giao hàng toàn quốc
    ( Hóa đơn trên 500,000đ )
  • SẢN PHẨM
    SẢN PHẨM
    Cam kết hàng mới 100%
    Bảo hành chính hãng
  • ĐỔI TRẢ
    ĐỔI TRẢ
    Lỗi nhà sản xuất 1 đổi 1
    Trong vòng 31 ngày đầu tiên
  • Hỗ trợ
    Hỗ trợ
    Thứ 2 - CN: 09:00 - 19:00
    Hotline: 1800.799.999

Chia sẻ ngay

* THÔNG SỐ KỸ THUẬT


CPU
  1. Support for 10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/ Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/ Intel® Celeron® processors in the LGA1200 package
  2. L3 cache varies with CPU
(Please refer to "CPU Support List" for more information.)
ChipsetIntel® Z490 Express Chipset
Memory
  1. Intel® Core™ i9/i7 processors:
    Support for DDR4 3200/3000/2933/2666/2400/2133 MHz
  2. Intel® Core™ i5/i3/Pentium®/Celeron® processors:
    Support for DDR4 2666/2400/2133 MHz
  3. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  4. Dual channel memory architecture
  5. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  6. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  7. Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
Onboard GraphicsIntegrated Graphics Processor+Intel® Thunderbolt™ 3 Controller:
  1. 2 x Intel® Thunderbolt™ 3 connectors (USB Type-C™ ports), supporting DisplayPort and Thunderbolt™ video outputs and a maximum resolution of 5120 x 2880@60 Hz with 24 bpp
    * Because of the limited I/O resources of the PC architecture, the number of Thunderbolt™ devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 1-7, "Back Panel Connectors," for more information.)
    * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
Integrated Graphics Processor-Intel® HD Graphics support:
  1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
    * Support for HDMI 1.4 version and HDCP 2.3.
Maximum shared memory of 512 MB
Audio
  1. Realtek® ALC1220-VB codec+ESS ES9218P DAC (front panel audio)
  2. Realtek® ALC1220-VB codec+ESS ES9018K2M DAC+TI OPA1622 operational amplifier (rear panel audio)
  3. Support for DTS:X® Ultra
  4. High Definition Audio
  5. 2/4/5.1/7.1-channel
  6. Support for S/PDIF Out
LAN
  1. 1 x Aquantia 10GbE LAN chip (10 Gbit/5 Gbit/2.5 Gbit//1 Gbit/100 Mbit) (LAN1)
  2. 1 x Intel® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit) (LAN2)
Wireless Communication moduleIntel® Wi-Fi 6 AX201
  1. WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-Band
  2. BLUETOOTH 5.1
  3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
    * Actual data rate may vary depending on environment and equipment.
Expansion Slots
  1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
  2. 1 x PCI Express x16 slot, running at x8 (PCIEX8)
    * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
  3. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
    * The PCIEX4 slot shares bandwidth with the M2P_PCH connector. The PCIEX4 slot operates at up to x2 mode when an M.2 SSD is installed in the M2P_PCH connector.
(All of the PCI Express x16 slots conform to PCI Express 3.0 standard.)
Multi-Graphics Technology
  1. Support for NVIDIA® Quad-GPU SLI™ and 2-Way NVIDIA® SLI™ technologies
  2. Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
Storage Interface
  1. 1 x M.2 connector (Socket 3, M key, type 2242/2280/22110 SATA and PCIe x4/x2 SSD support)(M2A_CPU)
  2. 1 x M.2 connector (Socket 3, M key, type 2242/2280/22110 SATA and PCIe x4/x2 SSD support)(M2M_PCH)
  3. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2P_PCH)
  4. 6 x SATA 6Gb/s connectors
  5. Support for RAID 0, RAID 1, RAID 5, and RAID 10
    * Refer to "1-9 Internal Connectors," for the installation notices for the PCIEX4, M.2, and SATA connectors.
  6. Intel® Optane™ Memory Ready
USBChipset+Intel® Thunderbolt™ 3 Controller:
  1. 2 x USB Type-C™ ports on the back panel, with USB 3.2 Gen 2 support
Chipset:
  1. 1 x USB Type-C™ port with USB 3.2 Gen 2 support, available through the internal USB header
  2. 4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
Chipset+USB 3.2 Gen 1 Hub:
  1. 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
Chipset+2 USB 2.0 Hubs:
  1. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers with the included front USB header extension cable)
Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 2 x 8-pin ATX 12V power connectors
  3. 1 x CPU fan header
  4. 1 x water cooling CPU fan header
  5. 1 x water cooling kit CPU LED header (LED_CPU)
  6. 1 x water cooling kit Chipset LED header (LED_PCH)
  7. 4 x system fan headers
  8. 2 x system fan/water cooling pump headers
  9. 1 x noise detection header
  10. 2 x addressable LED strip headers
  11. 2 x RGB LED strip headers
  12. 6 x SATA 6Gb/s connectors
  13. 3 x M.2 Socket 3 connectors
  14. 1 x front panel header
  15. 1 x front panel audio header
  16. 1 x USB Type-C™ header, with USB 3.2 Gen 2 support
  17. 1 x USB 3.2 Gen 1 header
  18. 1 x USB 2.0/1.1 header
  19. 2 x temperature sensor headers
  20. 1 x power button
  21. 1 x reset button
  22. 1 x OC button
  23. 2 x BIOS switches
  24. Voltage Measurement Points

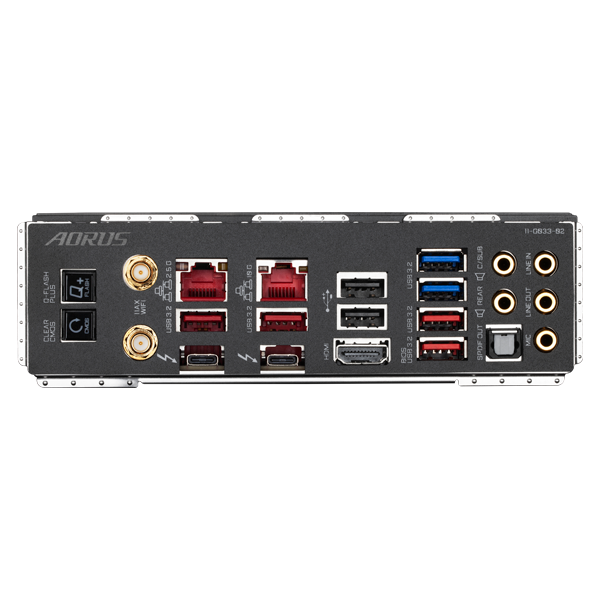

Back Panel Connectors
  1. 1 x Q-Flash Plus button
  2. 1 x Clear CMOS button
  3. 2 x SMA antenna connectors (2T2R)
  4. 2 x Thunderbolt™ 3 connectors (USB Type-C™ ports, with USB 3.2 Gen 2 support)
  5. 4 x USB 3.2 Gen 2 Type-A ports (red)
  6. 2 x USB 3.2 Gen 1 ports
  7. 2 x USB 2.0/1.1 ports
  8. 1 x HDMI port
  9. 2 x RJ-45 ports
  10. 1 x optical S/PDIF Out connector
  11. 5 x audio jacks
I/O ControlleriTE® I/O Controller Chip
H/W Monitoring
  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Water cooling flow rate detection
  5. Overheating warning
  6. Fan fail warning
  7. Fan speed control
    * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
  8. Noise detection
BIOS
  1. 2 x 256 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. Support for DualBIOS™
  4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
  1. Support for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    @BIOS
    EasyTune
    Fast Boot
    Game Boost
    RGB Fusion
    Smart Backup
    System Information Viewer
    USB TurboCharger
  2. Support for Q-Flash Plus
  3. Support for Q-Flash
  4. Support for Xpress Install
Bundled Software
  1. Norton® Internet Security (OEM version)
  2. cFosSpeed
  3. XSplit Gamecaster + Broadcaster (12 months license)
Operating SystemSupport for Windows 10 64-bit
Form FactorATX Form Factor; 30.5cm x 27.1cm
Remark
  1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
  2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
