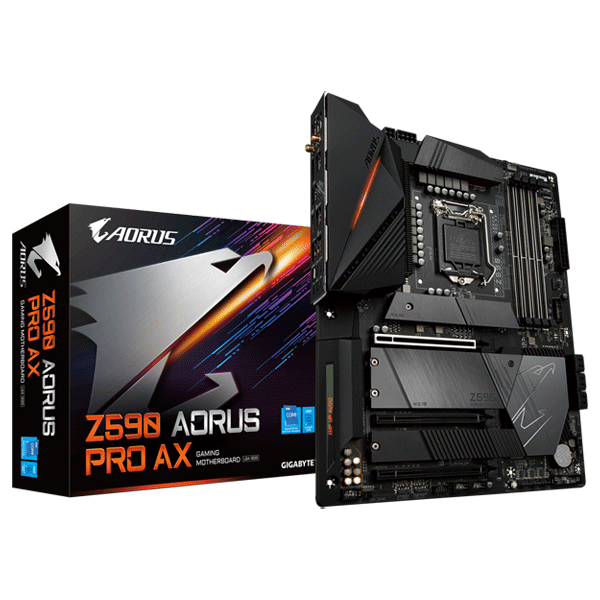

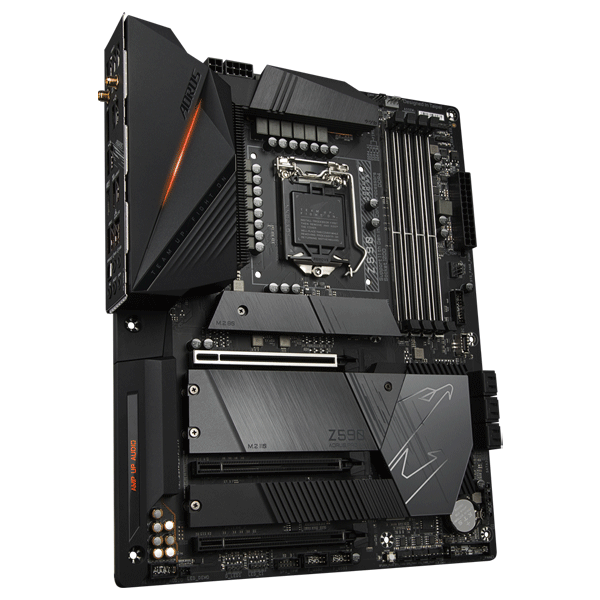

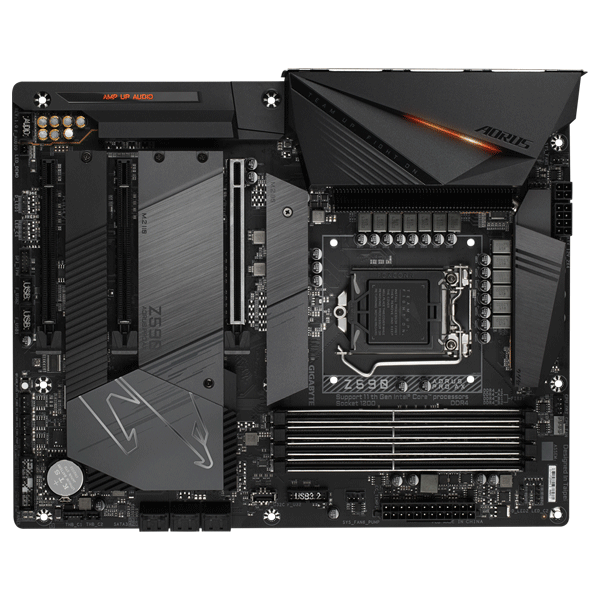

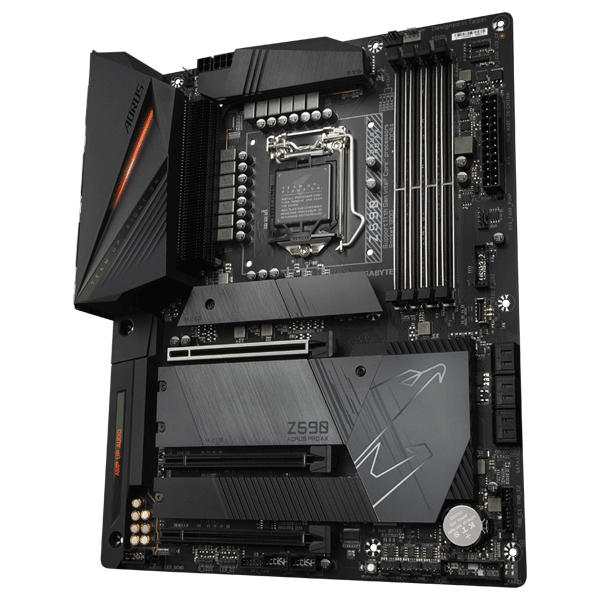

MAIN GIGA Z590 AORUS PRO AX

  • Thương hiệu: GIGABYTE
  • Loại: MAINBOARD
  • SKU: SP009748

Tại Máy Tính Biên Hòa: 0₫

  • GIAO HÀNG
    GIAO HÀNG
    Miễn phí giao hàng toàn quốc thông qua các đơn vị vận chuyển cho Hóa đơn trên 500,000đ
  • SẢN PHẨM
    SẢN PHẨM
    Cam kết hàng mới 100% - Bảo hành chính hãng
  • ĐỔI TRẢ
    ĐỔI TRẢ
    1 đổi 1 lên đến 31 ngày nếu phát sinh lỗi do nhà sản xuất
  • Hỗ trợ
    Hỗ trợ
    Thứ 2 - CN: 09:00 - 19:00 Hotline: 1800.799.999

Chia sẻ ngay

  • CPU
    LGA1200 package:
    1. 11th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors
    2. 10th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors / Intel® Core™ i3 processors/ Intel® Pentium® processors / Intel® Celeron® processors*
      * Limited to processors with 4 MB Intel® Smart Cache, Intel® Celeron® G5xx5 family.
    3. L3 cache varies with CPU
    (Please refer to "CPU Support List" for more information.)
  • Chipset
    1. Intel® Z590 Express Chipset
  • Memory
    1. 11th Generation Intel® Core™ i9/i7/i5 processors:
      Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules
    2. 10th Generation Intel® Core™ i9/i7 processors:
      Support for DDR4 2933/2666/2400/2133 MHz memory modules
    3. 10th Generation Intel® Core™ i5/i3 /Pentium®/Celeron® processors:
      Support for DDR4 2666/2400/2133 MHz memory modules
    4. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
    5. Dual channel memory architecture
    6. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    7. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    8. Support for Extreme Memory Profile (XMP) memory modules
    (Please refer "Memory Support List" for more information.)
  • Onboard Graphics
    Integrated Graphics Processor-Intel® HD Graphics support:
    1. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
      * Support for DisplayPort 1.2 version and HDCP 2.3
    (Graphics specifications may vary depending on CPU support.)
  • Audio
    1. Realtek® ALC4080 codec
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
    4. Support for S/PDIF Out
  • LAN
    1. Intel® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)
  • Wireless Communication module
    Intel® Wi-Fi 6 AX200
    1. WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz Dual-Band
    2. BLUETOOTH 5.1
    3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
      * Actual data rate may vary depending on environment and equipment.
  • Expansion Slots
      1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
        * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
        * The PCIEX16 slot shares bandwidth with the M2B_CPU and M2C_CPU connectors.
        * The PCIEX16 slot operates at up to x8 mode when a device is installed in the M2B_CPU or M2C_CPU connector.
      2. (The PCIEX16 slot conforms to PCI Express 4.0 standard.)*

        *Supported by 11th Generation processors only.

    1. 2 x PCI Express x16 slots, running at x4 (PCIEX4_1/PCIEX4_2)
      (PCIEX4_1 and PCIEX4_2 slots conform to PCI Express 3.0 standard.)
  • Multi-Graphics Technology
    1. Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
  • Storage Interface
    CPU:
      1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) *
      2. 2 x M.2 connectors (Socket 3, M key, type 2260/2280/22110 PCIe 4.0* x4/x2 SSD support) (M2B_CPU)(M2C_CPU)
      3. *Supported by 11th Generation processors only.

    Chipset:
    1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2P_SB)
    2. 6 x SATA 6Gb/s connectors
    Support for RAID 0, RAID 1, RAID 5, and RAID 10
    * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
    Intel® Optane™ Memory Ready
  • USB Chipset:
    1. 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support
    2. 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
    3. 4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
    4. 2 x USB 3.2 Gen 1 ports available through the internal USB header)
    Chipset+USB 3.2 Gen1 Hubs:
    1. 4 x USB 3.2 Gen1 ports on the back panel
    Chipset+2 USB 2.0 Hubs:
    1. 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
  • Internal I/O Connectors
    1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V power connector
    3. 1 x 4-pin ATX 12V power connector
    4. 1 x CPU fan header
    5. 1 x water cooling CPU fan header
    6. 4 x system fan headers
    7. 2 x system fan/water cooling pump headers
    8. 2 x addressable LED strip headers
    9. 2 x RGB LED strip headers
    10. 6 x SATA 6Gb/s connectors
    11. 4 x M.2 Socket 3 connectors
    12. 1 x front panel header
    13. 1 x front panel audio header
    14. 1 x USB Type-C® header, with USB 3.2 Gen2 support
    15. 1 x USB 3.2 Gen1 header
    16. 2 x USB 2.0/1.1 headers
    17. 2 x Thunderbolt™ add-in card connectors
    18. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
    19. 1 x Clear CMOS jumper
    20. 2 x temperature sensor headers
    21. 1 x Q-Flash Plus button

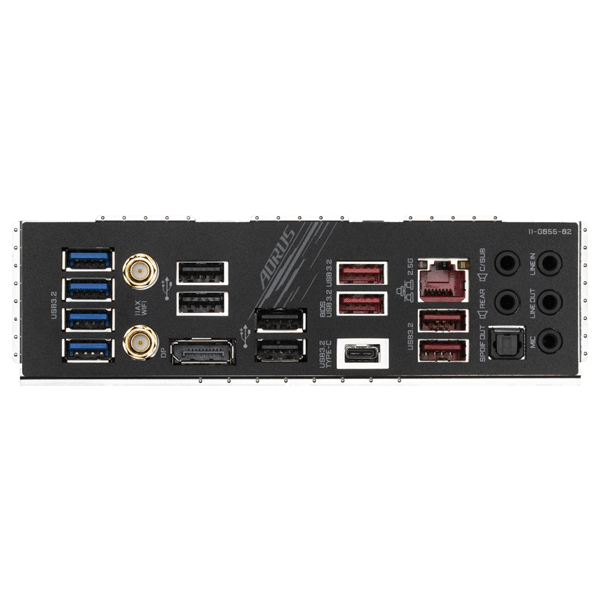

  • Back Panel Connectors
    1. 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
    2. 4 x USB 3.2 Gen 2 Type-A ports (red)
    3. 4 x USB 3.2 Gen 1 ports
    4. 4 x USB 2.0/1.1 ports
    5. 2 x SMA antenna connectors (2T2R)
    6. 1 x DisplayPort
    7. 1 x RJ-45 port
    8. 1 x optical S/PDIF Out connector
    9. 5 x audio jacks
  • I/O Controller
    1. iTE® I/O Controller Chip
  • H/W Monitoring
    1. Voltage detection
    2. Temperature detection
    3. Fan speed detection
    4. Water cooling flow rate detection
    5. Fan fail warning
    6. Fan speed control
      * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
  • BIOS
    1. 1 x 256 Mbit flash
    2. Use of licensed AMI UEFI BIOS
    3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Unique Features
    1. Support for APP Center
      * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
      @BIOS
      EasyTune
      Fast Boot
      Game Boost
      ON/OFF Charge
      RGB Fusion
      Smart Backup
      System Information Viewer
    2. Support for Q-Flash Plus
    3. Support for Q-Flash
    4. Support for Xpress Install
  • Bundled Software
    1. Norton® Internet Security (OEM version)
    2. cFosSpeed
  • Operating System
    1. Support for Windows 10 64-bit
  • Form Factor
    1. ATX Form Factor; 30.5cm x 24.4cm
