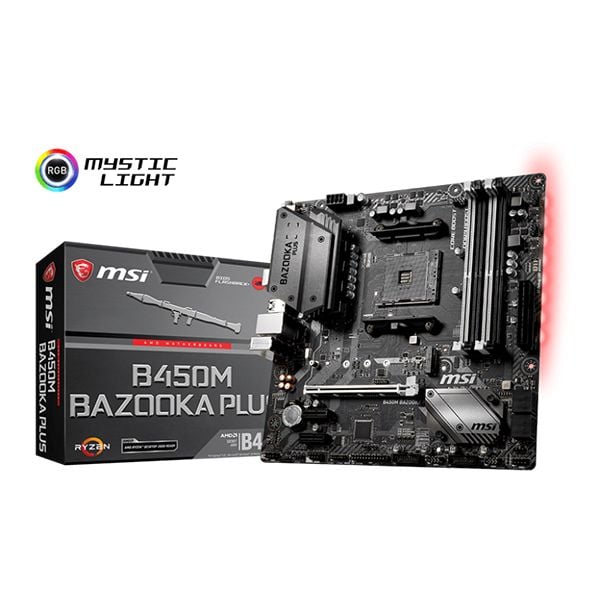

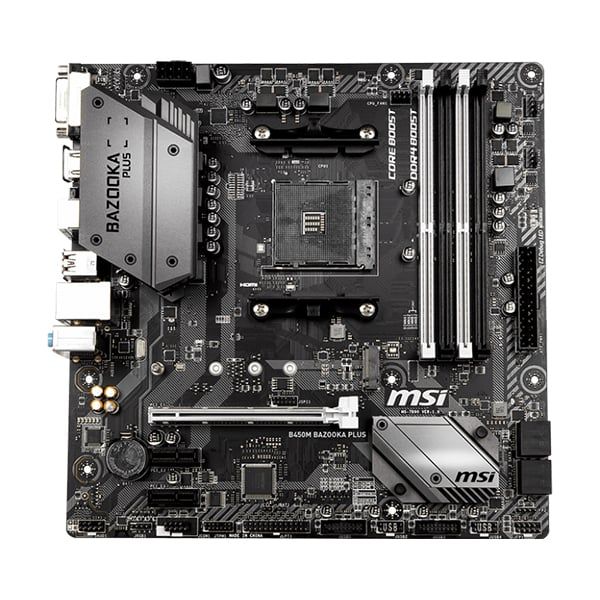

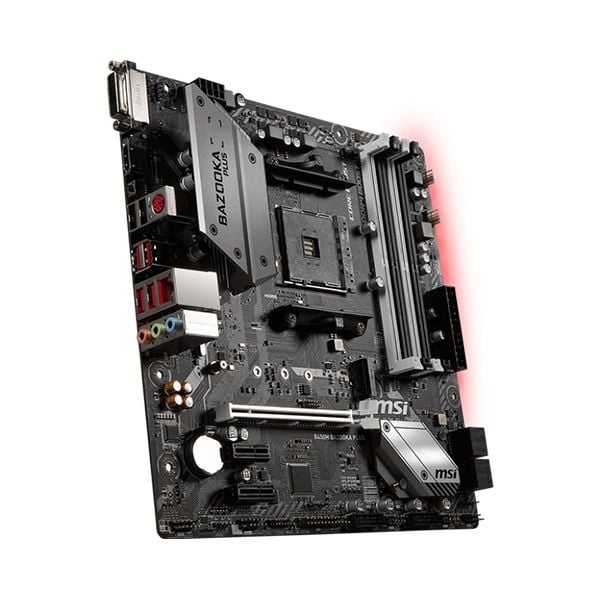

MAIN MSI B450M BAZOOKA PLUS (AMD) NEW

Tên gọi

MSI B450M BAZOOKA PLUS

CPU hỗ trợ

AMD^® Ryzen™ 1st and 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics Processors for Socket AM4

Chipset / Socket

AMD B450 Chipset

Bộ nhớ (RAM)

4 x DDR4 memory slots, support up to 64GB

Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC)

Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3333 MHz (by A-XMP OC MODE)

Supports Dual-Channel mode

Supports non-ECC UDIMM memory

Supports ECC UDIMM memory

Công nghệ đa GPU

Không hỗ trợ

Khe cắm mở rộng

1 x PCI Express x16 slot, running at x16

2 x PCI Express x1 slots

LAN / Wireless

Realtek 8111H Gigabit LAN controller

Âm thanh

Dual Realtek^® ALC887 Codec

Cổng kết nối (Internal)

1 x 24-pin ATX 12V power connector

1 x 8-pin ATX 12V power connector

4 x SATA 6Gb/s connectors

2 x USB 2.0 connectors (support additional 4 USB 2.0 ports)

2 x USB 3.1 Gen1 connectors (support additional 4 USB 3.1 •Gen1 ports)

1 x 4-pin CPU fan connector

2 x 4-pin system fan connectors

2 x 5050 RGB LED strip 12V connectors

1 x TPM module connector

1 x Front panel audio connector

2 x System panel connectors

1 x Chassis Intrusion connector

1 x Clear CMOS jumper

1 x Serial Port connector

1 x Parallel Port connector

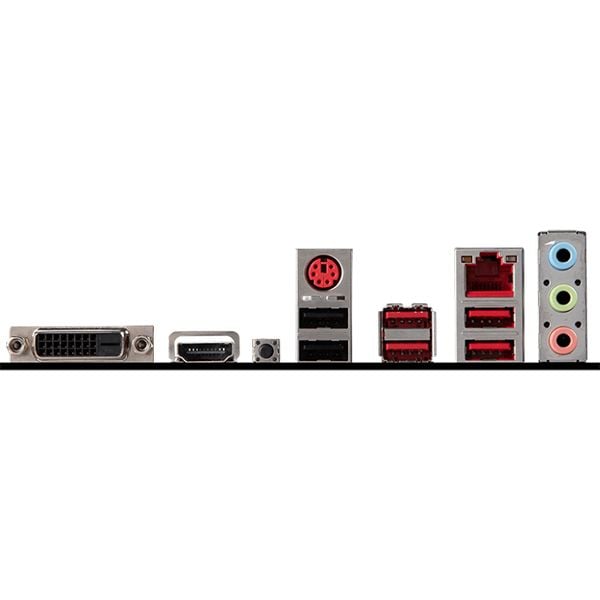

Cổng kết nối (Back Panel)

Mouse and Keyboard Port

LAN Port

USB 3.1 Gen1 Type A

HD Audio Connectors

DVI-D Port

HDMI Port

USB 2.0 Port

USB 3.1 Gen1 Type C

Phụ kiện đi kèm

Bộ phụ kiện tiêu chuẩn của MSI

Hệ điều hành khuyến nghị

Windows® 10 64-bit

Chuẩn kích cỡ

mATX Form Factor

Bảo hành

36 tháng
