Supports 3rd Gen Intel® Core™ i7 / Core™ i5 / Core™ i3 / Pentium® / Celeron® processors for LGA 1155 socket
Please refer to CPU Support for compatible CPU; the above description is for reference only.
|
 |
 Chipset
• Intel® B75 Chipset
|
|
Main Memory
• Support four DDR3 DIMMs 1066/1333/1600*/1800*(OC)/2000*(OC)/2200*(OC)/2400*(OC) DRAM(32GB Max)
- Supports Dual-Channel mode, two DIMMs per channel
*Intel 22nm CPU required.
|
|
Slots • 1 x PCIe 3.0 x16 slots
• 1 x PCIe 2.0 x1 slots
• 1 x PCI slots
|
|
On-Board SATA
• SATAIII controller integrated in Intel® B75 chipset
- Up to 6Gb/s transfer speed.
- Supports one SATAIII ports (SATA1) by B75
• SATAII controller integrated in Intel® B75 chipset
- Up to 3Gb/s transfer speed.
- Supports five SATAII ports (SATA2~6) by B75
|
|
USB 3.0
• 2 x USB 3.0 rear IO ports by Intel® B75
• 1 x USB 3.0 onboard connector by Intel® B75
|
|
Audio
• Chipset integrated by Realtek® ALC887
- Flexible 8-channel audio with jack sensing
- Compliant with Azalia 1.0 Spec
|
|
LAN
• Supports one PCI Express LAN 10/100/1000 Fast Ethernet by Realtek® 8111E
|
|
Internal I/O Connectors
- ATX 24-Pin power connector
- 4-pin ATX 12V power connector
- CPU x 1 / System x 2 FAN connectors
- 1 x Clear CMOS jumper
- 5 x Serial ATAII connectors
- 1 x Serial ATAIII connector
- 2 x USB 2.0 connectors
- 1 x USB 3.0 connector
- 1 x Serial port connector
- 1 x Parallel port connector
- 1 x TPM Module connector
- 1 x Front Panel Audio connector
- 1 x Front Panel connector
- 1 x Chassis Intrusion connector
|
|

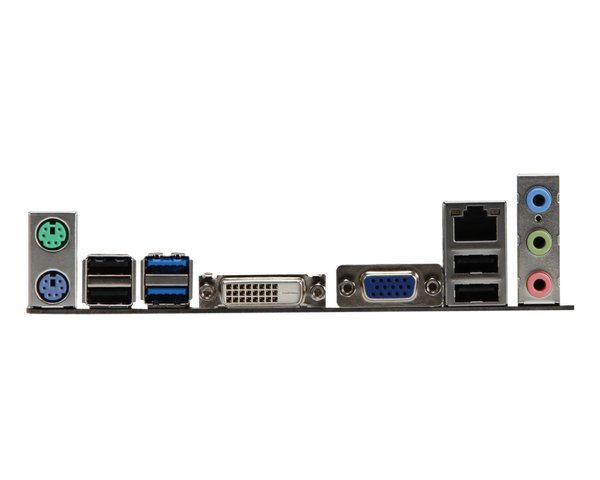

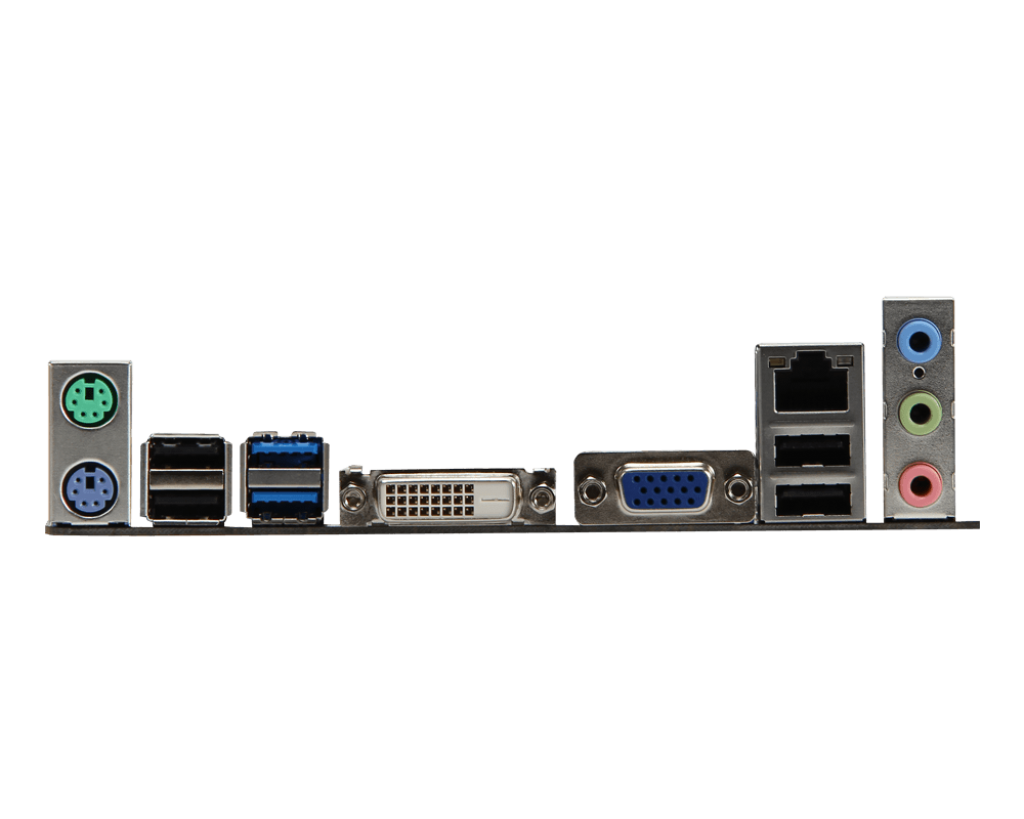

Back Panel I/O Ports
- 1 x PS/2 keyboard/ mouse port
- 4 x USB 2.0 ports
- 2 x USB 3.0 ports
- 1 x RJ45 LAN Jack
- 1 x 3 in 1 audio jack
- 1 x DVI-D port with max. resolution up to 1920x1200 @60Hz
- 1 x VGA port with max. resolution up to 2048x1536 @75Hz MSI Reminds You...
• This motherboard supports dual-display function by any two onboard graphics output ports (HDMI+DVI,DVI+VGA or VGA+HDMI). |
|
|
BIOS
• The motherboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically.
• The motherboard provides a Desktop Management Interface(DMI) function which records your motherboard specifications.
|
