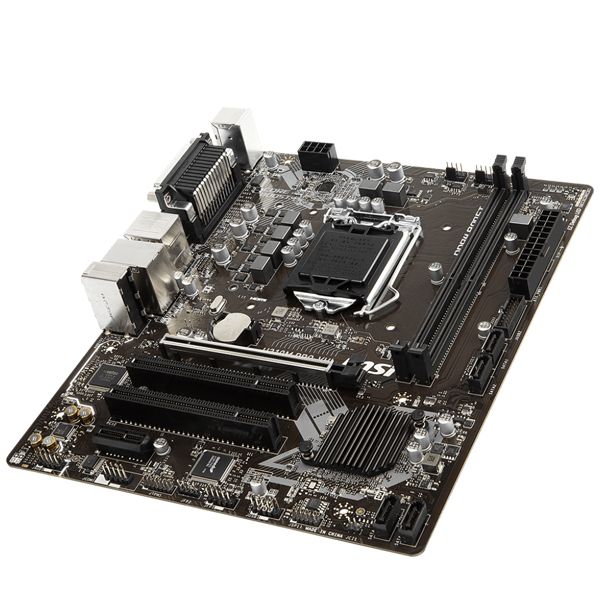

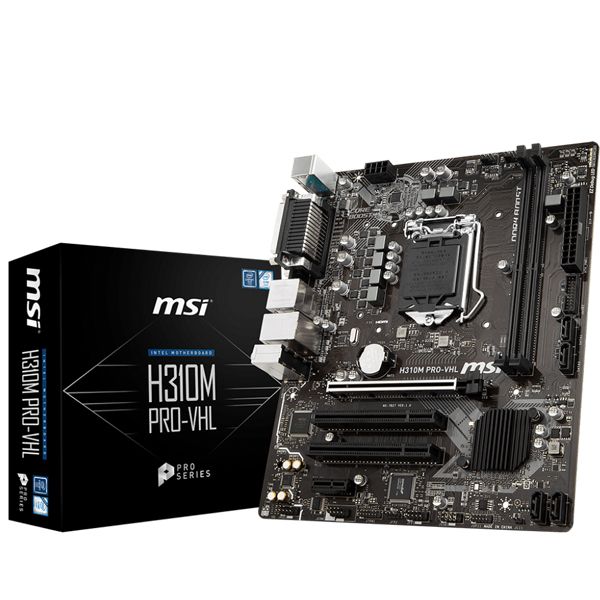

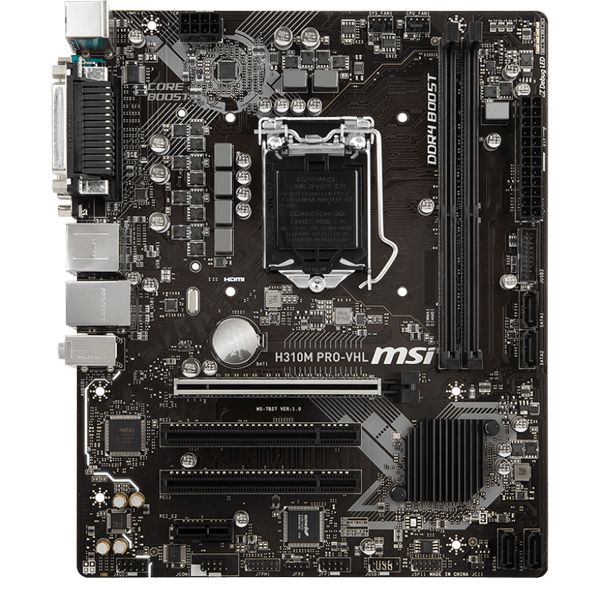

Bo mạch chủ - MAIN MSI H310M PRO-VHL đến từ thương hiệu MAIN MSI
* Bảo hành: 36 tháng
PROCESSOR
Supports 8th Generation Intel® Core™ Processors, Pentium® Gold and Celeron® Processors for Socket LGA1151
See supported processors
CHIPSET
Intel® H310 Chipset
MEMORY
- 2x DDR4 memory slots, support up to 32GB
- Supports DDR4 2666 MHz Memory
- Supports Dual-Channel mode
- Supports non-ECC, un-buffered memory
- Supports Intel® Extreme Memory Profile (XMP)
See supported memory
SLOTS
- 1 x PCIe 3.0 x16 slot
- 1 x PCIe 2.0 x1 slot
- 2 x PCI slots
ONBOARD GRAPHICS
- 1 x VGA port, supports a maximum resolution of 2048x1536@50Hz, 2048x1280@60Hz, 1920x1200@60Hz
- 1x HDMI™ port, supports a maximum resolution of 4096x2160@30Hz, 2560x1600@60Hz
STORAGE
Intel® H310 Chipset
- 4x SATA 6Gb/s ports
- Supports Intel® Rapid Storage Technology
USB
Intel® H310 Chipset
- 4 x USB 3.1 Gen1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector)
- 6 x USB 2.0 (High-speed USB) ports (4 ports on the back panel, 2 ports available through the internal USB connector)
AUDIO
Realtek® ALC887 Codec
- 7.1-Channel High Definition Audio
LAN
- 1 x Realtek RTL8111H Gigabit LAN controller
INTERNAL CONNECTORS
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 4 x SATA 6Gb/s connectors
- 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
- 1 x USB 2.0 connector (supports additional 2 USB 2.0 ports)
- 1 x Clear CMOS jumper
- 2 x Front panel connectors
- 1 x Serial port connector
- 1 x TPM module connector
- 1 x Chassis Intrusion connector
- 1 x Front panel audio connector
- 1 x 4-pin CPU fan connector
- 1 x 4-pin system fan connector
BACK PANEL PORTS
- USB 2.0 Port
- Parallel Port
- USB 3.1 Gen1
- LAN Port
- HD Audio Connectors
- PS/2 Combo Port
- Serial Port
- VGA Port
- HDMI Port
- USB 2.0 Port
