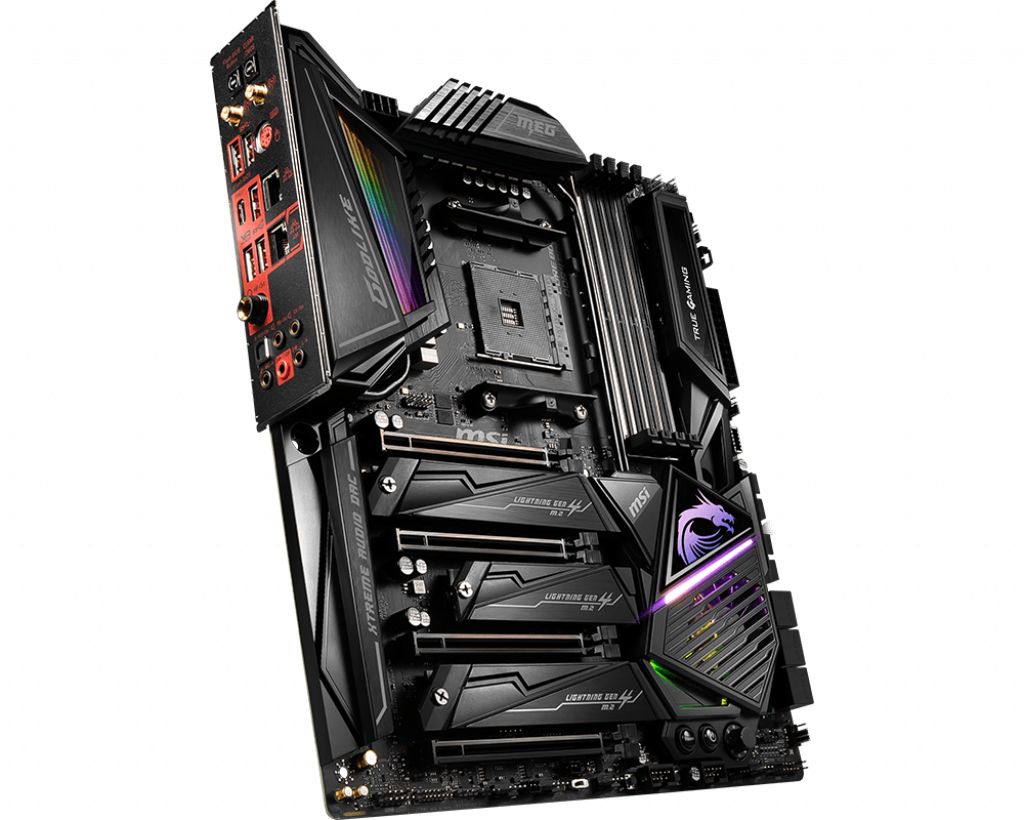

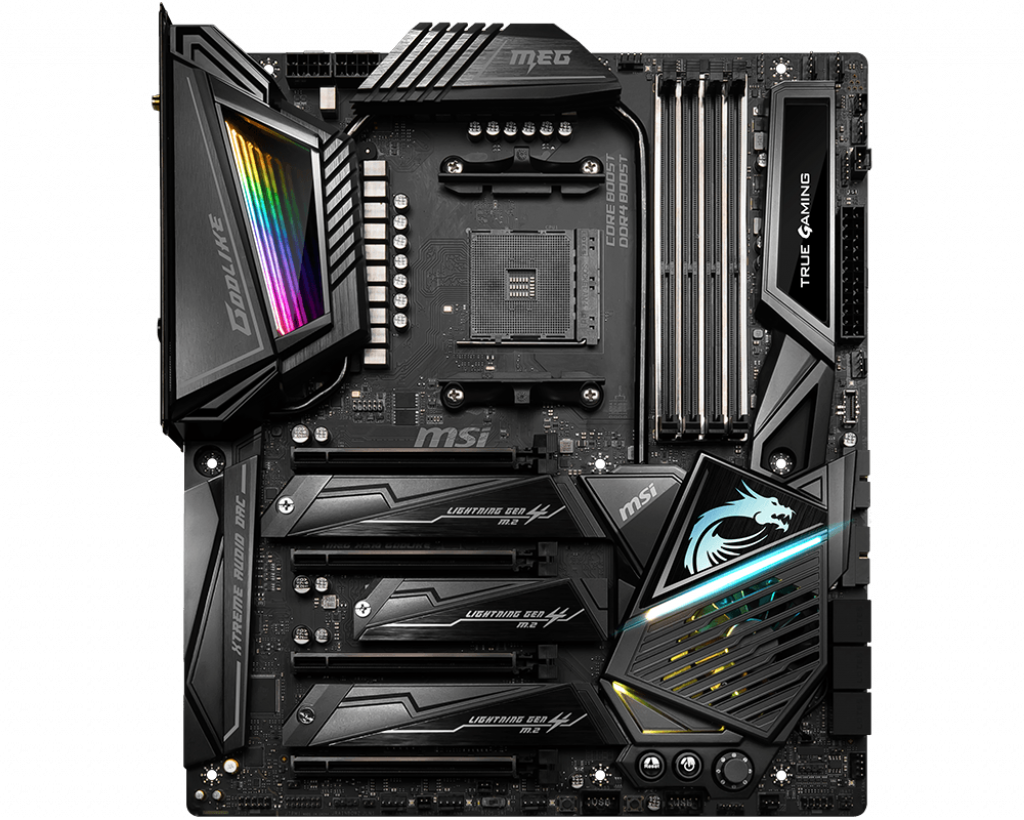

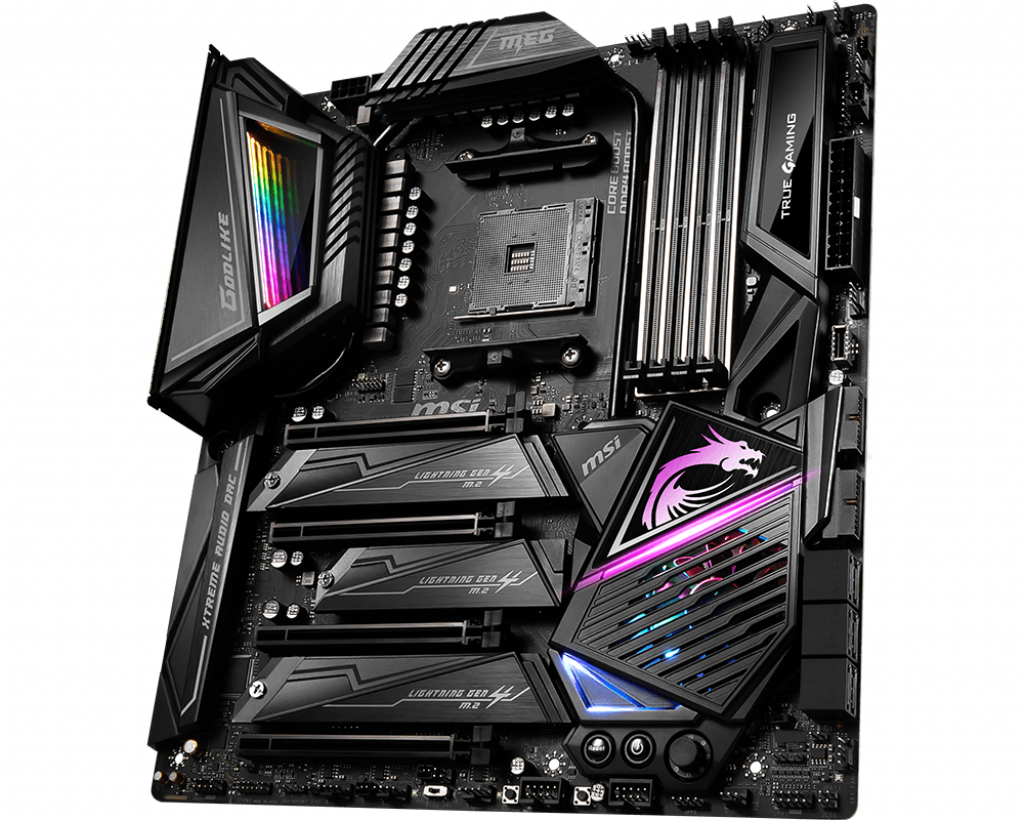

Bo mạch chủ - MAIN MSI MEG X570 GODLIKE đến từ thương hiệu main MSI
PROCESSOR
Supports 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics Desktop Processors for Socket AM4
CHIPSET
AMD® X570 Chipset
- 4x DDR4 memory slots, support up to 128GB
- 3rd Gen AMD Ryzen™ Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400 /4533 /4600 /4733 /4800 Mhz by A-XMP OC MODE
- 2nd Gen AMD Ryzen™ Processors, 1st and 2nd Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667 /2800 / 2933 /3000 /3066 /3200 /3466 /3600 Mhz by A-XMP OC MODE
- Dual channel memory architecture
- Supports non-ECC UDIMM memory
- Supports ECC UDIMM memory (non-ECC mode)
- Supports un-buffered memory
- Please refer www.msi.com for more information on compatible memory.
- 3x PCIe 4.0/3.0 x16 slot (PCI_E1~3)1
- 3rd Gen AMD Ryzen™ support PCIe 4.0 x16/x0/x0, x8/x0/x8, x8/x4/x4 mode
- 2nd Gen AMD Ryzen™ support PCIe 3.0x16/x0/x0, x8/x0/x8, x8/x4/x4 mode
- Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics support PCIe 3.0 x8/x0/x0 mode
- 1x PCIe 4.0/3.0 x16 slot (PCI_E4, supports x4 mode)
- The speeds may vary for different devices
MULTI-GPU
- Supports 2-Way NVIDIA® SLI™ Technology
- Supports 4-Way AMD® CrossFire™ Technology
STORAGE
AMD® X570 Chipset
- 6x SATA 6Gb/s ports
- 3x M.2 slots (Key M)1
- M2_1 slot (from AMD® X570 Chipset) supports PCIe 4.0 x4 (3rd Gen AMD Ryzen™) or 3.0 x4 (2nd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) and SATA 6Gb/s 2242/ 2260/ 2280/ 22110 storage devices
- M2_2 slot (from AMD® X570 Chipset) supports PCIe 4.0 x4 (3rd Gen AMD Ryzen™) or 3.0 x4 (2nd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) and SATA 6Gb/s 2242/ 2260/ 2280 storage devices
- M2_3 slot (from AMD® Processor) supports PCIe 4.0 x4 (3rd Gen AMD Ryzen™) or PCIe 3.0 x4 (2nd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) 2242/ 2260/ 2280/ 22110 storage devices
- The speeds may vary for different devices
RAID
AMD® X570 Chipset
- Supports RAID 0, RAID 1 and RAID 10
USB
AMD® X570 Chipset
- 3x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) ports (2 Type-A ports on the back panel, 1 Type-C internal connectors)
- 4x USB 3.2 Gen1 (SuperSpeed USB) ports through the internal USB connectors
- 4x USB 2.0 (High-speed USB) ports through the internal USB connectors
AMD® Processor
- 2x USB 3.2 Gen2 (3rd Gen AMD Ryzen™) or USB 3.2 Gen1 (2nd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) Type-A and Type-C port on the back panel
- 2x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel
AUDIO
2x Realtek® ALC1220 Codec
- 7.1-Channel High Definition Audio
- Supports Optical S/PDIF output
ESS® E9018 Codec
- Supports 6.3mm Gold-plated stereo headphone out
LAN
- 1x Killer™ E2600 Gigabit LAN Controller
- 1x Killer™ E3000 2.5 Gbps LAN Controller
WIFI & BLUETOOTH
Killer™ Wi-Fi 6 AX1650 Chipset
- The Wireless module is pre-install in the M2_4 (Key-E) slot
- Supports Wi-Fi 802.11 a/b/g/n/ac/ax, dual band (2.4GHz, 5GHz) up to 2.4 Gbps speed
- Supports Bluetooth® 5
INTERNAL CONNECTORS
- 1x 24-pin ATX main power connector
- 2x 8-pin ATX 12V power connectors
- 6x SATA 6Gb/s connectors
- 3x M.2 slots (M-Key)
- 1x USB 3.2 Gen2 Type-C port
- 2x USB 3.2 Gen1 connectors (supports additional 4 USB 3.2 Gen1 ports)
- 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
- 1x 4-pin CPU fan connector
- 1x 4-pin Water Pump connector
- 7x 4-pin system fan connectors
- 1x 3-pin Water Flow connector
- 1x Front panel audio connector
- 2x System panel connectors
- 1x Chassis Intrusion connector
- 2x 2-pin Thermal Sensors connectors
- 1x 4-pin RGB LED connector
- 2x 3-pin RAINBOW LED connectors
- 1x 3-pin CORSAIR LED connector
BACK PANEL PORTS
- Clear CMOS Button
- Wi-Fi /Bluetooth Antenna Connectors
- PS/2 GAMING Device Port
- Killer 2.5G + Killer Gigabit LAN
- HD Audio Connectors
- Flash BIOS Button
- USB 3.2 Gen1 Ports
- USB 3.2 Gen2 Ports Type-A+C
- USB 3.2 Gen2 Ports
- 6.3mm headphone
- Optical S/PDIF-Out
DIMENSIONS
- 12 in. x 10.7 in. (30.5 cm x 27.2 cm)
- E-ATX Form Factor
MOUNTING
9 mounting holes
