* THÔNG SỐ KỸ THUẬT

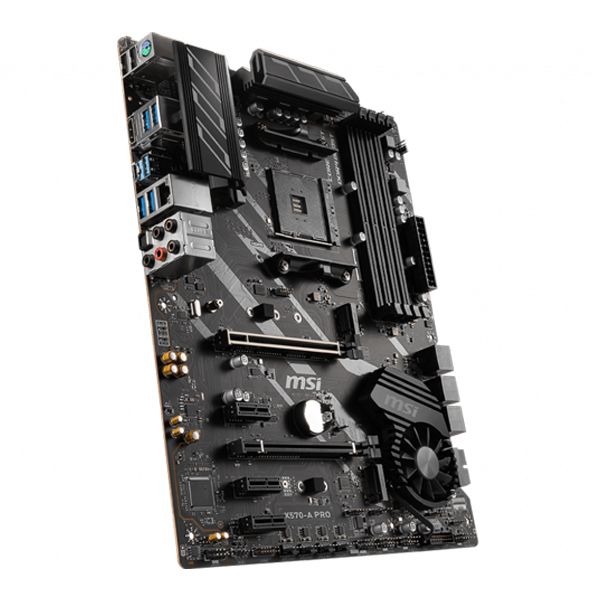

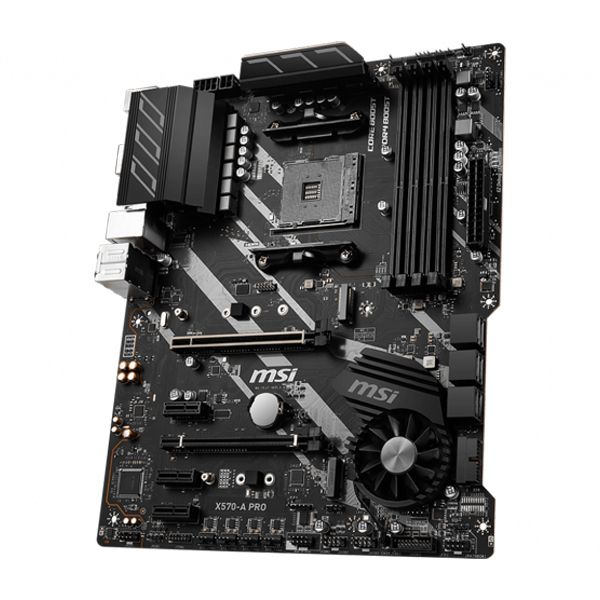

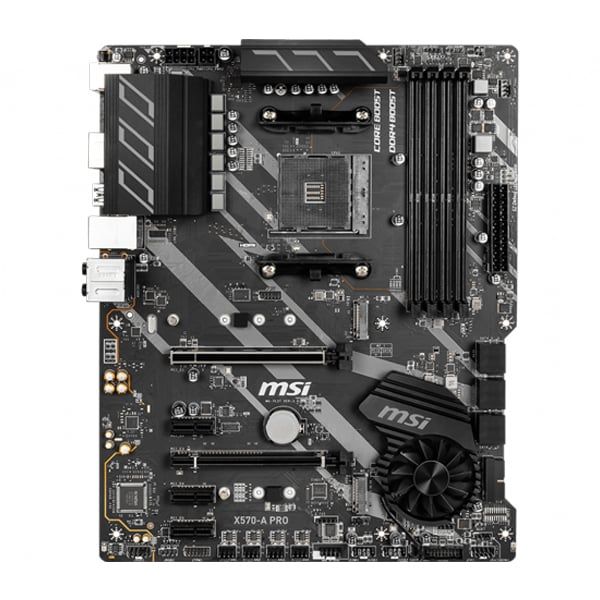

Bo mạch chủ - MAIN MSI X570-A PRO NEW đến từ thương hiệu main MSI
| SOCKET | AM4 |
| CPU (MAX SUPPORT) | RYZEN 9 |
| CHIPSET | AMD® X570 Chipset |
| DDR4 MEMORY | 1866/ 2133/ 2400/ 2667/ 2800/2933 /3000 /3066 /3200 /3466 /3600 /3733 /3866 /4000 /4133 /4266 /4400 + Mhz by JEDEC and A-XMP OC MODE |
MEMORY CHANNEL | Dual |
DIMM SLOTS | 4 |
MAX MEMORY (GB) | 128 |
PCI-E X16 | 1 |
PCI-E X4 | 1 |
| PCI-E X1 | 3 |
SATAIII | 6 |
M.2 SLOT | 2 |
RAID | 0/1/10 |
TPM (HEADER) | 1 |
LAN | 1x Realtek® 8111H Gigabit LAN Controller |
USB 3.2 PORTS (FRONT) | 4(Gen1, Type A) |
USB 3.2 PORTS (REAR) | 4(Gen1, Type A), 1(Gen2, Type A), 1(Gen2, Type C) |
USB 2.0 PORTS (FRONT) | 4 |
USB 2.0 PORTS (REAR) | 2 |
SERIAL PORTS(FRONT) | 1 |
AUDIO PORTS (REAR) | 5+ Optical S/PDIF (Realtek® ALC1220 Codec) |
HDMI | 1 |
DIRECTX | 12 |
FORM FACTOR | ATX |
CROSSFIRE | Y |
OPERATING SYSTEM | Support for Windows® 10 64-bit |
