| CHIPSET | AMD X670 |
| CPU | Supports AMD Ryzen™ 8000/ 7000 Series Desktop Processors |
| Socket AM5 |
| MEMORY | 4x DDR5 UDIMM, Maximum Memory Capacity 256GB |
| Memory Support DDR5 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz |
| Max. overclocking frequency: |
| • 1DPC 1R Max speed up to 7800+ MHz |
| • 1DPC 2R Max speed up to 6400+ MHz |
| • 2DPC 1R Max speed up to 6400+ MHz |
| • 2DPC 2R Max speed up to 5400+ MHz |
| |
| Supports Dual-Channel mode |
| Supports non-ECC, un-buffered memory |
| Supports AMD EXPO™ |
| ONBOARD GRAPHICS | 1x HDMI™ |
| Support HDMI™ 2.1, maximum resolution of 4K 60Hz* |
| 1x DisplayPort |
| Support DP 1.4, maximum resolution of 4K 60Hz* |
| |
| *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| SLOT | 3x PCI-E x16 slot |
| Supports x16/x1/x4 |
| • Supports x16/x1/x4 (For Ryzen™ 7000 Series processors) |
| • Supports x8/x1/x4 (For Ryzen™ 7 8700G and Ryzen™ 5 8600G processors) |
| • Supports x4/x1/x4 (For Ryzen™ 5 8500G processor) |
| 1x PCI-E x1 slot |
| PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) |
| PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset) |
| |
| STORAGE | 4x M.2 |
| M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices |
| M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices |
| M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices |
| M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices |
| 4x SATA 6G |
| • M2_2 supports PCIe 4.0 x2 speed when Ryzen™ 5 8500G is installed |
| RAID | Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices |
| Supports RAID 0, RAID 1 for M.2 NVMe storage devices |
| USB | 4x USB 2.0 (Rear) |
| 4x USB 2.0 (Front) |
| 4x USB 5Gbps Type A (Rear) |
| 4x USB 5Gbps Type A (Front) |
| 3x USB 10Gbps Type A (Rear) |
| 1x USB 10Gbps Type C (Front) |
| 1x USB 20Gbps Type C (Rear) |
| LAN | Realtek® RTL8125BG 2.5Gbps LAN |
| WIRELESS LAN & BLUETOOTH | AMD Wi-Fi 6E |
| The Wireless module is pre-installed in the M.2 (Key-E) slot |
| Supports MU-MIMO TX/RX |
| Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands |
| Supports 802.11 a/ b/ g/ n/ ac/ ax |
| |
| Supports Bluetooth® 5.3** |
| |
| * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. |
| ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11. |
| AUDIO | Realtek® ALC897 Codec |
| 7.1-Channel High Definition Audio |
| |
| INTERNAL IO | 1x Power Connector(ATX_PWR) |
| 2x Power Connector(CPU_PWR) |
| 1x CPU Fan |
| 1x Pump Fan |
| 6x System Fan |
| 2x Front Panel (JFP) |
| 1x Chassis Intrusion (JCI) |
| 1x Front Audio (JAUD) |
| 1x TBT connector (JTBT, supports RTD3) |
| 1x Tuning Controller connector(JDASH) |
| 2x Addressable V2 RGB LED connector (JARGB_V2) |
| 2x RGB LED connector(JRGB) |
| 1x TPM pin header(Support TPM 2.0) |
| 1x USB4 card connector (JTBT_U4_1, supports RTD3) |
| 4x USB 2.0 ports |
| 4x USB 5Gbps Type A ports |
| 1x USB 10Gbps Type C ports |
| LED FEATURE | 4x EZ Debug LED |

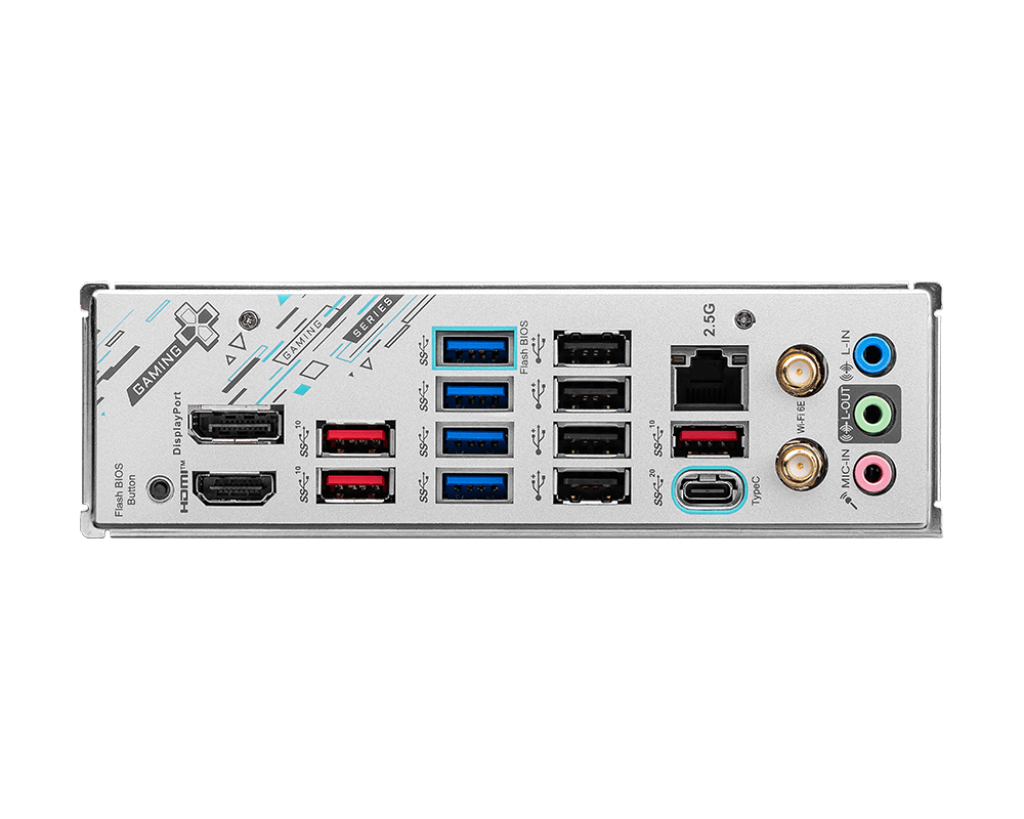

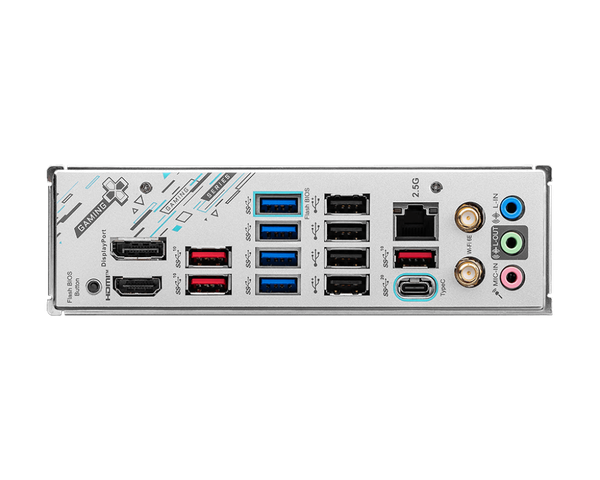

| BACK PANEL PORTS | |
| DisplayPort |
| USB 3.2 Gen 2 10Gbps (Type-A) |
| USB 3.2 Gen 1 5Gbps (Type-A) |
| USB 2.0 (Type-A) |
| 2.5G LAN |
| Flash BIOS Button |
| HDMI™ |
| USB 3.2 Gen 2x2 20Gbps (Type-C) |
| Wi-Fi / Bluetooth |
| Audio Connectors |
| |
| OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| BOX CONTENT | |
| PCB INFO | ATX |
| 243.84mmx304.8mm |
