THÔNG SỐ KỸ THUẬT

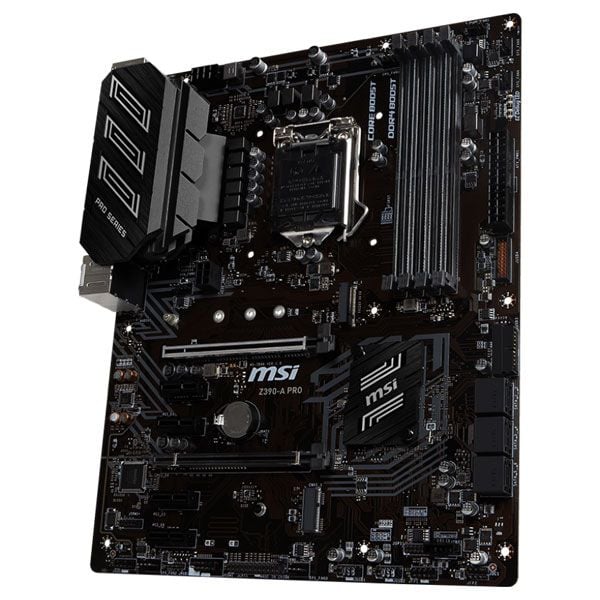

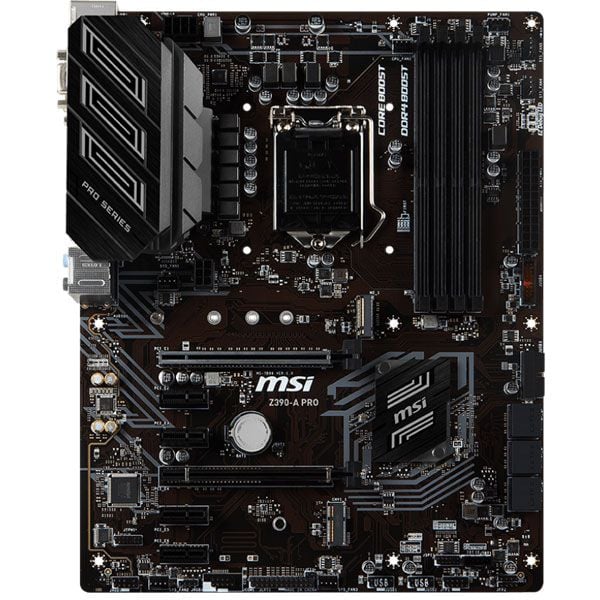

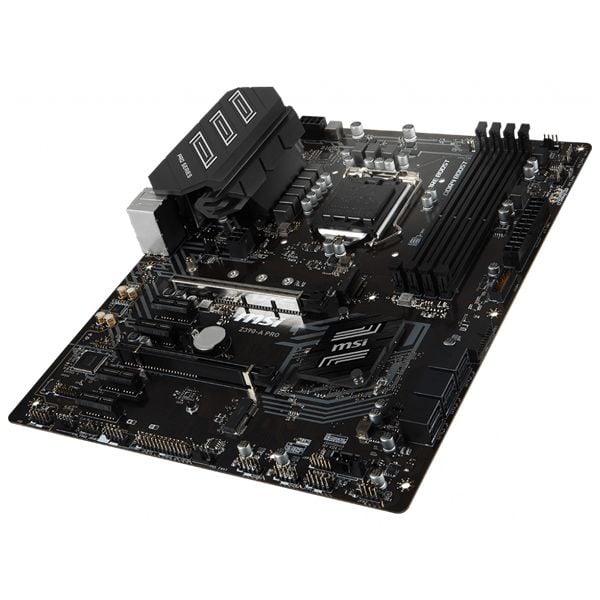

Bo mạch chủ - MAIN MSI Z390-A PRO đến từ thương hiệu main MSI
| PROCESSOR | Supports 9th/ 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket |
| CHIPSET | Intel® Z390 Chipset |
| MEMORY | - 4 x DDR4 memory slots, support up to 64GB
- Supports DDR4 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) / 2800(OC)/ 2666/ 2400/ 2133 MHz
- Supports Dual Channel mode
- Supports non-ECC, un-buffered memory
- Supports Intel® Extreme Memory Profile (XMP)
|
| SLOTS | - 2 x PCIe 3.0 x16 slots
- 4 x PCIe 3.0 x1 slots
- 1 x M.2 slot with E key for Integrated Intel® Wireless-AC(CNVi) module only
|
| ONBOARD GRAPHICS | - 1 x VGA port, supports a maximum resolution of 2048x1536@50Hz, 2048x1280@60Hz, 1920x1200@60Hz
- 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz
- 1 x DisplayPort, supports a maximum resolution of 4096x2304@60Hz
|
| MULTI-GPU | - Supports 2-Way AMD® CrossFire™ Technology
|
| STORAGE | Intel® Z390 Chipset- 6 x SATA 6Gb/s ports
- 1 x M.2 slot (Key M)
- Supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices
- Intel® Optane™ Memory Ready
|
| USB | Intel® Z390 Chipset- 2 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports (1 Type-A port and 1 Type-C port on the back panel)
- 6 x USB 3.1 Gen1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 3.1 connectors
- 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors)
|
| AUDIO | Realtek® ALC892 Codec- 7.1-Channel High Definition Audio
|
| LAN | - 1 x Intel® I219-V Gigabit LAN controller
|
| OPERATING SYSTEM | Support for Windows® 10 64-bit |
| WARRANTY | 36 MONTH |
