THÔNG SỐ KỸ THUẬT

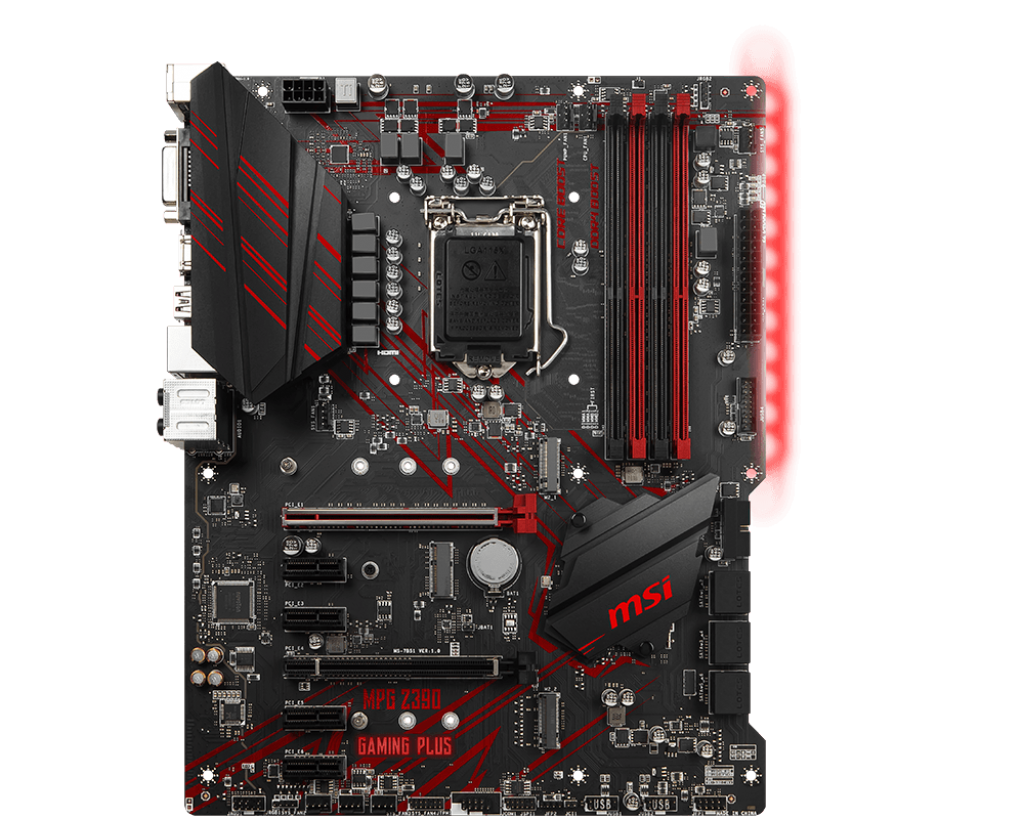

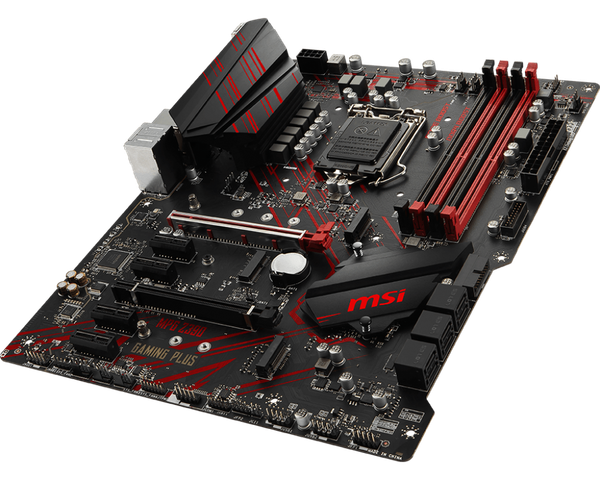

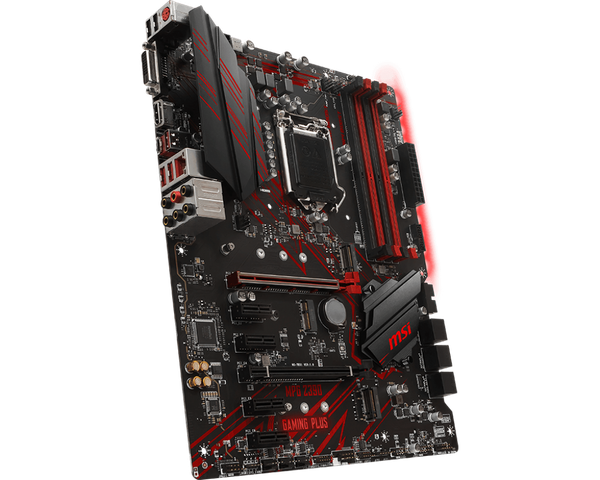

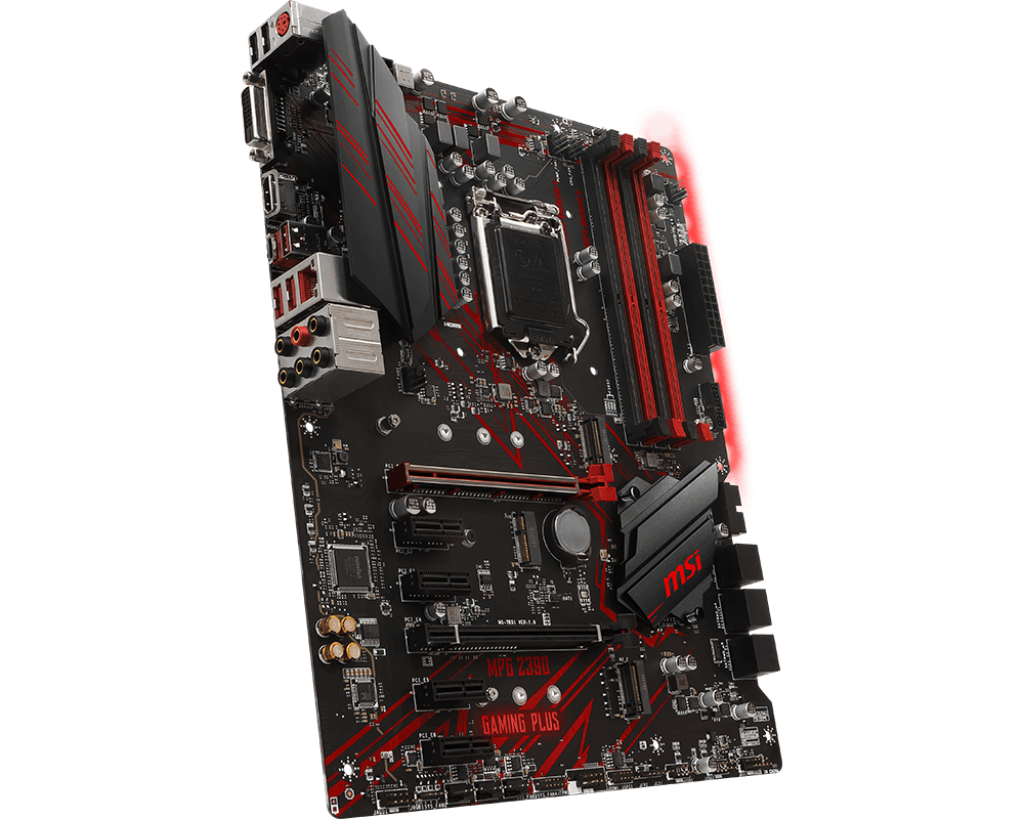

Bo mạch chủ MAIN MSI Z390 MPG GAMING PLUS đến từ thương hiệu MAIN MSI
| PROCESSOR | Supports Intel® Core™ 9000 Series family/ 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket |
| CHIPSET | Intel® Z390 Chipset |
| MEMORY | - 4 x DDR4 memory slots, support up to 64GB
- Supports DDR4 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/
- 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) / 2800(OC)/ 2666/ 2400/ 2133 MHz
- Supports Dual-Channel mode
- Supports non-ECC, un-buffered memory
- Supports Intel® Extreme Memory Profile (XMP)
|
| SLOTS | - 2 x PCIe 3.0 x16 slots
- 4 x PCIe 3.0 x1 slots
- 1 x M.2 slot with E key for Integrated Intel® Wireless-AC(CNVi) module only
|

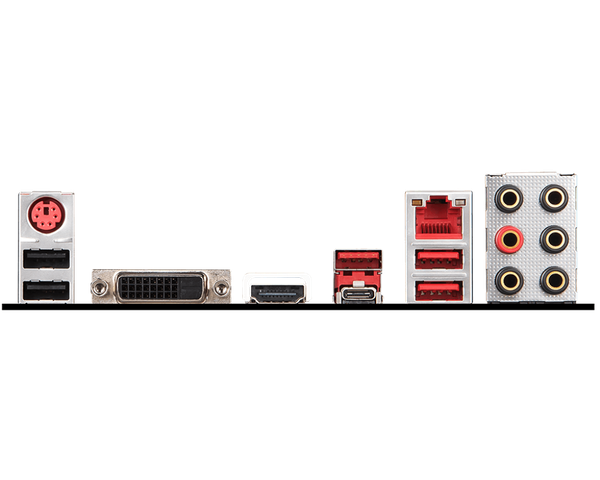

| ONBOARD GRAPHICS | - 1 x HDMI™ port, supports a maximum resolution of 4096x2160@24Hz
- 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz
|
| MULTI-GPU | Supports 2-Way AMD CrossFire™ Technology |
| RAID | Intel® Z390 Chipset- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
- Supports RAID 0, RAID 1 for M.2 PCIe storage devices
|
| USB Ports | 2 x USB 3.1 (Gen2, A+C) + 6 x USB 3.1 + 6 x USB 2.0 |
| LAN | 1 x Intel® I219-V Gigabit LAN controller |
| Audio | 8-Channel(7.1) HD Audio with Audio Boost |
| OPERATING SYSTEM | Support for Windows® 10 64-bit |
| WARRANTY | 36 month |
