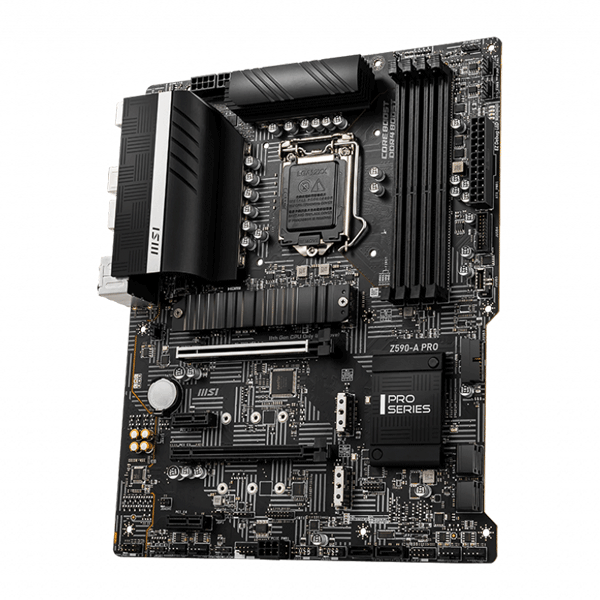

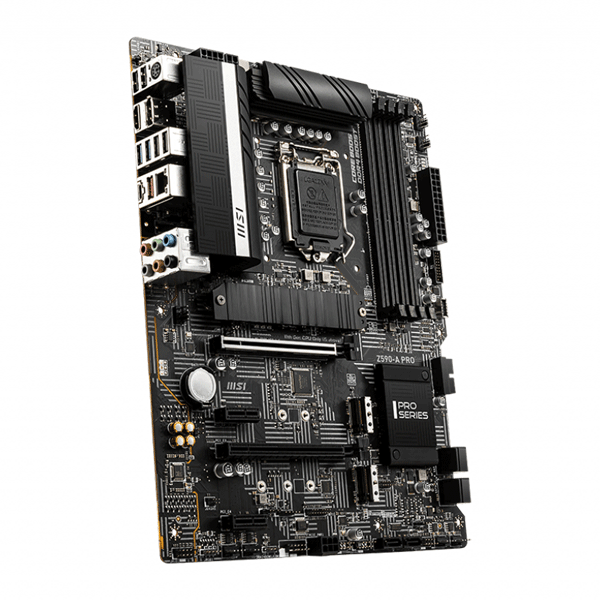

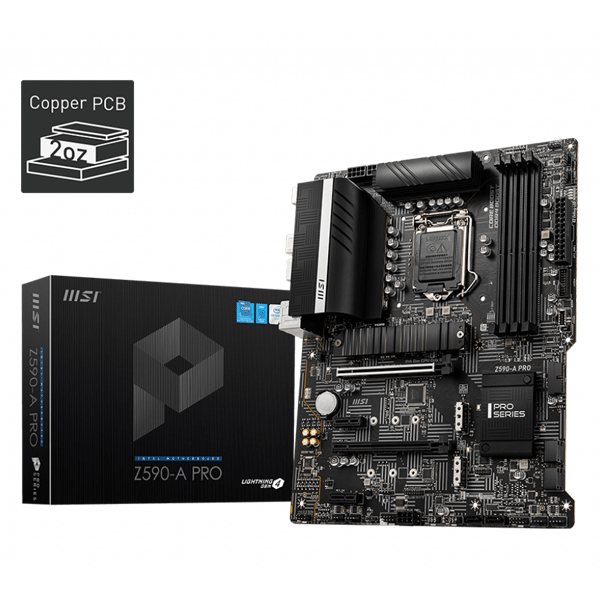

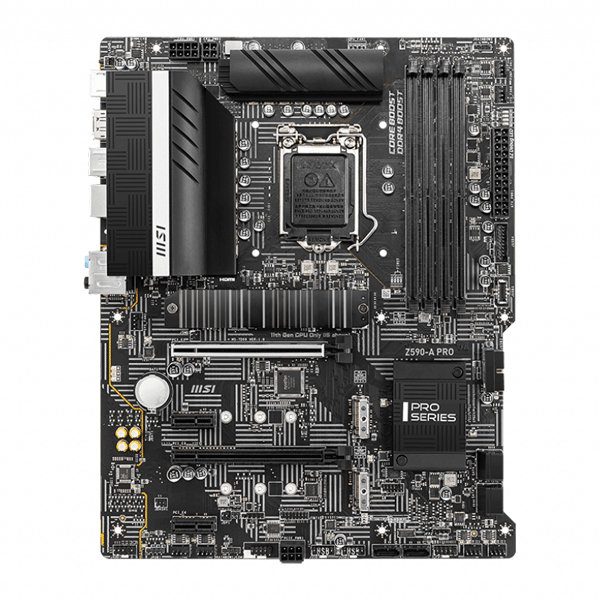

MAIN MSI Z590 - A PRO

  • Thương hiệu: MSI
  • Loại: MAINBOARD
  • SKU: SP009841

Tại Máy Tính Biên Hòa: 0₫

  • GIAO HÀNG
    GIAO HÀNG
    Miễn phí giao hàng toàn quốc thông qua các đơn vị vận chuyển cho Hóa đơn trên 500,000đ
  • SẢN PHẨM
    SẢN PHẨM
    Cam kết hàng mới 100% - Bảo hành chính hãng
  • ĐỔI TRẢ
    ĐỔI TRẢ
    1 đổi 1 lên đến 31 ngày nếu phát sinh lỗi do nhà sản xuất
  • Hỗ trợ
    Hỗ trợ
    Thứ 2 - CN: 09:00 - 19:00 Hotline: 1800.799.999

Chia sẻ ngay

PROCESSOR

Supports 10th Gen Intel® Core™ Processors, 11th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors1

Processor socket LGA1200

  1. Please go to intel.com for compatibility information

See supported processors

CHIPSET

Intel® Z590 Chipset

MEMORY

  • 4x DDR4 memory slots, support up to 128GB 1
    • Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR)1
    • Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR)
    • Max overclocking frequency:
      • 1DPC 1R Max speed up to 5333 MHz
      • 1DPC 2R Max speed up to 4700+ MHz
      • 2DPC 1R Max speed up to 4400+ MHz
      • 2DPC 2R Max speed up to 4000+ MHz
  • Supports Dual-Channel mode
  • Supports non-ECC, un-buffered memory
  • Supports Intel® Extreme Memory Profile (XMP)
  1. Please refer www.msi.com for more information on compatible memory

EXPANSION SLOT

  • 2x PCIe x16 slots
    • Support x16/ x4
    • PCI_E1 (from CPU)
      • Supports up to PCIe 4.0 for 11th Gen Intel® CPU
      • Supports up to PCIe 3.0 for 10th Gen Intel® CPU
    • PCI_E3 (from Z590 chipset)
      • Supports up to PCIe 3.0
  • 2x PCIe 3.0 x1 slots (from Z590 chipset)

ONBOARD GRAPHICS

  • 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz 12
  • 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz 12
  1. Available only on processors featuring integrated graphics.
  2. Graphics specifications may vary depending on the CPU installed.

MULTI-GPU

  • Supports 2-Way AMD® CrossFire Technology

STORAGE

  • 6x SATA 6Gb/s ports (from Z590 chipset)
  • 3x M.2 slots (Key M)
    • M2_1 slot (from CPU) 1
      • Available only on 11th Gen Intel® CPU
      • Supports up to PCIe 4.0x4
      • Supports 2242/ 2260/ 2280/ 22110 storage devices
    • M2_21, M2_32 slots (from Z590 chipset)
      • Support up to PCIe 3.0x4
      • Support up to SATA 6Gb/s
      • Support 2242/ 2260/ 2280 storage devices
      • Intel® Optane™ Memory Ready 3
  • Support Intel® Smart Response Technology for Intel Core™ processors
  1. SATA2 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
  2. SATA5 & SATA 6 will be unavailable when installing M.2 SSD in the M2_3 slot.
  3. Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.

RAID

  • Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
  • Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

USB

Intel® Z590 Chipset

  • Intel® Z590 Chipset
    • 1x USB 3.2 Gen 2x2 20Gbps Type-C port on the back panel
    • 2x USB 3.2 Gen 2 10Gbps ports (1 Type-C internal connector and 1 Type-A port on the back panel)
    • 6x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, and 4 ports are available through the internal USB 3.2 Gen 1 5Gbps connectors)
  • USB 2.0 Hubs GL850G
    • 4x USB 2.0 Type-A ports on the back panel
    • 4x USB 2.0 ports are available through the internal USB 2.0 connectors

AUDIO

Realtek®ALC897 Codec

  • 7.1-Channel High Definition Audio

LAN

  • 1x Intel® I225-V 2.5Gbps LAN controller

INTERNAL CONNECTORS

  • 1x 24-pin ATX main power connector
  • 1x 8-pin ATX 12V power connector
  • 1x 4-pin ATX 12V power connector
  • 1x 6-pin ATX PCIe power connector
  • 6x SATA 6Gb/s connectors
  • 3x M.2 slots (M-Key)
  • 1x USB 3.2 Gen 2 10Gbps Type-C port
  • 2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports)
  • 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 1x 4-pin CPU fan connector
  • 1x 4-pin water-pump fan connector
  • 6x 4-pin system fan connectors
  • 1x Front panel audio connector
  • 2x System panel connectors
  • 1x Chassis Intrusion connector
  • 1x Clear CMOS jumper
  • 1x TPM module connector
  • 1x Serial port connector
  • 1x Tuning controller connector
  • 1x TBT connector (Supports RTD3)

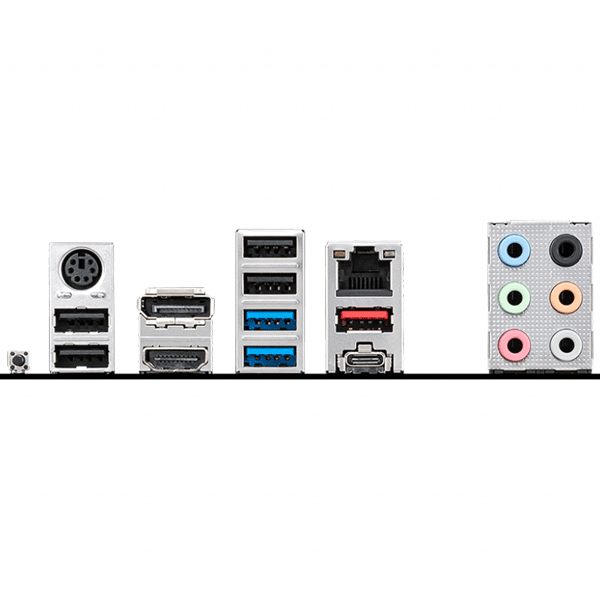

BACK PANEL PORTS

  1. Keyboard / Mouse
  2. DisplayPort
  3. USB 2.0
  4. LAN port
  5. Audio connector
  6. Flash BIOS Button
  7. USB 2.0
  8. HDMI
  9. USB 3.2 Gen 1 5Gbps Type-A
  10. USB 3.2 Gen 2x2 20Gbps Type-C
  11. USB 3.2 Gen 2 10Gbps Type-A
MSI Z590-A PRO back panel ports

DIMENSIONS

  • ATX Form Factor
  • 12 in. x 9.6 in. (30.5 cm x 24.4 cm)

MOUNTING

9 mounting holes

OPERATING SYSTEM

Support for Windows® 10 64-bit
