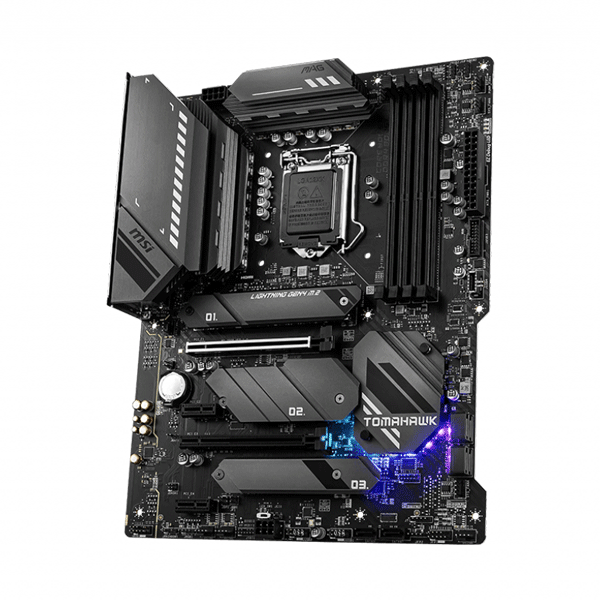

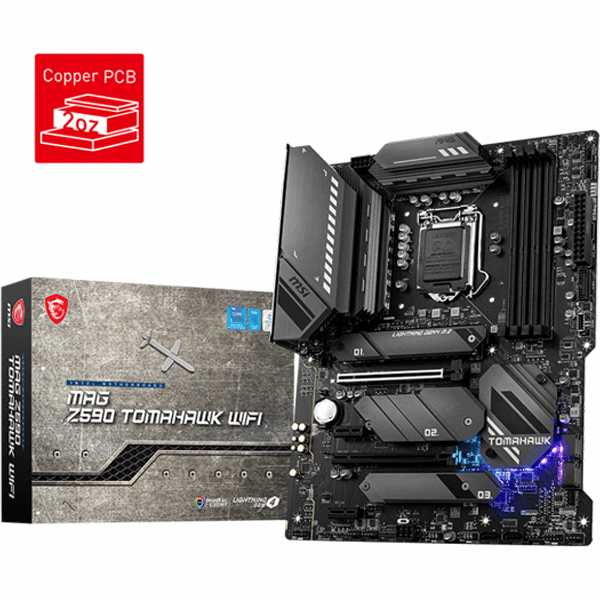

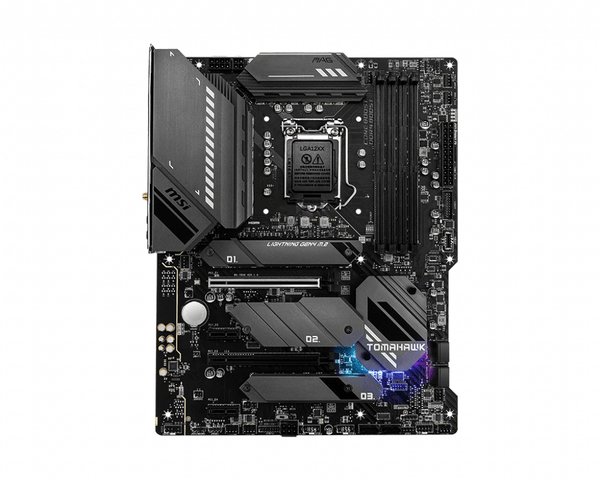

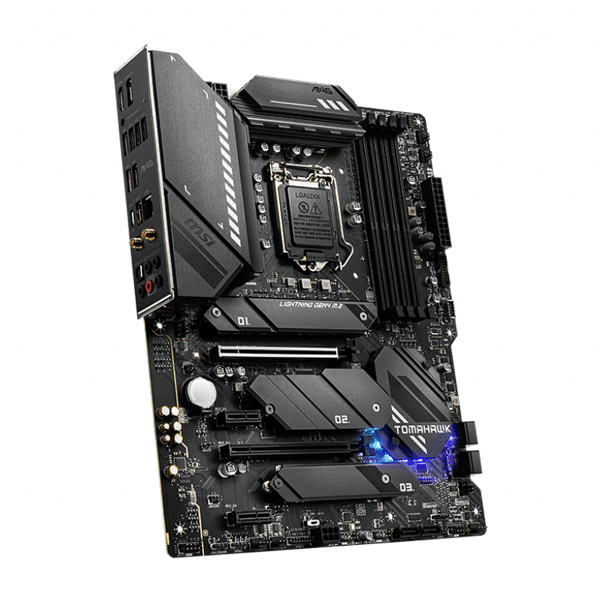

MAIN MSI Z590 MAG TOMAHAWK WIFI

  • Thương hiệu: MSI
  • Loại: MAINBOARD
  • SKU: SP009843

Tại Máy Tính Biên Hòa: 0₫

  • GIAO HÀNG
    GIAO HÀNG
    Miễn phí giao hàng toàn quốc thông qua các đơn vị vận chuyển cho Hóa đơn trên 500,000đ
  • SẢN PHẨM
    SẢN PHẨM
    Cam kết hàng mới 100% - Bảo hành chính hãng
  • ĐỔI TRẢ
    ĐỔI TRẢ
    1 đổi 1 lên đến 31 ngày nếu phát sinh lỗi do nhà sản xuất
  • Hỗ trợ
    Hỗ trợ
    Thứ 2 - CN: 09:00 - 19:00 Hotline: 1800.799.999

Chia sẻ ngay

PROCESSOR

  • Supports 10th Gen Intel® Core™, 11th Gen Intel® Core™, Pentium® Gold and Celeron® processors 1
  • Processor socket LGA1200
  1. Please go to intel.com for compatibility information.

See supported processors

CHIPSET

Intel® Z590 Chipset

MEMORY

  • 4x DDR4 memory slots, support up to 128GB 1
  • Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR)
  • Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR)
    • Max overclocking frequency:
      • 1DPC 1R Max speed up to 5333 MHz
      • 1DPC 2R Max speed up to 4700+ MHz
      • 2DPC 1R Max speed up to 4400+ MHz
      • 2DPC 2R Max speed up to 4000+ MHz
  • Supports Dual-Channel mode
  • Supports non-ECC, un-buffered memory
  • Supports Intel® Extreme Memory Profile (XMP)
  1. Please refer to www.msi.com for more information on compatible memory.

EXPANSION SLOT

  • 2x PCIe x16 slots
    • 1x PCIe 3.0 x16 slot (from CPU)
      • Support up to PCIe 4.0 for 11th Gen Intel® CPU
      • Support up to PCIe 3.0 for 10th Gen Intel® CPU
    • PCI_E3 (From Z590 chipset)
      • Support up to PCIe 3.0 x4
  • 2x PCIe 3.0 x1 slots (From Z590 chipset)

MULTI-GPU

  • Supports 2-Way AMD® CrossFire Technology

ONBOARD GRAPHICS

  • 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz 1 / 2
  • 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz 1 / 2
  1. Available only on processors featuring integrated graphics.
  2. Graphics specifications may vary depending on the CPU installed.

STORAGE

  • 6x SATA 6Gb/s ports (From Z590 chipset) 1
  • 3x M.2 slots (Key M)
    • M2_1 slot (From CPU)
      • Available only on 11th Gen Intel® CPU
      • Supports up to PCIe 4.0 x4
      • Supports 2242/ 2260/ 2280/ 22110 storage devices
    • M2_21 & M2_3 2 slot (From Z590 chipset)
      • Supports up to PCIe 3.0 x4
      • Supports SATA up to 6Gb/s
      • Supports 2242/ 2260/ 2280 storage devices
      • Intel® Optane™ Memory Ready 3
    • Supports Intel® Smart Response Technology for Intel Core™ processors
  1. SATA2 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
  2. SATA5 & SATA6 will be unavailable when installing M.2 SSD in the M2_3 slot.
  3. Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.

RAID

  • Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
  • Supports RAID 0 and RAID 1 for M.2 PCIe storage devices

USB

Intel® Z590 Chipset

  • 1x USB3.2 Gen2x2 20Gbps Type-C port on the back panel
  • 2x USB 3.2 Gen 2 10Gbps ports (1 Type-C internal connector and 1 Type-A port on the back panel)
  • 6x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 2 ports through the internal connector)
  • 1x USB 2.0 Type-A port on the back panel

Hub-GL850G

  • 5x USB 2.0 ports (1 Type-A port on the back panel, 4 Type-A ports available through internal connectors)

AUDIO

Realtek® ALC4080 Codec

  • 7.1-Channel High Definition Audio
  • Supports S/PDIF output

LAN

  • 1x Intel® I225-V 2.5Gbps LAN controller

WIRELESS LAN & BLUETOOTH®

  • 1x Intel® Wi-Fi 6E AX210
  • 1x Intel® The Wireless module is pre-installed in the M.2 (Key-E slot)
  • Supports MU-MIMO TX/RX, 2.4GHz/ 6GHz 1(160MHz) up to 2.4Gbps
  • Supports 802.11 a/ b/ g/ n/ ac/ ax
  • Supports Bluetooth® 5.22, FIPS, FISMA
  1. Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in WIN10 21H1.
  2. Bluetooth 5.2 will be ready in WIN10 21H1.

INTERNAL CONNECTORS

  • 1x 24-pin ATX main power connector
  • 1x 8-pin ATX 12V power connector
  • 1x 4-pin ATX 12V power connector
  • 1x 6-pin PCIE power connector
  • 6x SATA 6Gb/s connectors
  • 3x M.2 slots (M-Key)
  • 1x USB 3.2 Gen 2 10Gbps Type-C port
  • 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
  • 2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports)
  • 1x 4-pin CPU fan connector
  • 1x 4-pin water-pump fan connector
  • 6x 4-pin system fan connectors
  • 1x Front panel audio connector
  • 2x System panel connectors
  • 1x Chassis Intrusion connector
  • 1x TPM module connector
  • 1x Clear CMOS jumper
  • 1x TBT connector (supports RTD3)
  • 1x Tuning Controller connector

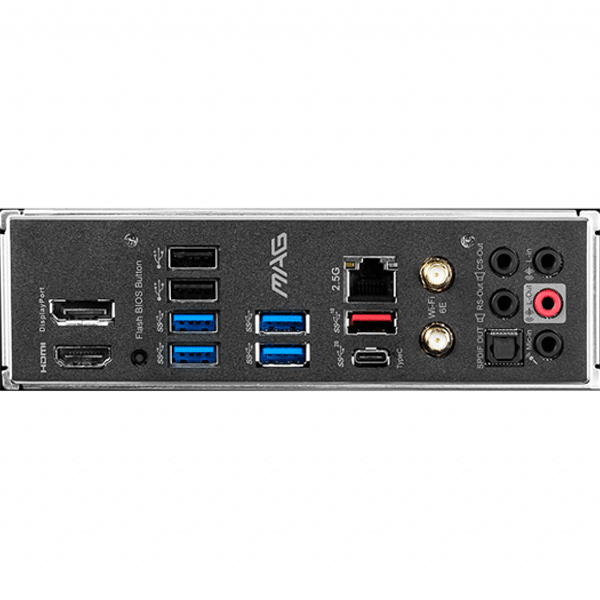

BACK PANEL PORTS

  1. DisplayPort
  2. USB 2.0
  3. USB 3.2 Gen 1 5Gbps Type-A
  4. 2.5G LAN Port
  5. Wi-Fi / Bluetooth Antenna
  6. HD Audio Connectors
  7. HDMI
  8. Flash BIOS Button
  9. USB 3.2 Gen 1 5Gbps Type-A
  10. USB 3.2 Gen 2 10Gbps Type-A
  11. USB 3.2 Gen 2x2 20Gbps Type-C
  12. Optical S/PDIF OUT
MAG Z590 TOMAHAWK WIFI back panel ports

DIMENSIONS

  • ATX Form Factor
  • 12 in. x 9.6 in. (30.5 cm x 24.4 cm)

OPERATING SYSTEM

Support for Windows® 10 64-bit
