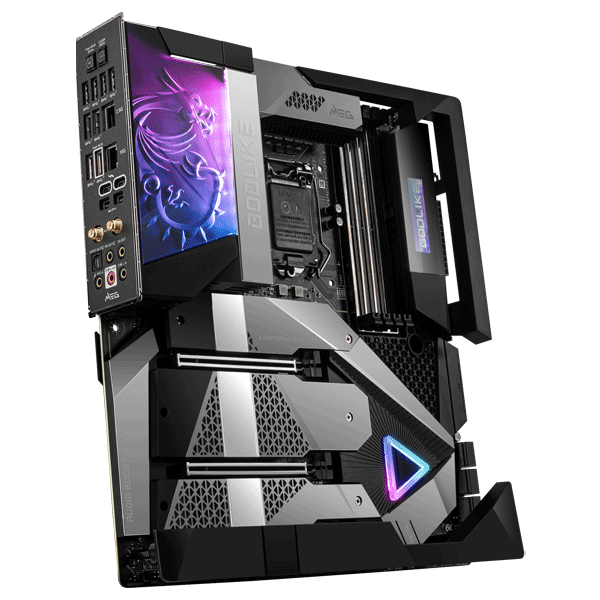

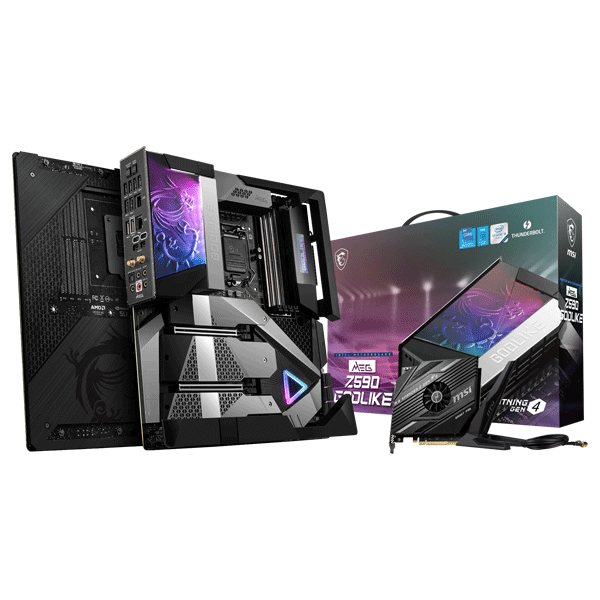

MAIN MSI Z590 MEG GODLIKE

  • Thương hiệu: MSI
  • Loại: MAINBOARD
  • SKU: SP009846

Tại Máy Tính Biên Hòa: 0₫

  • GIAO HÀNG
    GIAO HÀNG
    Miễn phí giao hàng toàn quốc thông qua các đơn vị vận chuyển cho Hóa đơn trên 500,000đ
  • SẢN PHẨM
    SẢN PHẨM
    Cam kết hàng mới 100% - Bảo hành chính hãng
  • ĐỔI TRẢ
    ĐỔI TRẢ
    1 đổi 1 lên đến 31 ngày nếu phát sinh lỗi do nhà sản xuất
  • Hỗ trợ
    Hỗ trợ
    Thứ 2 - CN: 09:00 - 19:00 Hotline: 1800.799.999

Chia sẻ ngay

PROCESSOR

  • Supports 10th Gen Intel® Core™ Processors, 11th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® processors 1
  • Processor socket LGA1200

See supported processors

CHIPSET

Intel® Z590 Chipset

MEMORY

  • 4x DDR4 memory slots, support up to 128GB 1
  • Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR)
  • Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR) 1
    • Max. overclocking frequency:
      • 1DPC 1R Max speed up to 5600 MHz
      • 1DPC 2R Max speed up to 4800+ MHz
      • 2DPC 1R Max speed up to 4400+ MHz
      • 2DPC 2R Max speed up to 4000+ MHz
  • Supports Dual-Channel mode
  • Supports non-ECC mode, un-buffered memory
  • Supports Intel® Extreme Memory Profile (XMP)
  1. Please refer www.msi.com for more information on compatible memory.

EXPANSION SLOTS

  • 3x PCIe x16 slots
    • Support x16/x0/x4, x8/x8/x4, x8/x4+x4/x4, x8+x8/x0/x4, x8+(x4+x4)/x0/x4
    • PCI_E1 & PCI_E2 slots (From CPU)
      • Support up to PCIe 4.0 for 11th Gen Intel® CPU
      • Support up to PCIe 3.0 for 10th Gen Intel® CPU
    • PCI_E3 slot (From Z590 chipset) 1
      • Supports up to PCIe 3.0
  1. PCI_E3 will run at x1 speed when installing device in M2_4 slot.

MULTI-GPU

  • Supports 2-Way NVIDIA® SLI™ Technology
  • Supports 3-Way AMD® CrossFire™ Technology

THUNDERBOLT 4

Intel® JHL8540 Thunderbolt™ 4 Controller

  • 2x Thunderbolt™ 4 (Type-C) ports on the back panel
    • Support up to 40 Gbps transfer rate with Thunderbolt devices
    • Support up to 20 Gbps transfer rate with USB4 devices
    • Support up to 10Gbps transfer rate with USB 3.2 devices
    • Support up to 5V/3A , 15W power charging
    • Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices
    • Supports up to 8K display (need to connect the DisplayPort of the motherboard or discrete graphics card to the Mini DisplayPort Input port on the back panel)

STORAGE

  • 6x SATA 6Gb/s ports (from Z590 chipset)
  • 4x M.2 slots (Key M)
    • M2_1 (from CPU)
      • Available only on 11th Gen Intel® CPU
      • Supports up to PCIe 4.0 x4
      • Supports 2242/ 2260/ 2280/ 22110 storage devices
    • M2_2 1, M2_3 2 & M2_4 slots (from Z590 chipset)
      • M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices
      • M2_3 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices
      • M2_4 supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices 3
      • Intel® Optane™ Memory Ready
    • Supports Intel® Smart Response Technology for Intel Core™ processors 4
  1. SATA2 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
  2. SATA5 & SATA6 will be unavailable when installing M.2 SSD in the M2_3 slot.
  3. M2_4 will run at x2 speed when installing device in PCI_E3 slot.
  4. Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.

RAID

  • Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
  • Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices

USB

Intel® Z590 Chipset

  • 3x USB 3.2 Gen 2 10Gbps ports (2 Type-A ports on the back panel and 1 Type-C internal connector)
  • 2x USB 2.0 ports are available through the internal USB 2.0 connector

Hub GL850G

  • 2x USB 2.0 ports are available through the internal USB 2.0 connector

Asmedia® 1074 Chipset

  • 10x USB 3.2 Gen 1 5Gbps ports (6 Type-A ports on the back panel, 4 ports are available through the internal USB 3.2 Gen 1 connectors)

AUDIO

Realtek® ALC4082 Codec + ESS ES9218PQ Combo DAC/HPA

  • 7.1-Channel High Definition Audio
  • Supports S/PDIF output

LAN

  • 1x Aquantia® AQC107 10Gbps LAN controller
  • 1x Intel® I225-V 2.5Gbps LAN controller

WIRELESS LAN & BLUETOOTH

Intel® WiFi-6E AX210

  • The Wireless module is pre-installed in the M.2 (Key-E) slot
  • Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz 1 (160MHz) up to 2.4Gbps
  • Supports 802.11a/ b/ g/ n/ ac/ ax
  • Supports Bluetooth® 5.2 2 , FIPS, FISMA
  1. Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in WIN10 21H1.
  2. Bluetooth 5.2 will be ready in WIN10 21H1.

INTERNAL CONNECTORS

  • 1x 24-pin ATX main power connector
  • 2x 8-pin ATX 12V power connectors
  • 1x 6-pin ATX PCIE power connector
  • 6x SATA 6Gb/s connectors
  • 4x M.2 slots (M-Key)
  • 1x USB 3.2 Gen 2 10Gbps Type-C port
  • 2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports)
  • 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 1x 4-pin CPU fan connector
  • 1x 4-pin water-pump fan connector
  • 8x 4-pin system fan connectors
  • 1x 3-pin Water Flow connector
  • 1x Front panel audio connector
  • 2x System panel connectors
  • 1x Chassis intrusion connector
  • 2x 2-pin Thermal sensors connectors
  • 1x TPM module connector
  • 1x Tuning controller connector

BACK PANEL PORTS

  1. Clear CMOS Button
  2. 2.5G LAN
  3. 10G Super LAN
  4. Thunderbolt 4 40Gbps (Type-C)
  5. Wi-Fi / Bluetooth
  6. HD Audio Connectors
  7. Flash BIOS Button
  8. USB 3.2 Gen1 5Gbps (Type-A)
  9. USB 3.2 Gen2 10Gbps (Type-A)
  10. Mini DisplayPort Input (for Thunderbolt passthrough)
  11. Optical S/PDIF-Out
MEG Z590 GODLIKE

DIMENSIONS

  • 12 in. x 10.9 in. (30.5 cm x 27.7 cm)
  • E-ATX Form Factor

MOUNTING

9 mounting holes

OPERATING SYSTEM

  • Support for Windows® 10 64-bit
