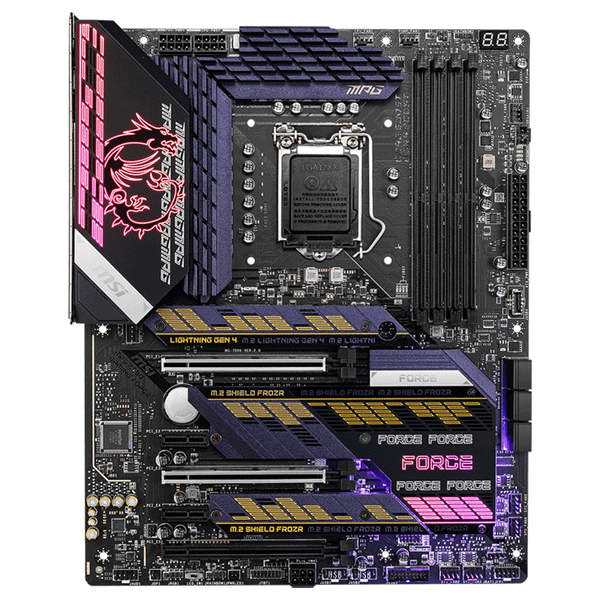

MAIN MSI Z590 MPG GAMING FORCE

  • Thương hiệu: MSI
  • Loại: MAINBOARD
  • SKU: SP009844

Tại Máy Tính Biên Hòa: 0₫

  • GIAO HÀNG
    GIAO HÀNG
    Miễn phí giao hàng toàn quốc thông qua các đơn vị vận chuyển cho Hóa đơn trên 500,000đ
  • SẢN PHẨM
    SẢN PHẨM
    Cam kết hàng mới 100% - Bảo hành chính hãng
  • ĐỔI TRẢ
    ĐỔI TRẢ
    1 đổi 1 lên đến 31 ngày nếu phát sinh lỗi do nhà sản xuất
  • Hỗ trợ
    Hỗ trợ
    Thứ 2 - CN: 09:00 - 19:00 Hotline: 1800.799.999

Chia sẻ ngay

PROCESSOR

  • Supports 10th Gen Intel® Core Processors, 11th Gen Intel® Core Processors, Pentium® Gold and Celeron® Processors 1
  • Processor socket LGA1200
  1. Please go to intel.com for compatibility information.

See supported processors

CHIPSET

Intel® Z590 Chipset

MEMORY

  • 4x DDR4 memory slots, support up to 128GB1
  • Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR)
  • Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR)
  • Max overclocking frequency:
    • 1DPC 1R Max speed up to 5333 MHz
    • 1DPC 2R Max speed up to 4700+ MHz
    • 2DPC 1R Max speed up to 4400+ MHz
    • 2DPC 2R Max speed up to 4000+ MHz
  • Supports Dual-Channel mode
  • Supports non-ECC, un-buffered memory
  • Supports Intel® Extreme Memory Profile (XMP)
  1. Please refer to www.msi.com for more information on compatible memory

EXPANSION SLOTS

  • 3x PCIe x16 slots
    • Support x16/x0/x4, x8/x8/x4, x8/x4+x4/x4
    • PCI_E1 & PCI_E3 slots (From CPU)
      • Support PCIe 4.0 for 11th Gen Intel® CPU
      • Support PCIe 3.0 for 10th Gen Intel® CPU
    • PCI_E5 slot (From Z590 Chipset)
      • Supports PCIe 3.0
  • 2x PCIe 3.0 x1 slots (From Z590 Chipset)

ONBOARD GRAPHICS

  • 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz1/ 2
  • 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz1/ 2
  1. Available only on processors featuring integrated graphics.
  2. Graphics specifications may vary depending on the CPU installed.

MULTI-GPU

  • Supports 3-Way AMD® CrossFire Technology

STORAGE

  • 6x SATA 6Gb/s ports (From Z590 Chipset)
  • 3x M.2 slots (Key M)
    • M2_1 slot (From CPU)
      • Available only on 11th Gen Intel® CPU
      • Supports PCIe 4.0 x4
      • Supports 2242/ 2260/ 2280/ 22110 storage devices
    • M2_21 & M2_32 slot (From Z590 Chipset)
      • Supports PCIe 3.0 x4
      • Supports SATA 6Gb/s
      • Supports 2242/ 2260/ 2280 storage devices
      • Intel® Optane™ Memory Ready3
  • Supports Intel® Smart Response Technology for Intel Core processors
  1.  SATA2 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
  2. SATA5 & SATA6 will be unavailable when installing M.2 SATA/PCIe SSD in the M2_3 slot.
  3. Before using Intel® Optane memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.

RAID

  • Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
  • Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

USB

Intel® Z590 Chipset

  • 1x USB3.2 Gen2x2 20Gbps port (Type-C port on the back panel)
  • 4x USB 3.2 Gen 2 10Gbps ports (3 Type-A port on the back panel, 1 Type-C available through the internal connector)
  • 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 Type-A ports available through the internal connector)

Hub-GL850G

  • 8x USB 2.0 ports (4 Type-A ports on the back panel, 4 Type-A ports available through internal connectors)

AUDIO

Realtek® ALC4080 Codec

  • 7.1-Channel High Definition Audio

LAN

  • 1x Intel® I225V 2.5Gbps LAN controller

INTERNAL CONNECTORS

  • 1x 24-pin ATX main power connector
  • 2x 8-pin ATX 12V power connectors
  • 1x 6-pin PCIE power connector
  • 6x SATA 6Gb/s connectors
  • 3x M.2 slots (M-Key)
  • 1x USB 3.2 Gen 2 10Gbps Type-C port
  • 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
  • 2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports)
  • 1x 4-pin CPU fan connector
  • 1x 4-pin water-pump fan connector
  • 6x 4-pin system fan connectors
  • 1x Front panel audio connector
  • 2x System panel connectors
  • 1x Chassis Intrusion connector
  • 1x Clear CMOS jumper
  • 1x TPM module connector
  • 1x TBT connector (supports RTD3)
  • 1x Tuning Controller connector

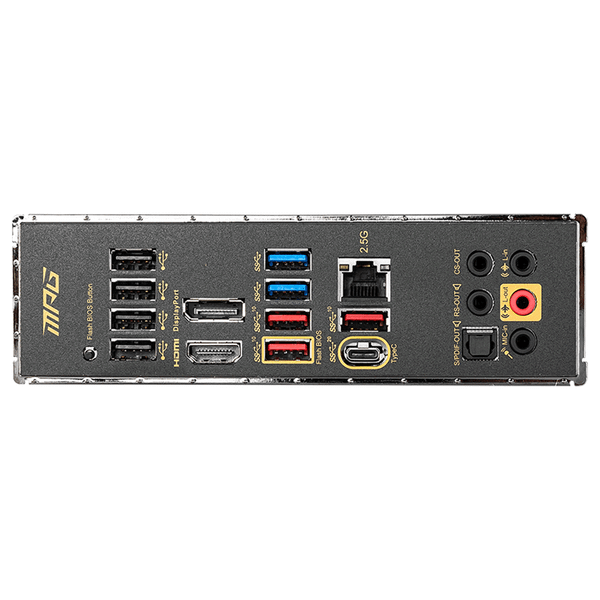

BACK PANEL PORTS

  1. USB 2.0
  2. DisplayPort
  3. USB 3.2 Gen 1 5Gbps Type-A
  4. 2.5G LAN
  5. Audio Connectors
  6. Flash BIOS Button
  7. HDMI
  8. USB 3.2 Gen 2 10Gbps Type-A
  9. USB 3.2 Gen 2x2 20Gbps Type-C
  10. Optical S/PDIF Out
MPG Z590

DIMENSIONS

  • ATX Form Factor
  • 12 in. x 9.6 in. (30.5 cm x 24.4 cm)

MOUNTING

9 mounting holes

OPERATING SYSTEM

  • Support for Windows® 10 64-bit
