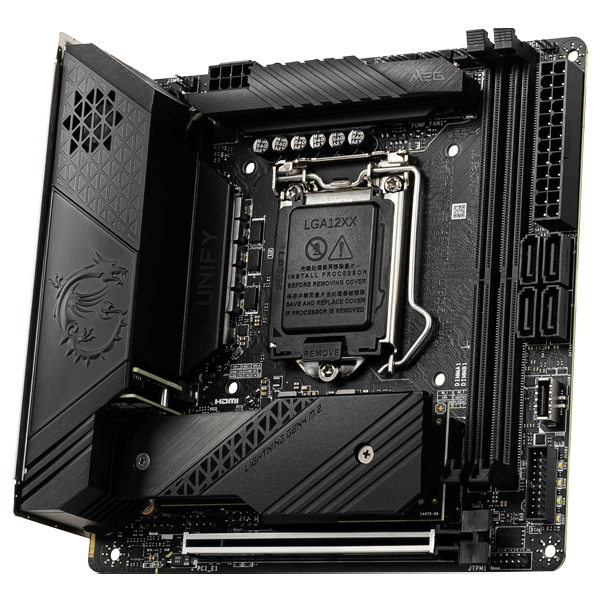

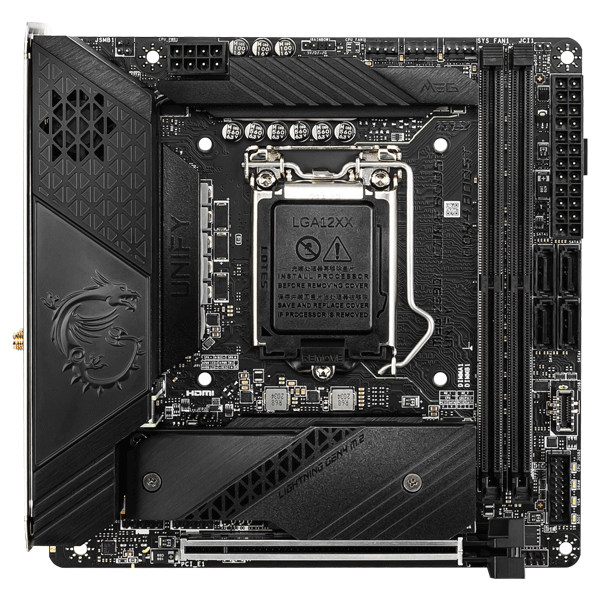

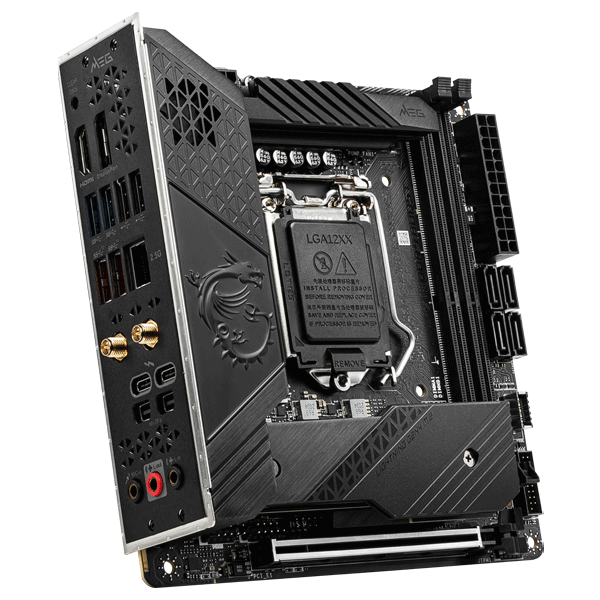

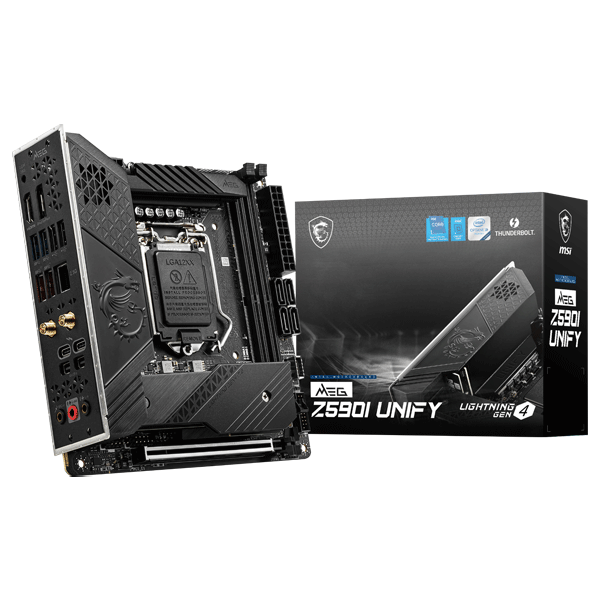

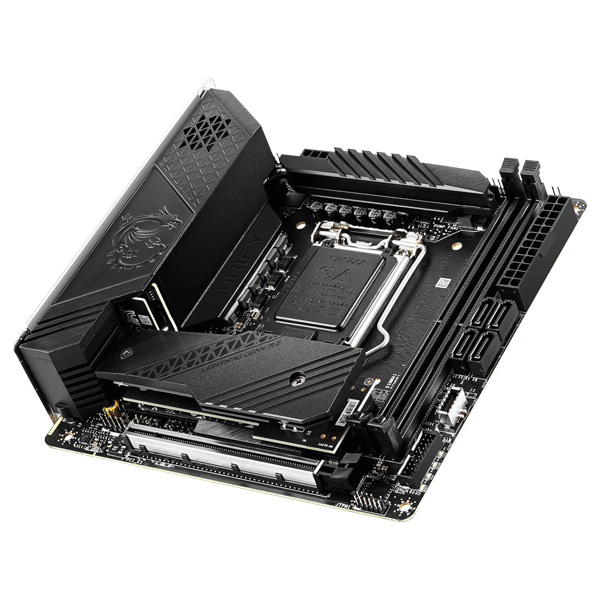

MAIN MSI Z590i MEG UNIFY

  • Thương hiệu: MSI
  • Loại: MAINBOARD
  • SKU: SP009845

Tại Máy Tính Biên Hòa: 0₫

  • GIAO HÀNG
    GIAO HÀNG
    Miễn phí giao hàng toàn quốc thông qua các đơn vị vận chuyển cho Hóa đơn trên 500,000đ
  • SẢN PHẨM
    SẢN PHẨM
    Cam kết hàng mới 100% - Bảo hành chính hãng
  • ĐỔI TRẢ
    ĐỔI TRẢ
    1 đổi 1 lên đến 31 ngày nếu phát sinh lỗi do nhà sản xuất
  • Hỗ trợ
    Hỗ trợ
    Thứ 2 - CN: 09:00 - 19:00 Hotline: 1800.799.999

Chia sẻ ngay

PROCESSOR

  • Supports 10th Gen Intel® Core™ Processors, 11th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® processors 1
  • Processor socket LGA1200

See supported processors

  1. Please go to intel.com for compatibility information.

CHIPSET

Intel® Z590 Chipset

MEMORY

  • 2x DDR4 memory slots, support up to 64GB 1
  • Supports 1R 2133/2666/2933 MHz for 10th Gen Intel®CPU (by JEDEC & POR)1
  • Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel®CPU (by JEDEC & POR)1
  • Max overclocking frequency:
    • 1DPC 1R Max speed up to 5600 MHz
    • 1DPC 2R Max speed up to 4800+ MHz
  • Supports Dual-Channel mode
  • Supports non-ECC, un-buffered memory
  • Supports Intel® Extreme Memory Profile [XMP]
  1. Please refer www.msi.com for more information on compatible memory.

EXPANSION SLOTS

  • 1x PCIe x16 slot
    • Support up to PCIe 4.0 for 11th Gen Intel® CPU
    • Support up to PCIe 3.0 for 11th Gen Intel® CPU

ONBAORD GRAPHICS

  • 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz1/2
  • 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz1/2
  1. Available only on processors featuring integrated graphics.
  2. Graphics specifications may vary depending on the CPU installed.

THUNDERBOLT™ 4

  • Intel® JHL8540Thunderbolt™ 4 Controller
  • 2x Thunderbolt™ 4 (USB-C) ports on the back panel
    • Support up to 40Gbps transfer rate with Thunderbolt devices
    • Support up to 20Gbps transfer rate with USB4 devices
    • Support up to 10Gbps transfer rate with USB 3.2 devices
    • Support up to 5V/3A ,15W power charging
    • Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices
    • Supports up to 8K display (need to connect the DisplayPort of the motherboard or discrete graphics card to the Mini DisplayPort Input port on the back panel)/li>

STORAGE

  • 4x SATA 6Gb/s ports (from Z590 chipset)
  • 2x M.2 slots (Key M)
    • M2_1 slot
      • Supports up to PCIe 4.0 x4 for 11th Gen Intel® CPU (From CPU)
      • Supports up to PCIe 3.0 x4 & SATA 6Gb/s for 10th Gen Intel® CPU (From Z590 chipset)
      • Supports 2280 storage devices
    • M2_2 slot (from Z590 chipset)
      • Supports PCIe 3.0 x4 only
      • Supports 2280 storage devices
      • Intel® Optane™ Memory Ready1
  • Supports Intel® Smart Response Technology for Intel Core™ processors
  1. Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.

RAID

  • Intel® Z590 Chipset
    • Supports RAID 0, RAID1, RAID 5 and RAID 10 for SATA storage devices
    • Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

USB

  • Intel® Z590 Chipset
    • 3x USB 3.2 Gen 2 10Gbps ports (2 Type-A port on the back panel, 1 Type-C internal connector)
    • 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connectors)
    • 4x USB 2.0 ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connectors)

AUDIO

Realtek® ALC1220P Codec

  • 7.1-Channel High Definition Audio

LAN

  • 1x Inte® I225-V 2.5Gbps LAN controller

WIRELESS LAN & BLUETOOTH

Intel®Wi-Fi 6E AX210

  • The Wireless module is pre-installed in the M.2 [Key-E] slot
  • Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz 1(160MHz) up to 2.4Gbps
  • Supports 802.11 a/ b/ g/ n/ ac/ ax
  • Supports Bluetooth® 5.22, FIPS, FISMA
  1. Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in WIN10 21H1.
  2. Bluetooth 5.2 will be ready in WIN10 21H1.

INTERNAL CONNECTORS

  • 1x 24-pin ATX main power connector
  • 1x 8-pin ATX 12V power connector
  • 4x SATA 6Gb/s connectors
  • 2x M.2 slots [M-Key]
  • 1x USB 3.2 Gen2 10Gbps Type-C port
  • 1x USB 3.2 Gen1 5Gbps connector [supports additional 2 USB 3.2 Gen1 5Gbps ports]
  • 1x USB 2.0 connector [supports additional 2 USB 2.0 ports]
  • 1x 4-pin CPU fan connector
  • 1x 4-pin water-pump fan connector
  • 1x 4-pin system fan connector
  • 1x Front panel audio connector
  • 2x System panel connectors
  • 1x Chassis Intrusion connector
  • 1x 3-pin RAINBOW LED connectors
  • 1xTPM module connector

LED FEATURES

  • 4x EZ Debug LED

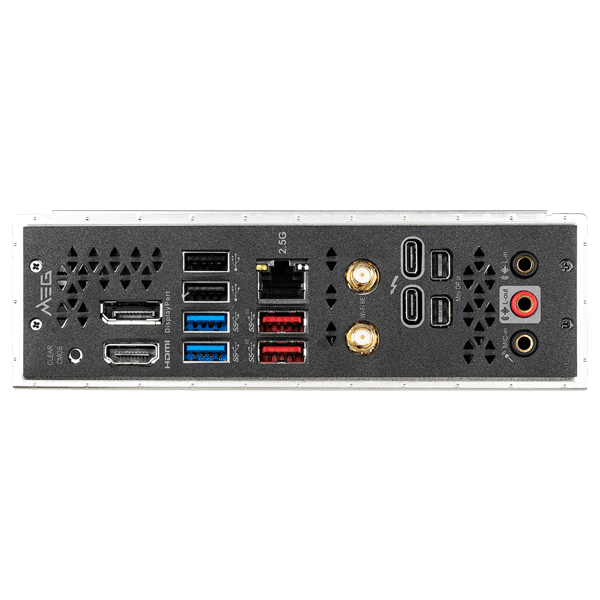

BACK PANEL CONNECTORS

  1. DisplayPort
  2. USB 2.0
  3. 2.5G LAN
  4. Wi-Fi /Bluetooth
  5. Thunderbolt 4 40Gbps (Type-C)
  6. HD Audio Connectors
  7. Clear CMOS Button
  8. HDMI
  9. USB 3.2 Gen1 5Gbps (Type-A)
  10. USB 3.2 Gen2 10Gbps (Type-A)
  11. Mini DisplayPort Input (for Thunderbolt passthrough)
MEG X570 ACE

DIMENSIONS

  • 6.7 in. x 6.7 in. [17.0 cm x 17.0 cm]
  • Mini-ITX Form Factor

MOUNTING

4 mounting holes

OPERATING SYSTEM

  • Support for Windows® 10 64-bit
