THÔNG SỐ KĨ THUẬT

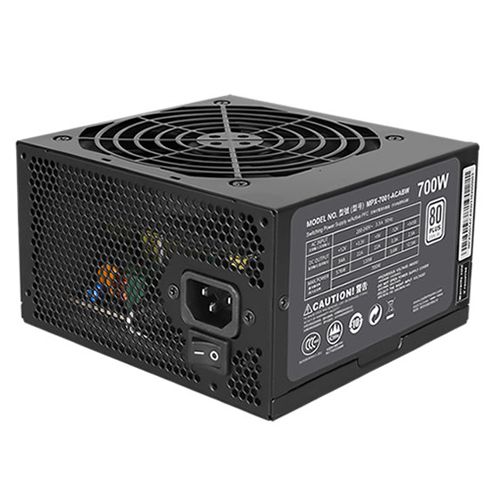

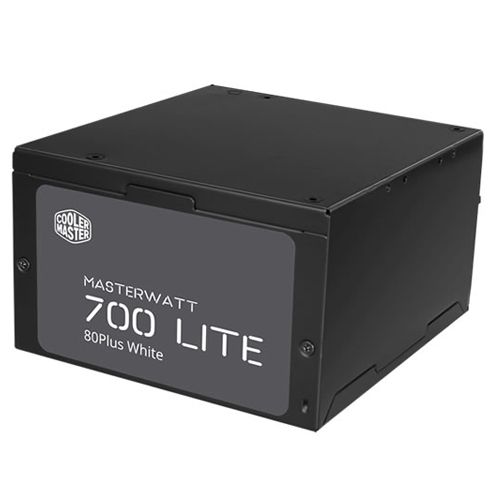

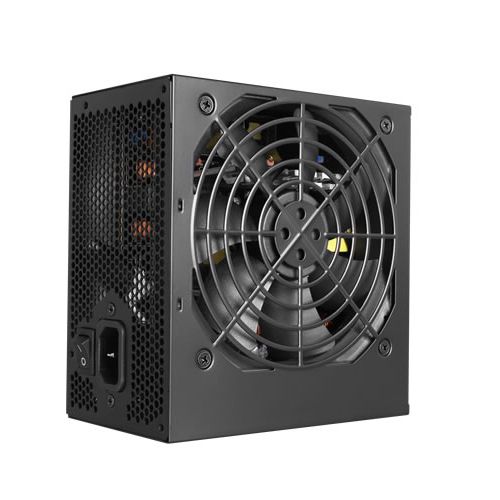

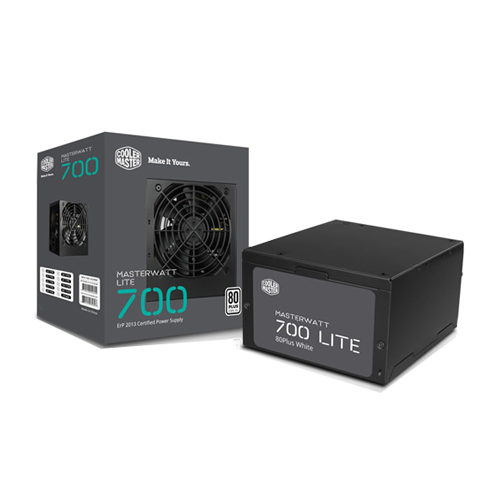

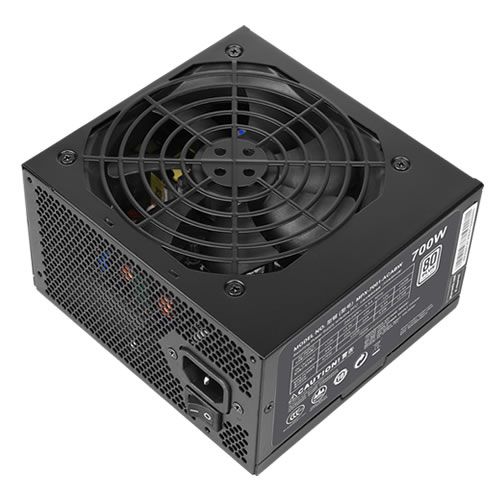

| Product Name | MasterWatt Lite 230V (ErP 2013) 700W - Green power supply with ErP 2013 certified | |
| Model number | MPX-7001-ACABW | |
| ATX Version | ATX 12V V2.31 | |
| PFC | Active PFC | |
| Input Voltage | 200-240Vac | |
| Input Current | 3.5-5A | |
| Input Frequency | 47-63Hz | |
| Dimensions (LxWxH) | 150mm x 140mm x 86mm | |
| Fan Type | Silent 120mm HDB fan | |
| PowerGood Signal | 100-500 ms | |
| Hold Up Time | >10ms at 100% full load@230Vac | |
| Efficiency | 85% Typically | |
| MTBF | >100,000 hours | |
| Protections | OCP / OVP / OPP / OTP / SCP / UVP | |
| Operating Temperature | 0~40°C | |

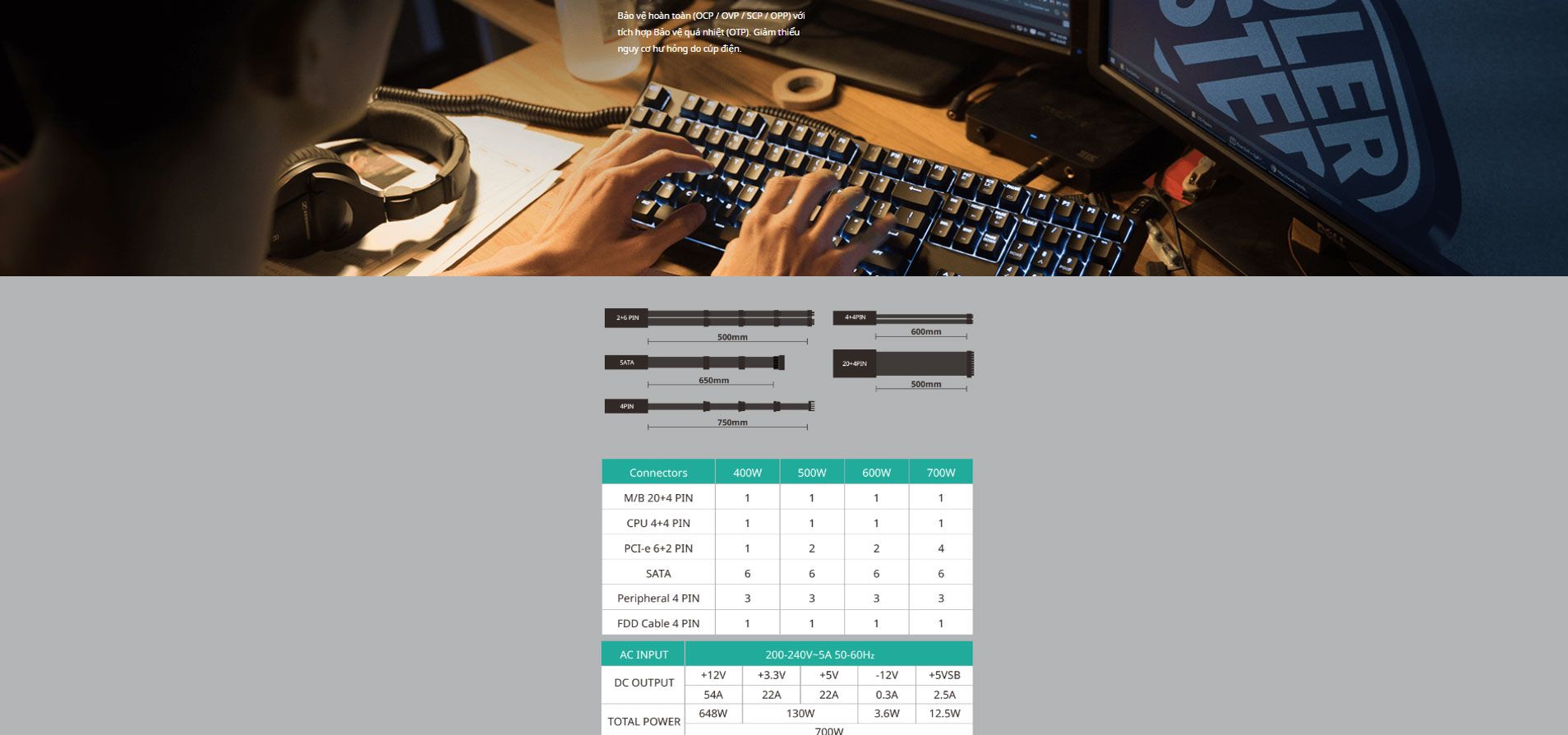

| Connectors | MB 20+4 Pin | 1 |
| CPU 12V 4+4Pin | 1 | |
| SATA | 6 | |
| Peripheral 4 Pin | 3 | |
| FDD Cable 4 Pin | 1 | |
| PCI-e 6+2 Pin | 4 | |
| Regulatory | TUV, CE, BSMI, FCC, cTUV-Rhus, KC, CCC, EAC, RCM, CB | |
*Bảo hành 36 tháng
