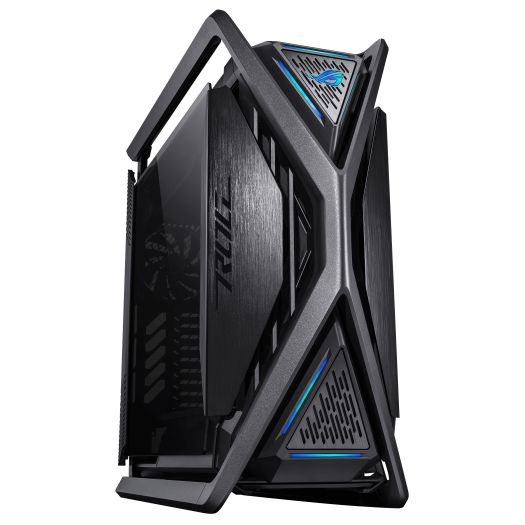

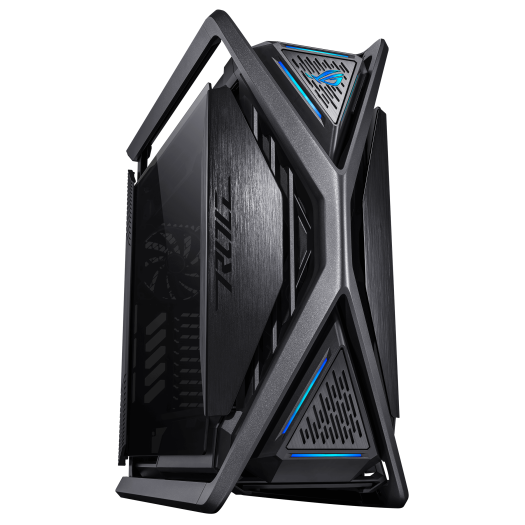

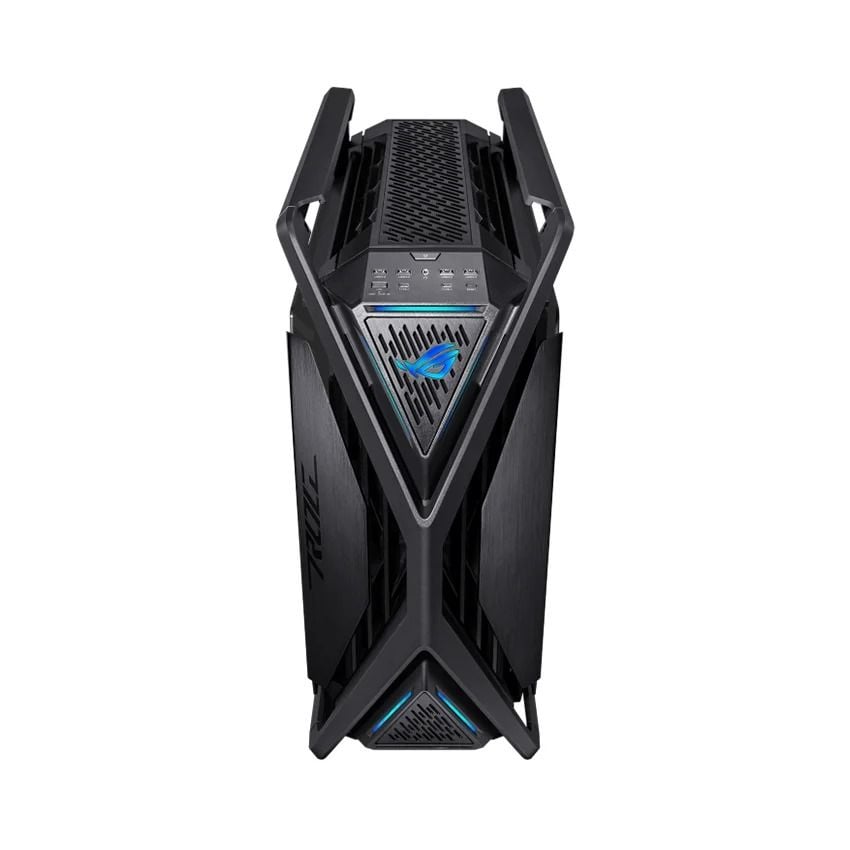

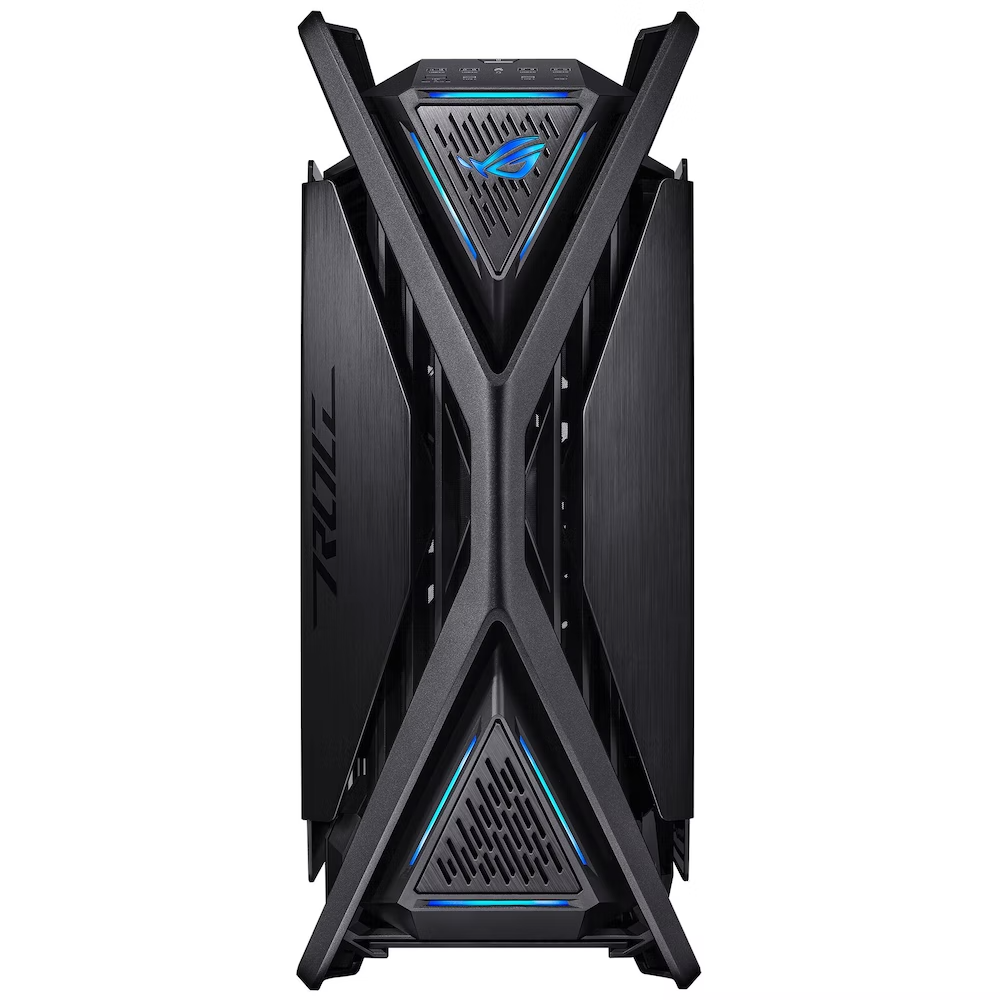

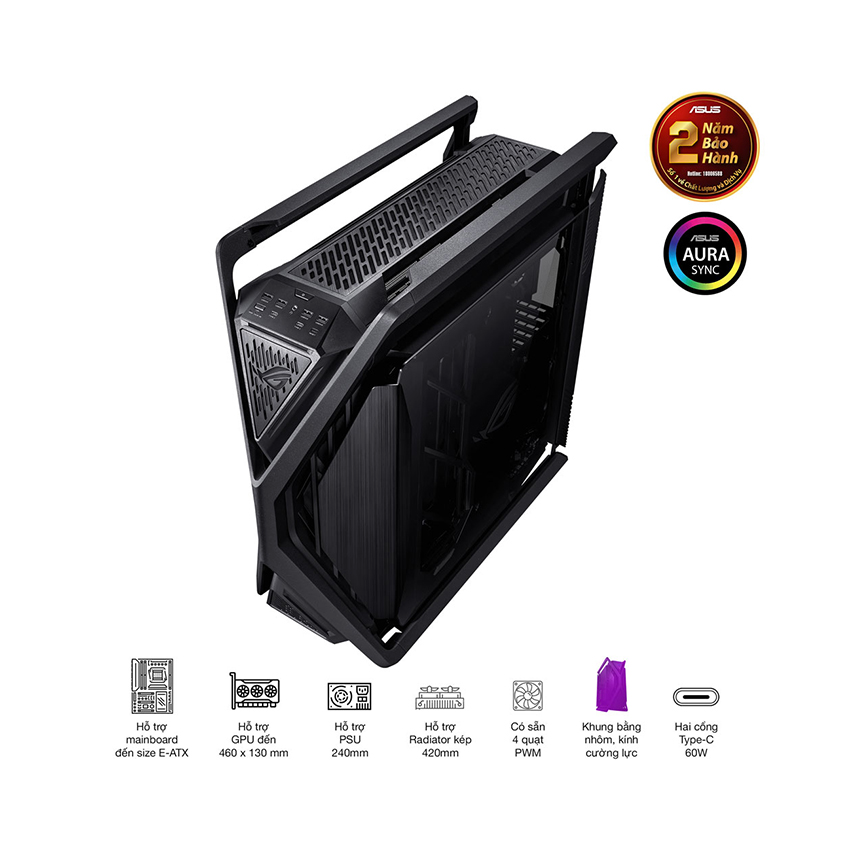

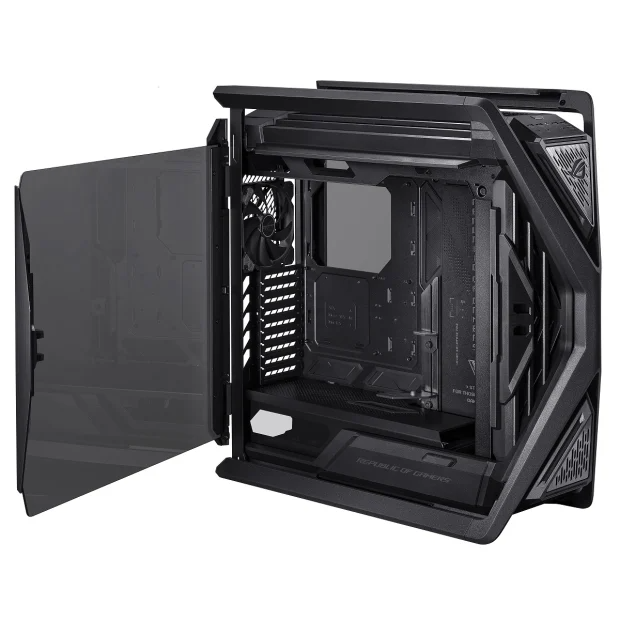

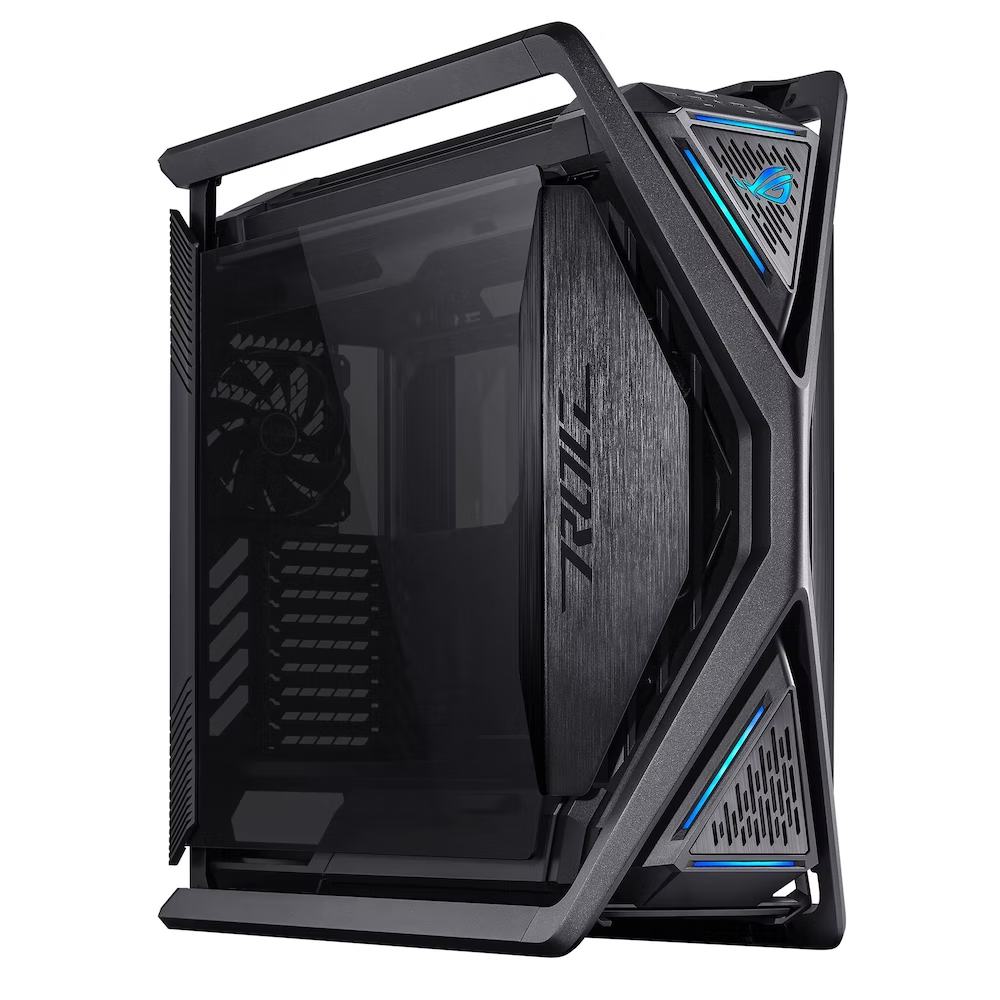

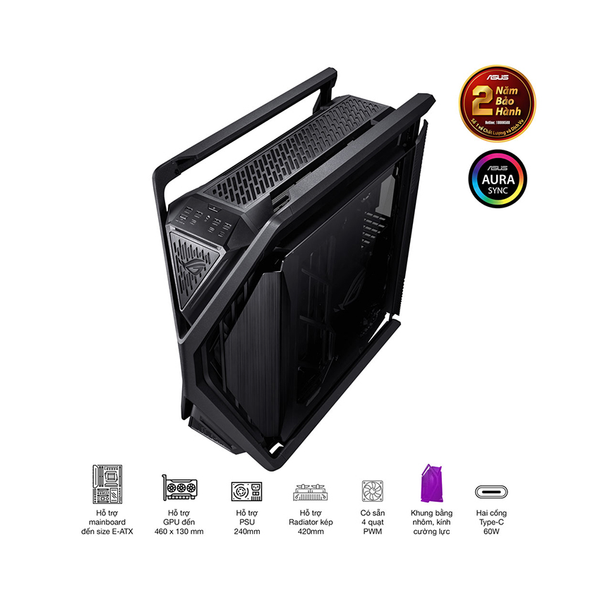

ROG Hyperion GR701
Motherboard Support
EATX (12"x10.9")
ATX
Micro-ATX
Mini-ITX
Drive Bays
5 x 2.5" Bay
2 x 2.5"/3.5" Combo Bay
Expansion Slots
9
3 (additional vertical)
Front I/O Port
1 x headphone / Microphone
4 x USB 3.2Gen1
1 x USB 3.2 Gen2 Type C
LED Control Button
Reset Button
1 x USB 4.0 Type C or 1 x USB 3.2 Gen 2x2 Type C this spec might vary by region
Tempered Glass
Left Side
Right Side
Radiator Support (Front)
120 mm
140 mm
240 mm
280 mm
360 mm
420 mm
Radiator Support (Top)
120 mm
140 mm
240 mm
280 mm
360 mm
420 mm
Radiator Support (Rear)
120 mm
140 mm
Cooling Support (Front)
3 x 120 mm
3 x 140 mm
Cooling Support (Top)
3 x 120 mm
3 x 140 mm
Cooling Support (Rear)
1 x 120 mm
1 x 140 mm
Pre-installed Fans (Front)
3 x 140 mm
PWM
Pre-installed Fans (Rear)
1 x 140 mm
PWM
Maximum CPU Cooler Height
190 mm
Maximum GPU Length
460 mm
Maximum PSU Length
240 mm
Removable Dust Filters
Front
Top
Bottom
Maximum Cable Management Space
34 mm
Dimensions
268 * 639 * 659 mm
Weight
20.8 Kg
AURA Sync
ARGB
