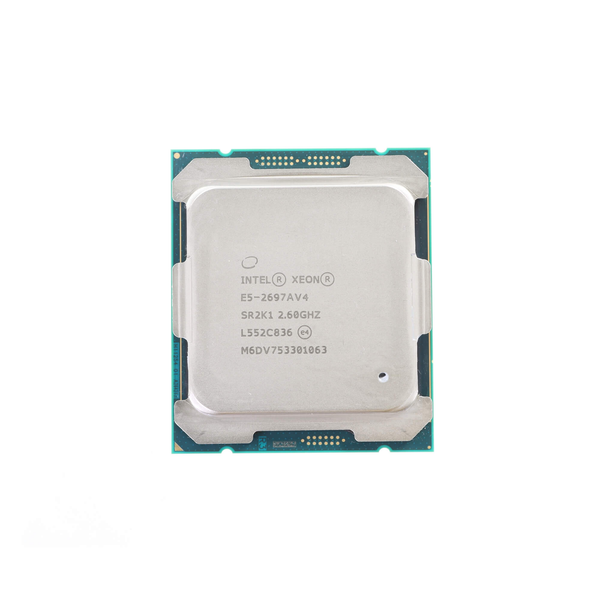

| Product Name | Intel Xeon E5-2697A v4 |
| Microarchitecture | Broadwell |
| Essentials |
| Status | Launched |
| Launch Date | Q1'16 |
| Processor Number | E5-2697AV4 |
| Cache | 40MB |
| Bus Type | QPI |
| System Bus | 9.6 GT/s |
| # of QPI Links | 2 |
| Instruction Set | 64-bit |
| Instruction Set Extensions | AVX 2.0 |
| Embedded Options Available | No |
| Lithography | 14 nm |
| Scalability | 2S |
| VID Voltage Range | 0 |
| Conflict Free | Yes |
| Datasheet | Link |
| Performance |
| # of Cores | 16 |
| # of Threads | 32 |
| Processor Base Frequency | 2.6 GHz |
| Max Turbo Frequency | 3.6 GHz |
| TDP | 145W |
| Memory Specifications |
| Max Memory Size (dependent on memory type) | 1536 GB |
| Memory Types | DDR4 1600/1866/2133/2400 |
| Max # of Memory Channels | 4 |
| Max Memory Bandwidth | 76.8 GB/s |
| Physical Address Extensions | 46-bit |
| ECC Memory Supported ‡ | Yes |
| Graphics Specifications |
| Processor Graphics ‡ | None |
| Expansion Options |
| PCI Express Revision | 3 |
| PCI Express Configurations ‡ | x4, x8, x16 |
| Max # of PCI Express Lanes | 40 |
| Package Specifications |
| Max CPU Configuration | 2 |
| TCASE | 78°C |
| Package Size | 52.5mm x 51mm |
| Sockets Supported | LGA 2011-3 |
| Low Halogen Options Available | See MDDS |
| Advanced Technologies |
| Intel® Turbo Boost Technology ‡ | 2 |
| Intel® vPro Technology ‡ | Yes |
| Intel® Hyper-Threading Technology ‡ | Yes |
| Intel® Virtualization Technology (VT-x) ‡ | Yes |
| Intel® Virtualization Technology for Directed I/O (VT-d) ‡ | Yes |
| Intel® VT-x with Extended Page Tables (EPT) ‡ | Yes |
| Intel® TSX-NI | Yes |
| Intel® 64 ‡ | Yes |
| Idle States | Yes |
| Enhanced Intel SpeedStep® Technology | Yes |
| Intel® Demand Based Switching | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel® Flex Memory Access | No |
| Intel® Identity Protection Technology ‡ | No |
| Intel® Data Protection Technology |
| Intel® AES New Instructions | Yes |
| Secure Key | Yes |
| Intel® Platform Protection Technology |
| OS Guard | Yes |
| Trusted Execution Technology ‡ | Yes |
| Execute Disable Bit ‡ | Yes |
