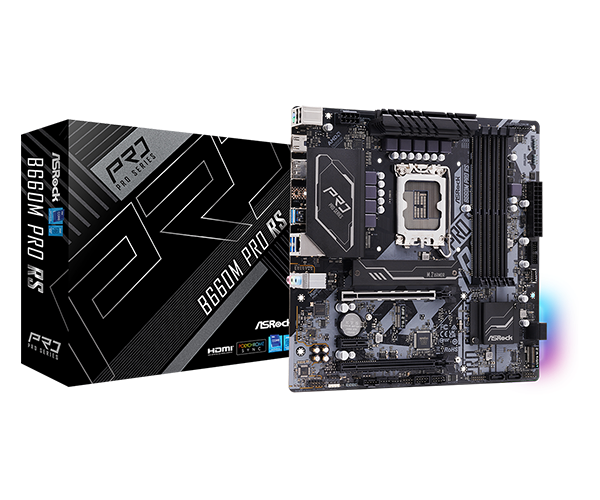

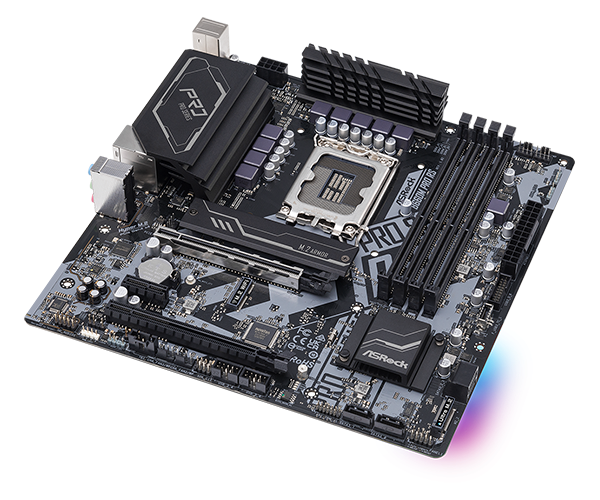

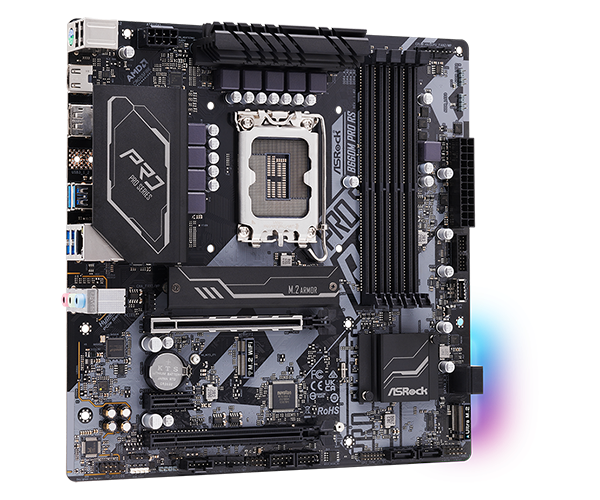

MAIN ASROCK B660M PRO RS ( LGA1700 / M-ATX / 4XDDR4 )

Thương hiệu: ASROCK
Loại: MAINBOARD
SKU: SP109314

Tại Máy Tính Biên Hòa: 2,740,000₫

GIAO HÀNG
Miễn phí giao hàng toàn quốc thông qua các đơn vị vận chuyển cho Hóa đơn trên 500,000đ
SẢN PHẨM
Cam kết hàng mới 100% - Bảo hành chính hãng
ĐỔI TRẢ
1 đổi 1 lên đến 31 ngày nếu phát sinh lỗi do nhà sản xuất
Hỗ trợ
Thứ 2 - CN: 08:00 - 21:00 Hotline: 1800.799.999

Chia sẻ ngay

Unique Feature
ASRock Super Alloy
- Premium Power Choke
- Sapphire Black PCB
- High Density Glass Fabric PCB
ASRock Intel^® 4-Layer Memory POOL (Planes on Outer Layers) Technology ASRock Steel Slot ASRock Full Coverage M.2 Heatsink ASRock Hyper M.2 (PCIe Gen4x4) ASRock POST Status Checker (PSC)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop
CPU
- Supports 14th, 13th & 12th Gen Intel^® Core™ Processors (LGA1700)
- Digi Power design
- 8 Power Phase design
- Supports Intel^® Hybrid Technology
- Supports Intel^® Turbo Boost Max 3.0 Technology
Chipset
- Intel^® B660
Bộ nhớ RAM
- Dual Channel DDR4 Memory Technology
- 4 x DDR4 DIMM Slots
- Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC)*
- Supports ECC UDIMM memory modules (operate in non-ECC mode)
- Max. capacity of system memory: 128GB
- Supports Intel^® Extreme Memory Profile (XMP) 2.0

*Supports DDR4 3200 natively.
BIOS
- 128Mb AMI UEFI Legal BIOS with multilingual GUI support
- ACPI 6.0 Compliant wake up events
- SMBIOS 2.7 Support
- CPU Core/Cache, CPU GT, DRAM, VDD_IMC, VCCIN AUX, +1.05V PROC, +0.82V PCH, +1.05V PCH Voltage Multi-adjustment
Card đồ họa
- Intel^® Xe Graphics Architecture (Gen 12)
- Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers
- Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
- Supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680x4320) @ 60Hz / 5K (5120x3200) @ 120Hz
- Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports

*Intel^® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
Card âm thanh
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- Supports Surge Protection
- Nahimic Audio
LAN
- Gigabit LAN 10/100/1000 Mb/s
- Giga PHY Intel^® I219V
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection
- Supports Energy Efficient Ethernet 802.3az
- Supports UEFI PXE
Khe cắm
CPU:
- 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
Chipset:
- 1 x PCIe 3.0 x16 Slot (PCIE3), supports x4 mode*
- 1 x PCIe 3.0 x1 Slot (PCIE2)*
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel^® CNVi (Integrated WiFi/BT)

- Supports AMD CrossFire™

*Supports NVMe SSD as boot disks
Kho tiền
CPU:
- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
Chipset:
- 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen3 x4 (32 Gb/s) mode*
- 4 x SATA3 6.0 Gb/s Connectors**

*Supports Intel^® Optane™ Memory H Series (M2_2 only)
Supports Intel^® Volume Management Device (VMD)
Supports NVMe SSD as boot disks
Supports ASRock U.2 Kit

** If M2_2 is occupied by a SATA-type M.2 device, SATA3_0 will be disabled.
RAID
- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Cổng kết nối
- 1 x SPI TPM Header
- 1 x Chassis Intrusion and Speaker Header
- 1 x RGB LED Header
* Supports in total up to 12V/3A, 36W LED Strip
- 3 x Addressable LED Headers
* Support in total up to 5V/3A, 15W LED Strip
- 1 x CPU Fan Connector (4-pin)
* The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
* The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
- 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
* The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
* CPU_FAN2/WP, CHA_FAN1~3/WP can auto detect if 3-pin or 4-pin fan is in use.
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
- 1 x Front Panel Audio Connector
- 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
- 1 x Front Panel Type C USB 3.2 Gen1 Header (Supports ESD Protection)

*

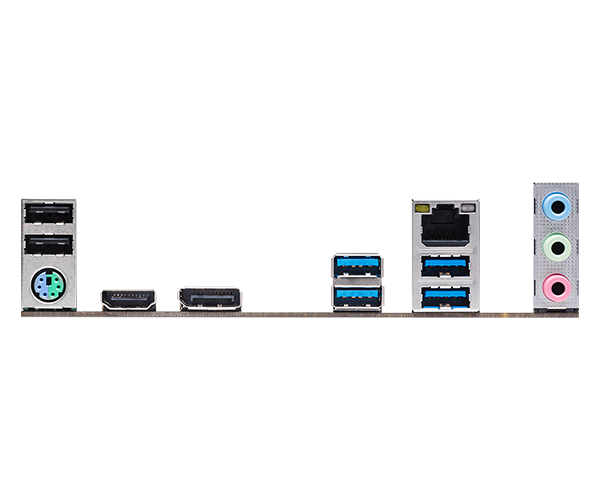

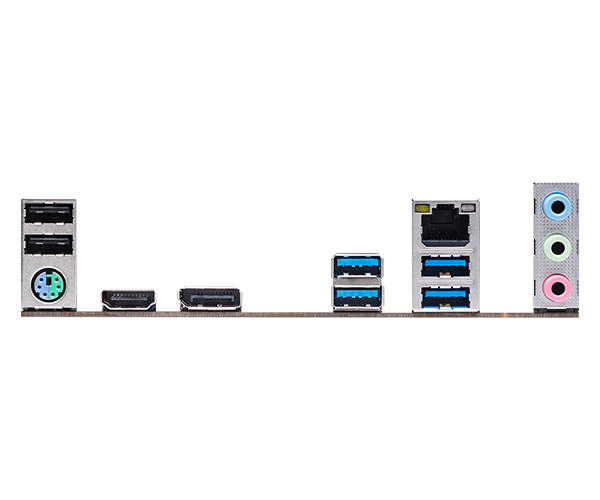

Bảng điều khiển Input/Output phía sau
- 3 x Antenna Mounting Points
- 1 x PS/2 Mouse/Keyboard Port
- 1 x HDMI Port
- 1 x DisplayPort 1.4
- 4 x USB 3.2 Gen1 Ports (ASMedia ASM1074 hub) (Supports ESD Protection)
- 2 x USB 2.0 Ports (Supports ESD Protection)
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jacks: Line in / Front Speaker / Microphone
Phần mềm và UEFI
Software
- ASRock Motherboard Utility (A-Tuning)
- ASRock Polychrome SYNC
- ASRock XFast LAN
UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock Instant Flash
- ASRock Easy RAID Installer

*These utilities can be downloaded from ASRock Live Update & APP Shop.
Hỗ trợ CD
- Drivers, Utilities, AntiVirus Software (Trial Version)
Phụ kiện
- Quick Installation Guide, Support CD, I/O Shield
- 2 x SATA Data Cables
- 3 x Screws for M.2 Sockets
- 1 x Standoff for M.2 Socket
Hỗ trợ phần cứng
- Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans
- Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans
- Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans
- CASE OPEN detection
- Voltage monitoring: CPU Vcore, +1.05V_PCH, DRAM, VCCIN AUX, VCCSA, +1.05V PROC, +0.82V PCH, +12V, +5V, +3.3V
Chuẩn vỏ máy
- Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
- Solid Capacitor design
Hệ điều hành
- Microsoft^® Windows^® 10 64-bit / 11 64-bit
Chứng nhận
- FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)
