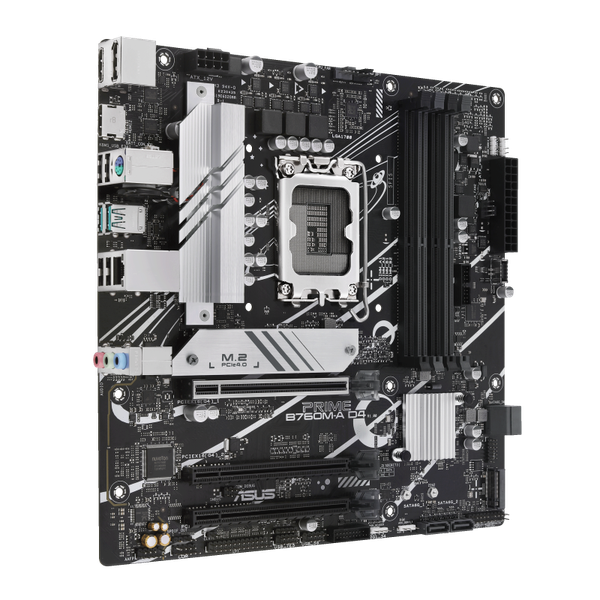

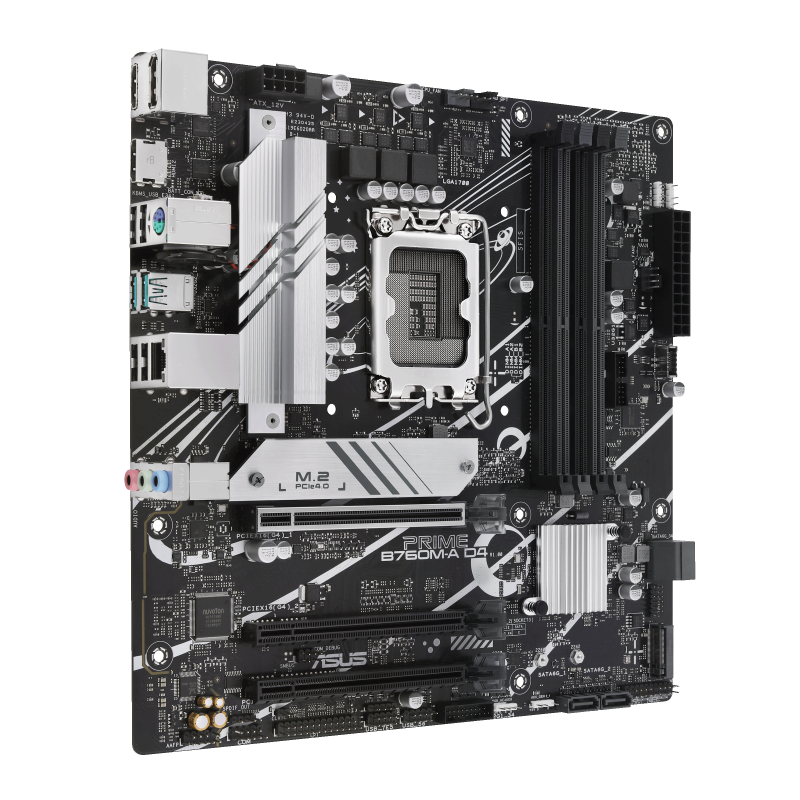

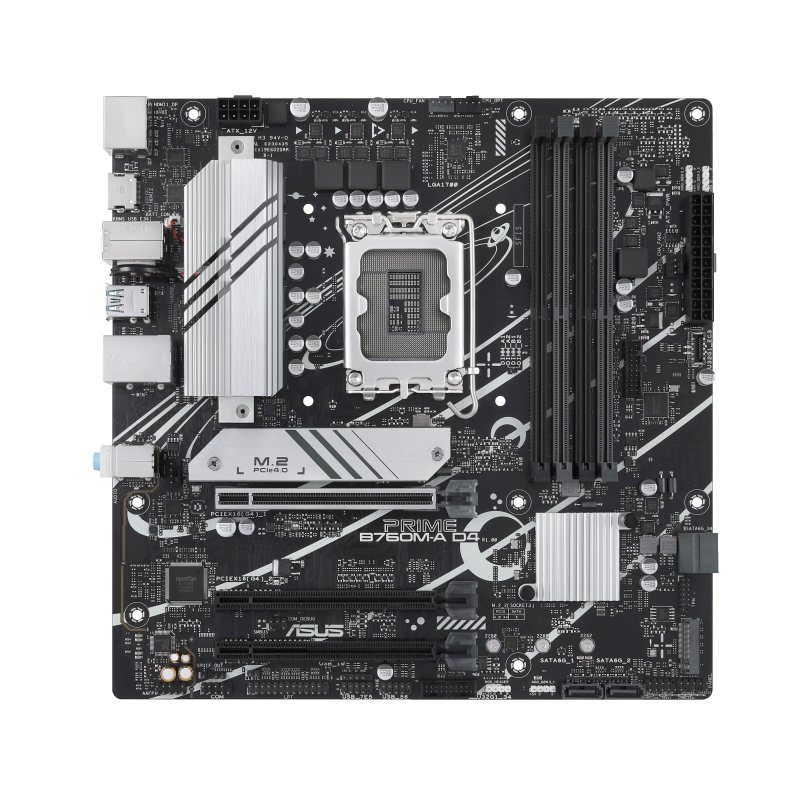

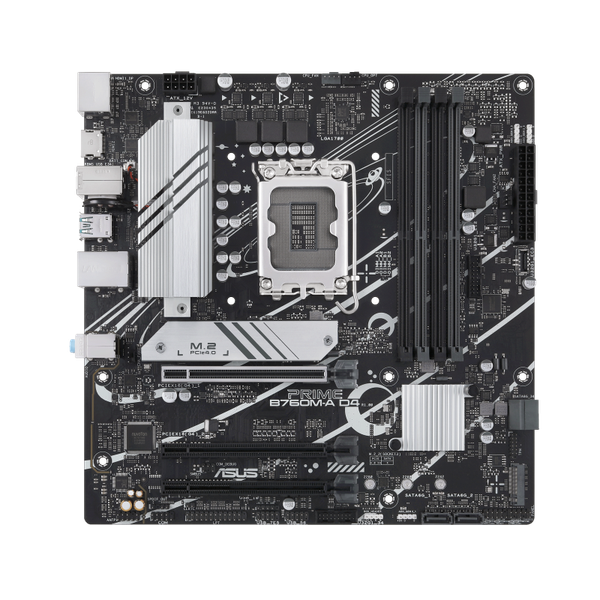

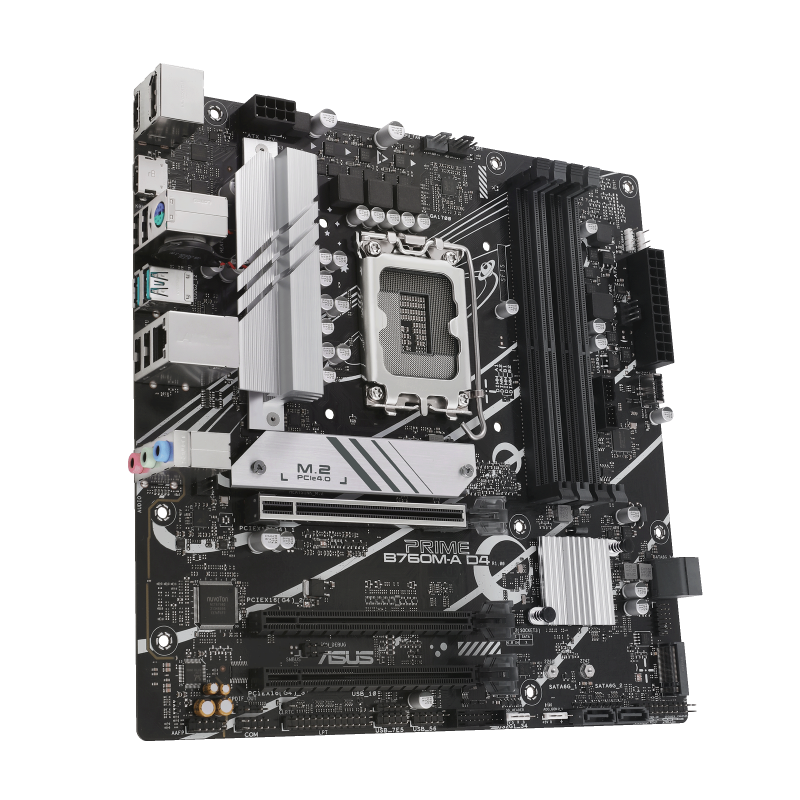

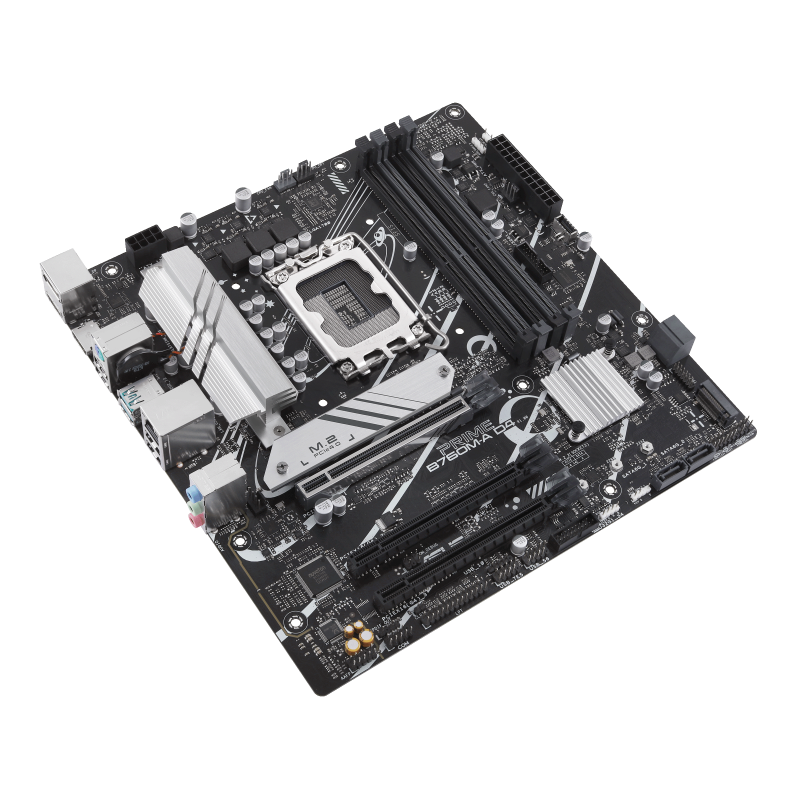

Main ASUS B760M-A D4 ( LGA1700 / M-ATX / 4XDDR4 )

Asus

Asus Prime B760M-A D4

m-ATX

LGA1700

Intel® B760 Chipset

4

DDR4 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC

Dual Channel Memory Architecture

Supports Intel® Extreme Memory Profile (XMP)

4 x SATA 6Gb/s ports

2 x M.2 slots

Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10

Realtek 7.1 Surround Sound High Definition Audio CODEC

1 x Realtek 2.5Gb Ethernet

2.5Gb

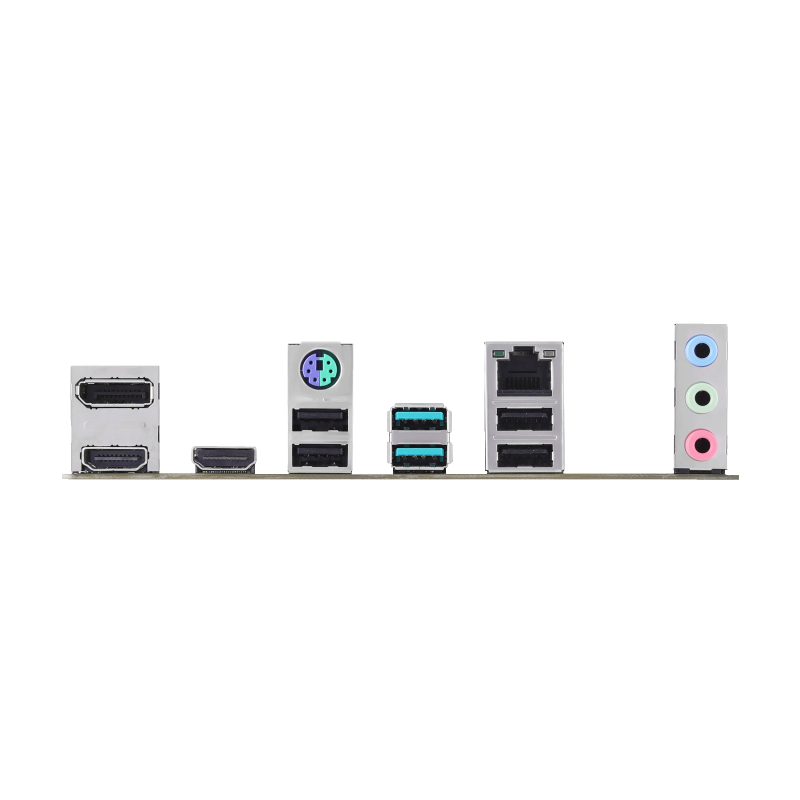

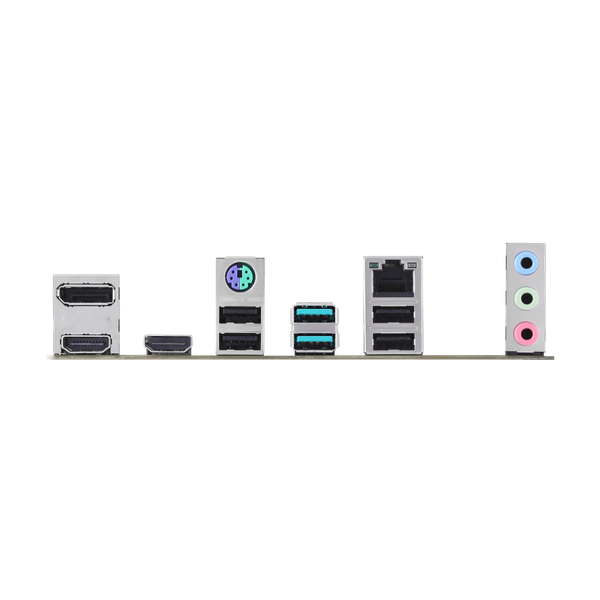

2 x USB 3.2 Gen 2 ports (2 x Type-A )

4 x USB 2.0 ports (4 x Type-A)

1 x DisplayPort

2 x HDMI® ports

1 x Realtek 2.5Gb Ethernet port

3 x Audio jacks

1 x PS/2 Keyboard/Mouse combo port

2 x USB 3.2 Gen 2 ports (2 x Type-A )

4 x USB 2.0 ports (4 x Type-A)

2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports

1 x USB 3.2 Gen 1 connector (supports USB Type-C®)

2 x USB 2.0 headers support 4 additional USB 2.0 ports

1 x USB 2.0 header supports 1 additional USB 2.0 port

3 x Addressable Gen 2 headers

1 x Aura RGB header

1 x Clear CMOS header

1 x COM Port header

1 x Front Panel Audio header (AAFP)

1 x LPT header

1 x S/PDIF Out header

1 x SPI TPM header (14-1pin)

1 x 20-3 pin System Panel header with Chassis intrude function

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

2 x 4-pin Chassis Fan headers

24.4 cm x 24.4 cm

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector
