* THÔNG SỐ KỸ THUẬT
| CPU | AMD Socket sTRX4 for 3rd Gen AMD Ryzen™ Threadripper™ Series Desktop Processors Refer to www.asus.com for CPU support list |
| Chipset | Build in AMD TRX40 |
| Bộ nhớ | 3rd Gen AMD Ryzen™ Threadripper™ Series Desktop processors |
| 8 x DIMM, Max. 256GB, DDR4 3200/2933/2800/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory | |
| Multi-GPU Support | Supports NVIDIA® 2-Way SLI® Technology |
| Supports AMD 2-Way CrossFireX Technology | |
| Expansion Slots | 3rd Gen AMD Ryzen™ Threadripper™ Series Desktop processors |
| 3 x PCIe 4.0 x16 (x16/x16/x16) | |
| 1 x PCIe 4.0 x4 | |
| Storage | 3rd Gen AMD Ryzen™ Threadripper™ Series Desktop processors : |
| 2 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support(PCIe 4.0 x4 mode) | |
| AMD TRX40 chipset : | |
| 1 x M.2 Socket 3, with vertical M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) | |
| AMD TRX40 chipset : | |
| 8 x SATA 6Gb/s port(s), | |
| ASMedia® SATA 6Gb/s controller : | |
| 4 x SATA 6Gb/s port(s), | |
| Support Raid 0, 1, 10 | |
| LAN | Realtek® RTL8125-CG 2.5G LAN |
| Intel® I211-AT, 1 x Gigabit LAN Controller(s) | |
| Anti-surge LANGuard | |
| ROG GameFirst V Technology | |
| Wireless Data Network | Intel® Wi-Fi 6 AX200 |
| Wi-Fi 802.11 ax, Bluetooth® 5.0 | |
| Supports dual band frequency 2.4/5 GHz | |
| Supports 2x2 MU-MIMO | |
| Supports channel bandwidth: HT20/HT40/HT80/HT160. Up to 1.73Gbps transfer speed | |
| Audio | ROG SupremeFX 8-Channel High Definition Audio CODEC S1220 |
| - Dual OP Amplifiers | |
| - Supports : Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking | |
| - High quality 120 dB SNR stereo playback output 108 dB SNR recording input | |
| - Supports up to 32-Bit/192kHz playback | |
| Audio Feature : | |
| #NAME? | |
| - Sonic Studio III + Sonic Studio Virtual Mixer | |
| - DTS® Sound Unbound | |
| - Optical S/PDIF out port(s) at back panel | |
| - Sonic Radar III | |
| USB Ports | 3rd Gen AMD Ryzen™ Threadripper™ Processors : |
| 4 x USB 3.2 Gen 2 port(s) (4 at back panel, red) | |
| AMD TRX40 chipset : | |
| 1 x USB 3.2 Gen 2 front panel connector port(s) | |
| AMD TRX40 chipset : | |
| 4 x USB 3.2 Gen 2 port(s) (4 at back panel, red, 3 x Type-A+1 x Type-C) | |
| AMD TRX40 chipset : | |
| 8 x USB 2.0 port(s) | |
| ASMedia® USB 3.2 Gen 1 controller : | |
| 4 x USB 3.2 Gen 1 port(s) (4 at mid-board) | |
| ROG Exclusive Features | ROG Exclusive Software |
| - RAMCache III | |
| - CPU-Z | |
| - GameFirst V | |
| - Sonic Studio III + Sonic Studio Link | |
| - Sonic Radar III | |
| - Overwolf | |
| Special Features | 5-Way Optimization by Dual Intelligent Processors 5 |
| - Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ Power Control, Fan Xpert 4, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages. | |
| Gamer's Guardian: | |
| - DRAM Overcurrent Protection | |
| - Highly Durable Components | |
| - DIGI+ VRM | |
| - SafeSlot | |
| - ESD Guards on LAN, Audio,and USB ports | |

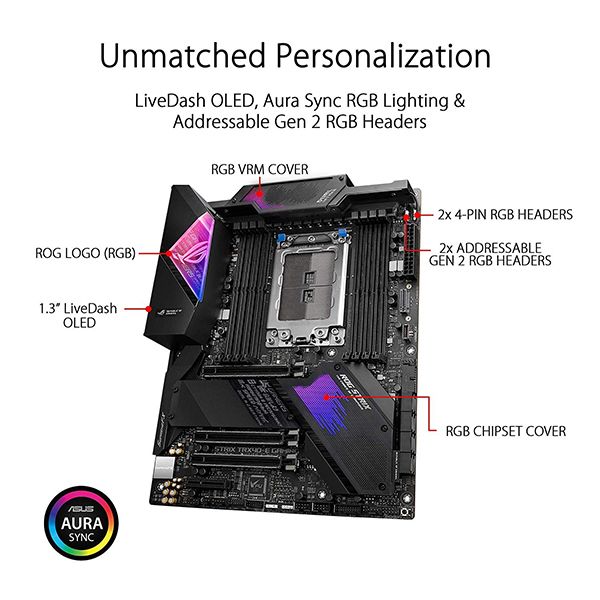

| LiveDash OLED 1.3 ” | |
| AURA : | |
| - Aura Lighting Control | |
| - Addressable Gen 2 Header | |
| ASUS Exclusive Features : | |
| - USB BIOS FlashBack™ | |
| - AI Suite 3 | |
| - Ai Charger | |
| - Pre-mounted I/O Shield | |
| - ASUS NODE: hardware control interface | |
| - BIOS FlashBack™ Button | |
| ASUS EZ DIY : | |
| - ASUS CrashFree BIOS 3 | |
| - ASUS EZ Flash 3 | |
| ASUS Q-Design : | |
| - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) | |
| - ASUS Q-Slot | |
| - ASUS Q-DIMM | |
| - ASUS Q-Connector | |
| Back I/O Ports | 1 x LAN (RJ45) port(s) |
| 8 x USB 3.2 Gen 2 (7 x Type-A+1 x Type-C) | |
| 4 x USB 2.0 | |
| 1 x Optical S/PDIF out | |
| 5 x Audio jack(s) | |
| 1 x Anti-surge 2.5G LAN (RJ45) port | |
| 1 x USB BIOS FlashBack™ Button(s) | |
| Internal I/O Ports | 2 x Aura RGB Strip Header |
| 2 x Addressable Gen 2 header(s) | |
| 2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s) | |
| 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) | |
| 2 x M.2 Socket 1 with M key, type 2242/2260/2280/22110 storage devices support(PCIe 4.0 x4 mode) | |
| 1 x M.2 Socket 2 with vertical M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) | |
| 1 x TPM header | |
| 8 x SATA 6Gb/s connector(s) | |
| 1 x CPU Fan connector(s) | |
| 1 x CPU OPT Fan connector(s) | |
| 3 x Chassis Fan connector(s) | |
| 1 x AIO_PUMP connector | |
| 1 x W_PUMP+ connector | |
| 1 x 24-pin EATX Power connector(s) | |
| 2 x 8-pin ATX 12V Power connector(s) | |
| 0 x Front panel audio connector(s) (AAFP) | |
| 1 x Thermal sensor connector(s) | |
| 1 x Power-on button(s) | |
| 1 x Clear CMOS jumper(s) | |
| 1 x Node Connector(s) | |
| 1 x USB BIOS FlashBack™ button(s) | |
| 1 x System panel connector | |
| 1 x USB 3.2 Gen 2 front panel connector | |
| 1 x Speaker connector | |
| 1 x Chipset Fan Header | |
| 1 x VRM_HS_FAN Header | |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2 |
| Hệ điều hành | Support for Windows 10 64-bit |
| Kích Thước | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
