Tên gọi

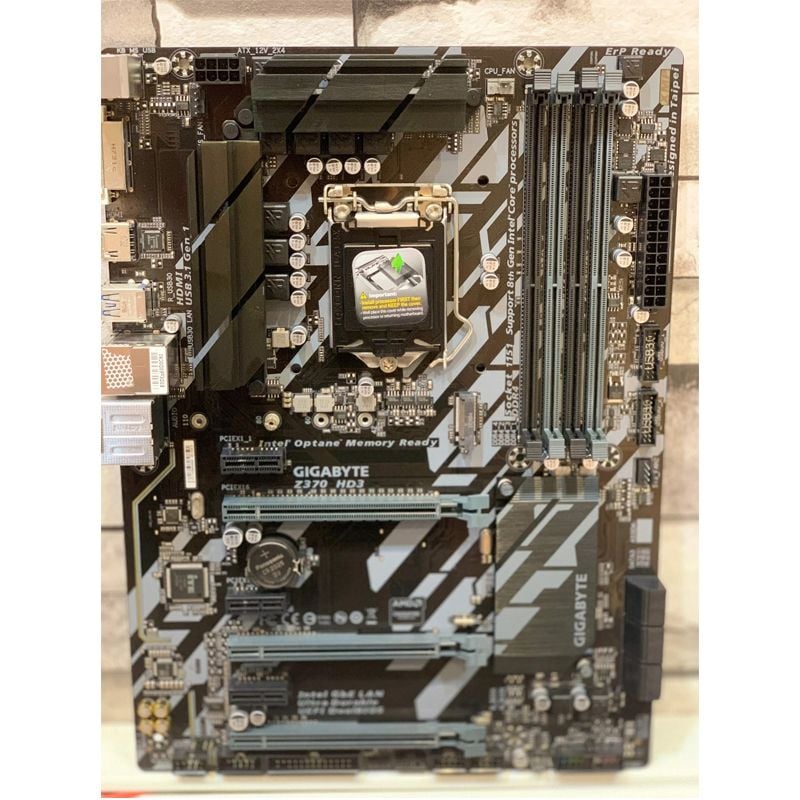

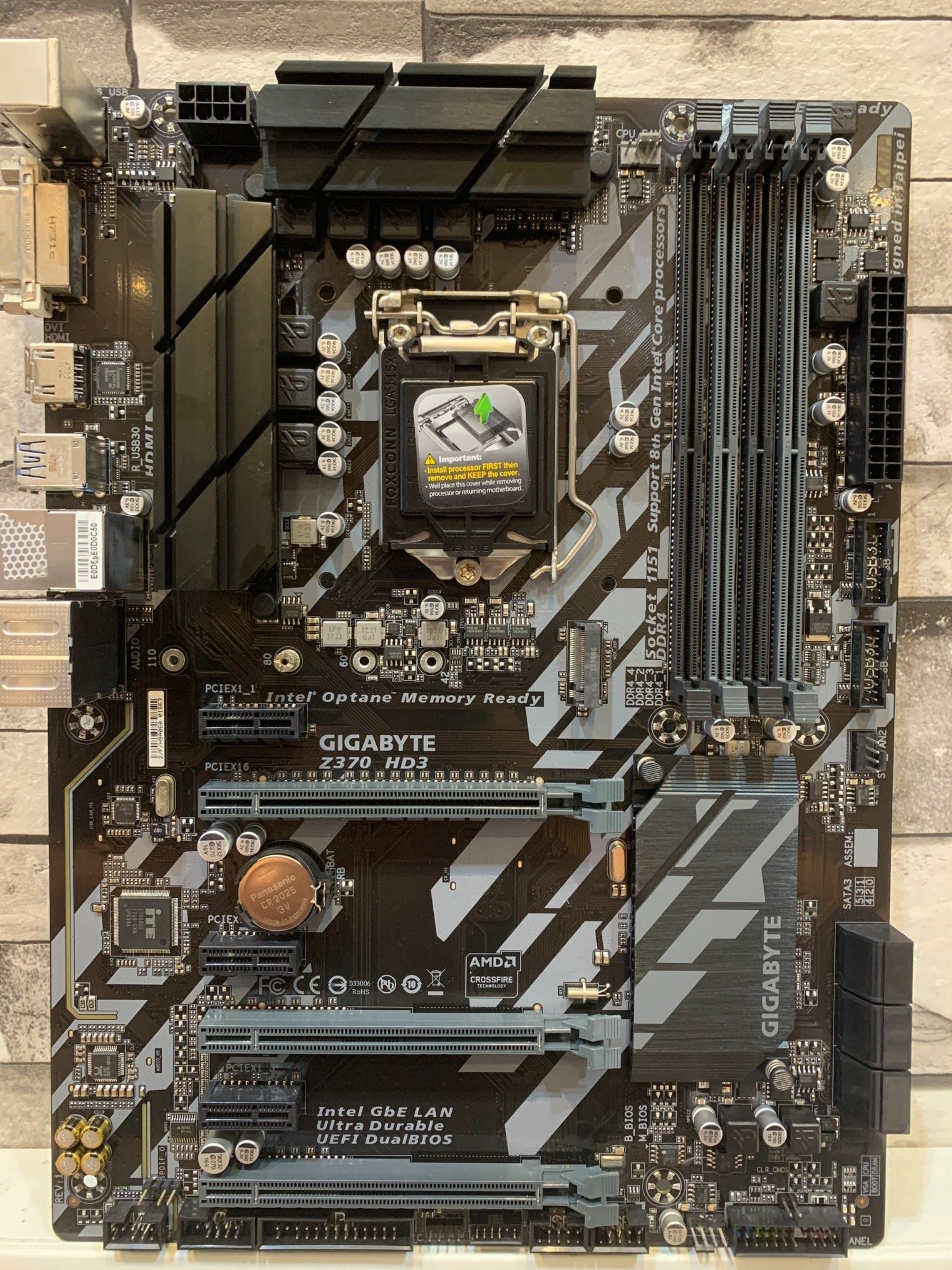

Gigabyte Z370-HD3

CPU hỗ trợ

Intel® Socket 1151 for 8th Generation Core™ Processors


Chipset / Socket

Intel® Z370

Bộ nhớ (RAM)

• 4 x DIMM, Max. 64GB, DDR4 4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
• Dual Channel Memory Architecture
• Supports Intel® Extreme Memory Profile (XMP)

Công nghệ đa GPU

• AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies

Khe cắm mở rộng

• 1 x PCI Express x16 slot, running at x16
• 2 x PCI Express x16 slots, running at x4

• 3 x PCI Express x1 slots

LAN

• Intel^® GbE LAN chip (10/100/1000 Mbit)

Âm thanh

• Realtek^® ALC892 codec

Cổng kết nối (Internal)

• 1 x 24-pin ATX main power connector

• 1 x 8-pin ATX 12V power connector

• 1 x CPU fan header

• 3 x system fan headers

• 1 x RGB LED strip header

• 6 x SATA 6Gb/s connectors

• 1 x M.2 Socket 3 connector

• 1 x front panel header

• 1 x front panel audio header

• 1 x S/PDIF Out header

• 2 x USB 3.1 Gen 1 headers

• 2 x USB 2.0/1.1 headers

• 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)

• 1 x parallel port header

• 1 x serial port header

• 1 x Clear CMOS jumper

Cổng kết nối (Back Panel)

• 1 x PS/2 keyboard/mouse port

• 1 x DVI-D port

• 1 x HDMI port

• 4 x USB 3.1 Gen 1 ports

• 2 x USB 2.0/1.1 ports

• 1 x RJ-45 port

• 6 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In, Line Out, Mic In)

Công nghệ độc quyền

• Support for APP Center

• Support for Q-Flash

• Support for Xpress Install

Phụ kiện đi kèm

• Quick Installation Guide, Support CD, I/O Shield

Hệ điều hành khuyến nghị

• Windows® 10 64-bit

Chuẩn kích cỡ

• ATX Form Factor
