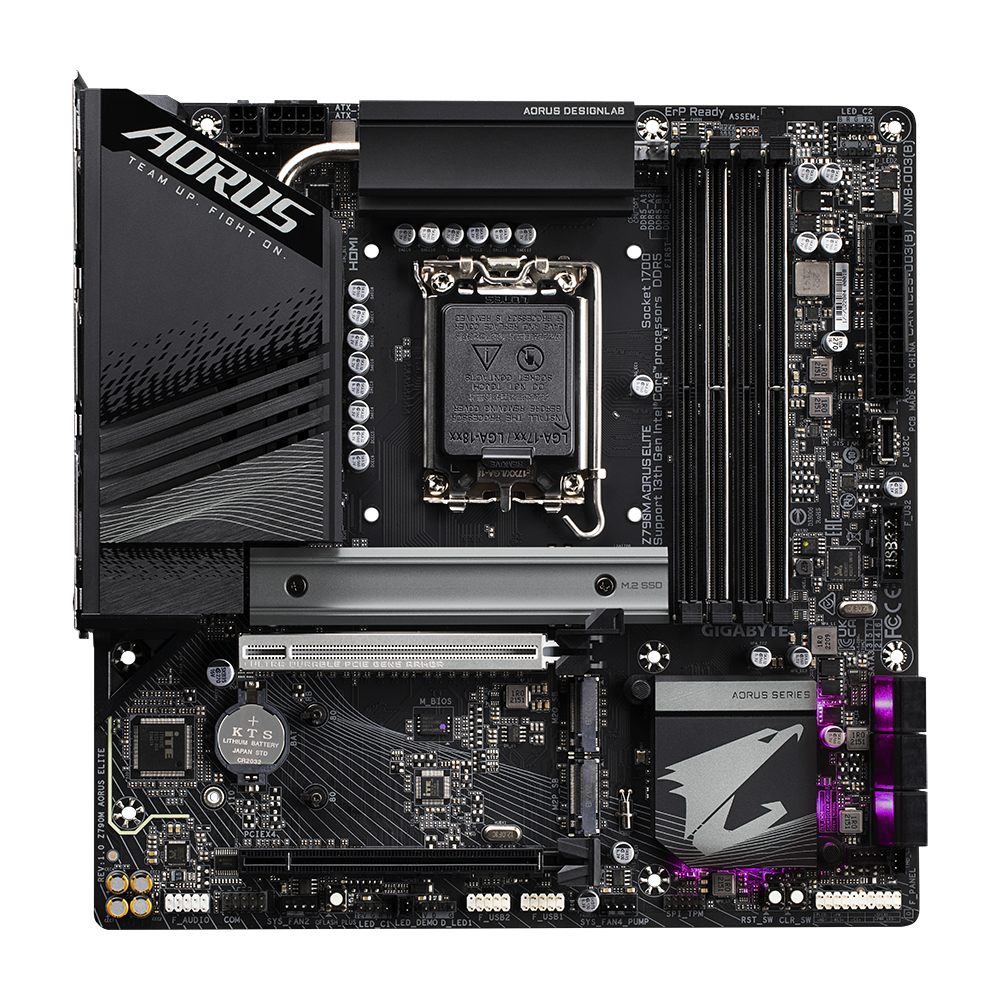

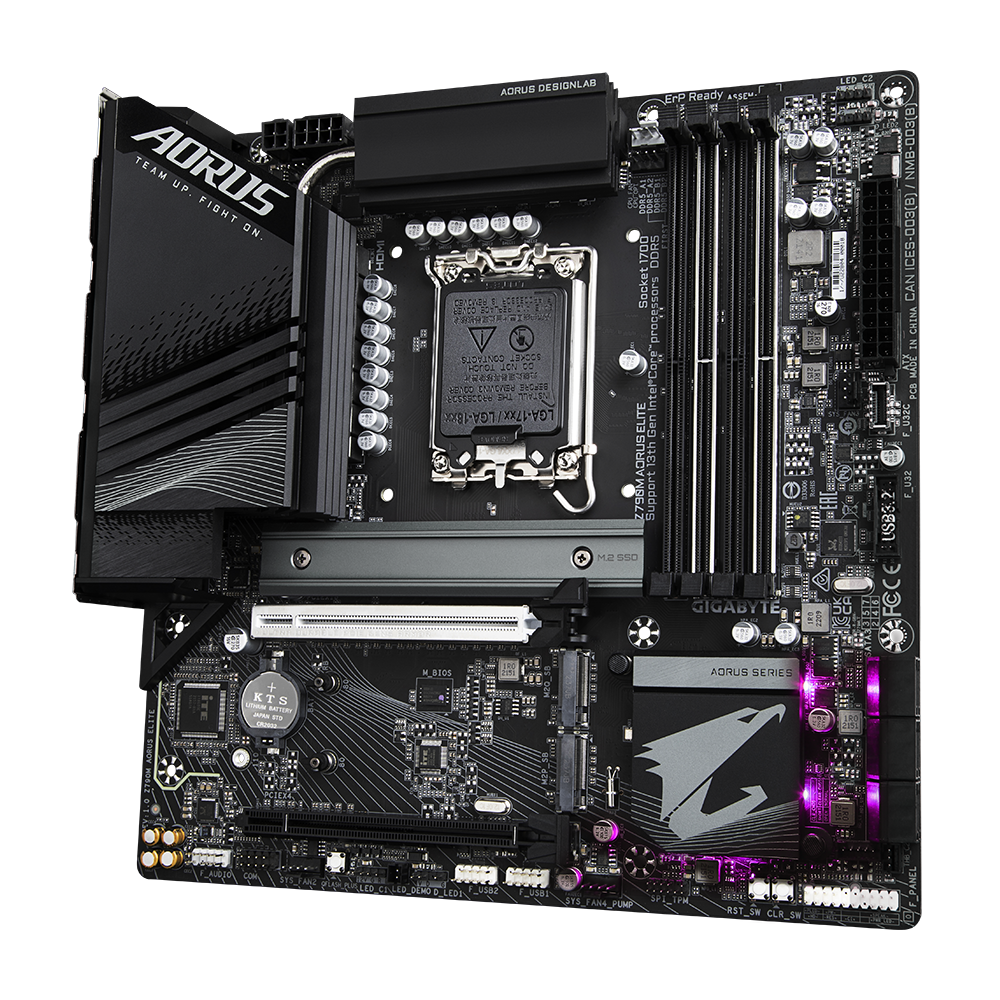

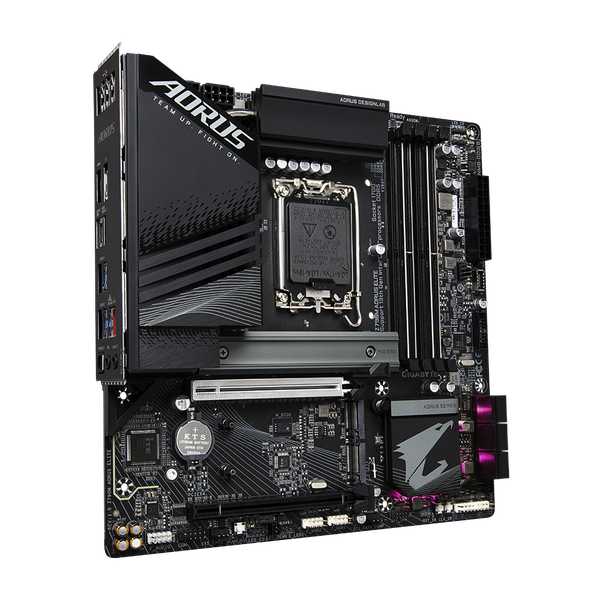

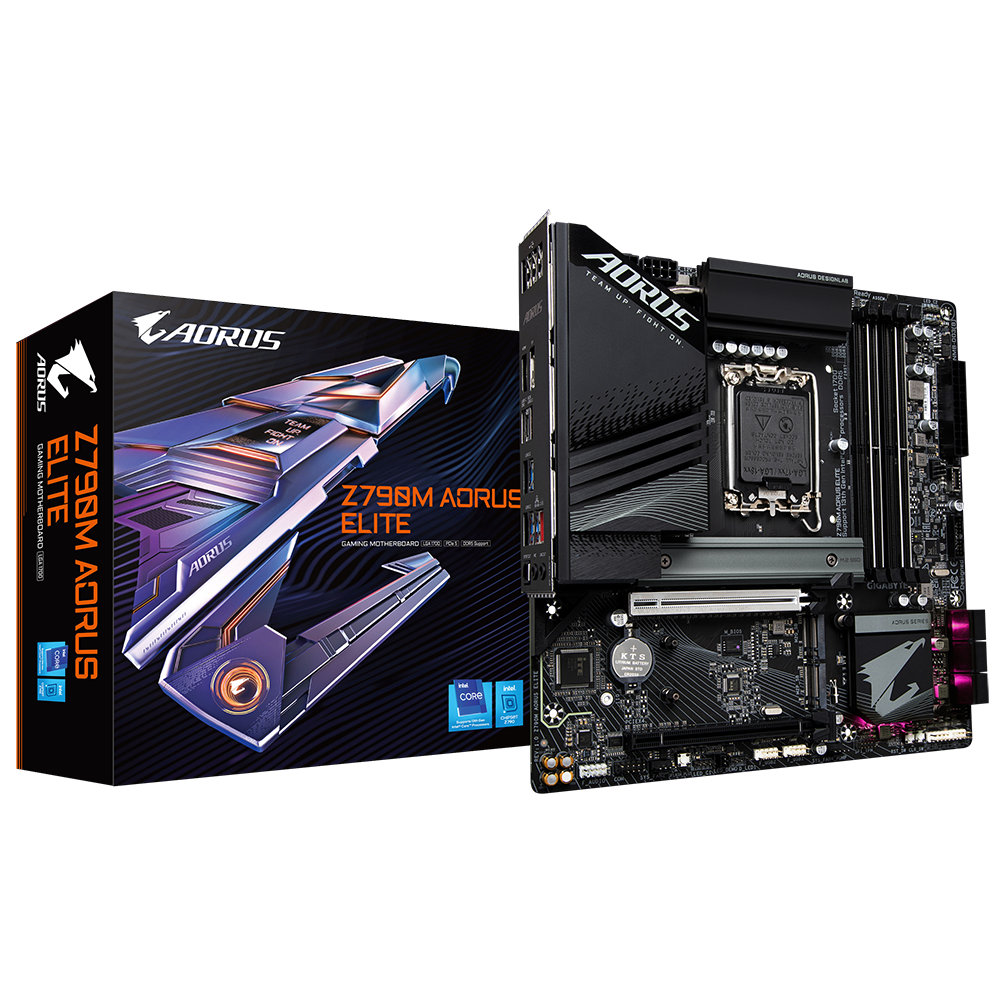

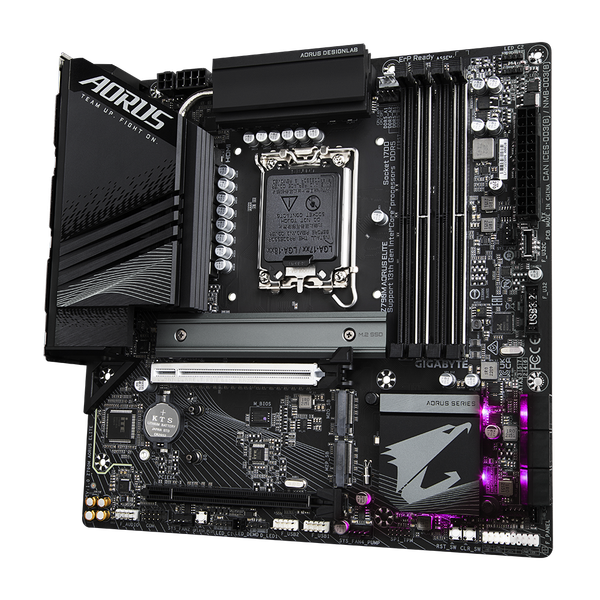

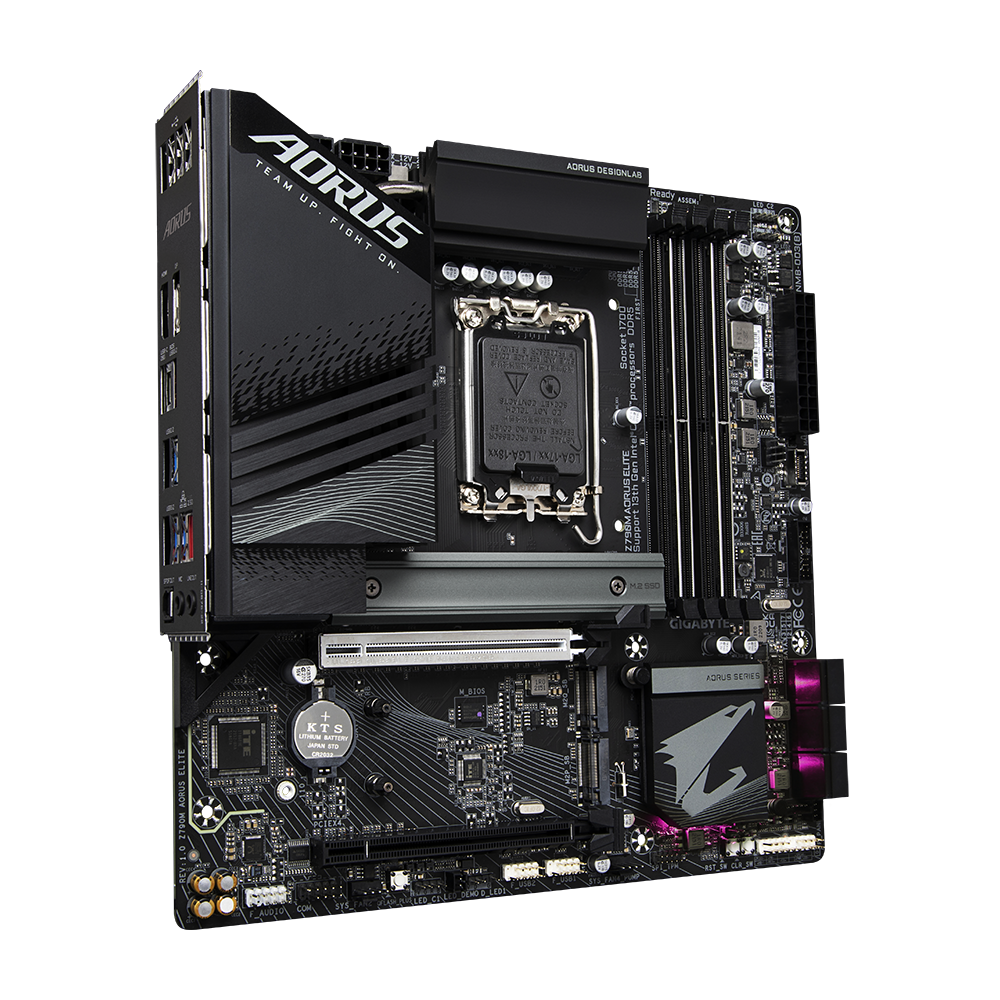

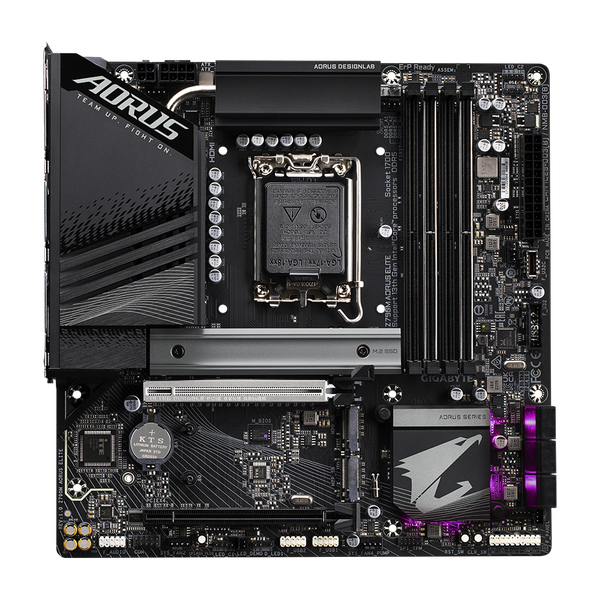

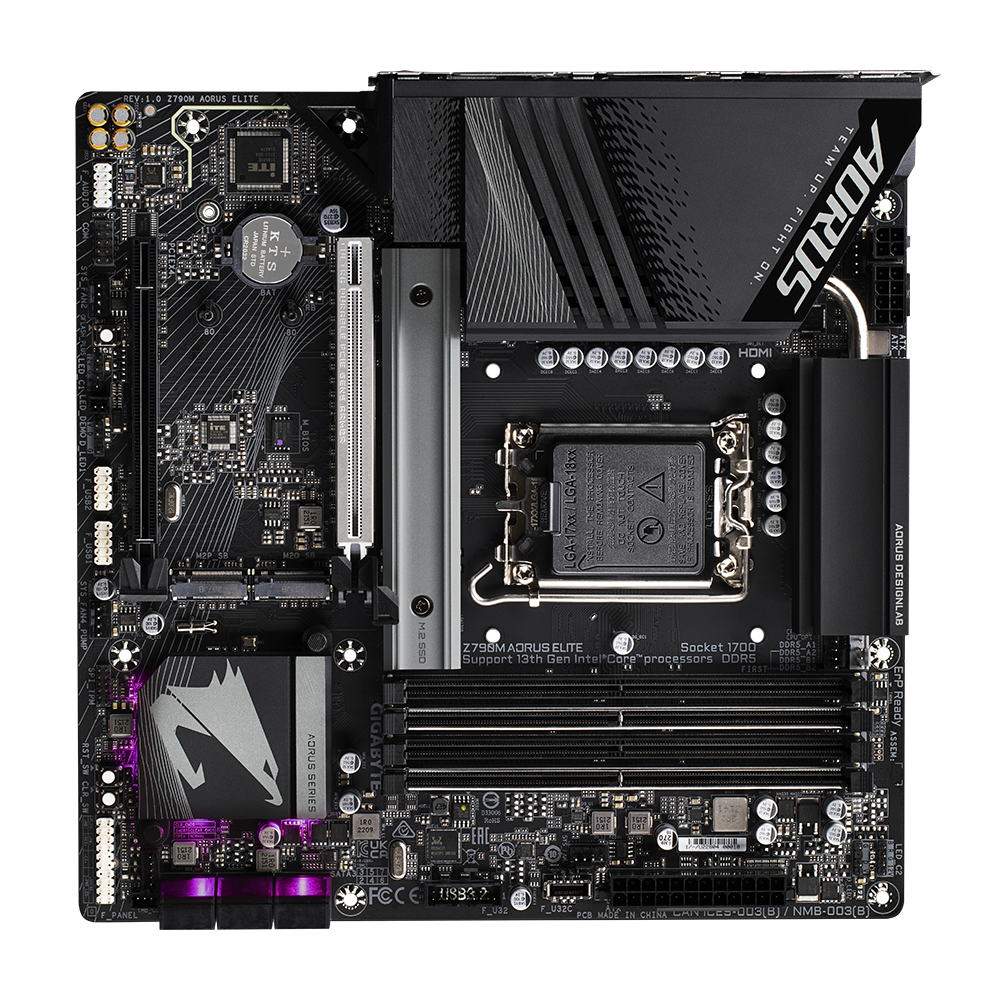

MAIN GIGABYTE Z790M AORUS ELITE (LGA1700 / M-ATX / 4XDDR5)

  • Thương hiệu: GIGABYTE
  • Loại: MAINBOARD
  • SKU: SP108288

Tại Máy Tính Biên Hòa: 6,280,000₫

  • GIAO HÀNG
    GIAO HÀNG
    Miễn phí giao hàng toàn quốc thông qua các đơn vị vận chuyển cho Hóa đơn trên 500,000đ
  • SẢN PHẨM
    SẢN PHẨM
    Cam kết hàng mới 100% - Bảo hành chính hãng
  • ĐỔI TRẢ
    ĐỔI TRẢ
    1 đổi 1 lên đến 31 ngày nếu phát sinh lỗi do nhà sản xuất
  • Hỗ trợ
    Hỗ trợ
    Thứ 2 - CN: 08:00 - 21:00 Hotline: 1800.799.999

Chia sẻ ngay

  • CPU

    1. LGA1700 socket: Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
    2. L3 cache varies with CPU
    (Please refer "CPU Support List" for more information.)
  • Chipset

    1. Intel® Z790 Express Chipset
  • Bộ nhớ

    1. Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules
    2. 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory
    3. Dual channel memory architecture
    4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    6. Support for Extreme Memory Profile (XMP) memory modules
    (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)
  • Card đồ họa tích hợp

    Integrated Graphics Processor-Intel® HD Graphics support:
    1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
      * Support for HDMI 2.0 version and HDCP 2.3.
    2. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60
      * Support for DisplayPort 1.2 version and HDCP 2.3
    (Graphics specifications may vary depending on CPU support.)
  • Âm thanh

    1. Realtek® ALC1200 CODEC
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
      * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
    4. Support for S/PDIF Out
  • LAN

    1. Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
  • Khe cắm mở rộng

    CPU:
    1. 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
      * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
    Chipset:
    1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
    Support for AMD CrossFire™ technology
  • Giao diện lưu trữ

    CPU:
    1. 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
    Chipset:
    1. 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
    2. 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
    3. 6 x SATA 6Gb/s connectors
    RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
    RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
  • USB

    Chipset:
    1. 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support
    2. 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
    3. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
    Chipset+2 USB 2.0 Hubs:
    1. 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
    Chipset+2 USB 2.0 Hubs:
    1. 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
  • Kết nối I/O bên trong

    1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V power connector
    3. 1 x 4-pin ATX 12V power connector
    4. 1 x CPU fan header
    5. 1 x water cooling CPU fan header
    6. 3 x system fan headers
    7. 1 x system fan/water cooling pump header
    8. 2 x addressable LED strip headers
    9. 2 x RGB LED strip headers
    10. 3 x M.2 Socket 3 connectors
    11. 6 x SATA 6Gb/s connectors
    12. 1 x front panel header
    13. 1 x front panel audio header
    14. 1 x USB Type-C® header, with USB 3.2 Gen 2 support
    15. 1 x USB 3.2 Gen 1 header
    16. 2 x USB 2.0/1.1 headers
    17. 2 x Thunderbolt™ add-in card connectors
    18. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
    19. 1 x serial port header
    20. 1 x reset button
    21. 1 x Q-Flash Plus button
    22. 1 x Clear CMOS button
    23. 1 x reset jumper

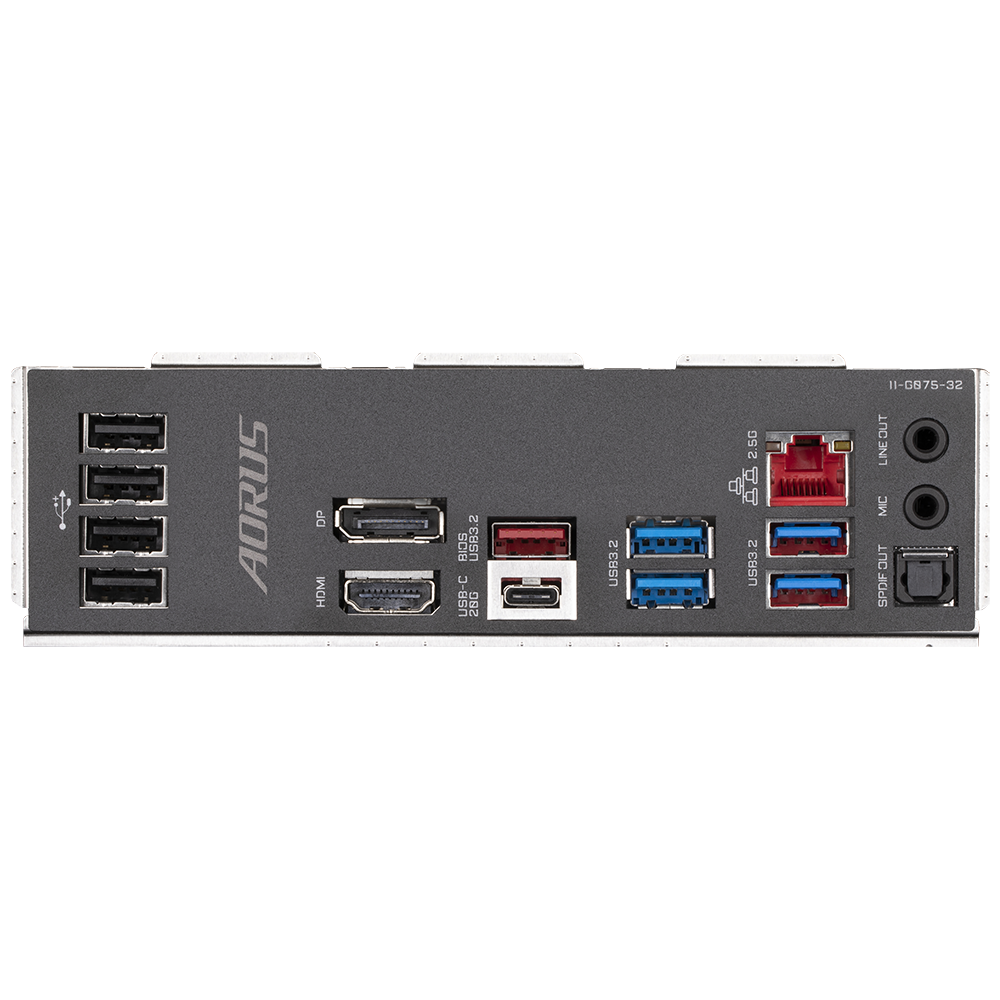

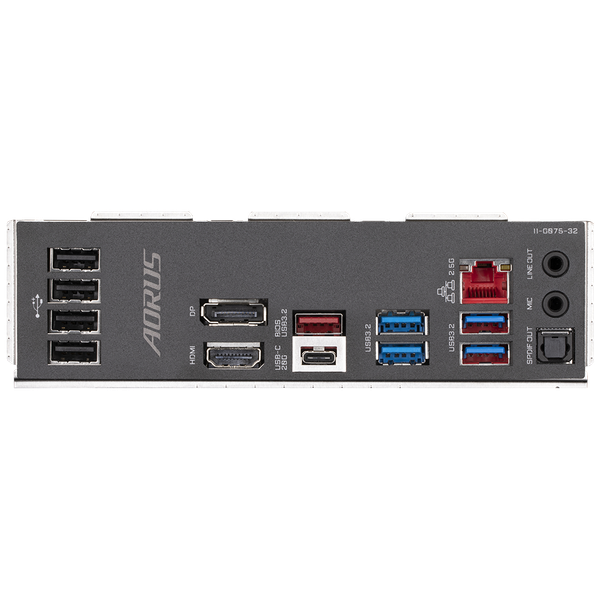

  • Kết nối bảng phía sau

    1. 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
    2. 1 x USB 3.2 Gen 2 Type-A port (red)
    3. 4 x USB 3.2 Gen 1 ports
    4. 4 x USB 2.0/1.1 ports
    5. 1 x HDMI 2.0 port
    6. 1 x DisplayPort
    7. 1 x RJ-45 port
    8. 1 x optical S/PDIF Out connector
    9. 2 x audio jacks
  • Điều khiển I/O

    1. iTE® I/O Controller Chip
  • Theo dõi phần cứng

    1. Voltage detection
    2. Temperature detection
    3. Fan speed detection
    4. Water cooling flow rate detection
    5. Fan fail warning
    6. Fan speed control
      * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
  • BIOS

    1. 1 x 256 Mbit flash
    2. Use of licensed AMI UEFI BIOS
    3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Tính năng duy nhất

    1. Support for GIGABYTE Control Center (GCC)
      * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    2. Support for Q-Flash
    3. Support for Q-Flash Plus
    4. Support for Smart Backup
  • Gói phần mềm

    1. Norton® Internet Security (OEM version)
    2. LAN bandwidth management software
  • Hệ điều hành

    1. Support for Windows 11 64-bit
    2. Support for Windows 10 64-bit
  • Hệ số khuôn

    1. Micro ATX Form Factor; 24.4cm x 24.4cm


* Các thuật ngữ HDMI, HDMI High-Definition Multimedia Interface, Nhận diện thương mại HDMI và Logo HDMI là các nhãn hiệu thương mại hoặc nhãn hiệu thương mại đã đăng ký của HDMI Licensing Administrator, Inc.
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
